400G QSFP112 SR4H 50m Transceiver | Q112-400G-SR4H / 980-9I693-00NS00
Catalog reference: NVIDIA/Mellanox Coding Target MMA1Z00-NS400 (980-9I693-00NS00) Compatible 400G SR4 QSFP112 4x100G PAM4 Broadcom DSP & Broadcom VCSEL 850nm 50m MMF DOM MPO-12/APC InfiniBand NDR Optical Transceiver Module
The part numbers on this page identify the requested coding target. Confirm the exact host model, port and firmware for the selected SKU.

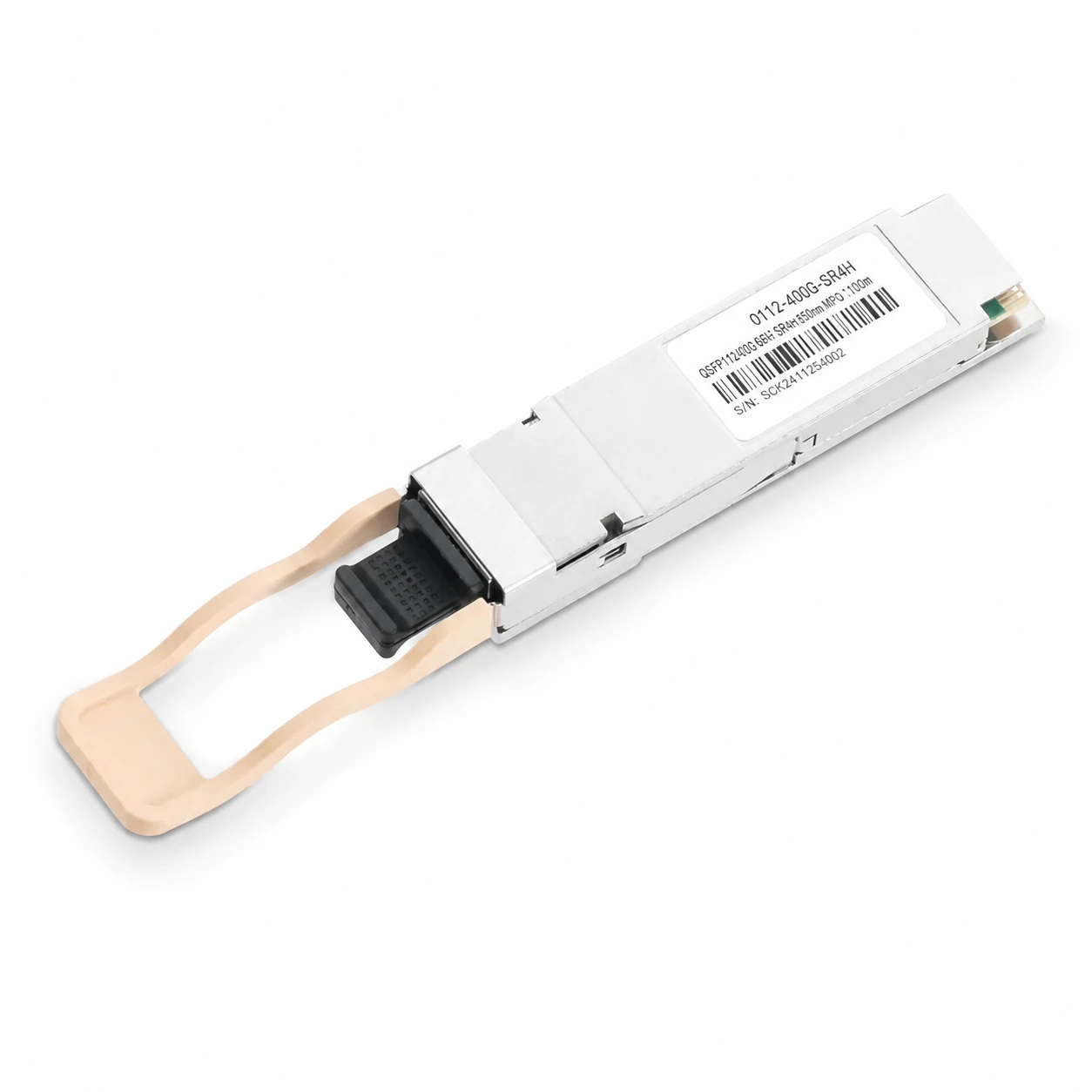

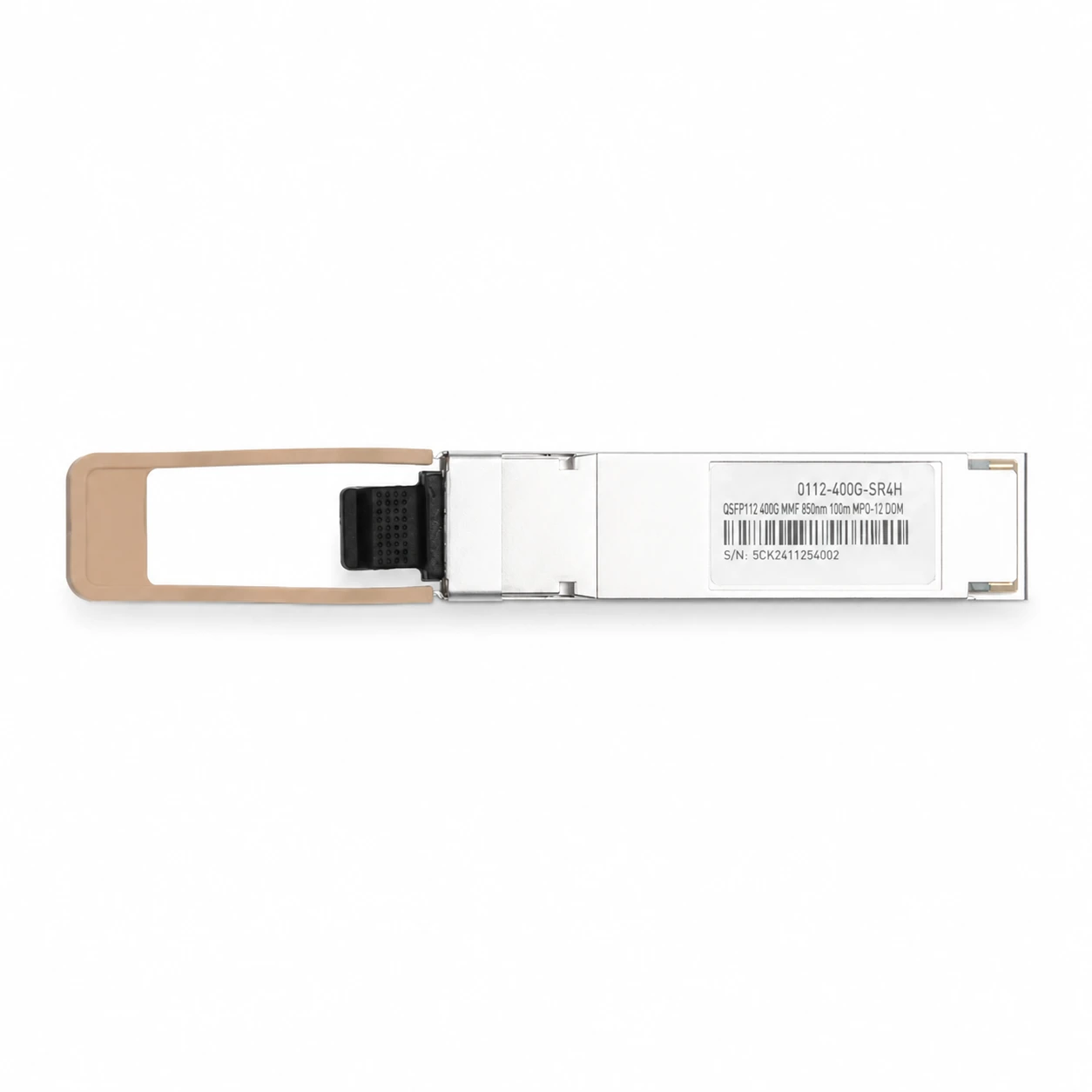

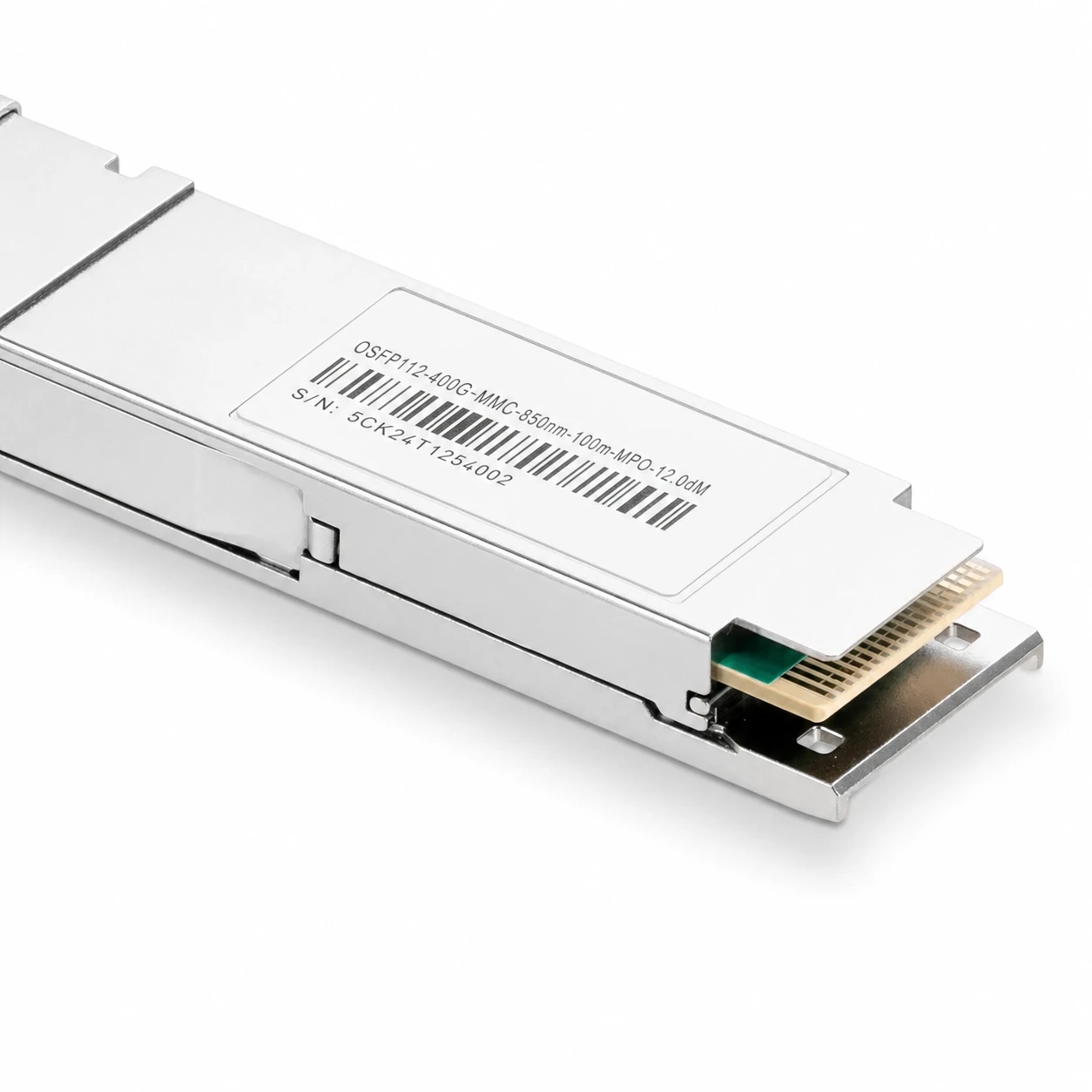

NVIDIA Coding Target MMA1Z00-NS400 (980-9I693-00NS00) compatible QSFP112 400G SR4 module with Broadcom DSP & Broadcom VCSEL supports 400G InfiniBand NDR and Ethernet over a single MPO-12/APC connector, up to 50m.
Family q112-400g-sr4h-102063Model Q112-400G-SR4H1 SKU option
Requested part-number references
- Requested coding target
- NVIDIA/Mellanox
- Primary reference identifier
- 980-9I693-00NS00
Part-number identifiers and aliases available for matching:
- 980-9I693-00NS00
- MMA1Z00-NS400
Review boundary: These identifiers reproduce source catalog matching terms only; they do not establish interoperability, approval or endorsement. Confirm the exact host model, port type, firmware and test evidence before use.
Select the exact SKU
Search and select a SKU to update the exact title, description, model and option attributes before sending an RFQ.
SKU 102063 - Model Q112-400G-SR4H
NVIDIA/Mellanox Coding Target MMA1Z00-NS400 QSFP112 400G SR4 InfiniBand NDR Transceiver with Broadcom DSP & Broadcom VCSEL
NVIDIA Coding Target MMA1Z00-NS400 (980-9I693-00NS00) compatible QSFP112 400G SR4 module with Broadcom DSP & Broadcom VCSEL supports 400G InfiniBand NDR and Ethernet over a single MPO-12/APC connector, up to 50m.
BrandSUNFULL
Compatible brand / platformInfiniBand platform (vendor not specified)
Chip SolutionsBroadcom DSP & Broadcom VCSEL
Use this selection as the requested coding target. Final compatibility still requires the host model, port type and firmware version.
Product brand: SUNFULL. Third-party names identify requested compatibility or coding targets only and do not imply affiliation, endorsement or original-equipment status.
- Built-in Broadcom DSP & Broadcom VCSEL, Maximum Power Consumption ≤9W.
- Complies with QSFP112 MSA, CMIS 4.0, and RoHS protocols, providing a reliable and sustainable solution.
Engineering record
Specifications
Family-level values from the collected technical record. Confirm the selected SKU and required evidence in the quotation.
- Form Factor
- QSFP112
- Distance
- 50m
- Wavelength
- 850nm
- Connector
- MPO-12/APC
- Power Consumption
- ≤9W
- Transmitter
- VCSEL
- Receiver
- PIN
- Media
- MMF
- Modulation (electrical)
- 4x106.25Gb/s PAM4
- Modulation (Optical)
- 4x106.25Gb/s PAM4
- Case Temperature(℃)
- 0 to 70°C (32 to 158°F)
- Protocol
- IB NDR,400G Ethernet Compliant
Technical detail
Construction and application notes for Q112-400G-SR4H
Review connector, construction, routing and handling details that apply to the selected family and exact SKU.
Interface and construction

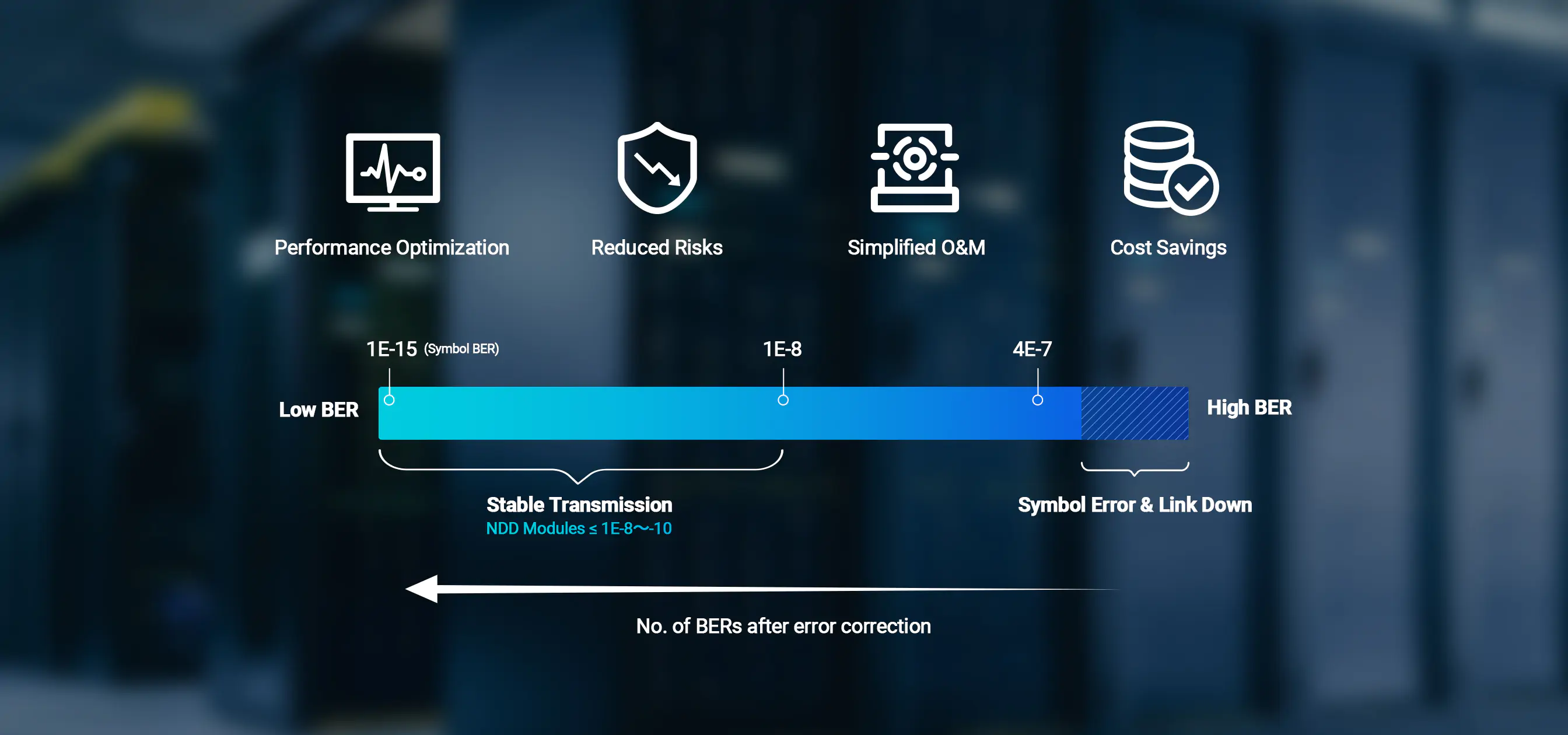

400G QSFP112 SR4 modules offer flexible link configuration, adaptive NIC-side 400G or 200G rates and feature low BER on par with NVlDlA originals. In the LL FEC(272,257) test, Pre error correction BER of 's transceivers stays around -8~-10 and after error correction is nearly 0, unlocking high levels of performance for all users.
