400G OSFP to 4xQSFP56 1–3m DAC | O4Q56-400G-CU1H
Catalog reference: 1m (3ft) NVIDIA/Mellanox Coding Target MCP7Y70-H001 (980-9I93N-00H001) Compatible 400G DAC OSFP IHS/Finned Top 8x50G PAM4 to 4x100G QSFP56 2x50G PAM4 InfiniBand HDR Passive Direct Attach Copper Splitter Cable
The part numbers on this page identify the requested coding target. Confirm the exact host model, port and firmware for the selected SKU.
NVIDIA/Mellanox Coding Target MCP7Y70-H001 Compatible 1m InfiniBand OSFP to 4xQSFP Passive Copper Splitter Cable is used for connecting Quantum-2 NDR InfiniBand switches to HDR100 switches, ConnectX-6/7 adapters, and/or BlueField-2/3 DPUs.
Family o4q56-400g-cu1h-103050Model O4Q56-400G-CU1H4 SKU options
Select the exact SKU
Search and select a SKU to update the exact title, description, model and option attributes before sending an RFQ.
SKU 103050 - Model O4Q56-400G-CU1H

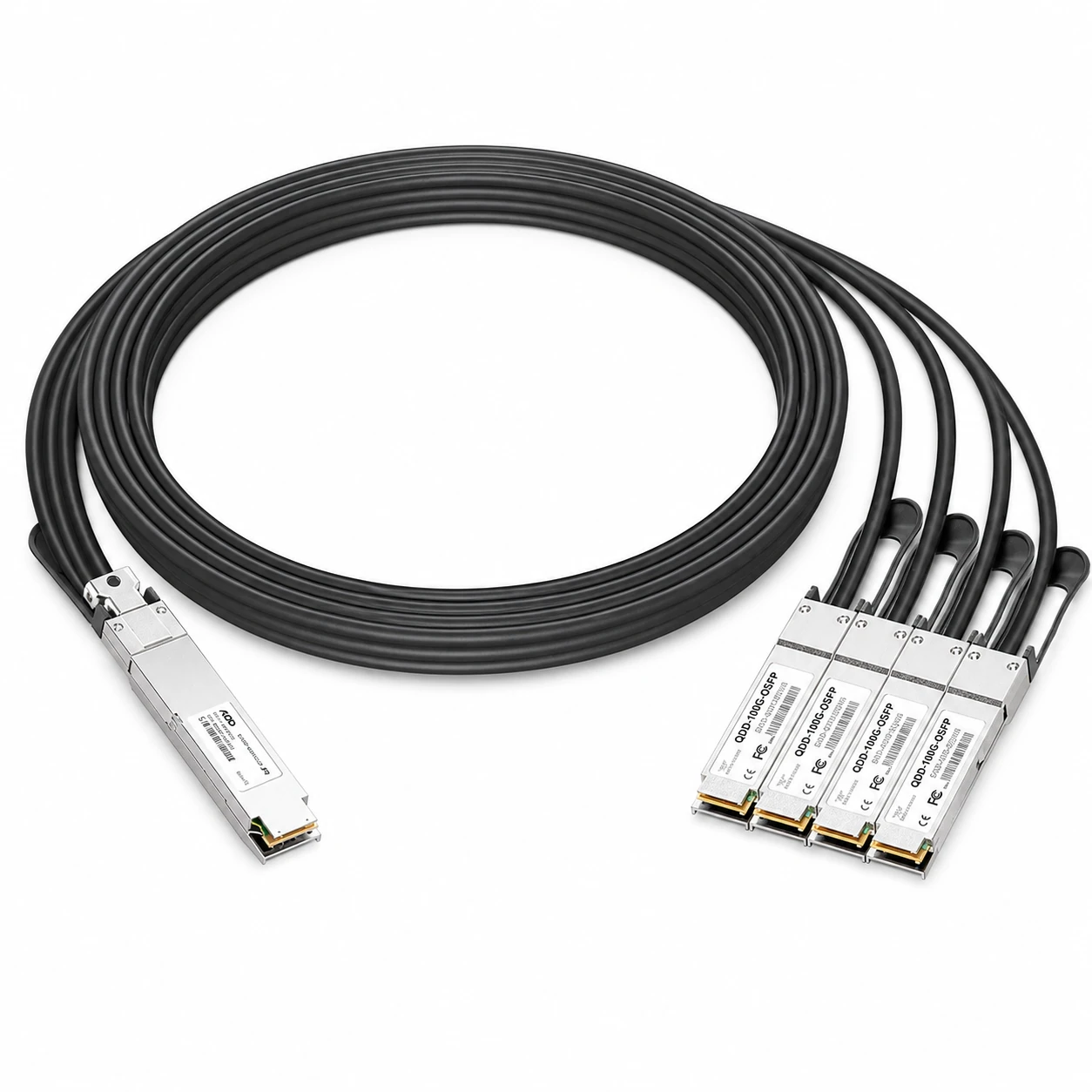

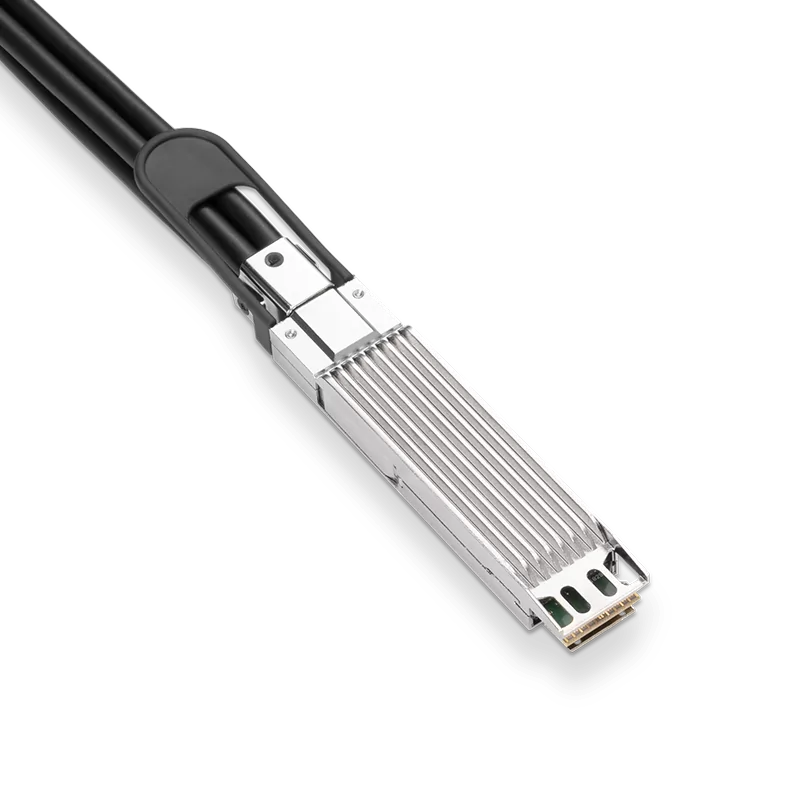

MCP7Y70-H001 Compatible 1m InfiniBand HDR DAC Splitter Cable 400G (Finned Top) to 4x100G (Flat Top)
NVIDIA/Mellanox Coding Target MCP7Y70-H001 Compatible 1m InfiniBand OSFP to 4xQSFP Passive Copper Splitter Cable is used for connecting Quantum-2 NDR InfiniBand switches to HDR100 switches, ConnectX-6/7 adapters, and/or BlueField-2/3 DPUs.
BrandSUNFULL
Compatible brand / platformInfiniBand platform (vendor not specified)
Length1m (3ft)
Use this selection as the requested coding target. Final compatibility still requires the host model, port type and firmware version.
Product brand: SUNFULL. Third-party names identify requested compatibility or coding targets only and do not imply affiliation, endorsement or original-equipment status.
- Complies with OSFP MSA, CMIS 5.0, SFF-8636, and RoHS protocols, providing a reliable and sustainable solution.
Engineering record
Specifications
Family-level values from the collected technical record. Confirm the selected SKU and required evidence in the quotation.
- Form Factor
- OSFP to 4xQSFP56
- Cable Length
- 1–3m (SKU-dependent)
- Wire AWG
- 28AWG~30AWG
- Commercial Temperature Range
- 0~70°C (32 to 158°F)
- Jacket Material
- PVC
- Power Consumption
- <0.1W
- Minimum Bend Radius
- 10x OD
- Application
- IB HDR, 100G/400G Ethernet Compliant
Downloads
Technical documents
Use documents together with the exact SKU selection; document version and commercial validity should be reconfirmed during RFQ review.
