NVIDIA/Mellanox Coding Target MMS4A50-XM-RHS (980-9IAS1-00XM00) Compatible 1.6T 2xFR4 OSFP224 RHS/Flat Top InfiniBand XDR...

InfiniBand Interconnects

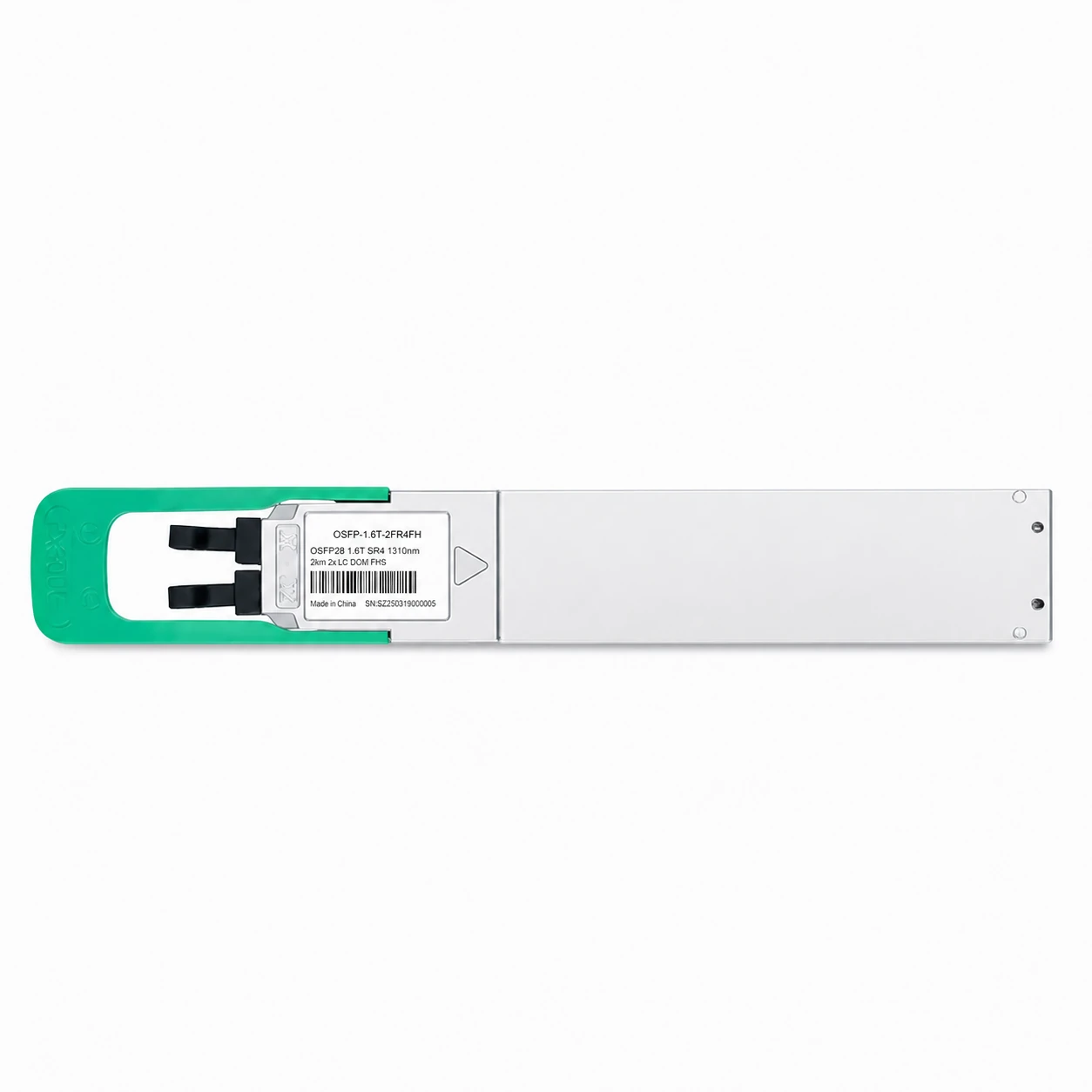

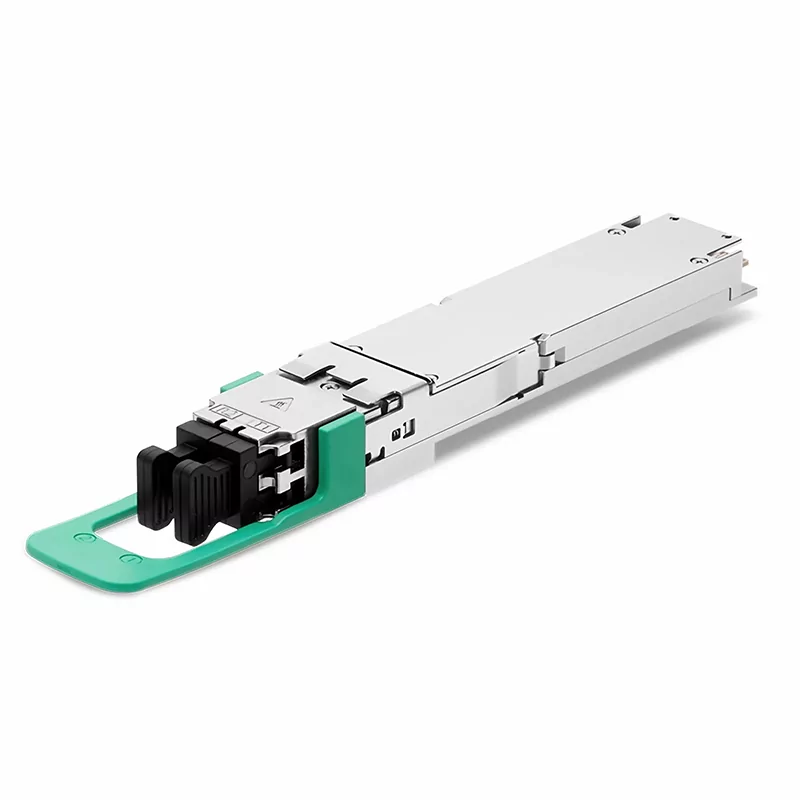

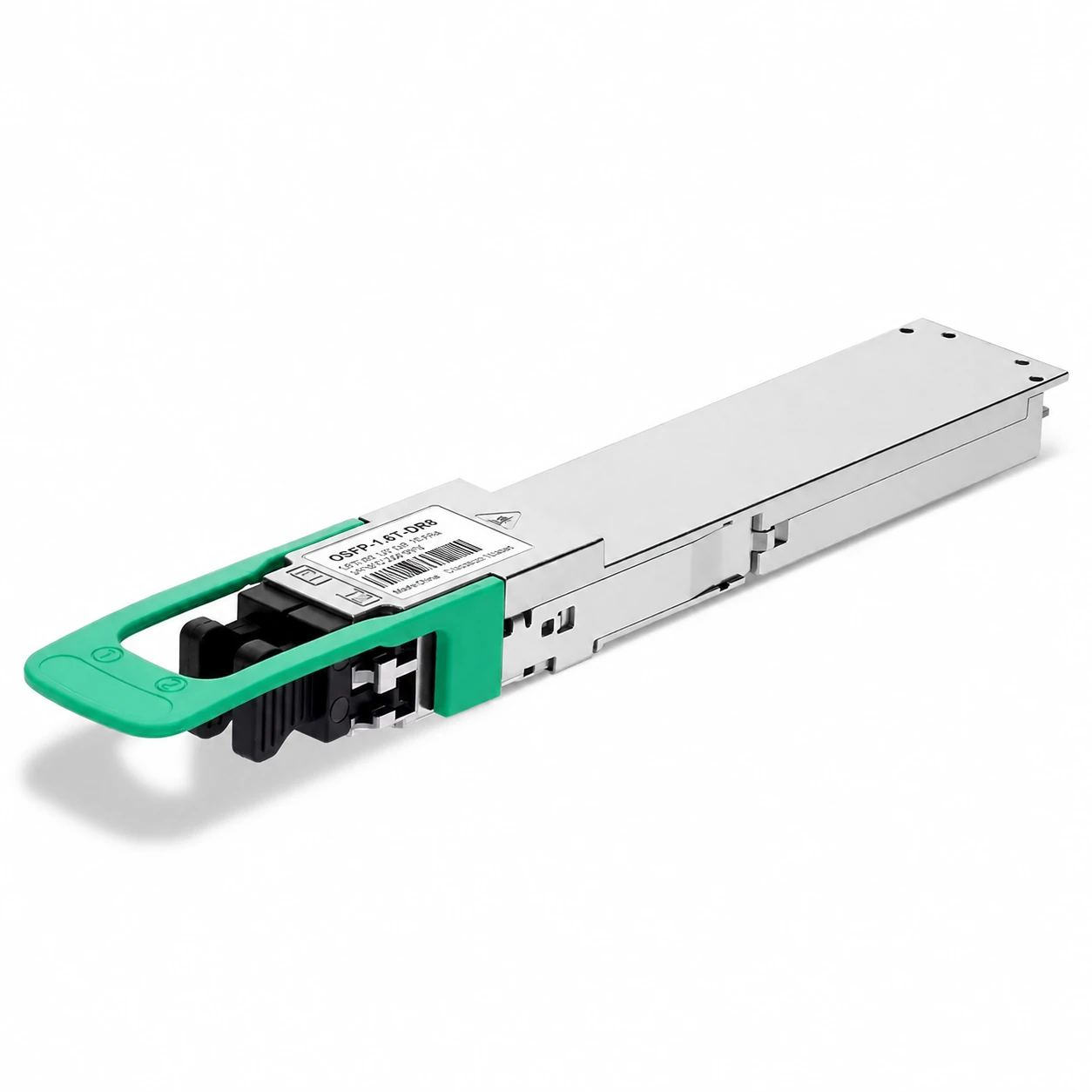

1.6T OSFP224 2xFR4 2km Transceiver | OSFP-1.6T-2FR4FH / 980-9IAS1-00XM00

Catalog reference: NVIDIA/Mellanox Coding Target MMS4A50-XM-RHS (980-9IAS1-00XM00) Compatible 1.6T 2xFR4 OSFP224 RHS/Flat Top 8x200G PAM4 Broadcom 3nm DSP (Sian3| BCM83628) 1310nm 2km SMF DOM Dual LC Duplex InfiniBand XDR Optical Transceiver Module

The part numbers on this page identify the requested coding target. Confirm the exact host model, port and firmware for the selected SKU.

NVIDIA/Mellanox Coding Target MMS4A50-XM-RHS (980-9IAS1-00XM00) Compatible 1.6T 2xFR4 OSFP224 RHS/Flat Top 1310nm 2km SMF DOM Dual LC Duplex InfiniBand XDR Transceiver is powered by Broadcom 3nm DSP (Sian3| BCM83628) and self-developed silicon photonics chips and is desigend to link NVIDIA Quantum-X800 liquid-cooled switches.

Family osfp-1-6t-2fr4fh-103200Model OSFP-1.6T-2FR4FH1 SKU option

Requested part-number references

Requested coding target
NVIDIA/Mellanox
Primary reference identifier
980-9IAS1-00XM00

Part-number identifiers and aliases available for matching:

  • 980-9IAS1-00XM00
  • MMS4A50-XM-RHS

Review boundary: These identifiers reproduce source catalog matching terms only; they do not establish interoperability, approval or endorsement. Confirm the exact host model, port type, firmware and test evidence before use.

Select the exact SKU

Search and select a SKU to update the exact title, description, model and option attributes before sending an RFQ.

SKU 103200 - Model OSFP-1.6T-2FR4FH

NVIDIA/Mellanox Coding Target MMS4A50-XM-RHS (980-9IAS1-00XM00) Compatible 1.6T 2xFR4 OSFP224 RHS/Flat Top InfiniBand XDR Silicon Photonics SMF Optical Transceiver for Quantum-X800 Switches

NVIDIA/Mellanox Coding Target MMS4A50-XM-RHS (980-9IAS1-00XM00) Compatible 1.6T 2xFR4 OSFP224 RHS/Flat Top 1310nm 2km SMF DOM Dual LC Duplex InfiniBand XDR Transceiver is powered by Broadcom 3nm DSP (Sian3| BCM83628) and self-developed silicon photonics chips and is desigend to link NVIDIA Quantum-X800 liquid-cooled switches.

BrandSUNFULL
Compatible brand / platformInfiniBand platform (vendor not specified)
Chip SolutionsBroadcom Sian3| BCM83628

Use this selection as the requested coding target. Final compatibility still requires the host model, port type and firmware version.

Product brand: SUNFULL. Third-party names identify requested compatibility or coding targets only and do not imply affiliation, endorsement or original-equipment status.

Get Datasheet & Quote Compatibility Review WhatsApp Technical Documents
Share: LinkedIn Facebook X Email
  • Built-in Broadcom 3nm DSP (Sian3 BCM83628) and self-developed silicon photonics chips.
  • Maximum power consumption ≤26W.
  • 8x 200G-PAM4 electrical modulation.
  • Compliant with OSFP MSA, IEEE 802.3dj_D1.1 protocol and CMIS 5.2.

Engineering record

Specifications

Family-level values from the collected technical record. Confirm the selected SKU and required evidence in the quotation.

Form Factor
OSFP224
Distance
2km
Wavelength
1310nm
Connector
Dual LC Duplex
Power Consumption
≤26W
Transmitter
CWDM SiPh MZM
Receiver
PIN
Media
SMF
Modulation (electrical)
8x212Gb/s PAM4
Modulation (Optical)
Two ports 4x212Gb/s PAM4
Case Temperature (℃)
0 to 70°C (32 to 158°F)
Protocol
IB XDR, 1.6T Ethernet Compliant

Downloads

Technical documents

Use documents together with the exact SKU selection; document version and commercial validity should be reconfirmed during RFQ review.

Osfp 1 6T 2Fr4Fh Datasheet 1
