1.6T OSFP 1.5–3m Interconnect | OSFP-1.6T-AE3H / NVIDIA/Mellanox
Catalog reference: 3m (10ft) NVIDIA/Mellanox Compatible 1.6T AEC OSFP224 IHS/Finned Top 8x200G PAM4 to OSFP224 IHS/Finned Top 8x200G PAM4 InfiniBand XDR Active Electrical Cable
The part numbers on this page identify the requested coding target. Confirm the exact host model, port and firmware for the selected SKU.
NVIDIA/Mellanox Compatible 3m (10ft) Twin-Port 2x800Gb/s OSFP224 IHS/Finned Top to 2x800Gb/s OSFP224 IHS/Finned Top Active Electrical Cable (AEC) is designed for InfiniBand XDR networking. It enables seamless high-speed interconnections between NVIDIA Quantum-X800 switches,offering greater flexibility than DACs for easier high-density cabling.
Family osfp-1-6t-ae3h-103911Model OSFP-1.6T-AE3H4 SKU options
Requested part-number references
- Requested coding target
- NVIDIA/Mellanox
- Primary reference identifier
- Not provided in the source record
No OEM part-number alias was captured in the source record.
Review boundary: These identifiers reproduce source catalog matching terms only; they do not establish interoperability, approval or endorsement. Confirm the exact host model, port type, firmware and test evidence before use.
Select the exact SKU
Search and select a SKU to update the exact title, description, model and option attributes before sending an RFQ.
SKU 103914 - Model OSFP-1.6T-AE3H

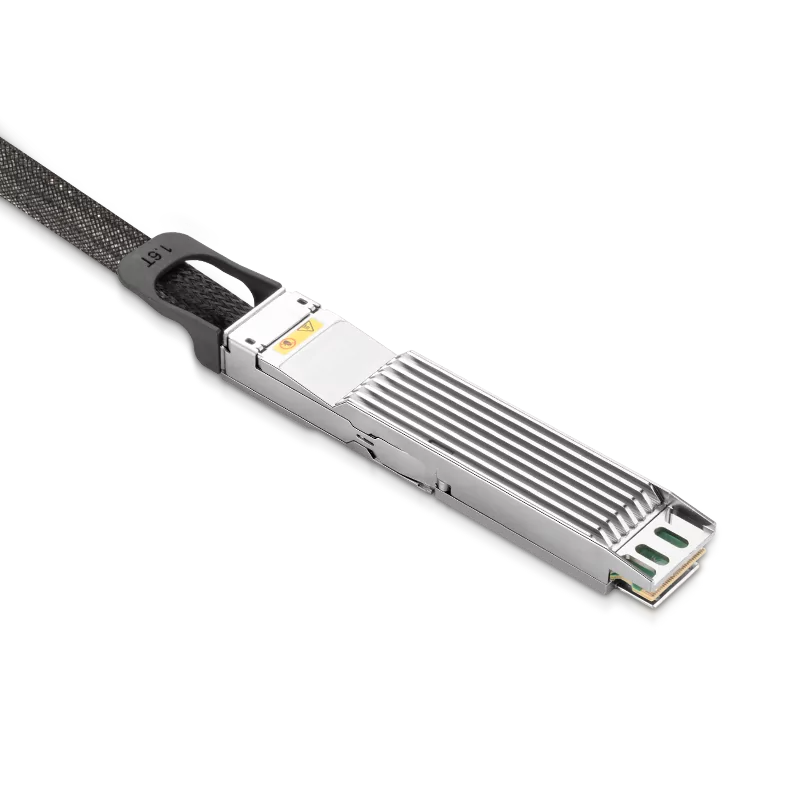

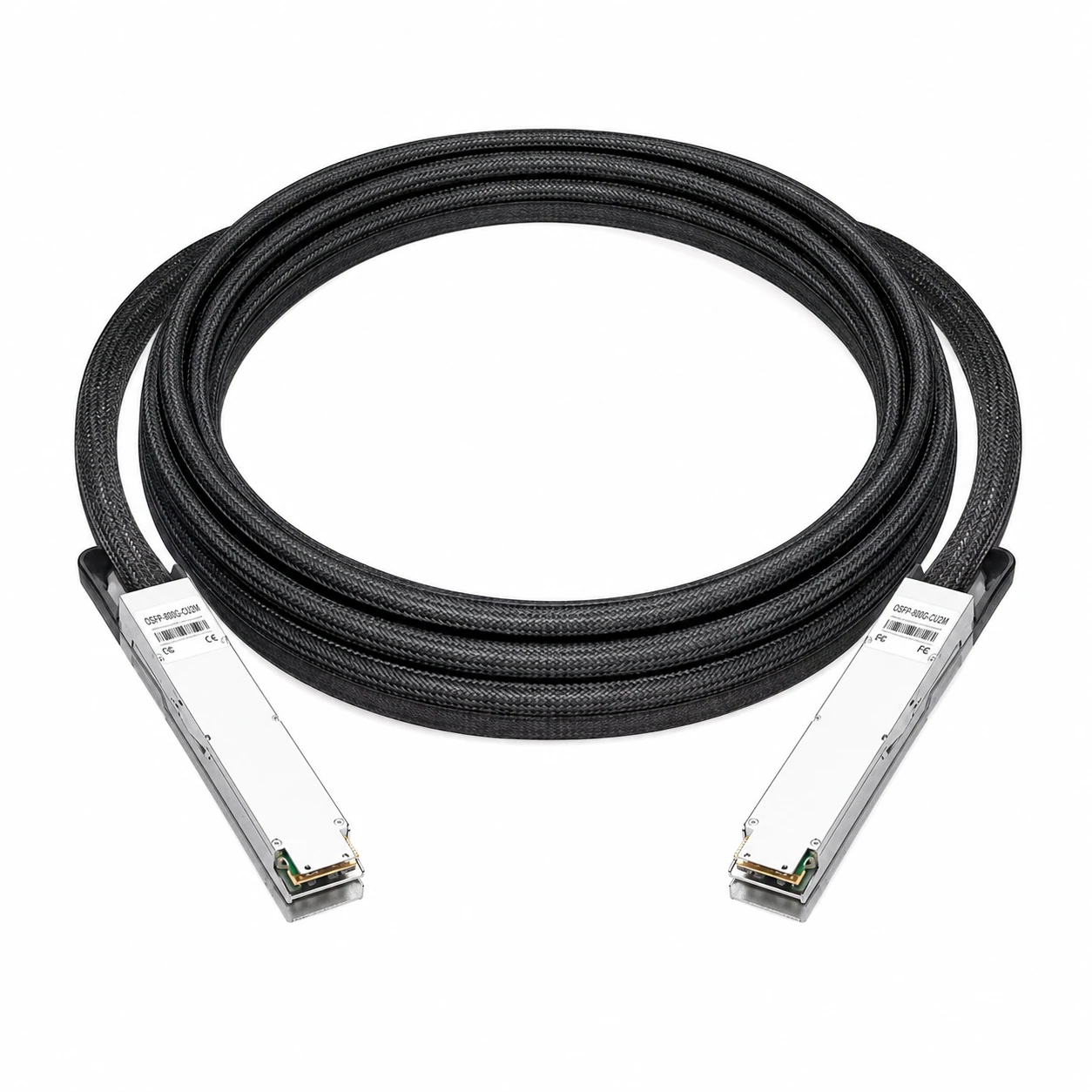

NVIDIA/Mellanox Compatible 3m (10ft) InfiniBand XDR Twin-port 2x800Gb/s OSFP224 IHS/Finned Top to 2x800Gb/s OSFP224 IHS/Finned Top Active Electrical Cable (AEC)
NVIDIA/Mellanox Compatible 3m (10ft) Twin-Port 2x800Gb/s OSFP224 IHS/Finned Top to 2x800Gb/s OSFP224 IHS/Finned Top Active Electrical Cable (AEC) is designed for InfiniBand XDR networking. It enables seamless high-speed interconnections between NVIDIA Quantum-X800 switches,offering greater flexibility than DACs for easier high-density cabling.
BrandSUNFULL
Compatible brand / platformInfiniBand platform (vendor not specified)
Length3m (10ft)
Use this selection as the requested coding target. Final compatibility still requires the host model, port type and firmware version.
Product brand: SUNFULL. Third-party names identify requested compatibility or coding targets only and do not imply affiliation, endorsement or original-equipment status.
- Enabling reliable 3m transmission for 1.6T high-density AI clusters.
- 30AWG design reduces rack congestion and optimizes cabling and thermal management in high-density environments
Engineering record
Specifications
Family-level values from the collected technical record. Confirm the selected SKU and required evidence in the quotation.
- Form Factor
- OSFP
- Cable Length
- 1.5–3m (SKU-dependent)
- Wire AWG
- 30 AWG
- Commercial Temperature Range
- 0~70°C (32 to 158°F)
- Jacket Material
- PET
- Power Consumption
- ≤20W
- Minimum Bend Radius
- 5xOD
- Application
- IB XDR, 1.6T Ethernet Compliant
Technical detail
Construction and application notes for OSFP-1.6T-AE3H
Review connector, construction, routing and handling details that apply to the selected family and exact SKU.
Interface and construction
In high-density AI clusters, short- and medium-reach interconnects must balance performance, cabling flexibility, and cost. 1.6T AEC adopts a 30AWG thin-gauge design to improve routing flexibility and thermal performance, while integrating the Marvell 5nm DSP for high-speed, stable transmission. It also simplifies deployment and maintenance to reduce TCO, delivering a balanced, efficient interconnect solution for AI clusters
Application and routing

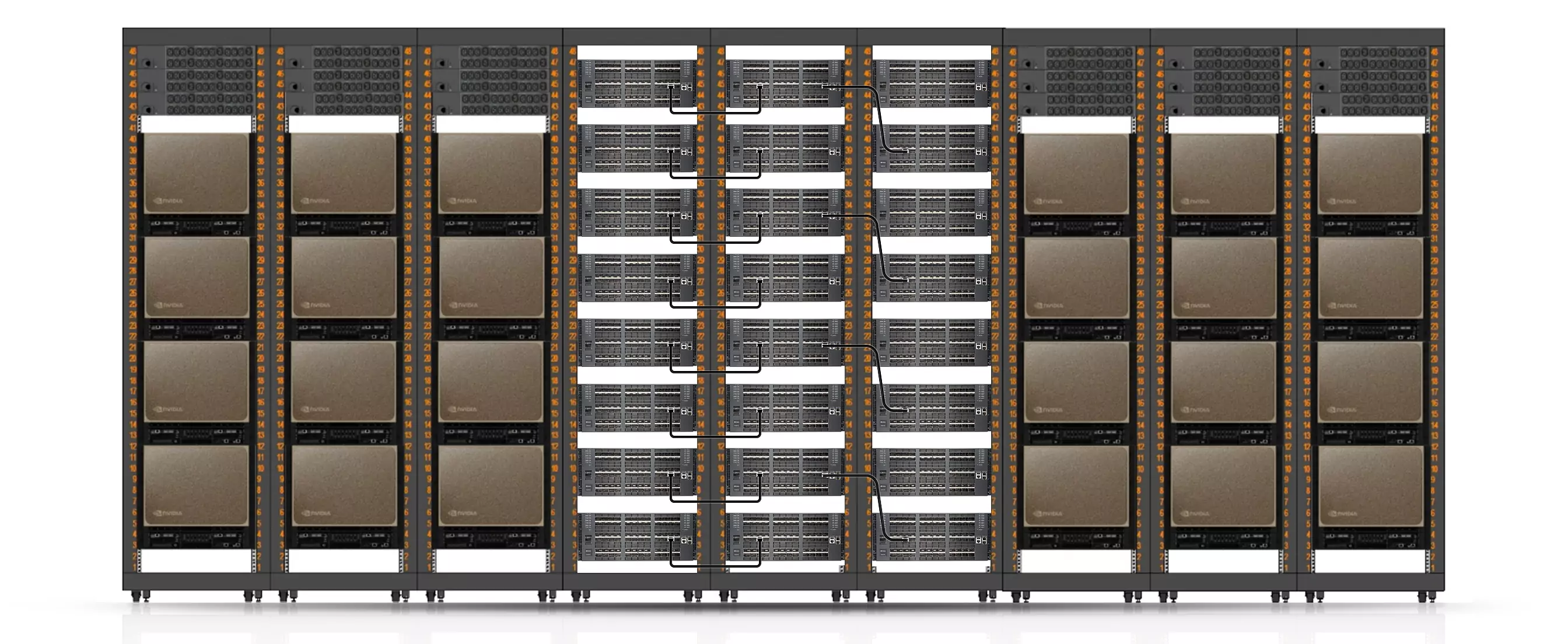

In high-density GPU clusters represented by NVIDIA B300, demand for short- and medium-reach interconnects between Leaf-to-Spine layers continues to grow, covering connections within racks and between adjacent racks. As GPU scale and link density continue to increase, networks require higher link stability under full-load operation. For this scenario, 1.6T AEC supports up to 3 meters of reach, fully meeting rack-level interconnect requirements. Its integrated design reduces connection complexity in high-density environments. With excellent signal integrity and low power consumption, it ensures consistent link performance under full-load operation.
