Cisco Coding Target DP04QSDD-HE0 Compatible 100-400GbE DCO QSFP-DD DWDM Tunable Coherent Module

RoCE Ethernet Interconnects

400G QSFP-DD Transceiver | QDD-400G-ZRP+ / DP04QSDD-HE0

Catalog reference: Cisco Coding Target DP04QSDD-HE0 Compatible 100G-400G QSFP-DD High-Power (Bright) DCO ≤80km Unamplified SMF DOM LC Duplex DWDM Tunable Coherent Optical Transceiver Module

The part numbers on this page identify the requested coding target. Confirm the exact host model, port and firmware for the selected SKU.

Cisco Coding Target DP04QSDD-HE0 Compatible QDD-400G-ZRP+ is designed to 100G/200G long haul and 300G/400G Metro IP over DWDM applications without inline chromatic dispersion compensation.

Family qdd-400g-zrp-102256Model QDD-400G-ZRP+5 SKU options

Requested part-number references

Requested coding target: Cisco
Primary reference identifier: DP04QSDD-HE0

Part-number identifiers and aliases available for matching:

DP04QSDD-HE0

Review boundary: These identifiers reproduce source catalog matching terms only; they do not establish interoperability, approval or endorsement. Confirm the exact host model, port type, firmware and test evidence before use.

Select the exact SKU

Search and select a SKU to update the exact title, description, model and option attributes before sending an RFQ.

SKU 102256 - Model QDD-400G-ZRP+

Cisco Coding Target DP04QSDD-HE0 Compatible 100-400GbE DCO QSFP-DD DWDM Tunable Coherent Module

Cisco Coding Target DP04QSDD-HE0 Compatible QDD-400G-ZRP+ is designed to 100G/200G long haul and 300G/400G Metro IP over DWDM applications without inline chromatic dispersion compensation.

BrandSUNFULL

Compatible brand / platformCisco

Select compatibility target

Use this selection as the requested coding target. Final compatibility still requires the host model, port type and firmware version.

Product brand: SUNFULL. Third-party names identify requested compatibility or coding targets only and do not imply affiliation, endorsement or original-equipment status.

Get Datasheet & Quote Compatibility Review WhatsApp Technical Documents

Line Modulation format DP-QPSK/DP-8QAM/DP-16QAM
Ideal for Edge DCI (Data Center Interconnect).
Typical power consumption 22W (400G).
C-band tunable to 100/75/50GHz grids.
TX VOA inside, output power -10~1dBm tunable
Compliant with Hot Pluggable QSFP-DD MSA,Open ZR+ MSA 2.0,OIF-400ZR-02.0,OIF-CMIS-05.2,IEEE Std 802.3 Standard.
Class1/1M Standard Product, Compliant with RoHS Environmental Protection Standards (Lead-Free).
DDM (Digital Diagnostic Monitoring) Supported.

Engineering record

Specifications

Family-level values from the collected technical record. Confirm the selected SKU and required evidence in the quotation.

Form Factor: QSFP-DD
Distance: Unamplified: ≤80km (400G ZR Gary); ≤90km (400G ZR+ Gary) Amplified: ≤120km(400G(400ZR)); ≤450km (400G(400ZR+)); ≤600km (300G(300ZR+)); ≤1000km (200G(200ZR+)); ≤2000km (100G(100ZR+))
Wavelength: 1528.77~1567.13nm

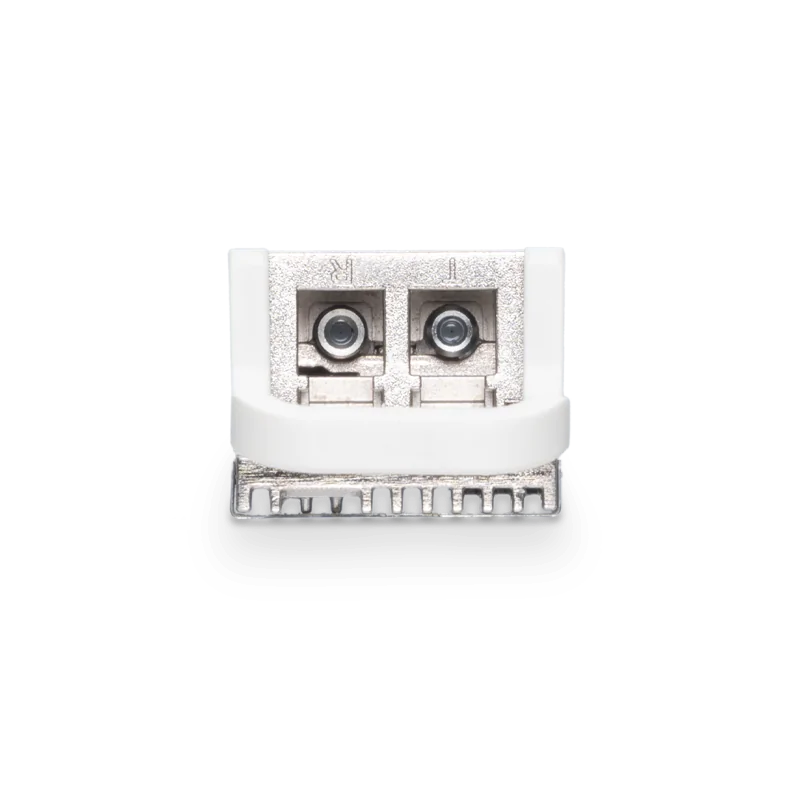

Connector: Duplex LC
Power Consumption: ≤22W (400ZR+)
Modulation format: DP-QPSK/DP-8QAM/DP-16QAM
FEC: OFEC, CFEC
Media: SMF
Channel Range (Tunable): 191.3 to 196.1 THz
Channel Grid: 100GHz & 75GHz & 50Gz
Case Temperature(℃): 0 to 75°C (32 to 167°F)
Protocol: Open zr+ msa 2.0, oif-400zr-02.0, oif-cmis-05.2, oif-c-cmis-01.2, QSFP-DD-hardware-rev6.3, ieee std 802.3-2018

Technical detail

Construction and application notes for QDD-400G-ZRP+

Review connector, construction, routing and handling details that apply to the selected family and exact SKU.

Interface and construction

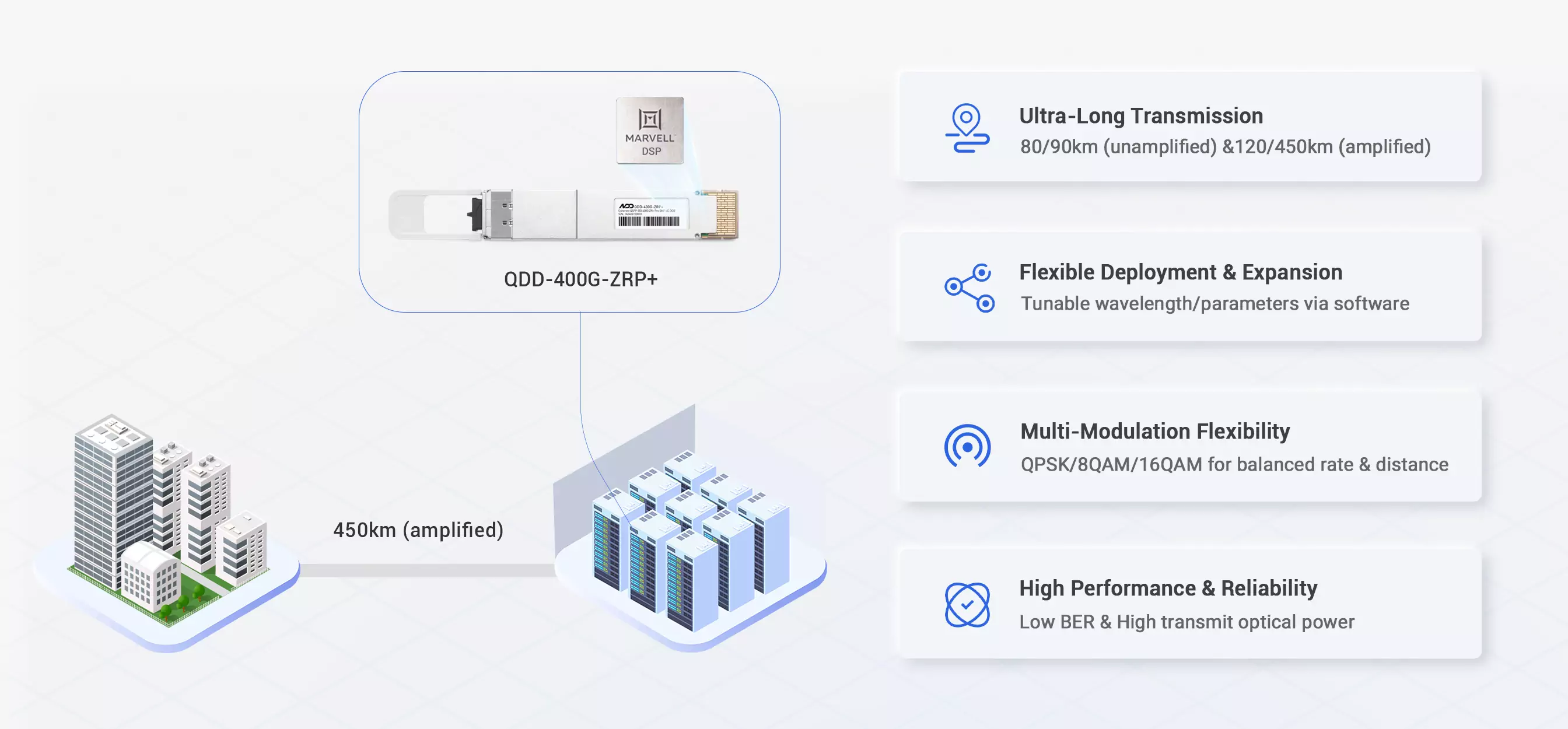

The QDD-400G-ZRP+ delivers exceptional performance in transmission distance, deployment flexibility, adaptive modulation, and signal stability — perfectly meeting the rigorous demands of ultra-long-haul DCI and backbone network scenarios.

Cisco Coding Target DP04QSDD-HE0 Compatible 100-400GbE DCO QSFP-DD DWDM Tunable Coherent Module detail

Application and routing

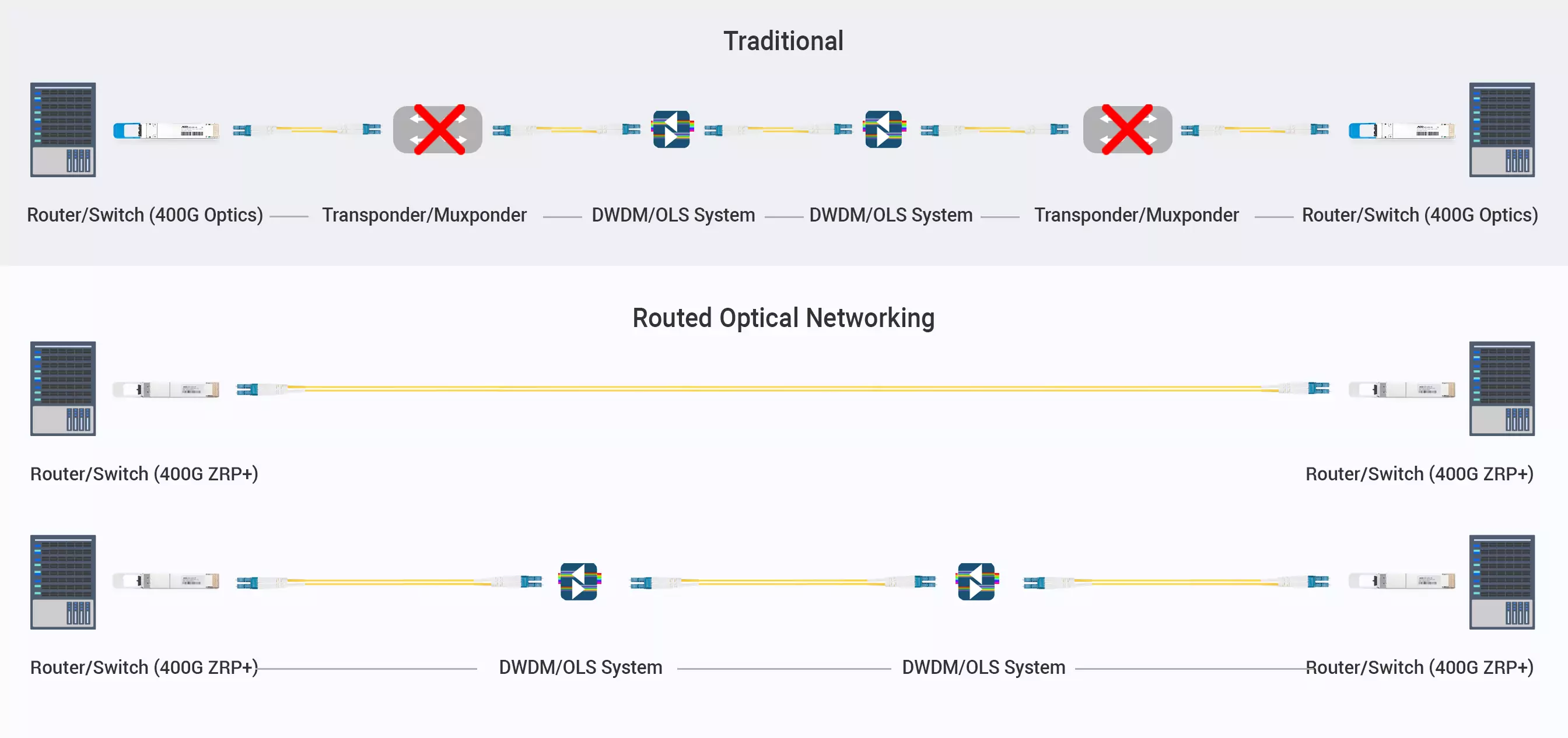

The QDD-400G-ZRP+ reuses existing optical fibers to boost bandwidth, which eliminates the need for re-laying and avoids high cabling costs; its long-haul transmission reduces repeater/amplifier deployment, thereby simplifying network architecture while cutting capital and operational expenses.

Installation and validation

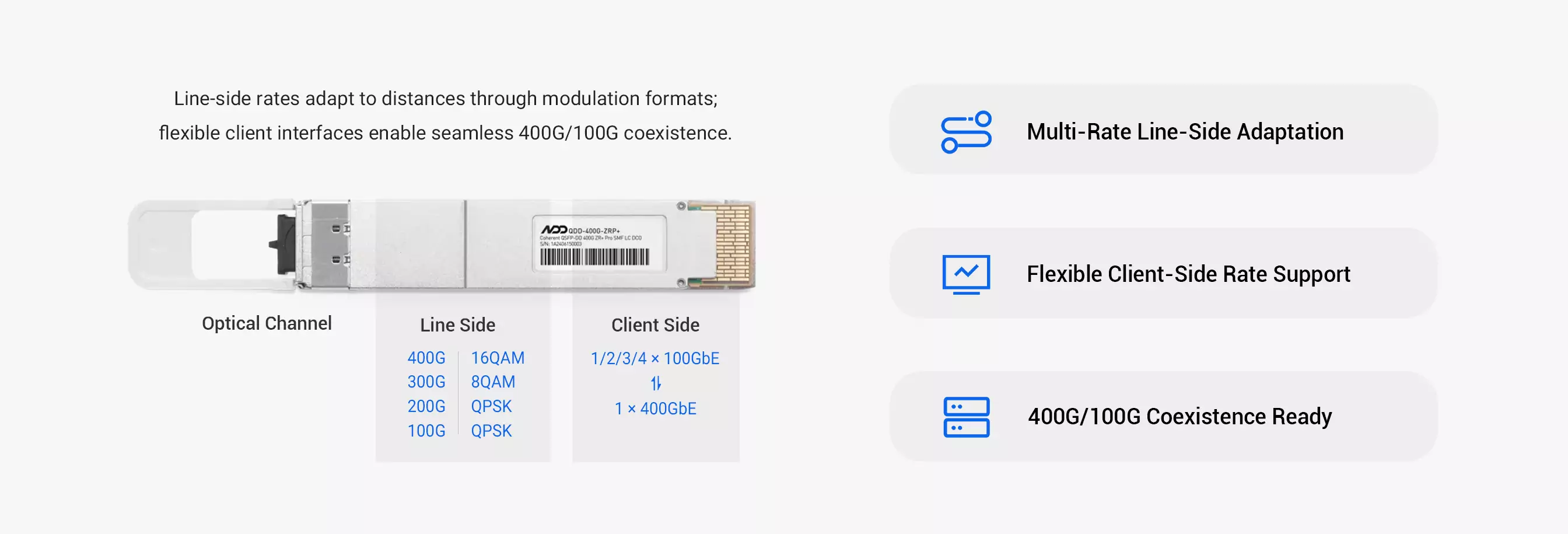

The QDD-400G-ZRP+ supports 400G/100G coexistence, eliminates the need for full equipment upgrades, and is compatible with both legacy and new network architectures seamlessly.
