10m (33ft) 2xMPO-8 APC Male to 2xMPO-8 APC Male OS2 Single Mode Type 2 Shuffle Trunk Cable (16 Fibers, LSZH)

Fiber Cabling

MPO Male to MPO Male 2x8F to 2x8F Type 2 Fiber Cable | S2MPOA16M2

Catalog reference: 10m (33ft) Pre-terminated MPO 2x2 Shuffle Trunk Cable, 16 Fibers, 2xMPO-8 APC Male to 2xMPO-8 APC Male, Single Mode (OS2), Type 2, LSZH, 0.35dB Max, Breakout 80cm, Yellow

Use the model and SKU to confirm the exact connector, construction, route and acceptance evidence for this passive component.

10m (33ft) MPO 2x2 shuffle Trunk Cable features 16 fibers with 2xMPO-8 APC male to 2xMPO-8 APC male connectors, OS2 Single Mode fiber, Type 2 polarity and LSZH jacket. It is used to connect plug-and-play modules or MPO connector panels, enabling multi-level connections and extension of pre-terminated Trunk Cables through MPO panels, while supporting site-specific optical routing to reduce installation and reconfiguration time in high-density data center networks.

Family s2mpoa16m2-103320Model S2MPOA16M234 SKU options

Select the exact SKU

Search and select a SKU to update the exact title, description, model and option attributes before sending an RFQ.

SKU 103323 - Model S2MPOA16M2

10m (33ft) 2xMPO-8 APC Male to 2xMPO-8 APC Male OS2 Single Mode Type 2 Shuffle Trunk Cable (16 Fibers, LSZH)

BrandSUNFULL

Cable Jacket/Flame RatingLSZH

Length10m (33ft)

Confirm passive fiber construction

Connector Type: MPO Male to MPO Male
Fiber Count: 2x8F to 2x8F
Polarity: Type 2

Match connector type, fiber count, fiber type, polarity, keying, route length and insertion-loss budget before RFQ. Host-brand EEPROM coding does not apply.

Get Datasheet & Quote Construction Review WhatsApp Technical Documents

Multi-core, high-density design reduces cable count and saves routing space
On-site "plug and play", fast installation, improve deployment efficiency
Ultra-low insertion loss and high return loss ensure link consistency
LSZH sheath, ensure safe indoor deployment and OFNP Fire Safety-Rated for use in Plenum Air Spaces
Preorganized Shuffle Assemblies reduce installation time, streamlining deployment in large-scale GPU clusters

Engineering record

Specifications

Family-level values from the collected technical record. Confirm the selected SKU and required evidence in the quotation.

Connector Type: MPO Male to MPO Male
Polarity: Type 2
Fiber Grade: G.657.A1 (Compatible with G.652.D)
Fiber Count: 2x8F to 2x8F
Polish Type: APC to APC
Min. Bend Radius: 10mm
Fiber Mode: OS2 9/125μm
Cable Jacket/Flame Rating: LSZH / OFNP (SKU-dependent)
Wavelength: 1310/1550nm
Return Loss: ≥60dB
Insertion Loss: ≤0.35dB
Attenuation at 1550 nm: ≤0.21dB/km
Attenuation at 1310 nm: ≤0.35 dB/km
Breakout Outside Diameter (OD): 3.0mm
Cable Outside Diameter (OD): 9mm
Tensile Strength: 200/660N (Long/Short Term)
Breakout Length: 0.8m
Operating Temperature: LSZH:-20~70°C OFNP:0~70°C
Connector Durability: ≥ 500 - 1000 times
Cable Structure: Double Jacket

Technical detail

Construction and application notes for S2MPOA16M2

Review connector, construction, routing and handling details that apply to the selected family and exact SKU.

Connector and fiber construction

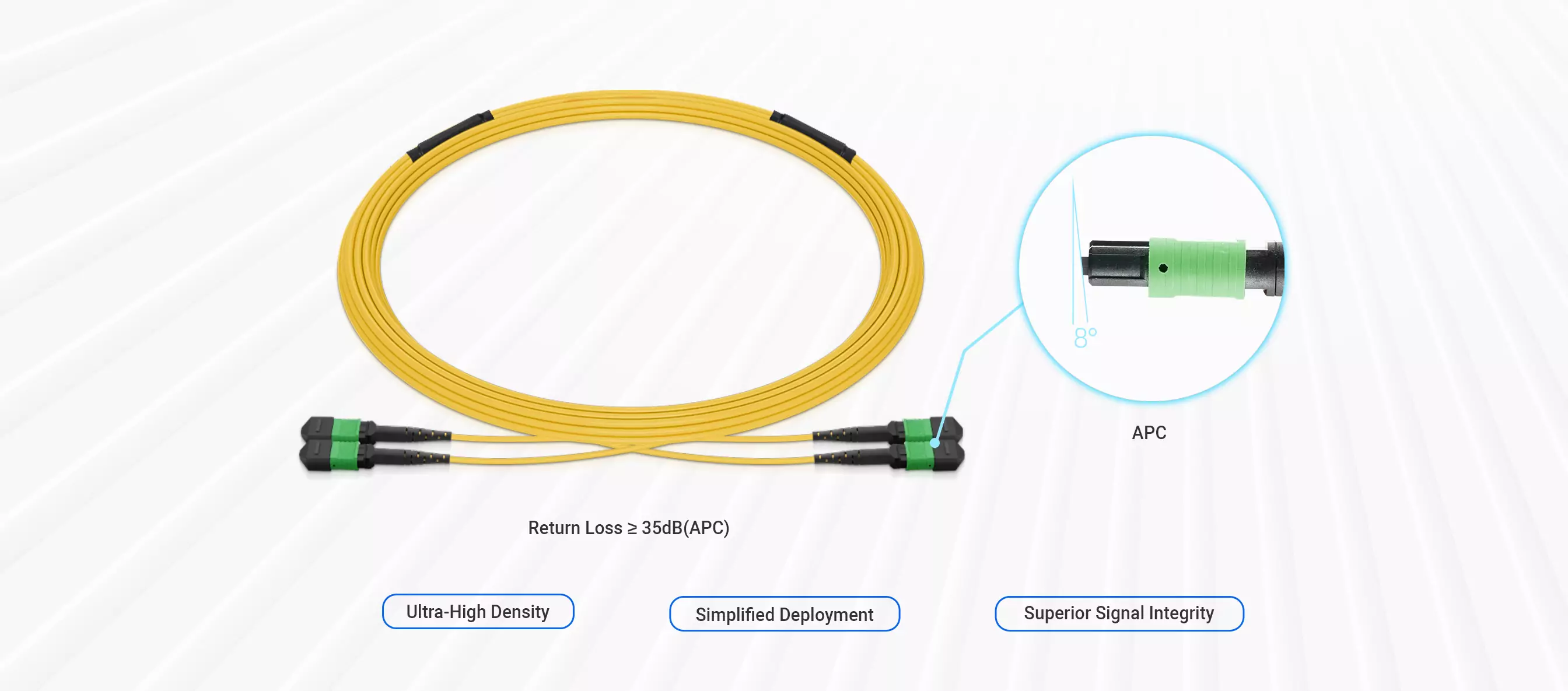

Single-Mode Shuffle Fiber Cables redefine high-speed AIDC connectivity. Engineered for extreme density and seamless deployment, they integrate precision 8° APC connectors to ensure Ultra-low insertion loss.

10m (33ft) 2xMPO-8 APC Male to 2xMPO-8 APC Male OS2 Single Mode Type 2 Shuffle Trunk Cable (16 Fibers, LSZH) detail

Polarity and routing

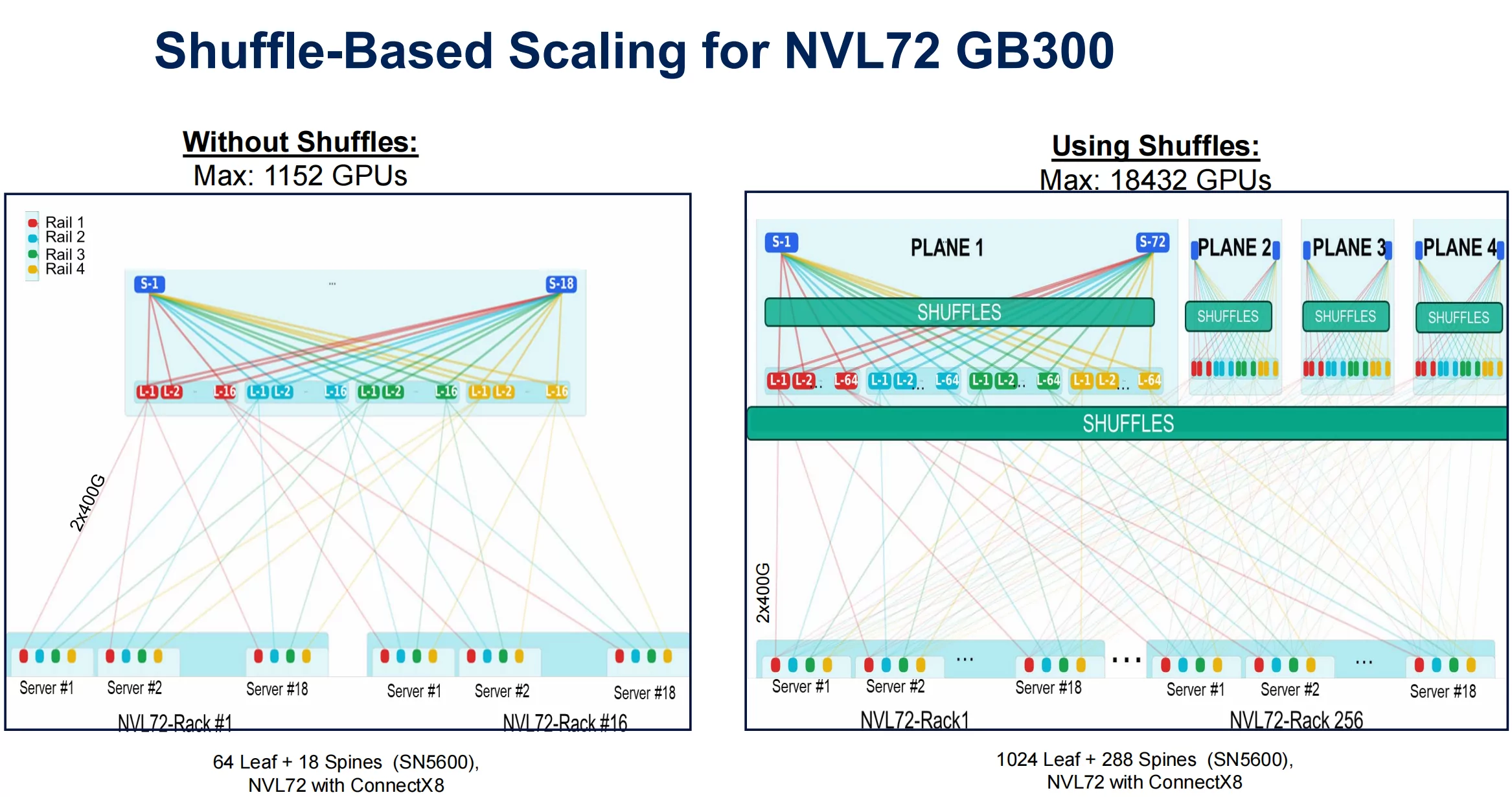

ConnectX-8 enables high-bandwidth ports to be divided into multiple independent channels, such as 2×400G or 4×200G, with each channel mapped to a separate network plane. Shuffle Cable provides precise optical lane redistribution at the physical layer, transforming breakout channels into predefined multi-plane connections. In NVIDIA GB300 NVL72 architectures, customized 2×2 Shuffle Cables enable significantly larger GPU domains compared with traditional direct-connect cabling, supporting flatter network topologies, higher scalability, and more efficient AI cluster expansion.

Inspection and installation

Shuffle Cables provide a structured way to redistribute NIC traffic across multiple switches and network planes, transforming traditionally complex cross-connections into organized, high-density fiber assemblies. In large-scale AI and HPC clusters, where multi-plane architectures multiply physical-layer complexity, Shuffle technology ensures that traffic flows remain balanced, scalable, and logically structured. By predefining fiber mappings and enabling multi-path connectivity, it reduces cabling disorder and operational risk while preserving high performance for latency-sensitive workloads

Inspection and installation

high-density MPO trunk cables are available in 16, 32, 96, 128 and 256 fibers. They comply with TIA/EIA and IEC standards, delivering low insertion loss and high return loss to support 40G, 100G, 400G, and higher-speed transmission.Designed for backbone interconnections between MDA, IDA, and EDA in data centers, they simplify high-density cabling management and provide a reliable foundation for scalable infrastructure deployment.
