MPO Male to MPO Male 32x8F to 32x8F Type 4 Fiber Cable | S2MPOA256M4
Catalog reference: 5m (16ft) Pre-terminated MPO 4x4 Shuffle Trunk Cable, 256 Fibers, 32xMPO-8 APC (Male) to 32xMPO-8 APC (Male), Single Mode (OS2), Type 4, LSZH, 0.35dB Max, Breakout 80cm, Yellow
Use the model and SKU to confirm the exact connector, construction, route and acceptance evidence for this passive component.
5m (16ft) MPO 4x4 Shuffle Trunk Cable is designed for high-density fiber interconnects, featuring a 256 fibers architecture that simplifies cabling and maximizes space efficiency. Built on 32×MPO-8 APC connectivity with OS2 single mode fiber, Type 4 polarity, and an LSZH jacket, it ensures consistent, low-loss performance. The plug-and-play design enables rapid deployment and flexible optical routing—ideal for high-density data centers, HPC environments, and scalable MPO-based infrastructures.
Family s2mpoa256m4-103888Model S2MPOA256M434 SKU options
Select the exact SKU
Search and select a SKU to update the exact title, description, model and option attributes before sending an RFQ.
SKU 103888 - Model S2MPOA256M4

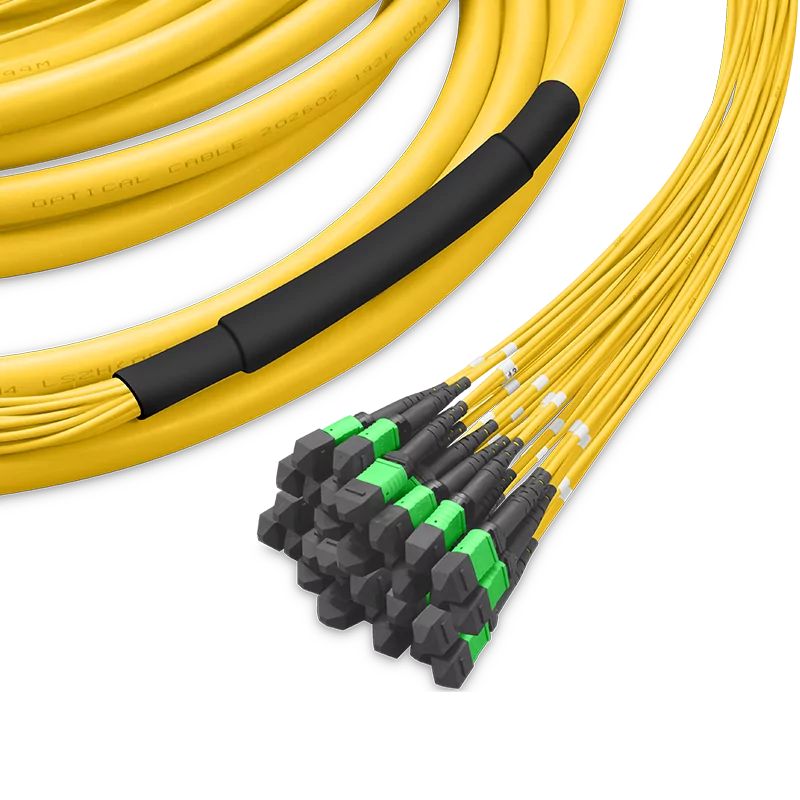

5m (16ft) 32xMPO-8 APC Male to 32xMPO-8 APC Male OS2 Single Mode Type 4 Shuffle Breakout Cable (256 Fibers, LSZH）
5m (16ft) MPO 4x4 Shuffle Trunk Cable is designed for high-density fiber interconnects, featuring a 256 fibers architecture that simplifies cabling and maximizes space efficiency. Built on 32×MPO-8 APC connectivity with OS2 single mode fiber, Type 4 polarity, and an LSZH jacket, it ensures consistent, low-loss performance. The plug-and-play design enables rapid deployment and flexible optical routing—ideal for high-density data centers, HPC environments, and scalable MPO-based infrastructures.
BrandSUNFULL
Cable Jacket/Flame RatingLSZH
Length5m (16ft)
Confirm passive fiber construction
- Connector Type
- MPO Male to MPO Male
- Fiber Count
- 32x8F to 32x8F
- Polarity
- Type 4
Match connector type, fiber count, fiber type, polarity, keying, route length and insertion-loss budget before RFQ. Host-brand EEPROM coding does not apply.
- Ultra-low insertion loss and high return loss ensure link consistency
- G.657.A1 fiber grade with 10mm Min. Bend Radius
- 8° APC Endface Minimizes Optical Reflections to Improve Signal Quality
- LSZH sheath, ensure safe indoor deployment and OFNP Fire Safety-Rated for use in Plenum Air Spaces
- Preorganized Shuffle Assemblies reduce installation time, streamlining deployment in large-scale GPU clusters
Engineering record
Specifications
Family-level values from the collected technical record. Confirm the selected SKU and required evidence in the quotation.
- Connector Type
- MPO Male to MPO Male
- Polarity
- Type 4
- Fiber Grade
- G.657.A1 (Compatible with G.652.D)
- Fiber Count
- 32x8F to 32x8F
- Polish Type
- APC to APC
- Cable Jacket/Flame Rating
- LSZH / OFNP (SKU-dependent)
- Fiber Mode
- OS2 9/125μm
- Return Loss
- ≥60dB
- Wavelength
- 1310/1550nm
- Attenuation at 1550 nm
- ≤0.21 dB/km
- Insertion Loss
- ≤0.35dB
- Min. Bend Radius
- 10mm
- Attenuation at 1310 nm
- ≤0.35 dB/km
- Breakout Outside Diameter (OD)
- 3.0mm
- Cable Outside Diameter (OD)
- 23.1mm
- Tensile Strength
- 400/1335N (Long/Short Term)
- Breakout Length
- 0.8m
- Operating Temperature
- LSZH: -20~70°C OFNP: 0~70°C
- Connector Durability
- ≥ 500 - 1000 times
- Cable Structure
- Double Jacket
Technical detail
Construction and application notes for S2MPOA256M4
Review connector, construction, routing and handling details that apply to the selected family and exact SKU.
Connector and fiber construction
Shuffle Cables provide a structured way to redistribute NIC traffic across multiple switches and network planes, transforming traditionally complex cross-connections into organized, high-density fiber assemblies. In large-scale AI and HPC clusters, where multi-plane architectures multiply physical-layer complexity, Shuffle technology ensures that traffic flows remain balanced, scalable, and logically structured. By predefining fiber mappings and enabling multi-path connectivity, it reduces cabling disorder and operational risk while preserving high performance for latency-sensitive workloads
