SFP-1/10G-LR | 10G SFP+ 10km Transceiver
10G SFP+ 10km Transceiver with 8 exact SKU options. Confirm the host, port and firmware before quotation.
Optical Transceivers

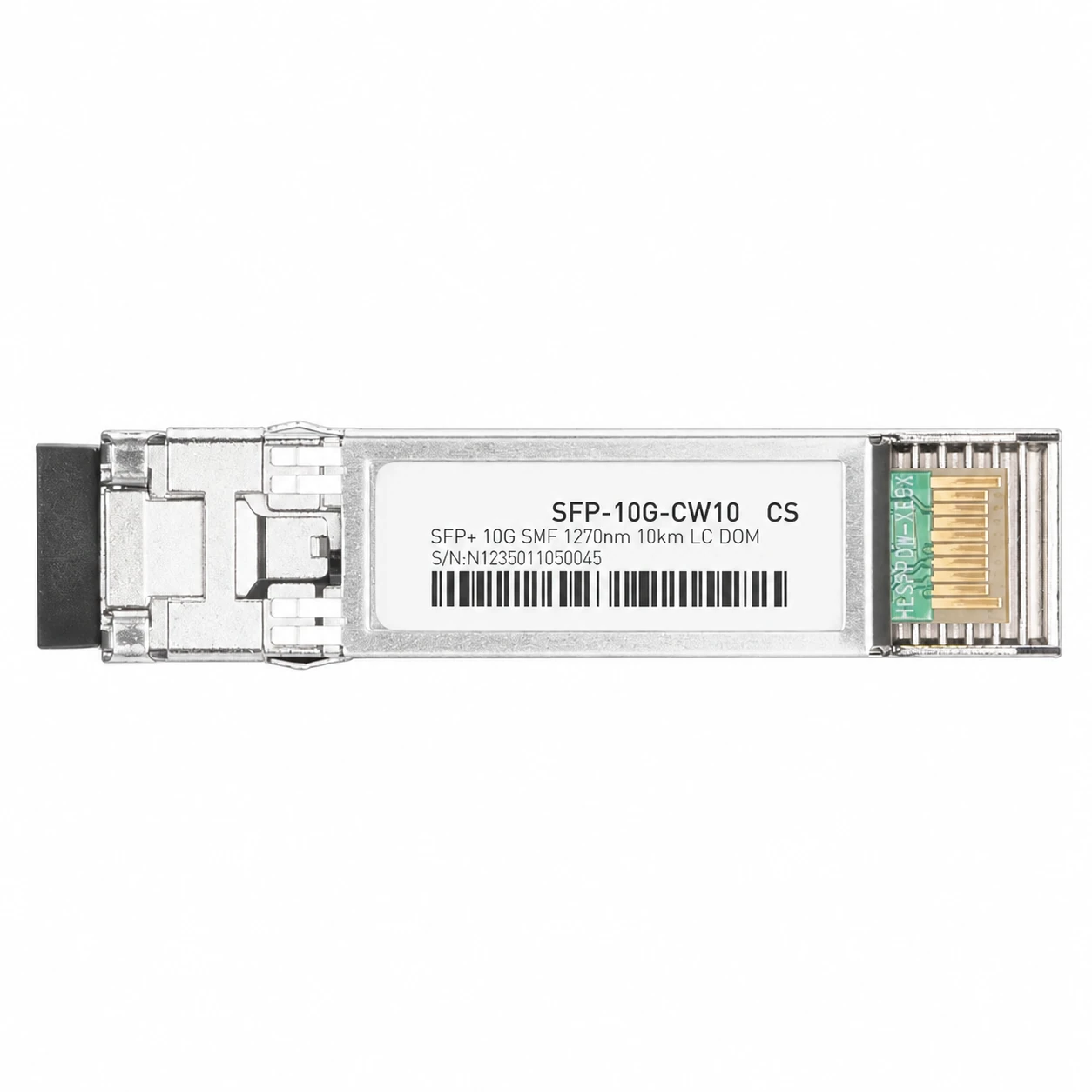

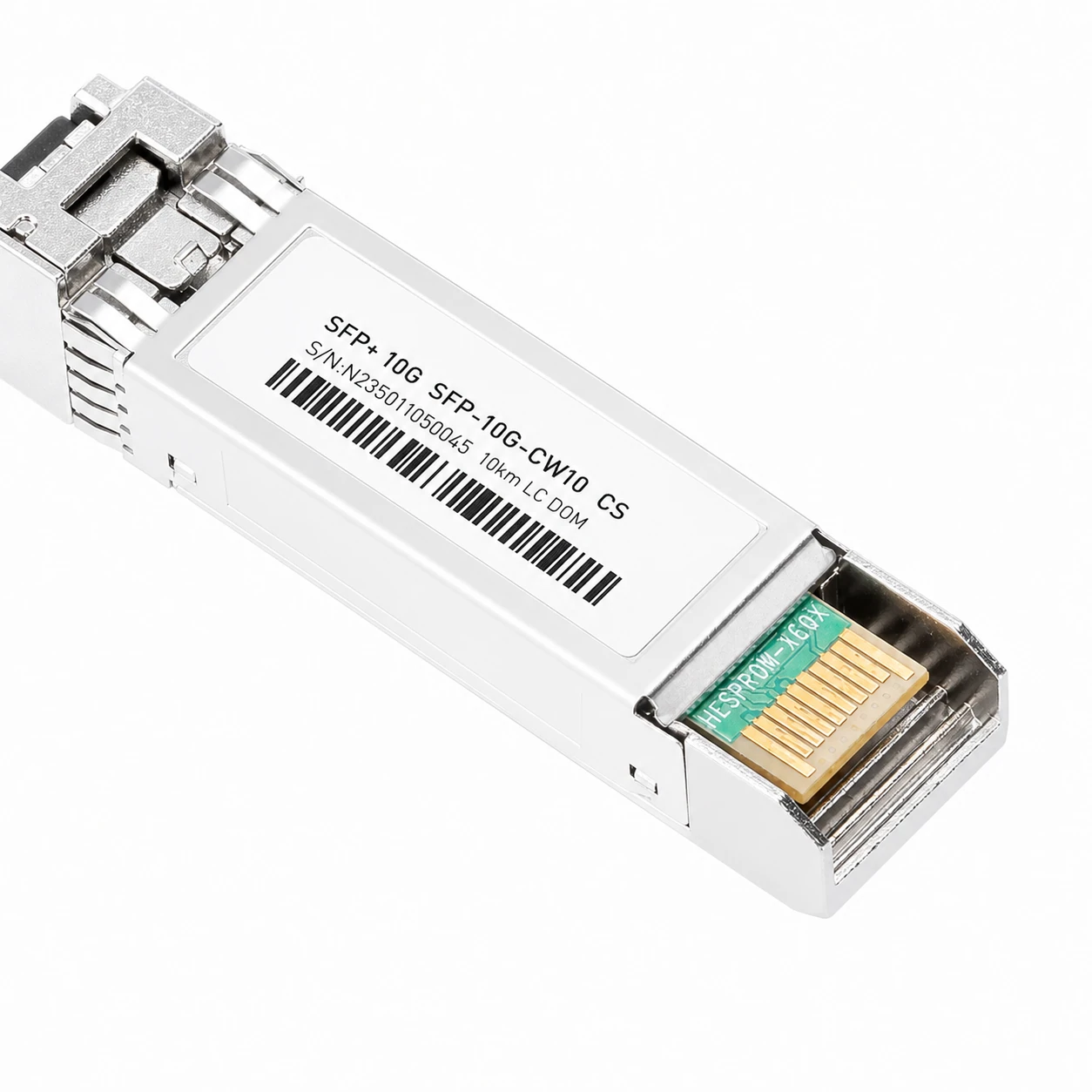

10G SFP+ 10km Transceiver | SFP-10G-CW10
Catalog reference: Cisco Coding Target CWDM-SFP10G-1270-10 Compatible 10GBASE-CW10 SFP+ 1270nm 10km SMF DOM LC Duplex Optical Transceiver Module
The part numbers on this page identify the requested coding target. Confirm the exact host model, port and firmware for the selected SKU.
Technical product family for 10GBASE-CW10 SFP+ 1270~1610nm 10km SMF Module for Cisco. Review the specifications and exact SKU options below.
Family sfp-10g-cw10-14119Model SFP-10G-CW1055 SKU options
Select the exact SKU
Search and select a SKU to update the exact title, description, model and option attributes before sending an RFQ.
SKU 28424 - Model SFP-10G-CW10
10GBASE-CW10 SFP+ 1270~1610nm 10km SMF Module for Cisco
Technical product family for 10GBASE-CW10 SFP+ 1270~1610nm 10km SMF Module for Cisco. Review the specifications and exact SKU options below.
BrandSUNFULL
Compatible brand / platformCisco
Wavelength1270nm
Use this selection as the requested coding target. Final compatibility still requires the host model, port type and firmware version.
Product brand: SUNFULL. Third-party names identify requested compatibility or coding targets only and do not imply affiliation, endorsement or original-equipment status.
- Max Power Consumption ≤1.5W.
- Compliant with Hot Pluggable SFP+ MSA, IEEE 802.3ae Standard.
- Class1/1M Standard Product, Compliant with RoHS Environmental Protection Standards (Lead-Free).
- DDM(Digital Diagnostic Monitoring) Supported.
- Significantly Improve the Flexibility, Economy and Reliability of Networking.
Engineering record
Specifications
Family-level values from the collected technical record. Confirm the selected SKU and required evidence in the quotation.
- Product Type
- SFP-10G-CW10
- Form Factor
- SFP+
- Max Data Rate
- 10.3125Gbps
- Wavelength
- 1270nm / 1290nm / 1310nm / … (18 values) (SKU-dependent)
- Distance
- 10km
- Connector
- Duplex LC
- Media
- SMF
- Transmitter Type
- DFB
- Receiver Type
- PIN
- TX Power
- 6~0.5dBm
- Receiver Sensitivity
- < -14.4dBm
- Typical Power Consumption
- ≤1.5W
- Commercial Temperature Range
- 0~70°C
- DDM
- Supported
- EMC ( Electro Magnetic Compatibility)
- Supported
- Protocols
- IEEE 802.3ae, SFF-8472, SFF-8431、SFP+ MSA, CPRI, eCPRI
- Compatible
- Cisco, Arista, Juniper, Dell, Mellanox, Generic
Technical detail
Construction and application notes for SFP-10G-CW10
Review connector, construction, routing and handling details that apply to the selected family and exact SKU.
Optical interface and construction
Link application
has a full range of professional test equipment for testing various parameters of products to ensure high performance and quality of optical transmission stability.
Handling and validation
Handling and validation
Downloads
Technical documents
Use documents together with the exact SKU selection; document version and commercial validity should be reconfirmed during RFQ review.
