10G SFP+ 80km Transceiver | SFP-10G-CW80

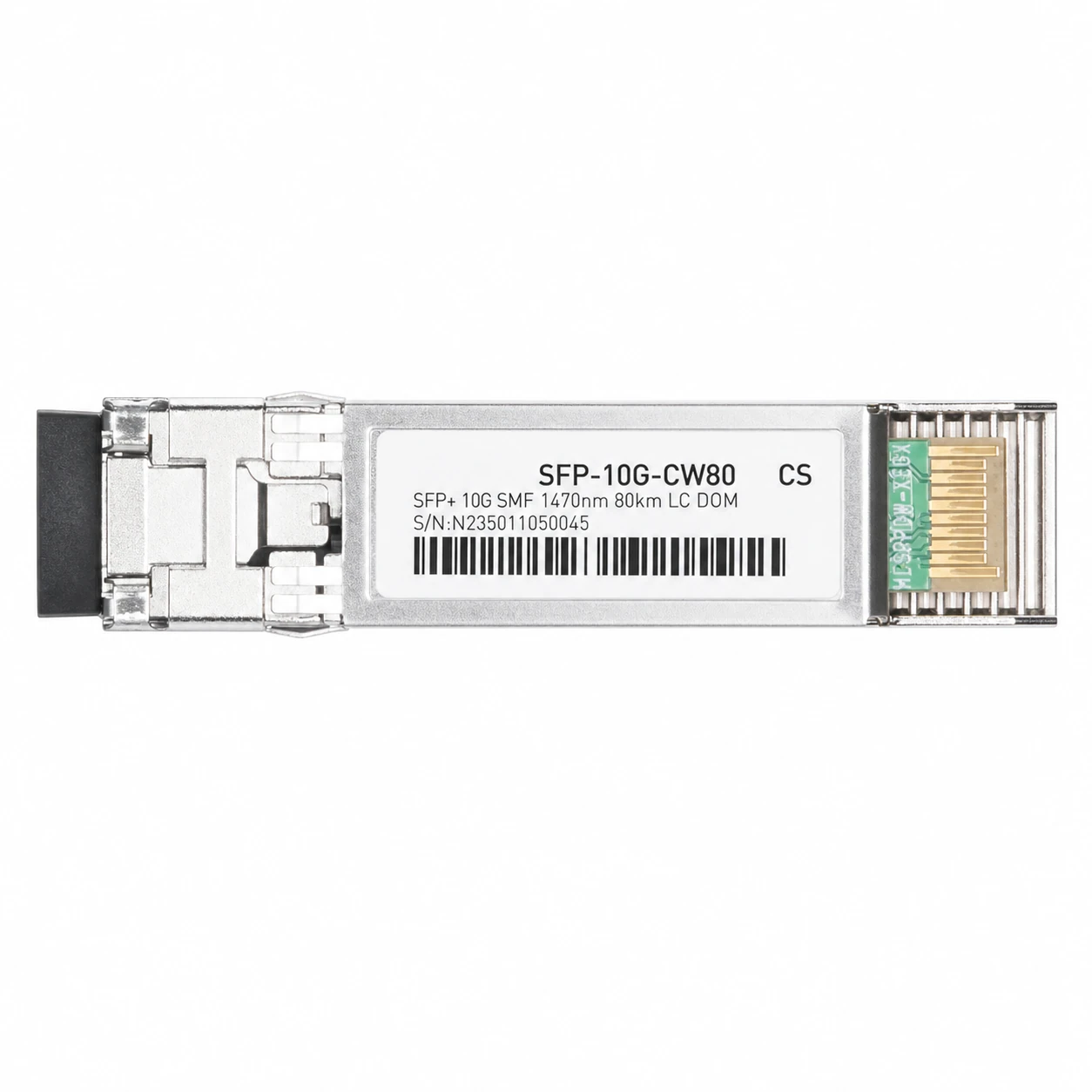

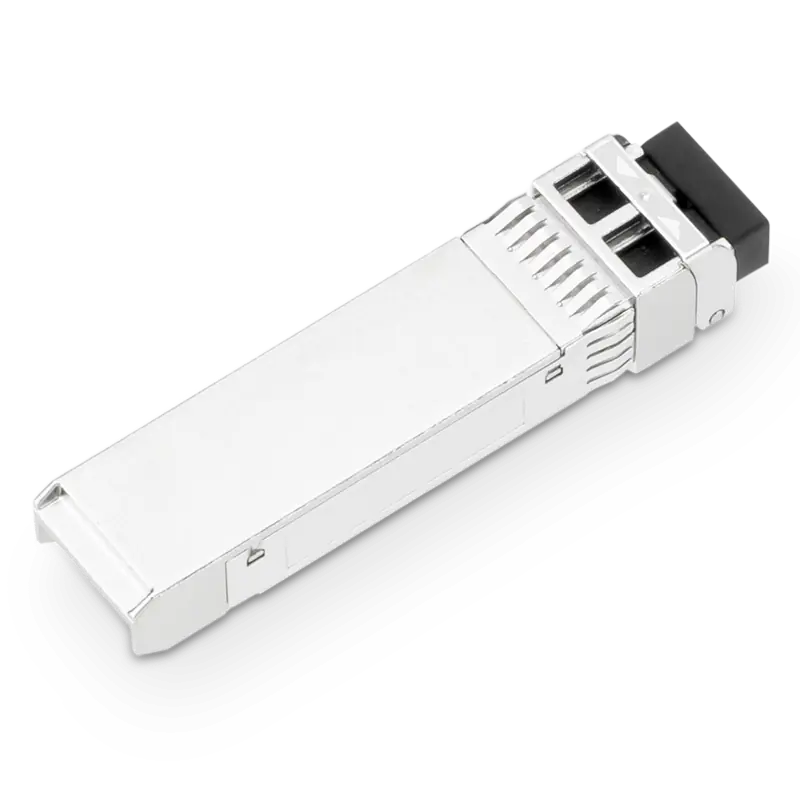

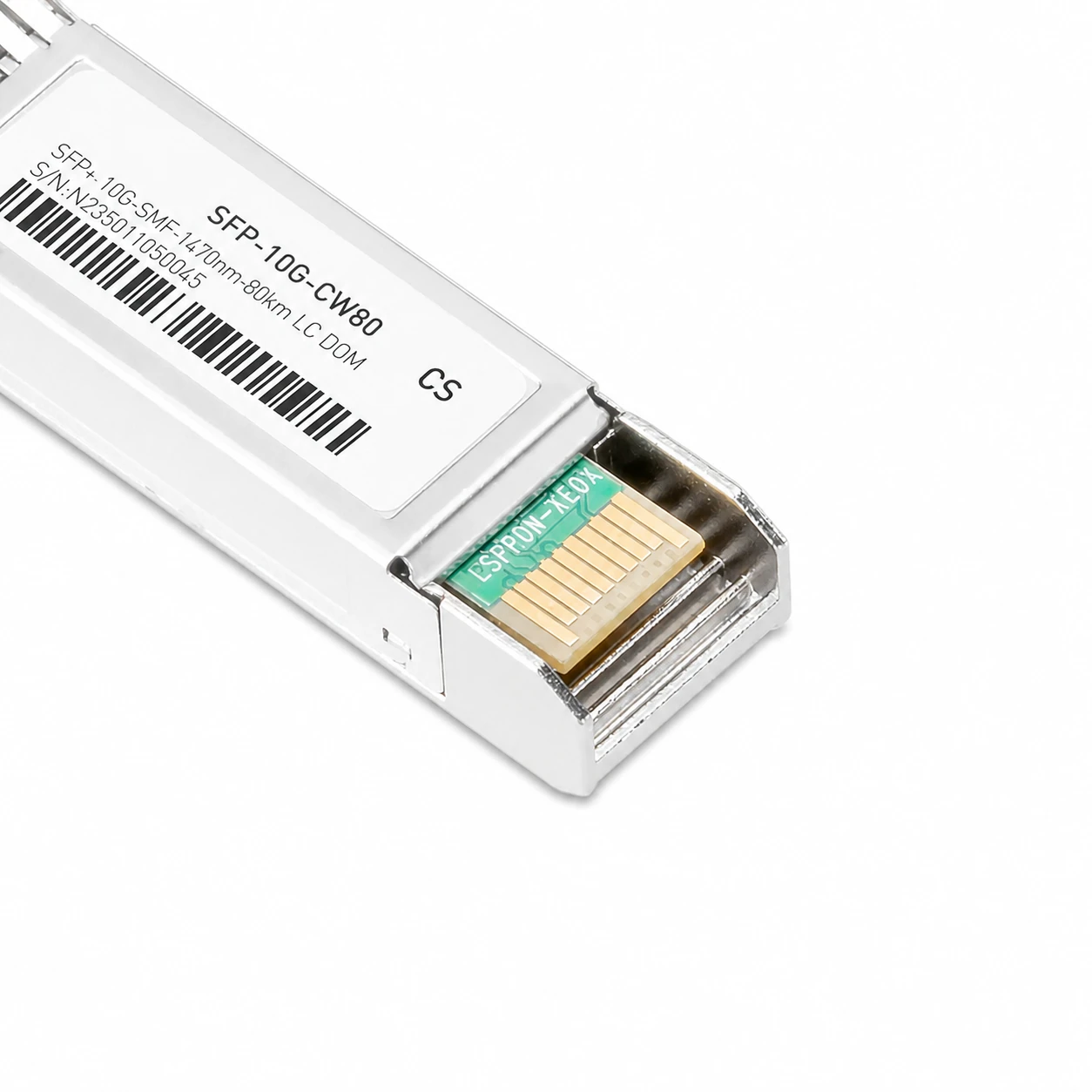

Catalog reference: Cisco Coding Target CWDM-SFP10G-1470 Compatible 10GBASE-CW80 SFP+ 1470nm 80km SMF DOM LC Duplex Optical Transceiver Module
The part numbers on this page identify the requested coding target. Confirm the exact host model, port and firmware for the selected SKU.
Technical product family for 10GBASE-CW80 SFP+ 1470~1610nm 80km SMF Module for Cisco. Review the specifications and exact SKU options below.
Family sfp-10g-cw80-28720Model SFP-10G-CW8056 SKU options
Select the exact SKU
Search and select a SKU to update the exact title, description, model and option attributes before sending an RFQ.
SKU 28720 - Model SFP-10G-CW80
10GBASE-CW80 SFP+ 1470~1610nm 80km SMF Module for Cisco
Technical product family for 10GBASE-CW80 SFP+ 1470~1610nm 80km SMF Module for Cisco. Review the specifications and exact SKU options below.
BrandSUNFULL
Compatible brand / platformCisco
Wavelength1470nm
Use this selection as the requested coding target. Final compatibility still requires the host model, port type and firmware version.
Product brand: SUNFULL. Third-party names identify requested compatibility or coding targets only and do not imply affiliation, endorsement or original-equipment status.
- Max Power Consumption ≤1.5W.
- Compliant with Hot Pluggable SFP+ MSA, IEEE 802.3ae Standard.
- Class1/1M Standard Product, Compliant with RoHS Environmental Protection Standards (Lead-Free).
- DDM(Digital Diagnostic Monitoring) Supported.
- Significantly Improve the Flexibility, Economy and Reliability of Networking.
Engineering record
Specifications
Family-level values from the collected technical record. Confirm the selected SKU and required evidence in the quotation.
- Product Type
- SFP-10G-CW80
- Form Factor
- SFP+
- Max Data Rate
- 10.3125Gbps
- Wavelength
- 1470nm / 1490nm / 1510nm / … (8 values) (SKU-dependent)
- Distance
- 80km
- Connector
- Duplex LC
- Media
- SMF
- Transmitter Type
- EML
- Receiver Type
- APD
- TX Power
- 0~5dBm
- Receiver Sensitivity
- < -23dBm
- Typical Power Consumption
- ≤1.5W
- Commercial Temperature Range
- 0~70°C
- DDM
- Supported
- EMC ( Electro Magnetic Compatibility)
- Supported
- Protocols
- IEEE 802.3ae, SFF-8472, SFF-8431、SFP+ MSA, CPRI, eCPRI
- Compatible
- Cisco, Arista, Juniper, Dell, Mellanox, Generic
Technical detail
Construction and application notes for SFP-10G-CW80
Review connector, construction, routing and handling details that apply to the selected family and exact SKU.

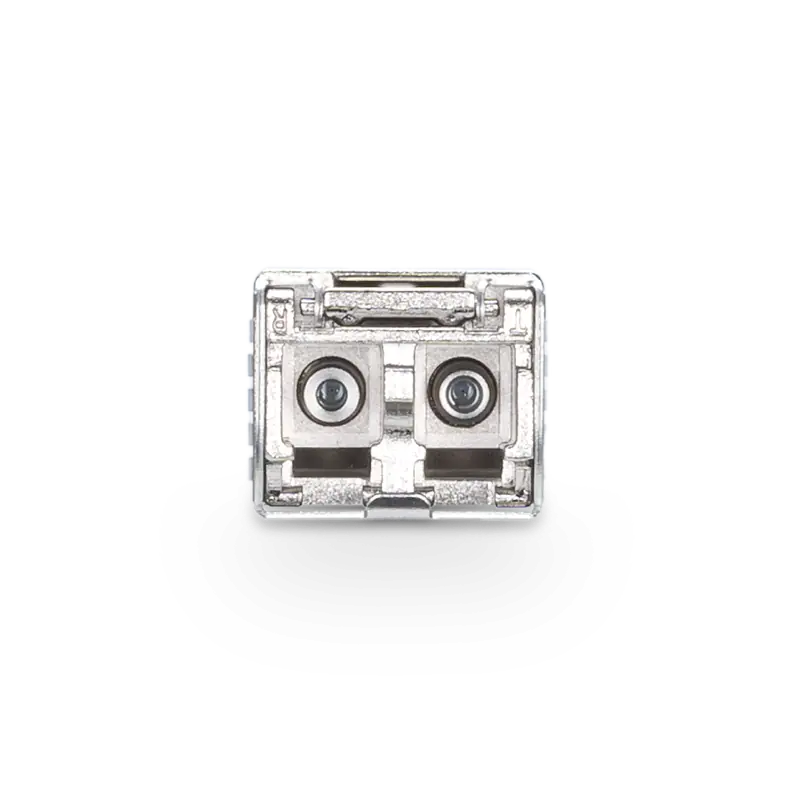

Optical interface and construction
Link application
has a full range of professional test equipment for testing various parameters of products to ensure high performance and quality of optical transmission stability.
Handling and validation
Handling and validation
Downloads
Technical documents
Use documents together with the exact SKU selection; document version and commercial validity should be reconfirmed during RFQ review.
