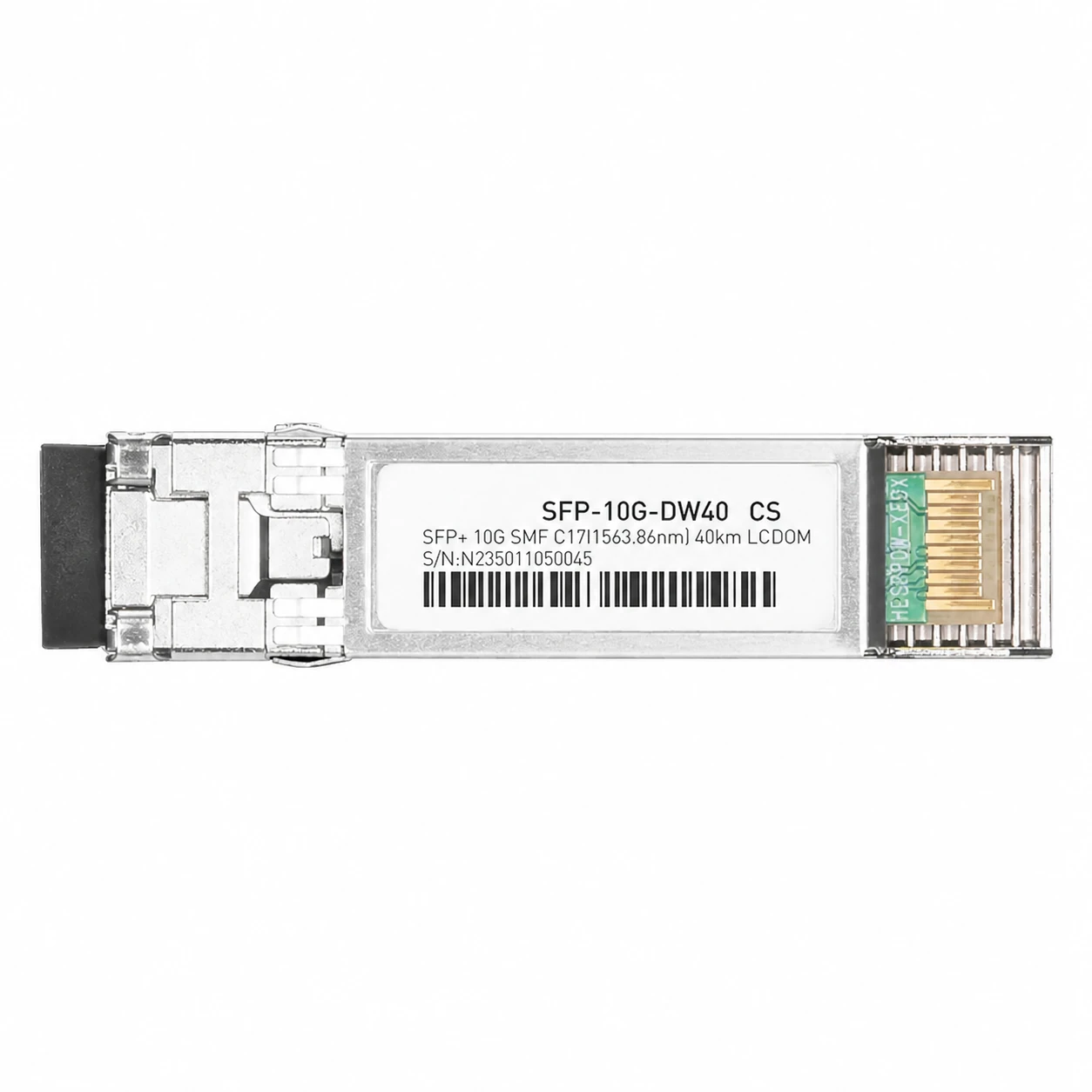

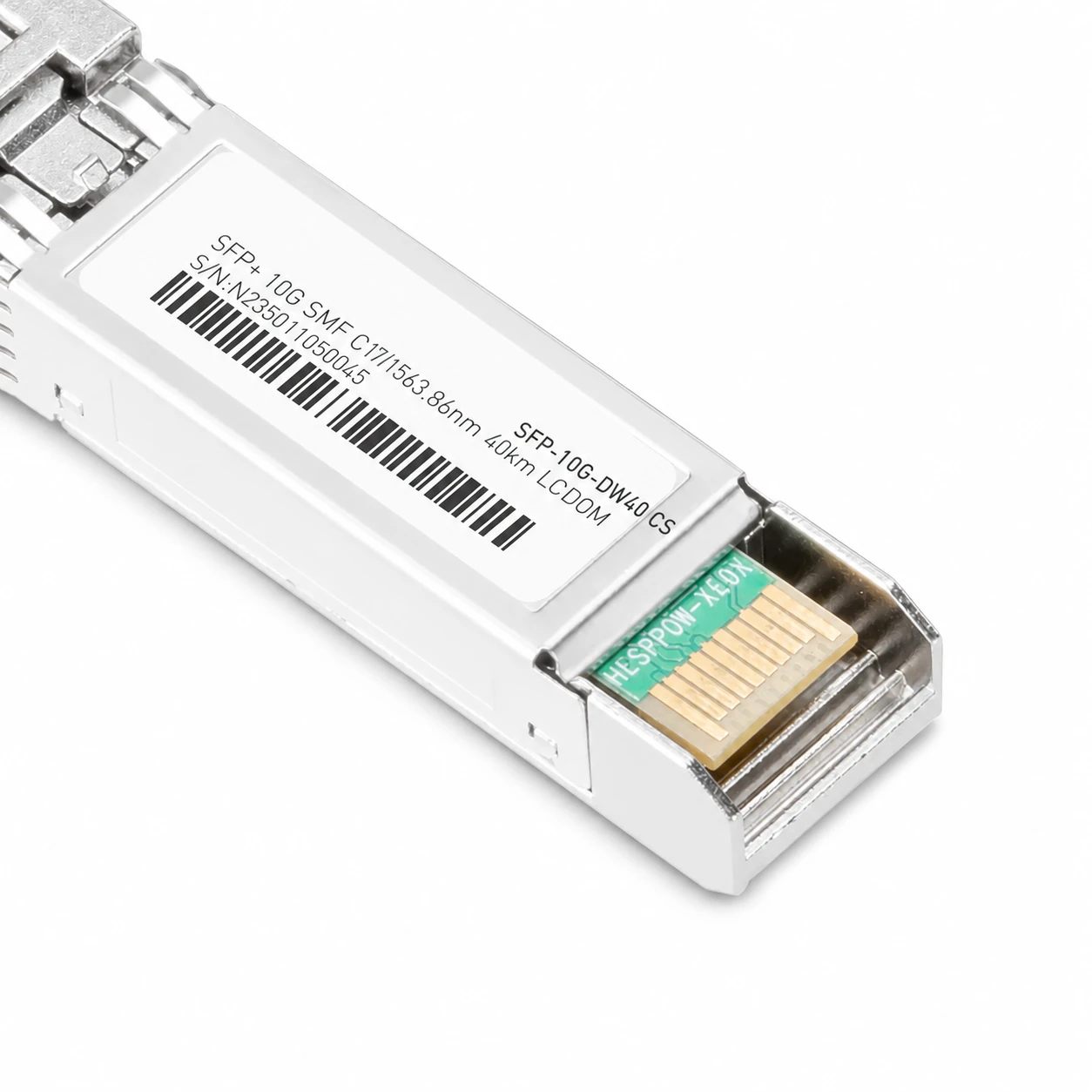

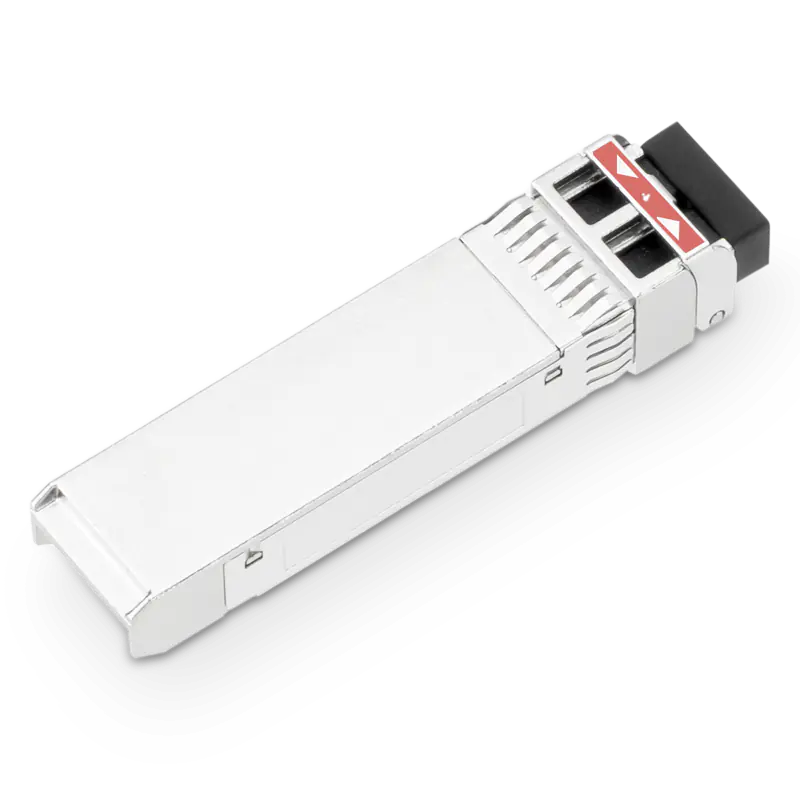

10GBASE-DW40 SFP+ C17~C61 40km SMF Module for Cisco

Optical Transceivers

10G SFP+ 40km Transceiver | SFP-10G-DW40

Catalog reference: Cisco Coding Target C17 DWDM-SFP10G-63.86 Compatible 10GBASE-DW40 SFP+ C17(1563.86nm) 40km SMF DOM LC Duplex Optical Transceiver Module

The part numbers on this page identify the requested coding target. Confirm the exact host model, port and firmware for the selected SKU.

Technical product family for 10GBASE-DW40 SFP+ C17~C61 40km SMF Module for Cisco. Review the specifications and exact SKU options below.

Family sfp-10g-dw40-28784Model SFP-10G-DW40495 SKU options

Select the exact SKU

Search and select a SKU to update the exact title, description, model and option attributes before sending an RFQ.

SKU 28784 - Model SFP-10G-DW40

10GBASE-DW40 SFP+ C17~C61 40km SMF Module for Cisco

Technical product family for 10GBASE-DW40 SFP+ C17~C61 40km SMF Module for Cisco. Review the specifications and exact SKU options below.

BrandSUNFULL
Compatible brand / platformCisco
WavelengthC17

Use this selection as the requested coding target. Final compatibility still requires the host model, port type and firmware version.

Product brand: SUNFULL. Third-party names identify requested compatibility or coding targets only and do not imply affiliation, endorsement or original-equipment status.

Get Datasheet & Quote Compatibility Review WhatsApp Technical Documents
Share: LinkedIn Facebook X Email
  • Max Power Consumption ≤1.5W.
  • Compliant with Hot Pluggable SFP+ MSA, IEEE 802.3ae Standard.
  • Class1/1M Standard Product, Compliant with RoHS Environmental Protection Standards (Lead-Free).
  • DDM(Digital Diagnostic Monitoring) Supported.
  • Easy Capacity Expansion, Flexible Service Access and High Bandwidth Utilization.

Engineering record

Specifications

Family-level values from the collected technical record. Confirm the selected SKU and required evidence in the quotation.

Product Type
SFP-10G-DW40
Form Factor
SFP+
Max Data Rate
10.3125Gbps
Wavelength
C17 / C18 / C19 / … (45 values) (SKU-dependent)
Distance
40km
Connector
Duplex LC
Media
SMF
Transmitter Type
EML
Receiver Type
PIN
TX Power
0~4dBm
Receiver Sensitivity
< -15.8dBm
Typical Power Consumption
≤1.5W
Commercial Temperature Range
0~70°C
DDM
Supported
EMC ( Electro Magnetic Compatibility)
Supported
Protocols
IEEE 802.3ae, SFF-8472, SFF-8431、SFP+ MSA, CPRI, eCPRI
Compatible
Cisco, Arista, Juniper, Dell, Mellanox, Generic

Technical detail

Construction and application notes for SFP-10G-DW40

Review connector, construction, routing and handling details that apply to the selected family and exact SKU.

Optical interface and construction

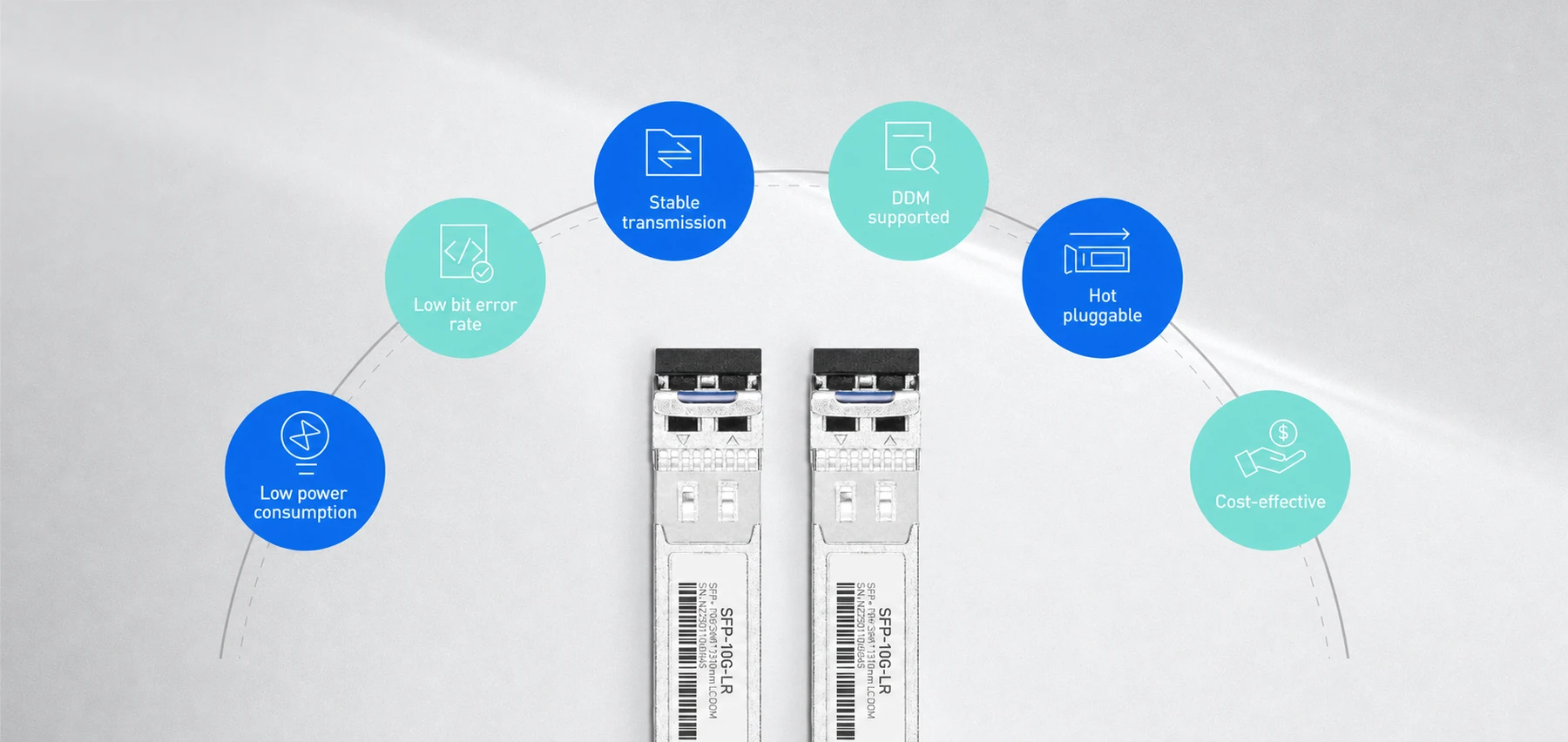

10GBASE-DW40 SFP+ C17~C61 40km SMF Module for Cisco detail

Link application

has a full range of professional test equipment for testing various parameters of products to ensure high performance and quality of optical transmission stability.

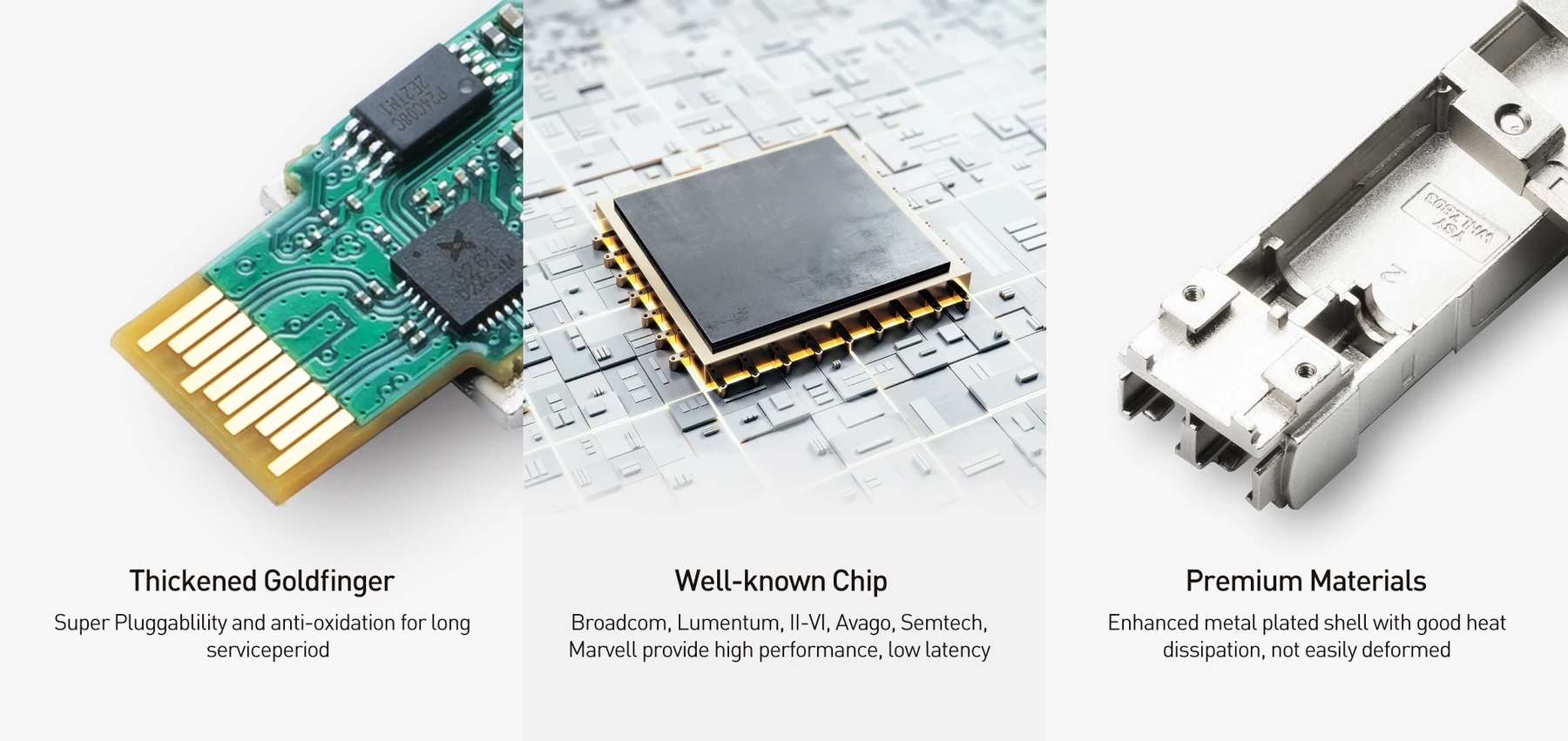

10GBASE-DW40 SFP+ C17~C61 40km SMF Module for Cisco detail

Handling and validation

10GBASE-DW40 SFP+ C17~C61 40km SMF Module for Cisco detail

Handling and validation

10GBASE-DW40 SFP+ C17~C61 40km SMF Module for Cisco detail

Downloads

Technical documents

Use documents together with the exact SKU selection; document version and commercial validity should be reconfirmed during RFQ review.

Sfp 10G Dw40 Datasheet
