SFP-1/10G-LR | 10G SFP+ 10km Transceiver
10G SFP+ 10km Transceiver with 8 exact SKU options. Confirm the host, port and firmware before quotation.
Optical Transceivers
10G SFP+ 2km Transceiver | SFP-10G-LR-S2
Catalog reference: Cisco Coding Target SFP-10G-LRM2 Compatible 10GBASE-LR SFP+ 1310nm 2km SMF DOM LC Duplex Optical Transceiver Module
The part numbers on this page identify the requested coding target. Confirm the exact host model, port and firmware for the selected SKU.
Technical product family for 10GBASE-LR-S2 SFP+ 1310nm 2km SMF Module for Cisco. Review the specifications and exact SKU options below.
Family sfp-10g-lr-s2-30153Model SFP-10G-LR-S25 SKU options
Select the exact SKU
Search and select a SKU to update the exact title, description, model and option attributes before sending an RFQ.
SKU 30153 - Model SFP-10G-LR-S2

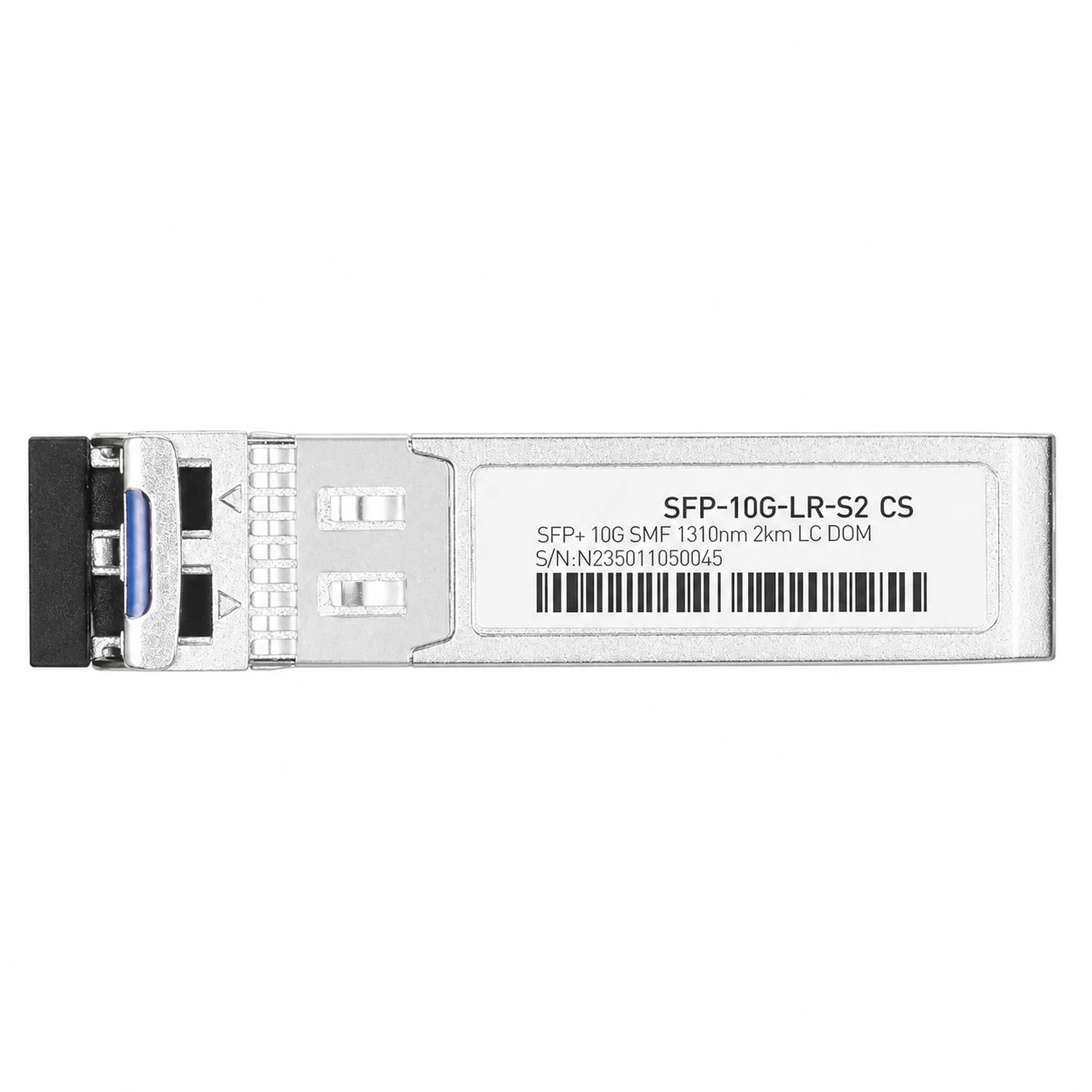

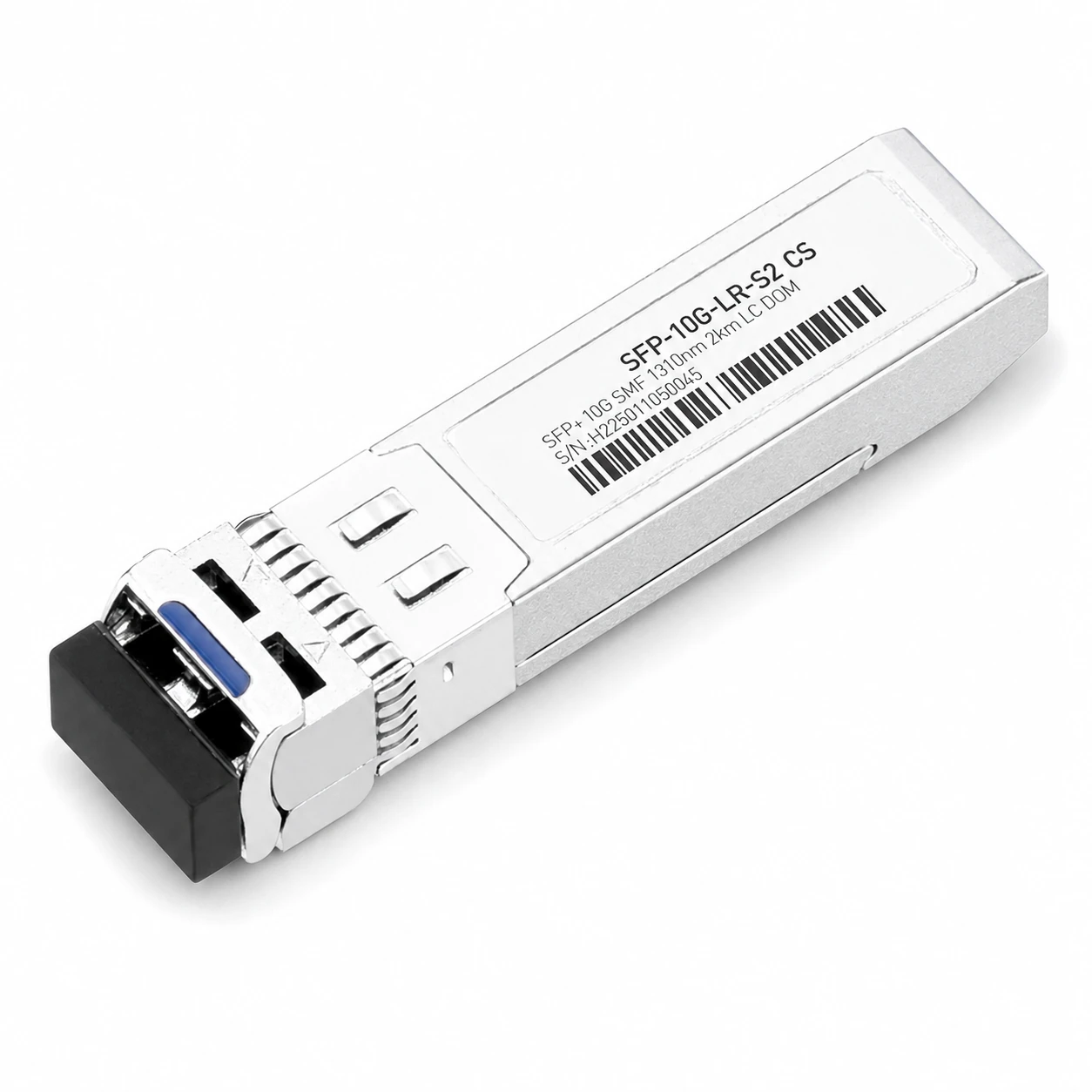

10GBASE-LR-S2 SFP+ 1310nm 2km SMF Module for Cisco
Technical product family for 10GBASE-LR-S2 SFP+ 1310nm 2km SMF Module for Cisco. Review the specifications and exact SKU options below.
BrandSUNFULL
Compatible brand / platformCisco
Use this selection as the requested coding target. Final compatibility still requires the host model, port type and firmware version.
Product brand: SUNFULL. Third-party names identify requested compatibility or coding targets only and do not imply affiliation, endorsement or original-equipment status.
- Max Power Consumption <1W.
- Compliant with Hot Pluggable SFP＋MSA, IEEE802.3ae Standard.
- Class1/1M Standard Product, Compliant with RoHS Environmental Protection Standards (Lead-Free).
- DDM(Digital Diagnostic Monitoring) Supported.
Engineering record
Specifications
Family-level values from the collected technical record. Confirm the selected SKU and required evidence in the quotation.
- Form Factor
- SFP+
- Distance
- 2km
- Wavelength
- 1310nm
- Connector
- Duplex LC
- Power Consumption
- ≤1W
- Transmitter
- FP
- Receiver
- PIN
- Media
- SMF
- Modulation (electrical )
- 10.3125Gb/s NRZ
- Modulation (Optical )
- 10.3125Gb/s NRZ
- Case Temperature(℃)
- 0 to 70°C (32 to 158°F)
- Protocol
- 10G Ethernet Compliant
Technical detail
Construction and application notes for SFP-10G-LR-S2
Review connector, construction, routing and handling details that apply to the selected family and exact SKU.
Optical interface and construction
Link application
has a full range of professional test equipment for testing various parameters of products to ensure high performance and quality of optical transmission stability.
Handling and validation
Handling and validation
Downloads
Technical documents
Use documents together with the exact SKU selection; document version and commercial validity should be reconfirmed during RFQ review.
