SFP-10/25G-LR | 25G SFP28 10km Transceiver
25G SFP28 10km Transceiver with 4 exact SKU options. Confirm the host, port and firmware before quotation.
Optical Transceivers
25G SFP28 10km Transceiver | SFP-25G-CW10
Catalog reference: Cisco Coding Target CWDM-SFP25G-1270-10 Compatible 25GBASE-CW10 SFP28 1270nm 10km SMF DOM LC Duplex Optical Transceiver Module
The part numbers on this page identify the requested coding target. Confirm the exact host model, port and firmware for the selected SKU.
SFP-25G-CW10 SFP28 optical module offers optimal input/output (I/O) performance and 2.5 times the fiber capacity of 10G Ethernet performance. The biggest advantage that 25G Ethernet technology brings to the data center is the ability to maximize bandwidth and port density, saving operational costs by reducing the number of ToR switches and cables to provide the most energy efficient way to meet the growing demands of next-generation data center networks.
Family sfp-25g-cw10-13936Model SFP-25G-CW1042 SKU options
Select the exact SKU
Search and select a SKU to update the exact title, description, model and option attributes before sending an RFQ.
SKU 31416 - Model SFP-25G-CW10

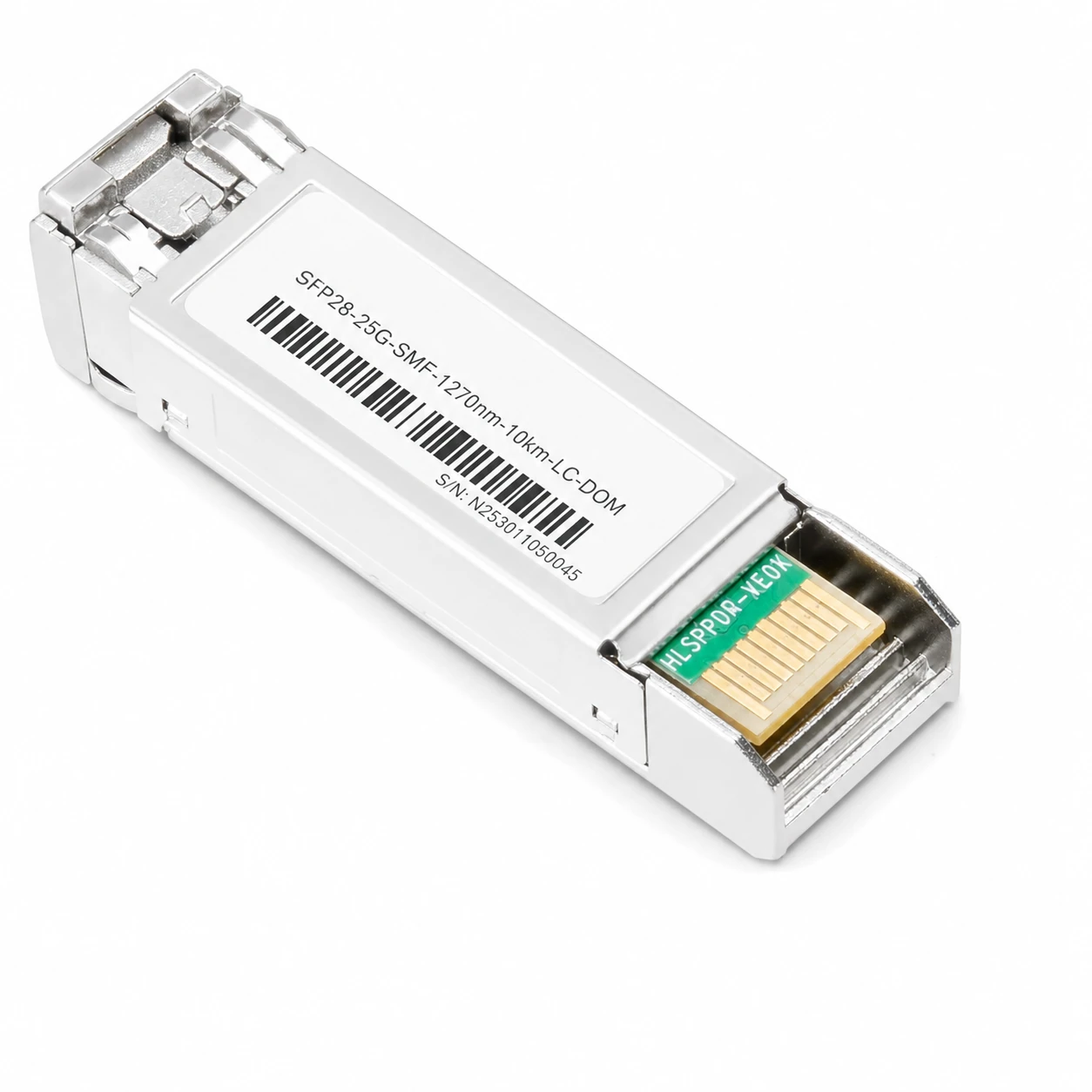

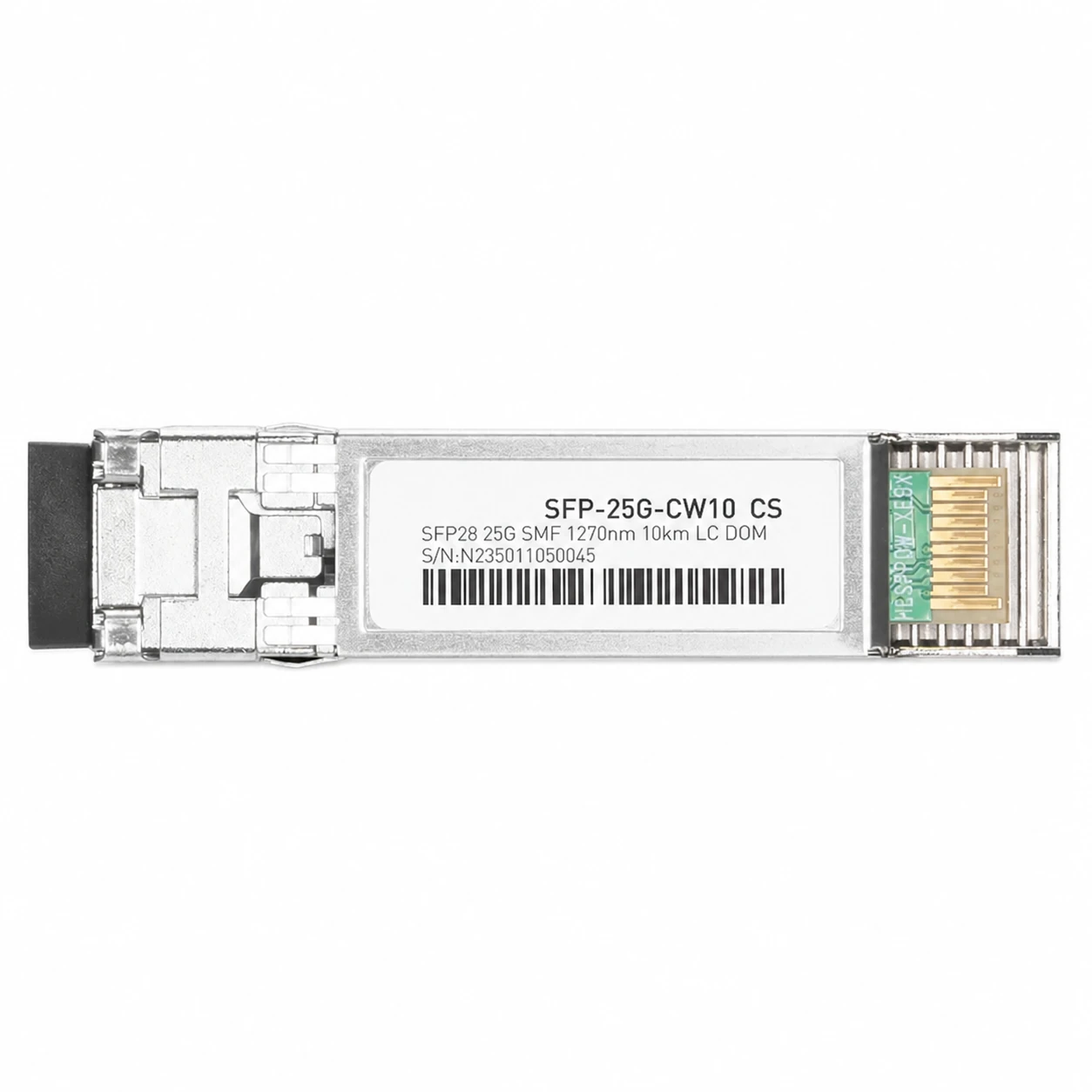

25GBASE-CW10 SFP28 1270-1370nm 10km SMF Module for Cisco
SFP-25G-CW10 SFP28 optical module offers optimal input/output (I/O) performance and 2.5 times the fiber capacity of 10G Ethernet performance. The biggest advantage that 25G Ethernet technology brings to the data center is the ability to maximize bandwidth and port density, saving operational costs by reducing the number of ToR switches and cables to provide the most energy efficient way to meet the growing demands of next-generation data center networks.
BrandSUNFULL
Compatible brand / platformCisco
Wavelength1270nm
Use this selection as the requested coding target. Final compatibility still requires the host model, port type and firmware version.
Product brand: SUNFULL. Third-party names identify requested compatibility or coding targets only and do not imply affiliation, endorsement or original-equipment status.
- Max Power Consumption ≤1.75W.
- Compliant with Hot Pluggable SFP28 MSA Standard.
- Class1/1M Standard Product, Compliant with RoHS Environmental Protection Standards (Lead-Free).
- DDM(Digital Diagnostic Monitoring) Supported.
- Significantly Improve the Flexibility, Economy and Reliability of Networking.
Engineering record
Specifications
Family-level values from the collected technical record. Confirm the selected SKU and required evidence in the quotation.
- Form Factor
- SFP28
- Distance
- 10km
- Wavelength
- 1270nm / 1290nm / 1310nm / … (6 values) (SKU-dependent)
- Connector
- Duplex LC
- Power Consumption
- ≤1.75W
- Transmitter
- DFB
- Receiver
- PIN
- Media
- SMF
- Modulation (electrical )
- 25.78Gb/s NRZ
- Modulation (Optical )
- 25.78Gb/s NRZ
- Case Temperature(℃)
- 0 to 70°C (32 to 158°F)
- Protocol
- 25G Ethernet Compliant
Technical detail
Construction and application notes for SFP-25G-CW10
Review connector, construction, routing and handling details that apply to the selected family and exact SKU.
Optical interface and construction
25G WDM SFP28 optical module offers optimal input/output (I/O) performance and 2.5 times the fiber capacity of 10G Ethernet performance. The biggest advantage that 25G Ethernet technology brings to the data center is the ability to maximize bandwidth and port density, saving operational costs by reducing the number of ToR switches and cables to provide the most energy efficient way to meet the growing demands of next-generation data center networks.
Link application
has a full range of professional test equipment for testing various parameters of products to ensure high performance and quality of optical transmission stability.
Handling and validation
Handling and validation
Downloads
Technical documents
Use documents together with the exact SKU selection; document version and commercial validity should be reconfirmed during RFQ review.
