RoCE Ethernet Interconnects
100G QSFP56 SR2 100m Transceiver | Q56-100G-SR2 / NVIDIA/Mellanox
Catalog reference: NVIDIA/Mellanox Compatible 100GBASE-SR2 QSFP56 2x50G PAM4 850nm 100m MMF DOM MPO-12/UPC Optical Transceiver Module
The part numbers on this page identify the requested coding target. Confirm the exact host model, port and firmware for the selected SKU.
NVIDIA/Mellanox Coding Target Compatible100G SR2 QSFP56 transceiver is mainly used for 200GbE to 2x100G Ethernet networking, operating over a 2-lane parallel MMF via a standard MPO-12 UPC connector.
Family q56-100g-sr2-103012Model Q56-100G-SR28 SKU options
Requested part-number references
- Requested coding target
- NVIDIA/Mellanox
- Primary reference identifier
- Not provided in the source record
No OEM part-number alias was captured in the source record.
Review boundary: These identifiers reproduce source catalog matching terms only; they do not establish interoperability, approval or endorsement. Confirm the exact host model, port type, firmware and test evidence before use.
Select the exact SKU
Search and select a SKU to update the exact title, description, model and option attributes before sending an RFQ.
SKU 103012 - Model Q56-100G-SR2

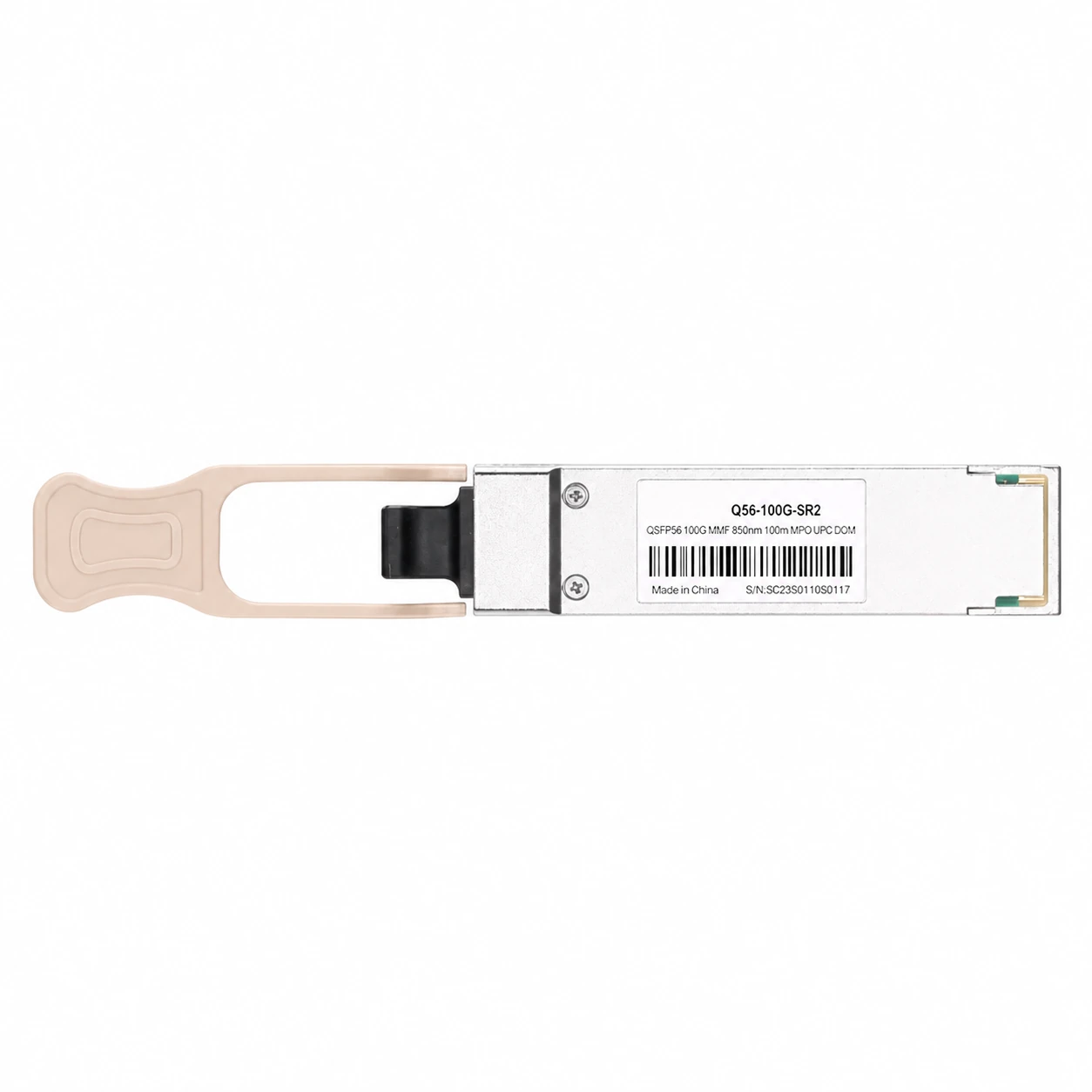

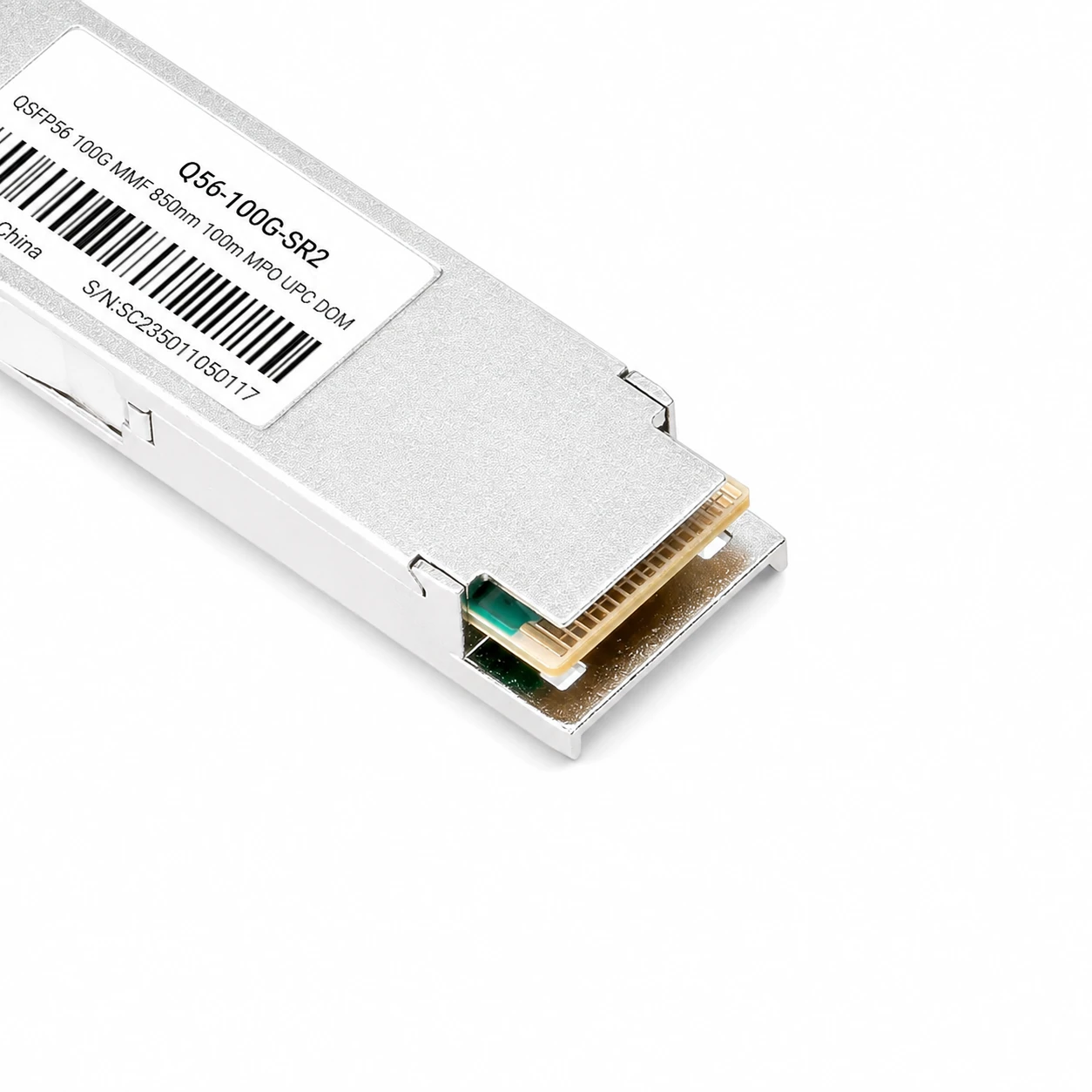

NVIDIA/Mellanox Compatible 100GbE SR2 QSFP56 850nm 100m MPO/MTP-12 UPC Ethernet Optical Transceiver Module for MMF
NVIDIA/Mellanox Coding Target Compatible100G SR2 QSFP56 transceiver is mainly used for 200GbE to 2x100G Ethernet networking, operating over a 2-lane parallel MMF via a standard MPO-12 UPC connector.
BrandSUNFULL
Compatible brand / platformNVIDIA/Mellanox (Ethernet)
Polish TypesUPC
Use this selection as the requested coding target. Final compatibility still requires the host model, port type and firmware version.
Product brand: SUNFULL. Third-party names identify requested compatibility or coding targets only and do not imply affiliation, endorsement or original-equipment status.
- Max Power Consumption ≤3.5W.
- Compliant with Hot Pluggable QSFP56 MSA, IEEE 802.3bs Standard.
- Class1/1M Standard Product, Compliant with RoHS Environmental Protection Standards (Lead-Free).
- DDM (Digital Diagnostic Monitoring) Supported.
Engineering record
Specifications
Family-level values from the collected technical record. Confirm the selected SKU and required evidence in the quotation.
- Form Factor
- QSFP56
- Distance
- 100m
- Wavelength
- 850nm
- Connector
- MTP/MPO-12 (UPC/APC)
- Power Consumption
- ≤3.5W
- Transmitter
- VCSEL
- Receiver
- PIN
- Media
- MMF
- Modulation (electrical)
- 2x53.125Gb/s PAM4
- Modulation (Optical)
- 2x53.125Gb/s PAM4
- Case Temperature (℃)
- 0 to 70°C (32 to 158°F)
- Protocol
- 100G Ethernet Compliant
