100G QSFP28 25km Transceiver | QSFP-100G-ERL
Catalog reference: Arista Compatible 100GBASE-ER QSFP28 Single Lambda 4x25G NRZ 1310nm 25km SMF DOM LC Duplex Optical Transceiver Module
The part numbers on this page identify the requested coding target. Confirm the exact host model, port and firmware for the selected SKU.
Arista Coding Target Networks QSFP-100G-ERL Compatible 100GBASE-ERL QSFP28 Optical Transceiver Module (SMF, 1310nm, 40km, LC, DOM)
Family qsfp-100g-erl-14286Model QSFP-100G-ERL10 SKU options
Select the exact SKU
Search and select a SKU to update the exact title, description, model and option attributes before sending an RFQ.
SKU 14287 - Model QSFP-100G-ERL

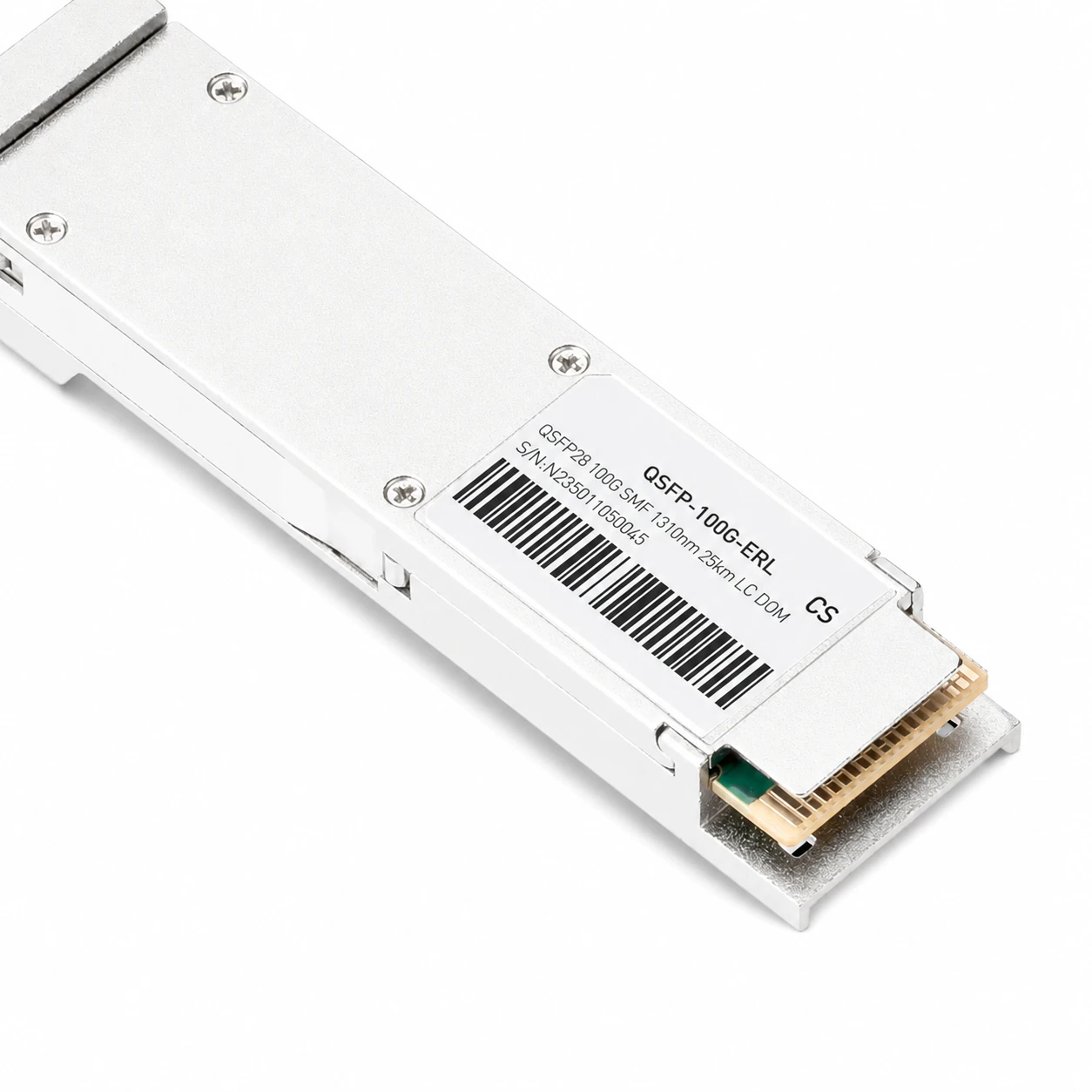

100GBASE-ERL QSFP28 Single Lambda 1310nm 25km SMF Module for Arista
Arista Coding Target Networks QSFP-100G-ERL Compatible 100GBASE-ERL QSFP28 Optical Transceiver Module (SMF, 1310nm, 40km, LC, DOM)
BrandSUNFULL
Compatible brand / platformArista
Use this selection as the requested coding target. Final compatibility still requires the host model, port type and firmware version.
Product brand: SUNFULL. Third-party names identify requested compatibility or coding targets only and do not imply affiliation, endorsement or original-equipment status.
- Max Power Consumption 4W.
- Hot Pluggable QSFP28 and 100G Single Lambda MSA Compliant, 1310nm PAM4 modulated.
- Class 1 FDA Laser Safety, Compliant with RoHS Environmental Protection Standards (Lead-Free).
- DDM(Digital Diagnostic Monitoring) Supported.
- Single Lane Data Path Aligned with Future Single-lane 100G Ports (SFP112).
Engineering record
Specifications
Family-level values from the collected technical record. Confirm the selected SKU and required evidence in the quotation.
- Form Factor
- QSFP28
- Distance
- 25km
- Wavelength
- 1310nm
- Connector
- Duplex LC
- Power Consumption
- ≤4W
- Transmitter
- EML
- Receiver
- APD
- Media
- SMF
- Modulation (electrical )
- 4x25.78Gb/s NRZ
- Modulation (Optical )
- 1x50Gbaud PAM4
- Case Temperature(℃)
- 0 to 70°C (32 to 158°F)
- Protocol
- 100G Ethernet Compliant
Technical detail
Construction and application notes for QSFP-100G-ERL
Review connector, construction, routing and handling details that apply to the selected family and exact SKU.
Optical interface and construction
Applicable to 100G data center interconnection, campus network, telecommunications field, and cloud computing, etc.
Link application
has a full range of professional test equipment for testing various parameters of products to ensure high performance and quality of optical transmission stability.
Handling and validation
