100G QSFP28 LR4 10km Transceiver | QSFP-100G-LR4
Catalog reference: Arista Coding Target 100GBASE-LR4 Compatible 100GBASE-LR4 QSFP28 4x25G NRZ 1310nm 10km SMF DOM LC Duplex COB Optical Transceiver Module
The part numbers on this page identify the requested coding target. Confirm the exact host model, port and firmware for the selected SKU.
The Arista QSFP-100G-LR4 using COB packaging technology is a 103/112 Gbps transceiver module designed for optical communication applications compliant to 100GBASE-LR4 of the IEEE P802.3ba standard and OUT-4.
Family qsfp-100g-lr4-32396Model QSFP-100G-LR448 SKU options
Select the exact SKU
Search and select a SKU to update the exact title, description, model and option attributes before sending an RFQ.
SKU 32397 - Model QSFP-100G-LR4

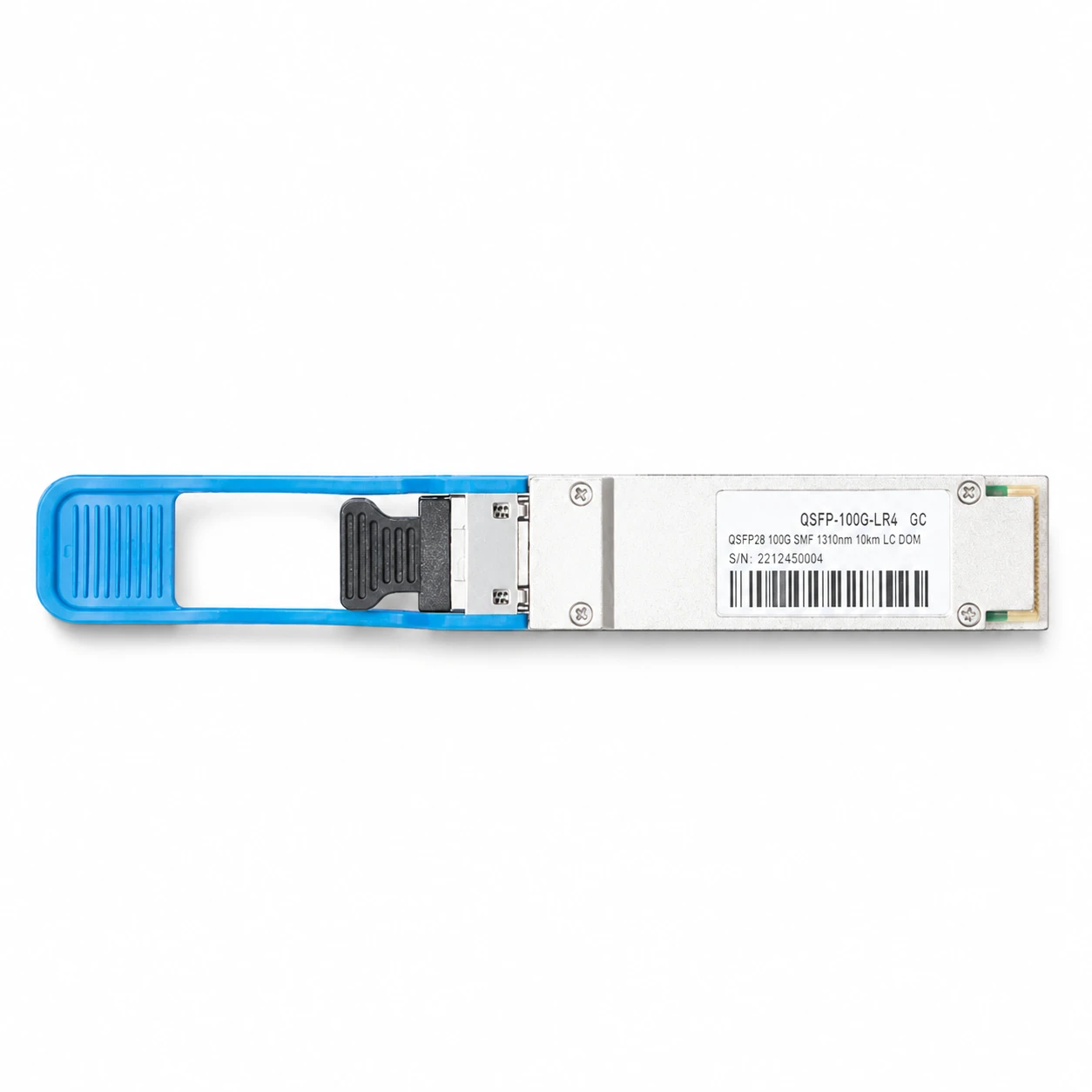

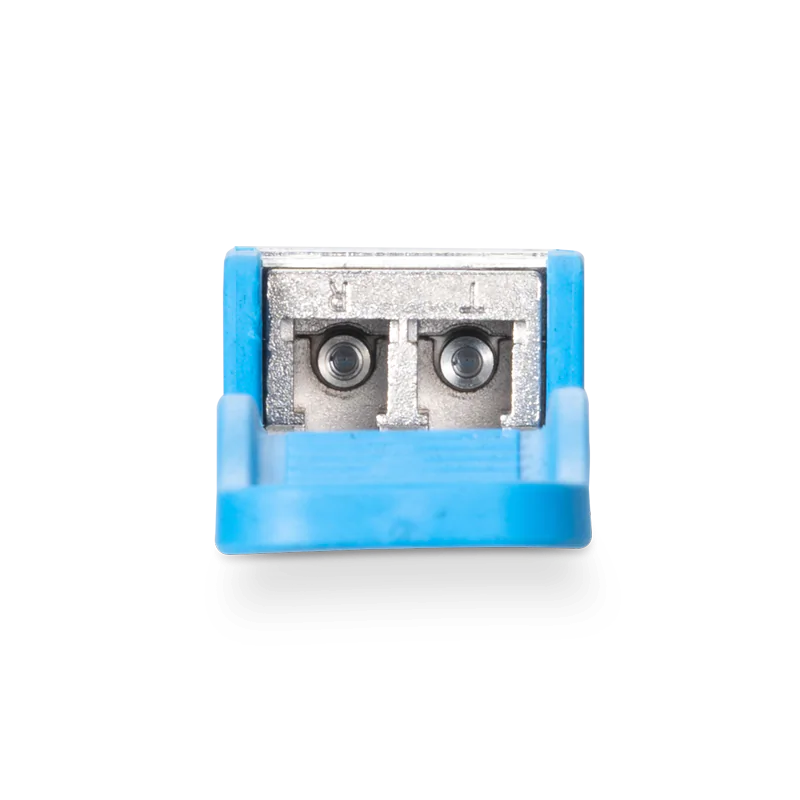

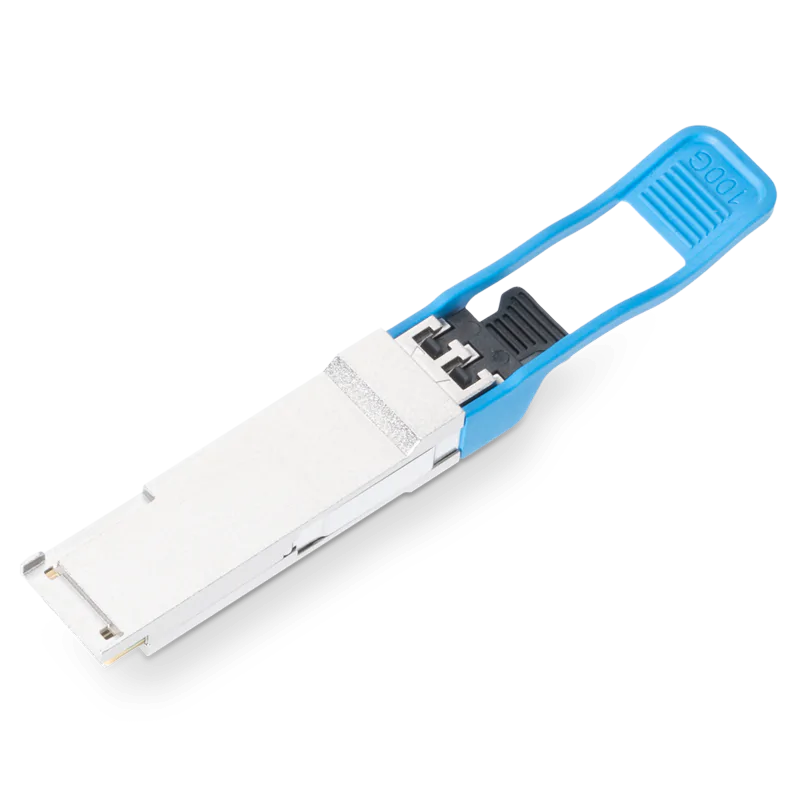

100GBASE-LR4 QSFP28 1310nm 10km COB SMF Module for Arista
The Arista QSFP-100G-LR4 using COB packaging technology is a 103/112 Gbps transceiver module designed for optical communication applications compliant to 100GBASE-LR4 of the IEEE P802.3ba standard and OUT-4.
BrandSUNFULL
Compatible brand / platformArista
Packaging TypesCOB
Use this selection as the requested coding target. Final compatibility still requires the host model, port type and firmware version.
Product brand: SUNFULL. Third-party names identify requested compatibility or coding targets only and do not imply affiliation, endorsement or original-equipment status.
- Max Power Consumption ≤4.5W.
- Compliant with Hot Pluggable QSFP28 MSA, IEEE 802.3ba Standard.
- Class1/1M Standard Product, Compliant with RoHS Environmental Protection Standards (Lead-Free).
- DDM(Digital Diagnostic Monitoring) Supported.
Engineering record
Specifications
Family-level values from the collected technical record. Confirm the selected SKU and required evidence in the quotation.
- Form Factor
- QSFP28
- Distance
- 10km
- Wavelength
- 1310nm
- Connector
- Duplex LC
- Power Consumption
- ≤3.5W
- Transmitter
- DML
- Receiver
- PIN
- Media
- SMF
- Modulation (electrical )
- 4x25.78Gb/s NRZ
- Modulation (Optical )
- 4x25.78Gb/s NRZ
- Case Temperature(℃)
- 0 to 70°C (32 to 158°F)
- Protocol
- 100G Ethernet Compliant
- Packaging Type
- COB/BOX
Technical detail
Construction and application notes for QSFP-100G-LR4
Review connector, construction, routing and handling details that apply to the selected family and exact SKU.
Optical interface and construction
Suitable for applications such as interconnection between internet data center (IDC) computer rooms, HPC, high-frequency trading, etc.
Link application
has a full range of professional test equipment for testing various parameters of products to ensure high performance and quality of optical transmission stability.
Handling and validation
