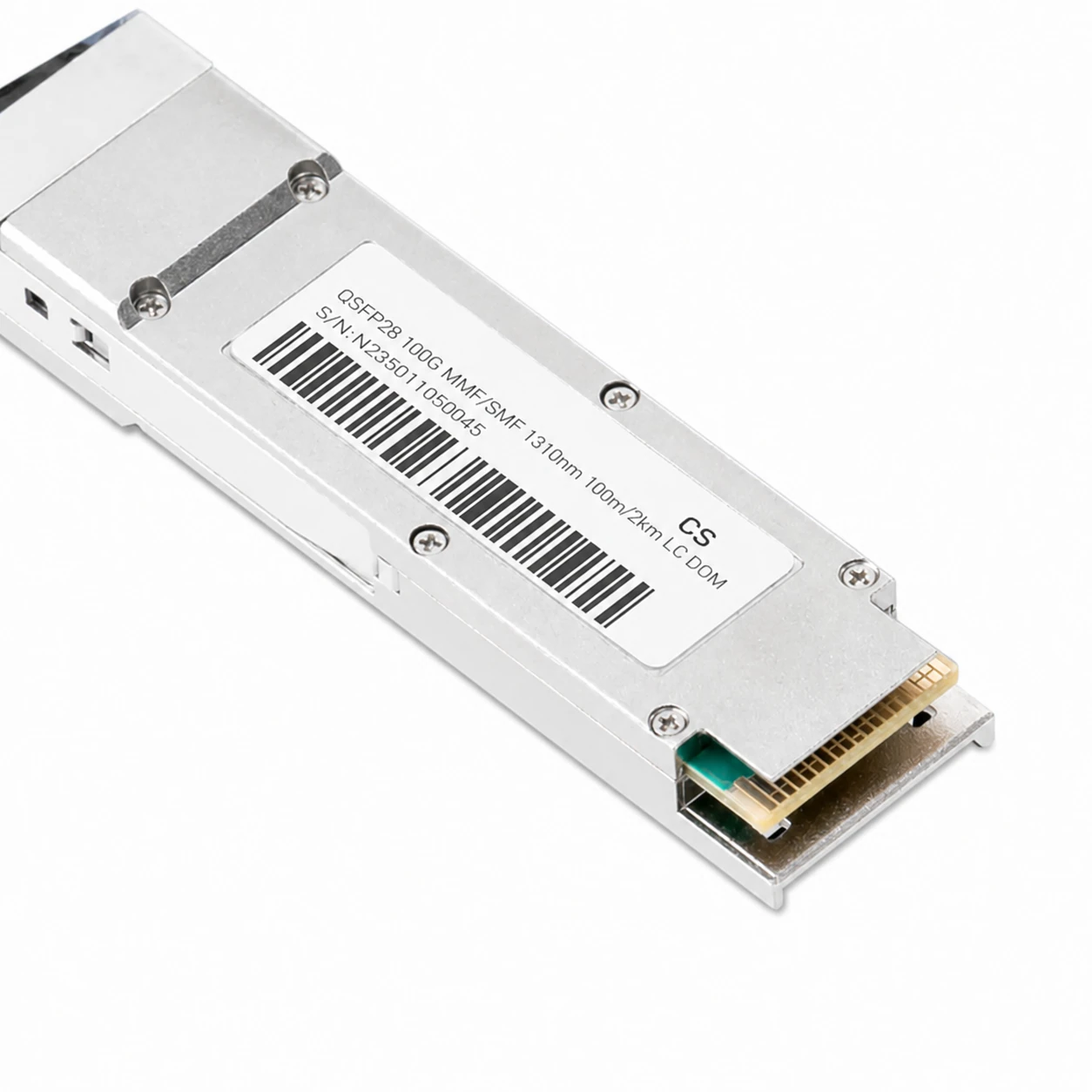

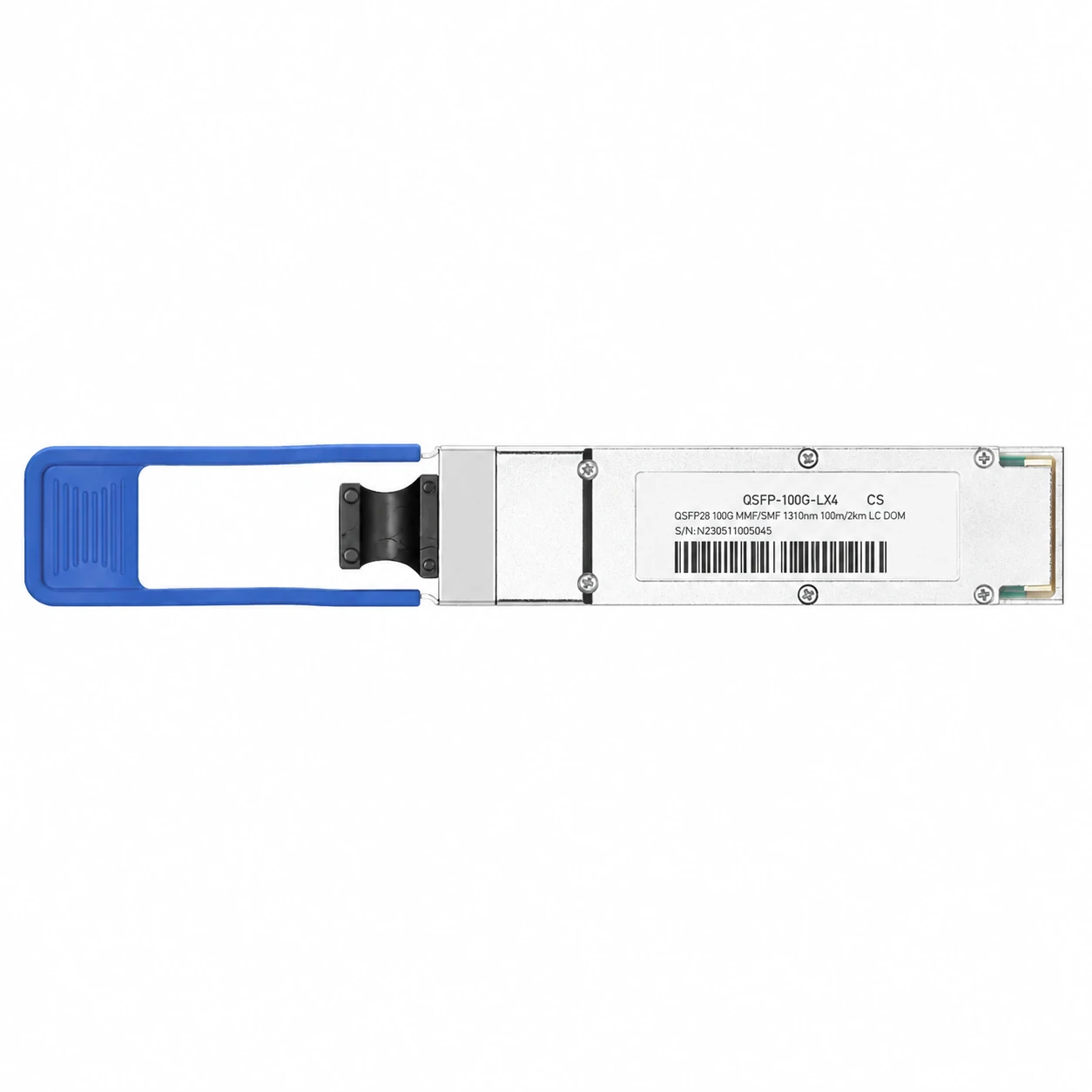

100GBASE-LX4 QSFP28 1310nm 2km/100m SMF/MMF Module for Arista

Optical Transceivers

100G QSFP28 Transceiver | QSFP-100G-LX4

Catalog reference: Arista Compatible 100GBASE-LX4 QSFP28 4x25G NRZ 1310nm 100m/2km MMF/SMF DOM LC Duplex Optical Transceiver Module

The part numbers on this page identify the requested coding target. Confirm the exact host model, port and firmware for the selected SKU.

QSFP-100G-LRX4 optical module supports 4×25G data transmission mode with high port density, low power consumption and low cost. 100G optical module is suitable for 100G Ethernet, 112G OTN OTU4, telecom, access networks, data center interconnects, service provider applications and 5G wireless networks, ideal for large data centers and future network expansion.

Family qsfp-100g-lx4-14367Model QSFP-100G-LX412 SKU options

Select the exact SKU

Search and select a SKU to update the exact title, description, model and option attributes before sending an RFQ.

SKU 14368 - Model QSFP-100G-LX4

100GBASE-LX4 QSFP28 1310nm 2km/100m SMF/MMF Module for Arista

QSFP-100G-LRX4 optical module supports 4×25G data transmission mode with high port density, low power consumption and low cost. 100G optical module is suitable for 100G Ethernet, 112G OTN OTU4, telecom, access networks, data center interconnects, service provider applications and 5G wireless networks, ideal for large data centers and future network expansion.

BrandSUNFULL
Compatible brand / platformArista

Use this selection as the requested coding target. Final compatibility still requires the host model, port type and firmware version.

Product brand: SUNFULL. Third-party names identify requested compatibility or coding targets only and do not imply affiliation, endorsement or original-equipment status.

Get Datasheet & Quote Compatibility Review WhatsApp Technical Documents
Share: LinkedIn Facebook X Email
  • Max Power Consumption 4W.
  • Compliant with Hot Pluggable QSFP28 MSA, IEEE Std 802.3bm.
  • Class1 Standard Product, Compliant with RoHS Environmental Protection Standards (Lead-Free).
  • DDM(Digital Diagnostic Monitoring)Supported.
  • Up to 100m on OM3 MMF and Up to 2km on SMF.
  • 25.78125 Gbit/s x 4 Channel Electrical Interface (CAUI-4).

Engineering record

Specifications

Family-level values from the collected technical record. Confirm the selected SKU and required evidence in the quotation.

Form Factor
QSFP28
Distance
2km (SMF)/100m (OM3) MMF
Wavelength
1310nm
Connector
Duplex LC
Power Consumption
≤4W
Transmitter
DFB
Receiver
PIN
Media
SMF/MMF
Modulation (electrical )
4x25.78Gb/s NRZ
Modulation (Optical )
4x25.78Gb/s NRZ
Case Temperature(℃)
0 to 70°C (32 to 158°F)
Protocol
100G Ethernet Compliant

Technical detail

Construction and application notes for QSFP-100G-LX4

Review connector, construction, routing and handling details that apply to the selected family and exact SKU.

Optical interface and construction

Suitable for applications such as interconnection between internet data center (IDC) computer rooms, HPC, high-frequency trading, etc.

100GBASE-LX4 QSFP28 1310nm 2km/100m SMF/MMF Module for Arista detail

Link application

has a full range of professional test equipment for testing various parameters of products to ensure high performance and quality of optical transmission stability.

100GBASE-LX4 QSFP28 1310nm 2km/100m SMF/MMF Module for Arista detail

Handling and validation

Standardized Service

Downloads

Technical documents

Use documents together with the exact SKU selection; document version and commercial validity should be reconfirmed during RFQ review.

Qsfp 100G Lx4 Datasheet
