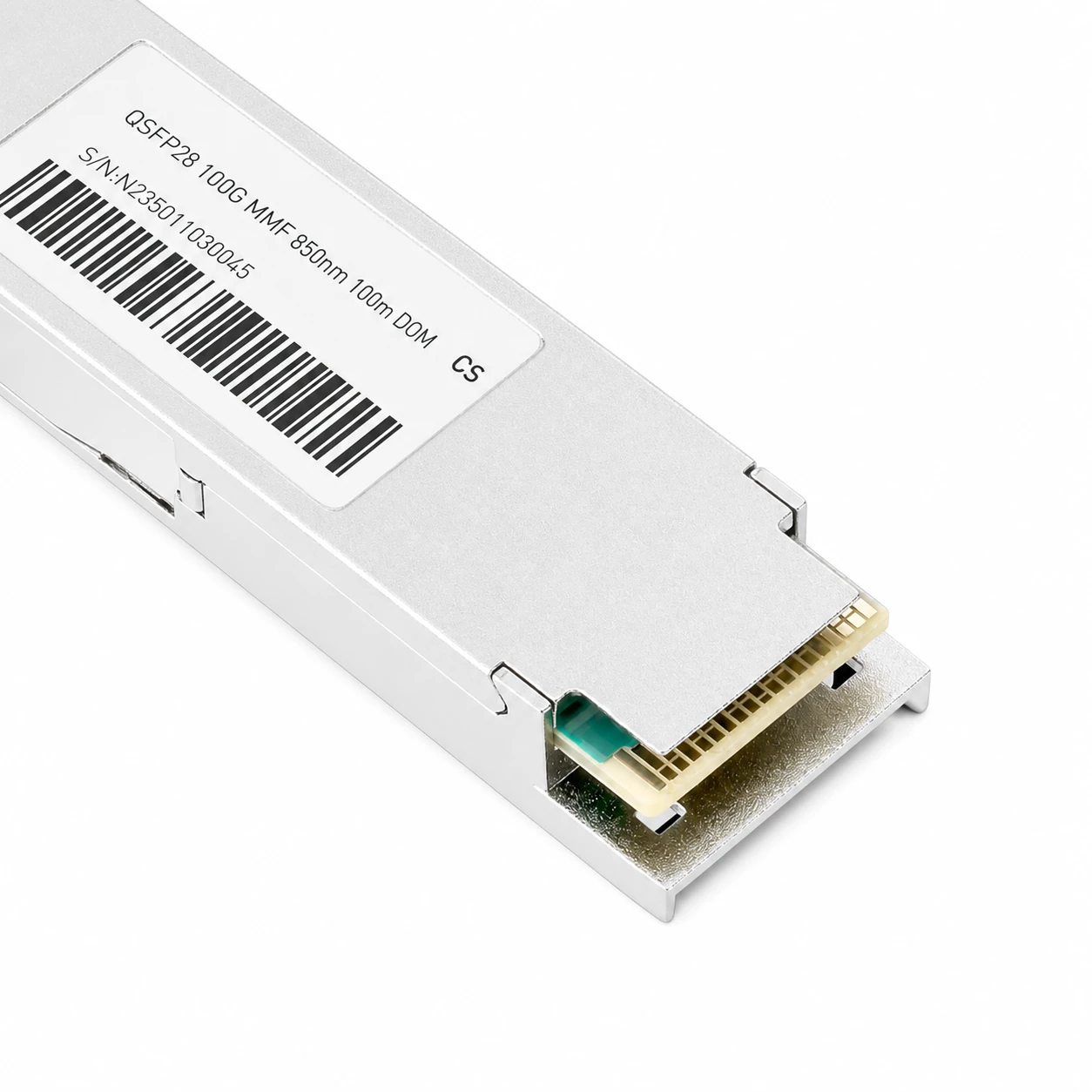

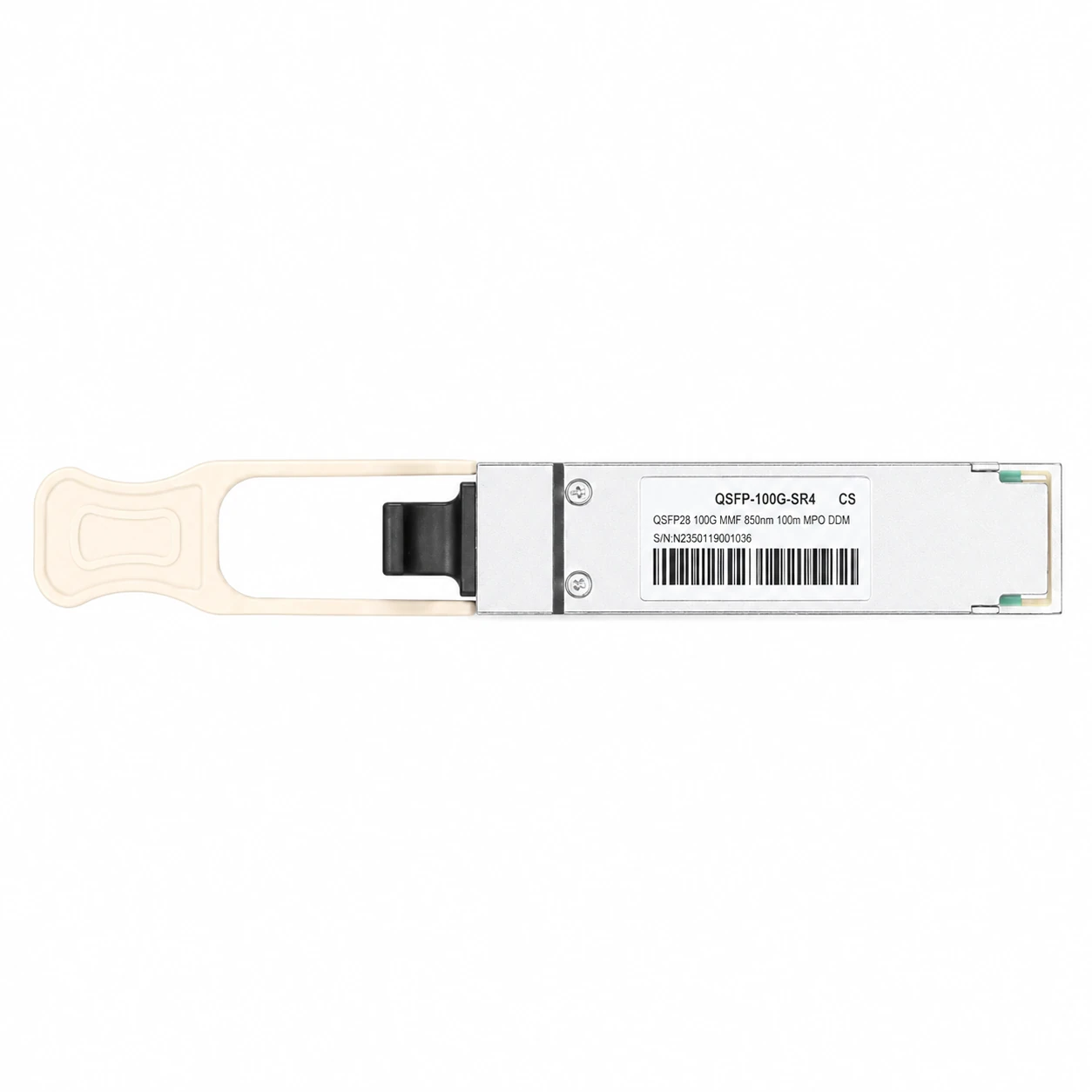

100GBASE-SR4 QSFP28 850nm 70m (OM3) /100m (OM4) MMF Module for Arista

Optical Transceivers

100G QSFP28 SR4 100m Transceiver | QSFP-100G-SR4

Catalog reference: Arista Coding Target QSFP-100G-SR4 Compatible 100GBASE-SR4 QSFP28 4x25G NRZ 850nm 100m MMF DOM MPO-12/UPC Optical Transceiver Module

The part numbers on this page identify the requested coding target. Confirm the exact host model, port and firmware for the selected SKU.

The Arista QSFP-100G-SR4 Compatible QSFP28 Optical Transceiver Module is designed for use in 100GBASE Ethernet throughput up to 100m over OM4 multimode fiber (MMF) using a wavelength of 850nm via a MTP/MPO-12 connector.

Family qsfp-100g-sr4-14002Model QSFP-100G-SR423 SKU options

Select the exact SKU

Search and select a SKU to update the exact title, description, model and option attributes before sending an RFQ.

SKU 32346 - Model QSFP-100G-SR4

100GBASE-SR4 QSFP28 850nm 70m (OM3) /100m (OM4) MMF Module for Arista

The Arista QSFP-100G-SR4 Compatible QSFP28 Optical Transceiver Module is designed for use in 100GBASE Ethernet throughput up to 100m over OM4 multimode fiber (MMF) using a wavelength of 850nm via a MTP/MPO-12 connector.

BrandSUNFULL
Compatible brand / platformArista

Use this selection as the requested coding target. Final compatibility still requires the host model, port type and firmware version.

Product brand: SUNFULL. Third-party names identify requested compatibility or coding targets only and do not imply affiliation, endorsement or original-equipment status.

Get Datasheet & Quote Compatibility Review WhatsApp Technical Documents
Share: LinkedIn Facebook X Email
  • Max Power Consumption ≤3.5W.
  • Compliant with Hot Pluggable QSFP28 MSA, IEEE 802.3bm Standard.
  • Class1/1M Standard Product, Compliant with RoHS Environmental Protection Standards (Lead-Free).
  • DDM(Digital Diagnostic Monitoring) Supported.

Engineering record

Specifications

Family-level values from the collected technical record. Confirm the selected SKU and required evidence in the quotation.

Form Factor
QSFP28
Distance
100m
Wavelength
850nm
Connector
MTP/MPO-12
Power Consumption
≤3.5W
Transmitter
VCSEL
Receiver
PIN
Media
MMF
Modulation (electrical )
4x25.78Gb/s NRZ
Modulation (Optical )
4x25.78Gb/s NRZ
Case Temperature(℃)
0 to 70°C (32 to 158°F)
Protocol
100G Ethernet Compliant

Technical detail

Construction and application notes for QSFP-100G-SR4

Review connector, construction, routing and handling details that apply to the selected family and exact SKU.

Optical interface and construction

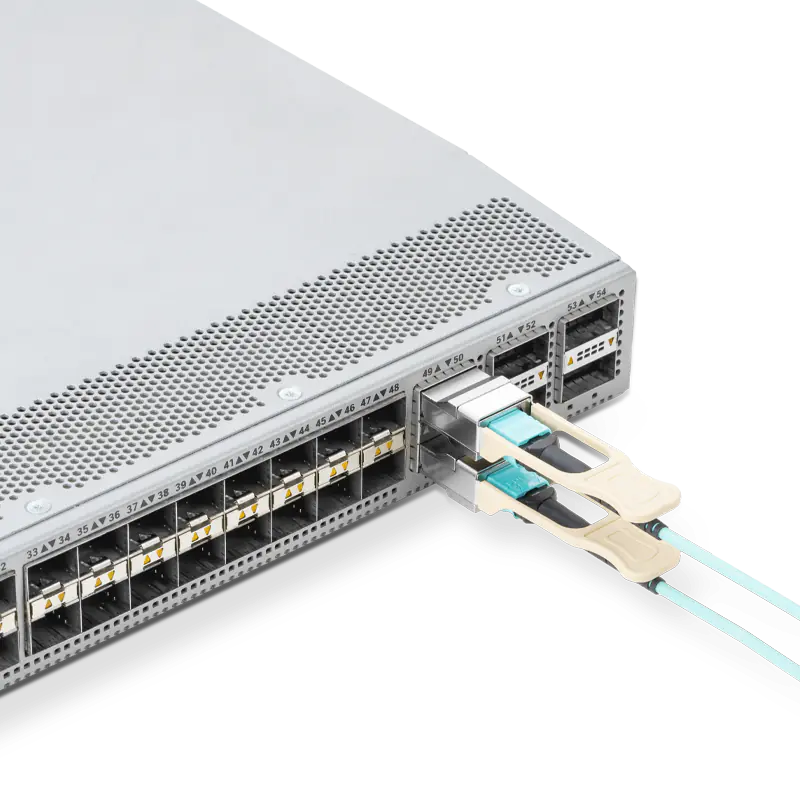

Suitable for short-distance applications such as 100G data center internal network, server room, enterprise core layer and distribution layer,etc.

Link application

has a full range of professional test equipment for testing various parameters of products to ensure high performance and quality of optical transmission stability.

100GBASE-SR4 QSFP28 850nm 70m (OM3) /100m (OM4) MMF Module for Arista detail

Handling and validation

Standardized Service

Downloads

Technical documents

Use documents together with the exact SKU selection; document version and commercial validity should be reconfirmed during RFQ review.

Qsfp 100G Sr4 Datasheet
