QSFP-100G-CWDM4 | 100G QSFP28 CWDM4 2km Transceiver
100G QSFP28 CWDM4 2km Transceiver with 21 exact SKU options. Confirm the host, port and firmware before quotation.
Optical Transceivers
100G QSFP28 Transceiver | QSFP-100G-SRBD
Catalog reference: Arista Coding Target QSFP-100G-SRBD Compatible 100GBASE-SRBD QSFP28 4x25G NRZ 850/910nm 100m MMF DOM LC Duplex Optical Transceiver Module
The part numbers on this page identify the requested coding target. Confirm the exact host model, port and firmware for the selected SKU.
QSFP-100G-SRBD optical module supports 4×25G data transmission mode with high port density, low power consumption and low cost. 100G optical module is suitable for 100G Ethernet, 112G OTN OTU4, telecom, access networks, data center interconnects, service provider applications and 5G wireless networks, ideal for large data centers and future network expansion.
Family qsfp-100g-srbd-14009Model QSFP-100G-SRBD9 SKU options
Select the exact SKU
Search and select a SKU to update the exact title, description, model and option attributes before sending an RFQ.
SKU 32470 - Model QSFP-100G-SRBD

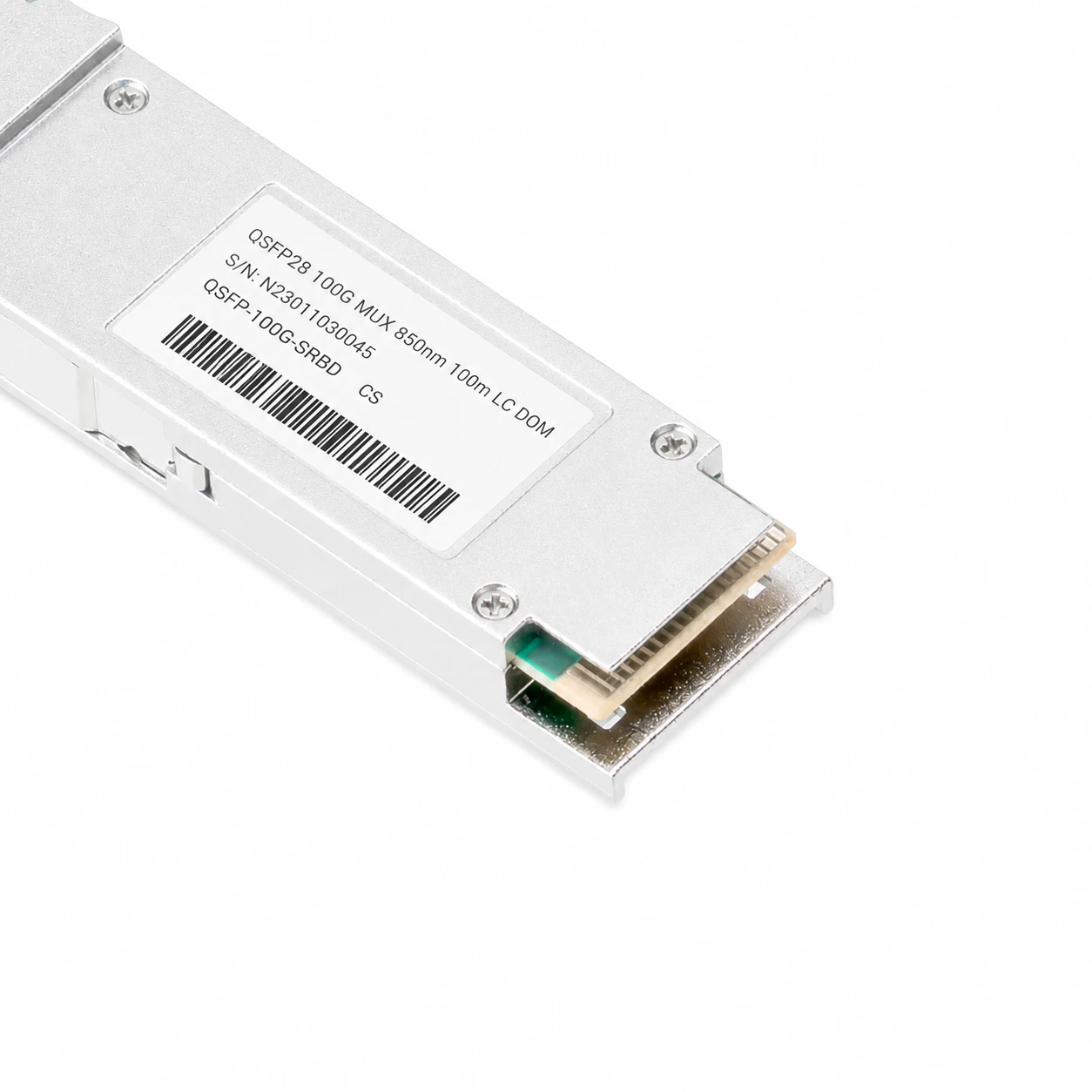

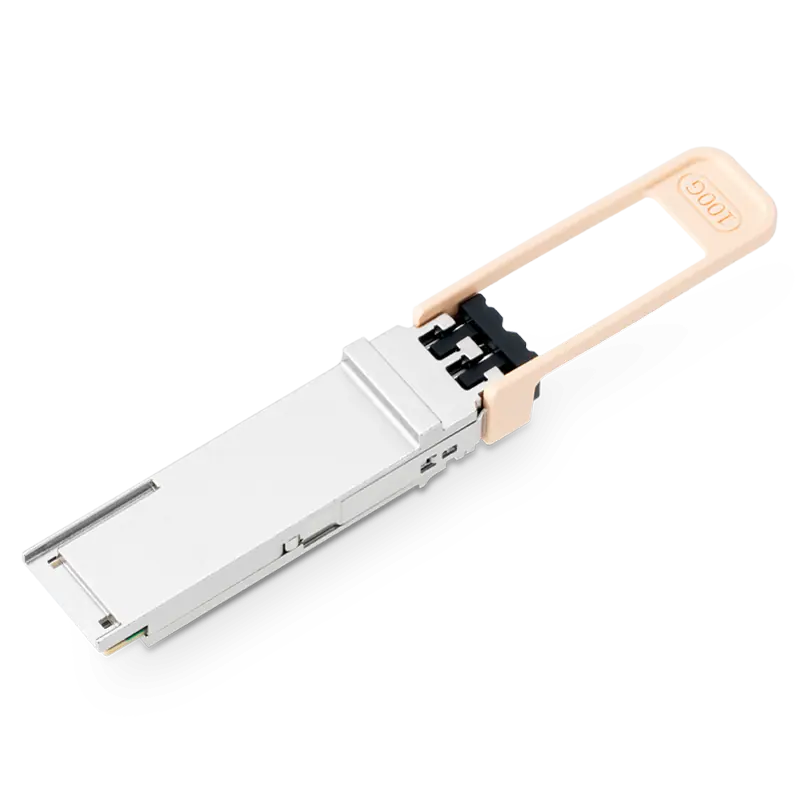

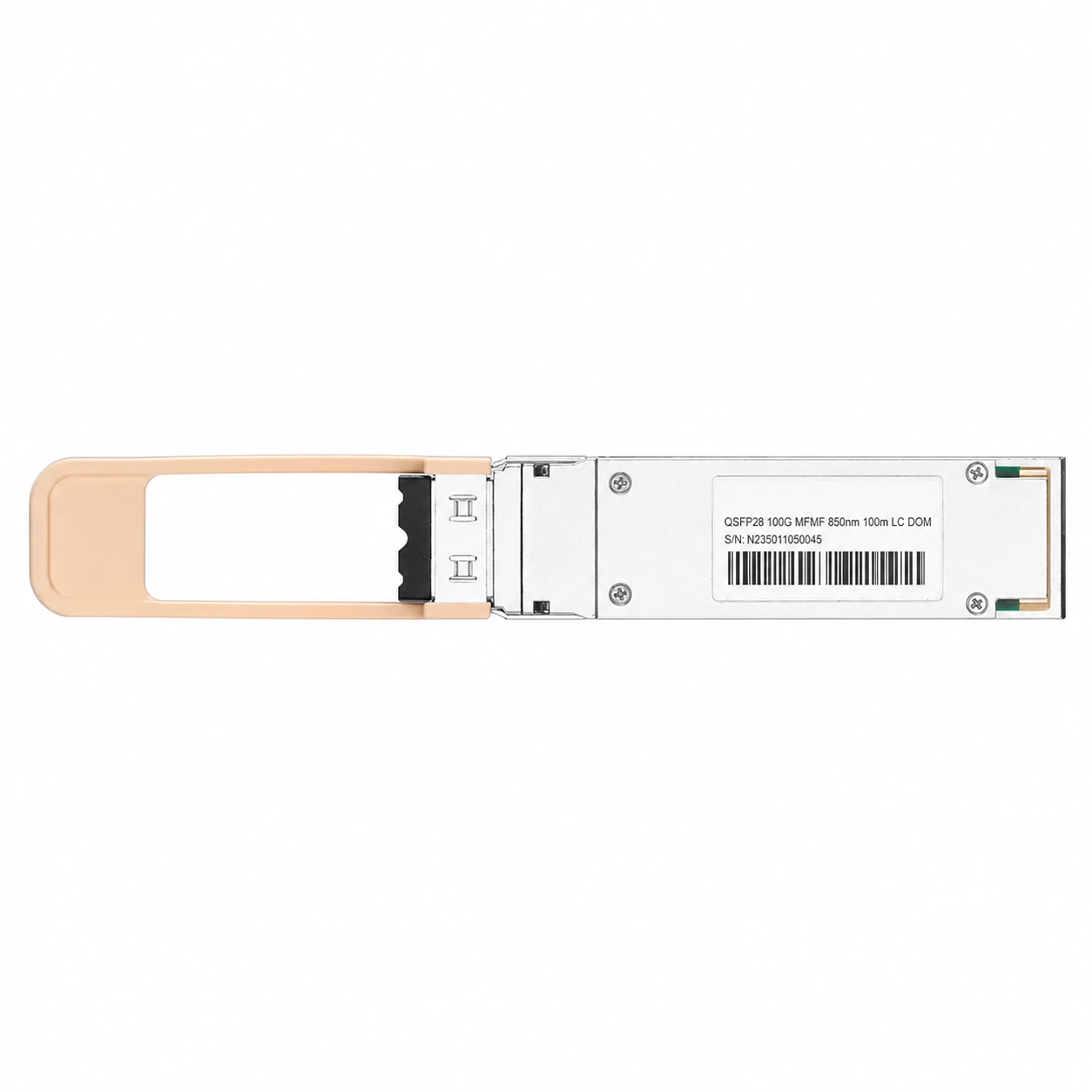

100GBASE-SRBD QSFP28 850nm 70m (OM3) /100m (OM4) /150m (OM5) MMF Module for Arista
QSFP-100G-SRBD optical module supports 4×25G data transmission mode with high port density, low power consumption and low cost. 100G optical module is suitable for 100G Ethernet, 112G OTN OTU4, telecom, access networks, data center interconnects, service provider applications and 5G wireless networks, ideal for large data centers and future network expansion.
BrandSUNFULL
Compatible brand / platformArista
Use this selection as the requested coding target. Final compatibility still requires the host model, port type and firmware version.
Product brand: SUNFULL. Third-party names identify requested compatibility or coding targets only and do not imply affiliation, endorsement or original-equipment status.
- Max Power Consumption ≤3.5W.
- Compliant with Hot Pluggable QSFP28 MSA, IEEE 802.3bm Standard.
- Class1/1M Standard Product, Compliant with RoHS Environmental Protection Standards (Lead-Free).
Engineering record
Specifications
Family-level values from the collected technical record. Confirm the selected SKU and required evidence in the quotation.
- Form Factor
- QSFP28
- Distance
- 70m (OM3) /100m (OM4) /150m (OM5)
- Wavelength
- 850nm
- Connector
- Duplex LC
- Power Consumption
- ≤3.5W
- Transmitter
- VCSEL
- Receiver
- PIN
- Media
- MMF
- Modulation (electrical )
- 4x25G NRZ
- Modulation (Optical )
- 2x50G PAM4
- Case Temperature(℃)
- 0 to 70°C (32 to 158°F)
- Protocol
- 100G Ethernet Compliant
Technical detail
Construction and application notes for QSFP-100G-SRBD
Review connector, construction, routing and handling details that apply to the selected family and exact SKU.
Optical interface and construction
100G optical module supports 4×25G data transmission mode with high port density, low power consumption and low cost. 100G optical module is suitable for 100G Ethernet, 112G OTN OTU4, telecom, access networks, data center interconnects, service provider applications and 5G wireless networks, ideal for large data centers and future network expansion.
Link application
has a full range of professional test equipment for testing various parameters of products to ensure high performance and quality of optical transmission stability.
