NVIDIA/Mellanox | O2O112-800G-AE3H | Interconnect
800G OSFP to 2xOSFP 3–7m Interconnect with 5 exact SKU options. Confirm the host, port and firmware before quotation.
InfiniBand Interconnects
Interconnect S2MPOA2x4F | S2MPOA2x4F / MFP7E40-N003
Catalog reference: NVIDIA/Mellanox Coding Target MFP7E40-N005 Compatible 5m (16ft) MPO-8 APC (Female) to 2x MPO-4 APC (Female) Single-mode (OS2) Breakout, Type B, LSZH, 3.0mm, Max IL ≤ 0.35dB, Yellow
The part numbers on this page identify the requested coding target. Confirm the exact host model, port and firmware for the selected SKU.
NVIDIA/Mellanox Coding Target MFP7E40-N005 (980-9I58K-00N005) Compatible S4MPOA2x4F is a singlemode, 4-channel-to-two 2-channel featuring MPO-8 APC to 2xMPO-4 APC connectors. When connecting an 800G NVIDIA InfiniBand OSFP twin-port transceiver to four 400G OSFP/QSFP112 transceivers, only two channels are activated in 400G OSFP/QSFP112, enabling a 200Gb/s link.
Family s2mpoa2x4f-102613Model S2MPOA2x4F8 SKU options
Requested part-number references
- Requested coding target
- NVIDIA/Mellanox
- Primary reference identifier
- MFP7E40-N003
Part-number identifiers and aliases available for matching:
- MFP7E40-N003
- MFP7E40-N005
- MFP7E40-N007
- MFP7E40-N010
- MFP7E40-N015
- MFP7E40-N020
- MFP7E40-N030
- MFP7E40-N050
Review boundary: These identifiers reproduce source catalog matching terms only; they do not establish interoperability, approval or endorsement. Confirm the exact host model, port type, firmware and test evidence before use.
Select the exact SKU
Search and select a SKU to update the exact title, description, model and option attributes before sending an RFQ.
SKU 102613 - Model S2MPOA2x4F

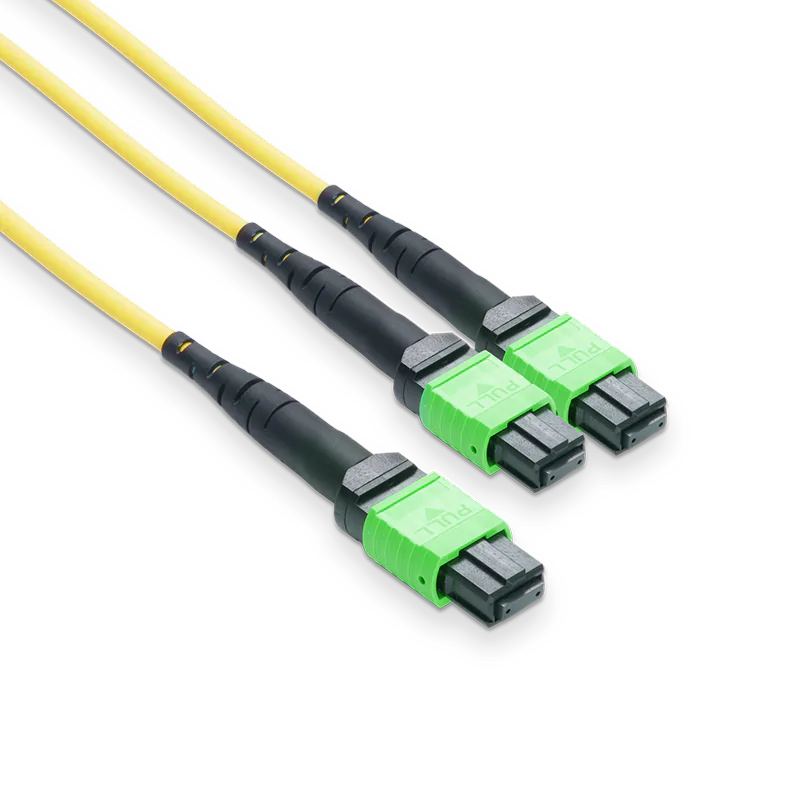

NVIDIA/Mellanox Coding Target MFP7E40-N005 Compatible 5m (16ft) MPO-8 APC Female to 2 MPO-4 APC Female Type B LSZH Single Mode Elite Breakout Cable
NVIDIA/Mellanox Coding Target MFP7E40-N005 (980-9I58K-00N005) Compatible S4MPOA2x4F is a singlemode, 4-channel-to-two 2-channel featuring MPO-8 APC to 2xMPO-4 APC connectors. When connecting an 800G NVIDIA InfiniBand OSFP twin-port transceiver to four 400G OSFP/QSFP112 transceivers, only two channels are activated in 400G OSFP/QSFP112, enabling a 200Gb/s link.
BrandSUNFULL
Compatible brand / platformInfiniBand platform (vendor not specified)
Length5m (16ft)
Use this selection as the requested coding target. Final compatibility still requires the host model, port type and firmware version.
Product brand: SUNFULL. Third-party names identify requested compatibility or coding targets only and do not imply affiliation, endorsement or original-equipment status.
- Convert from 8 to 4 Fibers for 100% Fiber Utilizations
- On-site "plug and play", fast installation, improve deployment efficiency
- Ultra-low insertion loss, achieve 100G/400G/800G performance
- LSZH/OFNR sheath, ensure safe indoor deployment
- Flexible adaptation to various network architectures
- Widely compatible with various optical modules
- Suitable for high-density wiring systems such as data centers, racks, panels, backplanes, etc.
Engineering record
Specifications
Family-level values from the collected technical record. Confirm the selected SKU and required evidence in the quotation.
- Connector Type
- MPO Female to Female
- Fiber Grade
- G.657.A1 (Compatible with G.652.D)
- Polish Type
- APC to APC
- Polarity
- Type B
- Fiber Mode
- OS2 9/125μm
- Fiber Count
- 8F to 2x4F
- Wavelength
- 1310/1550nm
- Cable Jacket/Flame Rating
- LSZH/OFNR
- Insertion Loss
- ≤0.35dB
- Return Loss
- ≥60dB
- Attenuation at 1310 nm
- ≤0.35 dB/km
- Attenuation at 1550 nm
- ≤0.21dB/km
- Min. Bend Radius(Fiber Core)
- 10mm
- Min. Bend Radius(Fiber Cable)
- 10/5D (Dynamic/Static)
- Cable Diameter
- 3.0mm
- Tensile Strength
- 80/150N (Long/Short Term)
- Connector Durability
- ≥ 500 - 1000 times
- Operating Temperature
- 20~70°C
Technical detail
Construction and application notes for S2MPOA2x4F
Review connector, construction, routing and handling details that apply to the selected family and exact SKU.
Interface and construction
The S2MPOA2x4F serves as the universal physical interconnect for next-generation AI data center fabrics, spanning InfiniBand XDR, InfiniBand NDR, and 800G RoCE networks. In Spine‑Leaf architectures, it delivers high‑density, low‑loss MPO‑8 connections between Leaf switches and compute nodes. Whether for switch‑to‑switch or switch‑to‑server links, it guarantees lossless signal transmission, enabling extreme performance for large‑scale AI, exascale computing, and cloud platforms.
Application and routing
With a minimum bend radius of just 10mm, this highly flexible MPO jumper routes effortlessly through congested high‑density cabinets — eliminating slack, freeing up space, and boosting overall cabling efficiency. Low insertion loss keeps signal transmission rock‑solid, even when the fiber is under tight bends.
Installation and validation
Featuring a plenum-rated OFNP jacket, the cable effectively limits flame propagation in air-handling spaces without requiring additional metal conduit. Compliant with UL 910 standards, it is designed for backbone cabling deployments in data centers with stringent fire safety requirements. The LSZH jacket further reduces smoke and toxic fume emissions, providing a safer and cost-effective solution for high-density IDC environments.
Installation and validation
The APC endface features an 8° angled polish that significantly reduces back reflection and signal distortion, ensuring stable optical performance.
