Required inputs
Switch and NIC models, cage cooling form, lane mode, port map, rack route and fiber count.
Solution
AI Data Center Interconnect
GPU cluster fabrics, leaf-spine links and high-density 400G/800G optical paths.
Review This TopologyDesign constraint
Thermal headroom, FEC mode, MPO polarity and the difference between 800G links and two 400G branches.
Acceptance output
Per-port link-up, DOM/DDM, FEC counters, thermal soak and labeled fiber-route records.
AI Data Center Interconnect
Plan the leaf-spine link from the switch cage and GPU fabric lane map, then verify cooling form, fiber count and breakout behavior before selecting optics.
800G OSFP DR8 Optical Transceiver
CompatibleRFQ route
Candidate 800G parallel single-mode OSFP module for AI cluster leaf-spine and GPU fabric links.
Speed800GFormOSFPReach500m class
RFQCompatibility and lead time to be confirmed
800G QSFP-DD DR8 Optical Transceiver
CompatibleRFQ route
Candidate QSFP-DD800 module for platforms that specify QSFP-DD thermal and port constraints.
Speed800GFormQSFP-DD800Reach500m class
RFQCompatibility and lead time to be confirmed
400G QSFP-DD DR4 Optical Transceiver
CompatibleRFQ route

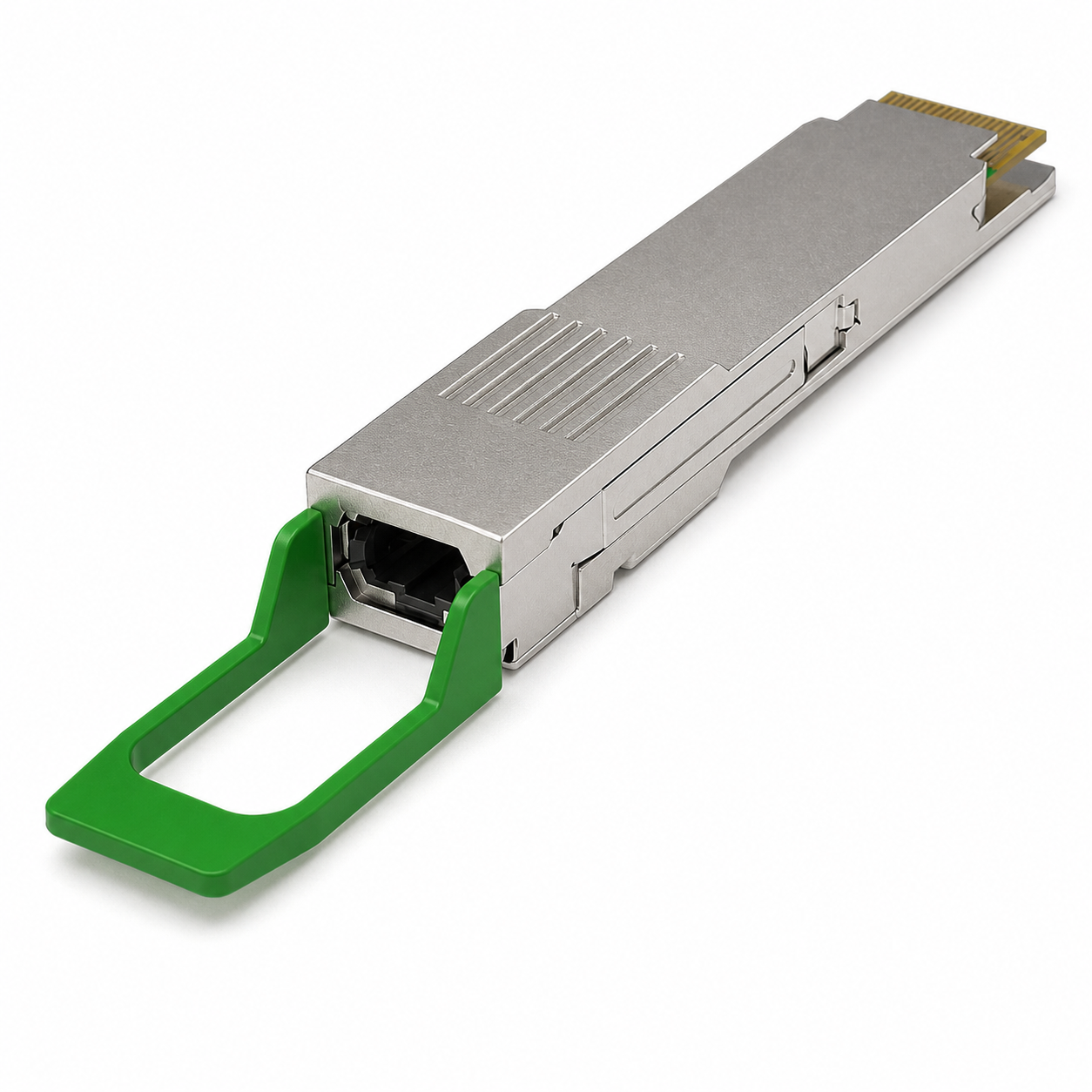

Candidate parallel single-mode module for 400G cloud switch and leaf-spine links.
Speed400GFormQSFP-DDReach500m class
RFQCompatibility and lead time to be confirmed
MTP-16 Fiber Trunk Cable
CompatibleRFQ route
Parallel fiber trunk candidate for 400G/800G dense fiber plant designs.
SpeedMTP-16 trunkFormProjectReachConfirm
RFQCompatibility and lead time to be confirmed
Plan and validate the route
Thermal headroom, FEC mode, MPO polarity and the difference between 800G links and two 400G branches.
Record endpoints
Switch and NIC models, cage cooling form, lane mode, port map, rack route and fiber count.
Test the constraint
Thermal headroom, FEC mode, MPO polarity and the difference between 800G links and two 400G branches.
Prevent the likely failure
A correct optical code can still fail when the heat-sink form, lane map, connector or host firmware does not match.
Define acceptance
Per-port link-up, DOM/DDM, FEC counters, thermal soak and labeled fiber-route records.
Product List
Candidate products for this solution path.
| Product | Role | Evidence gate |
|---|---|---|
| 800G OSFP DR8 Optical Transceiver | 800G OSFP DR8 | Thermal and BER data required |
| 800G QSFP-DD DR8 Optical Transceiver | 800G QSFP-DD DR8 | Host thermal gate required |
| 400G QSFP-DD DR4 Optical Transceiver | 400G QSFP-DD DR4 | Exact model verification required |
| MTP-16 Fiber Trunk Cable | MTP-16 trunk | Insertion loss and cleaning SOP required |
Operations handoff
A correct optical code can still fail when the heat-sink form, lane map, connector or host firmware does not match. Keep the acceptance record, exact model, firmware state and replacement route attached to the project.
800G RoCE Lossless Network
Ethernet networking for AI accelerates job completion and optimizes IT resources.
400G DCI Optical Solution
Build 400G DCI routes with model-specific reach and link-budget evidence.
Cloud Switch Upgrade
Migration paths from 100G/200G to 400G/800G with host compatibility review.
High-density Modular Cabling
MTP/MPO trunks, harness and cassette planning for dense optical distribution.
Support
Send host platform, topology and required proof files for review.
