Good starting point
- parallel-optic trunks between defined ports or panels
- MTP/MPO-to-LC or MTP/MPO breakout harnesses
- high-density links with a documented polarity method
- cable schedules requiring exact length, jacket and labeling groups
Structured parallel-fiber assemblies
MPO Cable Selection and MTP Cable Planning by Fiber Count, Polarity and Endpoint Map
Build each MPO cable or MTP MPO cable assembly from the optical lane plan, with connector gender, polish, fiber grade, polarity, length and labeling defined.
- Keep trunk, harness and management-hardware intent separate
- Match MTP-8, MTP-12, MTP-16 and higher counts to the actual lane plan
- Freeze Type A, B or C polarity across the complete channel
- Request insertion-loss and labeling requirements by exact assembly
70verified catalog families
1,487exact SKU options
6-stepquotation workflow
SKU-leveldocument confirmation
Commercial overview
The cable schedule must preserve every optical lane
MTP/MPO assembly names can look similar while differing in fiber count, connector gender, key orientation, polish, polarity, fiber grade, breakout mapping, jacket and length. Those differences can produce a dark or crossed channel even when both connectors mate physically. PhotonVerge organizes cable families by assembly role and structured attributes. For a reviewable quotation, provide the optic or port map, panel path, connector interfaces, polarity method, fiber grade, route length, loss target, labeling and quantity for each cable group.
Use this collection when the lane map and cable assembly are the buying task
Start elsewhere when
- a standalone enclosure, panel or cassette purchase
- an active optical cable with integrated electronics
- a generic patch-cord need without an MTP/MPO endpoint
Product taxonomy
Select the assembly role before the connector details
The same connector family can serve different channel functions.
Trunk
MTP/MPO-to-MTP/MPO backbone assembly between panels or equipment endpoints.
Harness
Parallel connector divided into duplex or simplex branches.
Parallel splitter
One parallel interface mapped to multiple smaller parallel groups.
Equipment patch
Short assembly joining optics to a panel or adjacent structured path.
Custom cable schedule
Repeated assemblies grouped by endpoint, length, polarity and label schema.
Featured family routes
Compare product families
These links open exact family records; use the full browser for the complete set.
2x8F to 2x8F Type 2 Fiber Assembly M4MPOA2x8F216 exact SKU options
2x8F to 2x8F Type 2 Fiber Assembly S2MPOA2x8F216 exact SKU options
MPO Male to MPO Male 2x8F to 2x8F Type M4MPOA16M234 exact SKU options
MPO Male to MPO Male 2x8F to 2x8F Type S2MPOA16M234 exact SKU options
MPO Female to Female 4x8F to 4x8F Type S2MPOA32F463 exact SKU optionsMPO Male to MPO Male 4x8F to 4x8F Type S2MPOA32M434 exact SKU optionsBuyer checklist
Eight attributes that define an MTP/MPO assembly
Every attribute should be explicit on the schedule and SKU.
Fiber count
Match active lanes and any reserved fibers.
Gender and pins
Confirm male or female at both endpoints.
Polish
Specify APC or UPC according to the mating interface.
Polarity
Apply the selected Type A, B or C method across the channel.
Fiber grade
OS2, OM3, OM4 or another approved grade for the optics.
Mapping
Document trunk or breakout lane relationships.
Length and jacket
Installed route, service loop, fire rating and pathway.
Loss and labels
Set assembly loss target and end-to-end identification.
Exact catalog records
Browse MPO Cable Selection and MTP Cables
Use product identity, structured specifications and exact SKU records. Search results do not assert live stock or host acceptance.
2x8F to 2x8F Type 2 Fiber Assembly M4MPOA2x8F2
2x8F to 2x8F Type 2 Fiber Assembly with 16 exact SKU options. Confirm construction, route and acceptance requirements before quotation.
2x8F to 2x8F Type 2 Fiber Assembly S2MPOA2x8F2
2x8F to 2x8F Type 2 Fiber Assembly with 16 exact SKU options. Confirm construction, route and acceptance requirements before quotation.
MPO Male to MPO Male 2x8F to 2x8F Type M4MPOA16M2
MPO Male to MPO Male 2x8F to 2x8F Type 2 Fiber Cable with 34 exact SKU options. Confirm construction, route and acceptance requirements before quotation.
MPO Male to MPO Male 2x8F to 2x8F Type S2MPOA16M2
MPO Male to MPO Male 2x8F to 2x8F Type 2 Fiber Cable with 34 exact SKU options. Confirm construction, route and acceptance requirements before quotation.
MPO Female to Female 4x8F to 4x8F Type S2MPOA32F4
MPO Female to Female 4x8F to 4x8F Type 4 Fiber Cable with 63 exact SKU options. Confirm construction, route and acceptance requirements before quotation.
MPO Male to MPO Male 4x8F to 4x8F Type S2MPOA32M4
MPO Male to MPO Male 4x8F to 4x8F Type 4 Fiber Cable with 34 exact SKU options. Confirm construction, route and acceptance requirements before quotation.
MPO Female to Female 4x8F to 4x8F Type M4MPOA32F4
MPO Female to Female 4x8F to 4x8F Type 4 Fiber Cable with 44 exact SKU options. Confirm construction, route and acceptance requirements before quotation.
4x8F to 4x8F Type 4 Fiber Assembly M4MPOA4x8F4
4x8F to 4x8F Type 4 Fiber Assembly with 16 exact SKU options. Confirm construction, route and acceptance requirements before quotation.
4x8F to 4x8F Type 4 Fiber Assembly S2MPOA4x8F4
4x8F to 4x8F Type 4 Fiber Assembly with 16 exact SKU options. Confirm construction, route and acceptance requirements before quotation.
MPO Male to MPO Male 4x8F to 4x8F Type M4MPOA32M4
MPO Male to MPO Male 4x8F to 4x8F Type 4 Fiber Cable with 34 exact SKU options. Confirm construction, route and acceptance requirements before quotation.
MPO Female to Female Type B Fiber MF-M16x8MPOFAB
MPO Female to Female Type B Fiber Cable with 34 exact SKU options. Confirm construction, route and acceptance requirements before quotation.
MPO Female to Female Type B Fiber MF-S16x8MPOFAB
MPO Female to Female Type B Fiber Cable with 34 exact SKU options. Confirm construction, route and acceptance requirements before quotation.
8 Fibers Type B Fiber Assembly M4MPOA8FBP
8 Fibers Type B Fiber Assembly with 26 exact SKU options. Confirm construction, route and acceptance requirements before quotation.
8 Fibers Type B Fiber Assembly S2MPOA8FBP
8 Fibers Type B Fiber Assembly with 32 exact SKU options. Confirm construction, route and acceptance requirements before quotation.
MPO Female to Female Type B Fiber MF-M192MPOFAB
MPO Female to Female Type B Fiber Cable with 34 exact SKU options. Confirm construction, route and acceptance requirements before quotation.
MPO Male to Male Type B Fiber Cable MF-M192MPOMAB
MPO Male to Male Type B Fiber Cable with 34 exact SKU options. Confirm construction, route and acceptance requirements before quotation.
MPO Male to Male Type B Fiber Cable MF-M24x8MPOMAB
MPO Male to Male Type B Fiber Cable with 34 exact SKU options. Confirm construction, route and acceptance requirements before quotation.
MPO Female to Female Type B Fiber MF-S192MPOFAB
MPO Female to Female Type B Fiber Cable with 34 exact SKU options. Confirm construction, route and acceptance requirements before quotation.
MPO Male to Male Type B Fiber Cable MF-S192MPOMAB
MPO Male to Male Type B Fiber Cable with 34 exact SKU options. Confirm construction, route and acceptance requirements before quotation.
MPO Male to Male Type B Fiber Cable MF-S24x8MPOMAB
MPO Male to Male Type B Fiber Cable with 34 exact SKU options. Confirm construction, route and acceptance requirements before quotation.

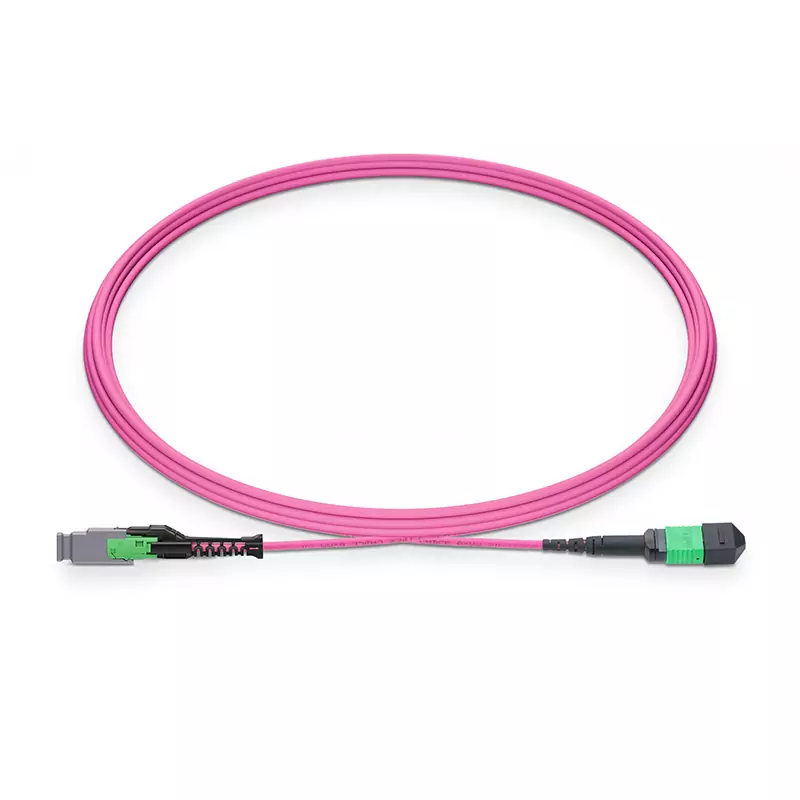

12F Fiber Assembly M4MMCMPOA12FJ
12F Fiber Assembly with 13 exact SKU options. Confirm construction, route and acceptance requirements before quotation.

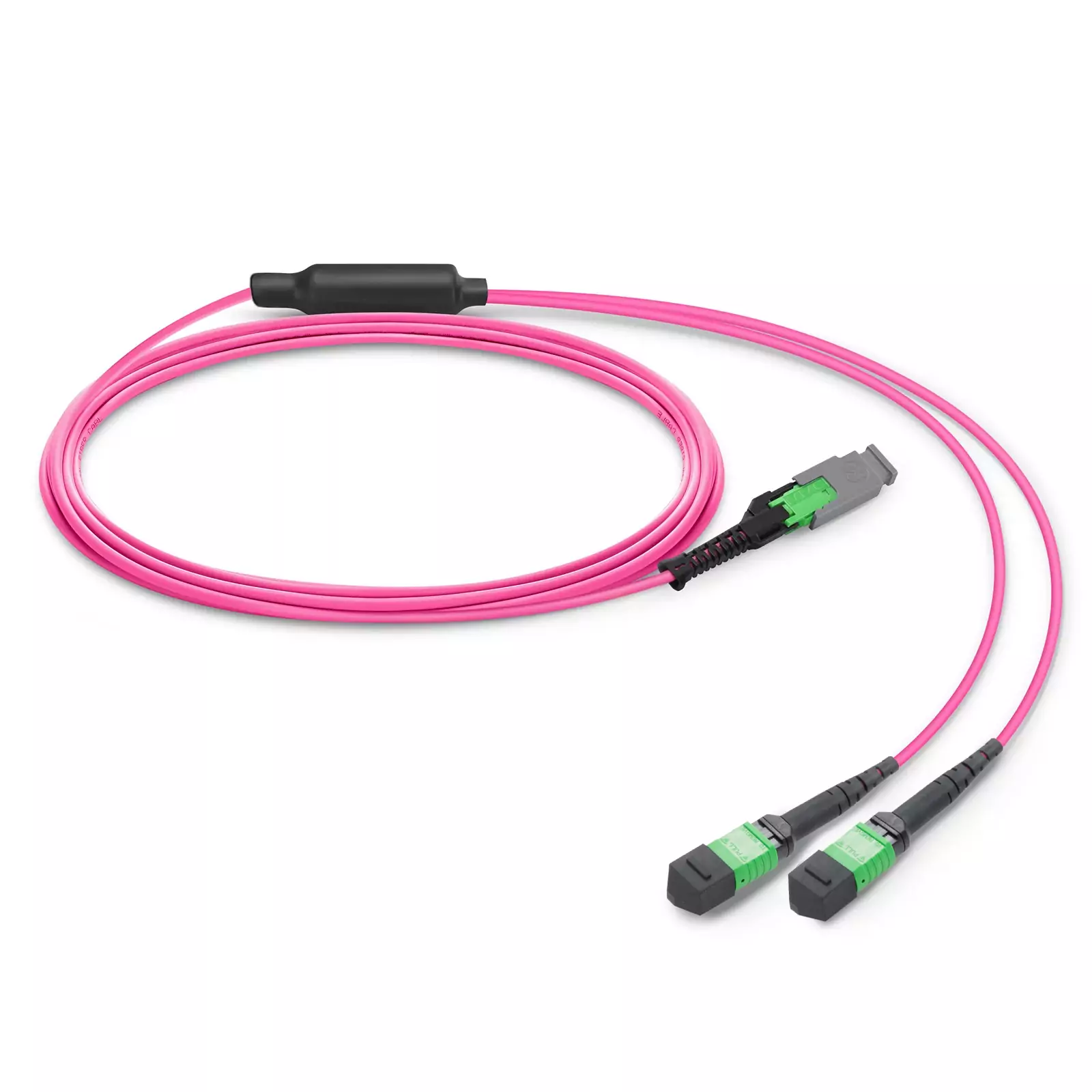

16F Fiber Assembly M4MMCMPOA2x8FJ
16F Fiber Assembly with 13 exact SKU options. Confirm construction, route and acceptance requirements before quotation.

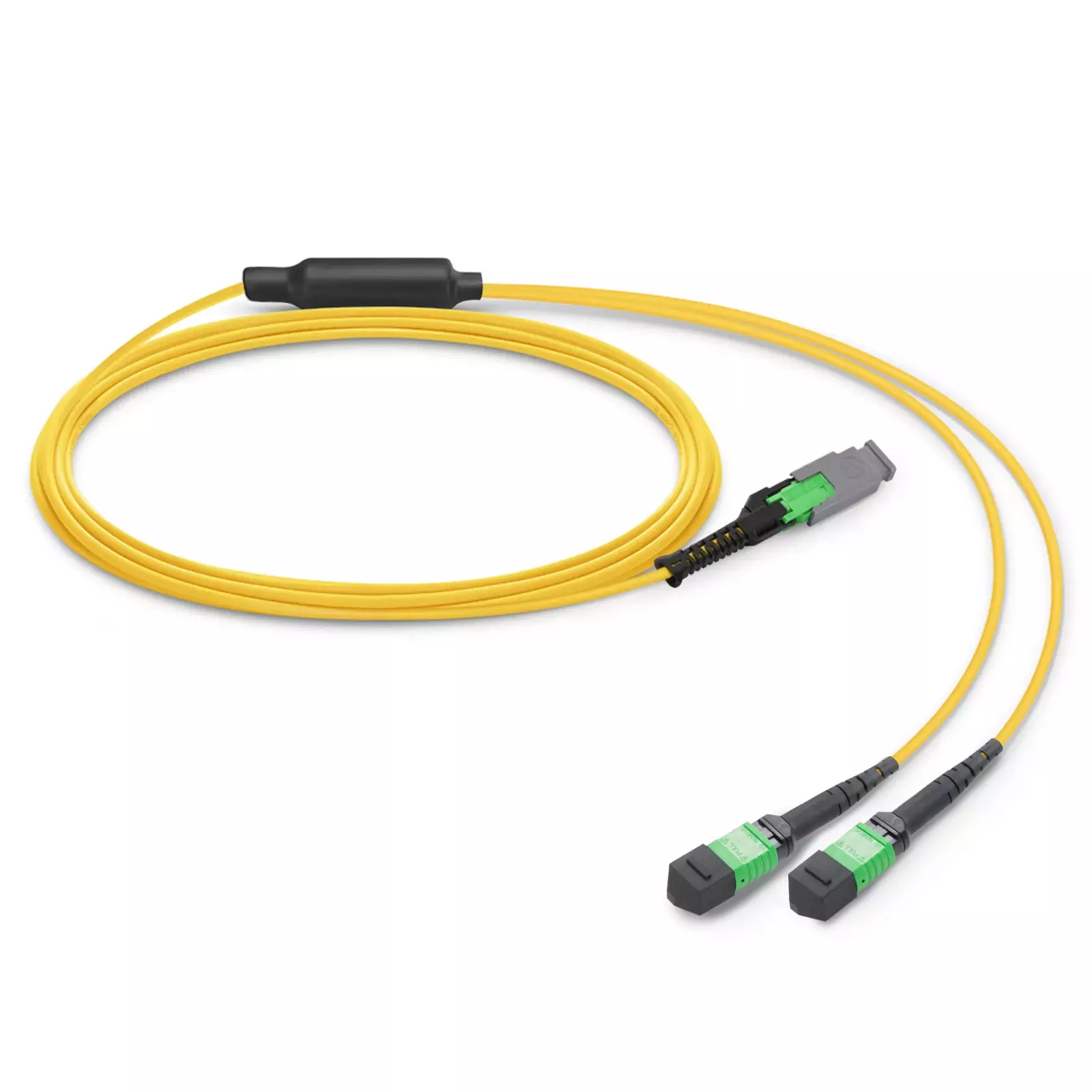

16F Fiber Assembly S2MMCMPOA2x8FJ
16F Fiber Assembly with 13 exact SKU options. Confirm construction, route and acceptance requirements before quotation.
16F Fiber Assembly M4MMCMPOA16FJ
16F Fiber Assembly with 13 exact SKU options. Confirm construction, route and acceptance requirements before quotation.
70 product families available; page 1 of 3
Decision matrix
MTP/MPO assembly-role comparison
Connector family alone does not describe what the cable does.
| Assembly | Endpoint pattern | Primary use | Critical document |
|---|---|---|---|
| Trunk | Parallel to parallel | Backbone or direct parallel link | Polarity and end-to-end channel map |
| Harness | Parallel to multiple LC or other branches | Fan-out to duplex endpoints | Fiber-to-branch map and labels |
| Parallel splitter | Larger parallel group to smaller parallel groups | Breakout between different lane groupings | Lane allocation at every connector |
| Equipment patch | Defined equipment and panel ends | Short final connection | Gender, polish and key orientation |
| Management hardware | Adapters or cassettes, not a cable | Housing and transition | Separate fiber-management review |
Engineering boundary
Physical mating does not prove optical lane continuity
Connector gender, polish and key orientation determine whether interfaces mate, while polarity and fiber mapping determine whether transmit lanes reach the intended receive lanes. Verify the optics at both ends, every adapter or cassette, and the complete channel method. Do not infer compatibility from MTP/MPO terminology alone.
- Optic and port connectors
- Fiber count and active lanes
- Gender, pins, polish and key orientation
- End-to-end polarity method
- Panel, cassette and adapter path
- Loss target, length and label map
Application planning
Where parallel-fiber planning matters most
The assembly follows the optic and lane topology.
800G parallel optics
MTP-16 and related paths where lane mapping must agree with DR-class endpoints.
Breakout to adapters
Parallel or duplex branches mapped from switch ports to server endpoints.
High-density structured plant
Trunks and harnesses routed through documented panels and cassettes.
Test and migration paths
Known polarity and label maps used to reduce troubleshooting ambiguity.
Supply coordination
Turn the optical topology into a cable schedule
A schedule is reviewable when every endpoint and mapping field is present.
1. Map optics and ports
Record connectors, lanes and endpoints.
2. Map the structured path
List panels, cassettes, adapters and mating interfaces.
3. Set polarity
Choose and document one end-to-end method.
4. Define cable groups
Set length, grade, jacket, loss target and labels.
5. Review samples
Inspect end faces, mapping, fit, loss and labeling.
6. Quote by schedule line
Confirm exact SKUs, quantities, destination and requested sequence.
Buyer validation
Evidence for a structured fiber assembly
Use records tied to the exact cable schedule rather than generic performance claims.
Exact SKU and assembly drawing if available
Connector, gender, polish and polarity record
Fiber map and branch-label schedule
Available insertion-loss information for the item
Incoming inspection and buyer acceptance criteria
Packaging and end-protection requirement
Technical resources
Continue the engineering review
Use the relevant guide to resolve a specific decision; product-specific evidence is confirmed for the quoted SKU.
Buyer questions
Frequently asked questions about MPO Cable Selection and MTP Cables
What is the difference between MTP-8, MTP-12 and MTP-16?
They represent different connector and fiber arrangements and should be chosen from the optical lane requirement, not density alone. Confirm active fiber count, key orientation, gender, polish and the exact optic interface. A physically similar connector should not be substituted when the lane map or mating interface differs.
How do I choose MTP/MPO polarity?
Start with the transceiver lane map and the complete channel, including trunks, cassettes, adapters and patch cables. Choose one documented Method A, B or C approach and verify transmit-to-receive continuity at the final endpoints. Mixing components from different polarity methods without an end-to-end map is a common cause of dark or crossed links.
Are male and female MTP/MPO connectors interchangeable?
No. Gender describes the presence of guide pins and determines the mating pair. Two pinned connectors or two unpinned connectors will not form the intended interface. Check the optic receptacle, adapters, cassettes and every cable end, and list male or female explicitly in the cable schedule.
What should be included in an MTP/MPO cable RFQ?
Provide assembly role, both endpoint connectors, gender, polish, fiber count, fiber grade, polarity, mapping, length, jacket or fire rating, insertion-loss requirement, label format, quantity and destination. Include the optics or port map and any panels or cassettes in the path so the cable is reviewed as part of the complete channel.
How should MTP/MPO assemblies be accepted on receipt?
Verify the exact SKU and labels, inspect connector condition and protective caps, confirm length and jacket, check gender and polish, and test polarity or fiber mapping against the approved schedule. Where loss data is required, define the method and pass limit before ordering. Retain results by cable group or lot according to the project control plan.
Procurement guide
Build the fiber schedule from the optical lane map
Start at the optics
Identify both transceiver interfaces, active lanes, connector, fiber type and peer mapping. This determines the cable function.
Document every mating point
List adapters, cassettes and panels with gender, polish and key orientation. A connector family name alone is not enough.
Freeze polarity and labels
Use one end-to-end method and a label scheme that shows rack, panel, port and branch. Review drawings before ordering.
Accept against the schedule
Inspect, map and test representative assemblies using the agreed criteria. Quote and pack each exact cable group separately.
Structured B2B request
Send an MTP/MPO cable schedule
Provide both endpoints, polarity, fiber map, length, jacket, loss and labeling for each assembly group.
No live-stock, lead-time or compatibility commitment is inferred from this page. The selected SKU and commercial terms are confirmed in the written offer.
