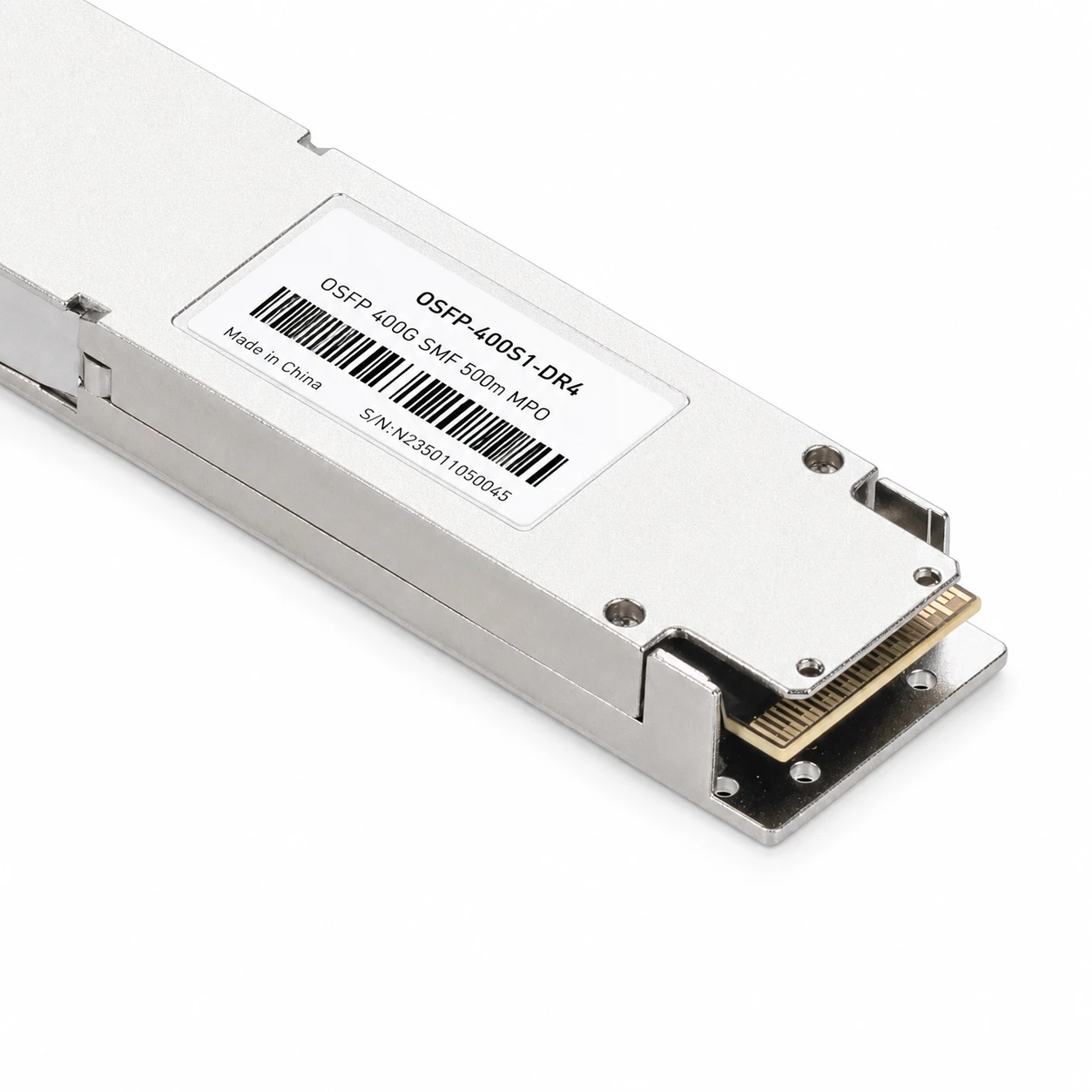

400G OSFP DR4 Silicon Photonics Optical Transceiver ｜

Optical Transceivers

400G OSFP DR4 500m Transceiver | OSFP-400Si-DR4

Catalog reference: Generic Compatible 400GBASE-DR4 OSFP RHS/Flat Top 4x100G PAM4 1310nm 500m SMF DOM MPO-12/APC Silicon Photonics Optical Transceiver Module

The part numbers on this page identify the requested coding target. Confirm the exact host model, port and firmware for the selected SKU.

400G OSFP DR4 DOM MPO-12/APC modules are low power consumption with under 9W, which is designed for utilization in 400 Gigabit Ethernet links over 500 meters of singe mode fiber.

Family osfp-400si-dr4-102511Model OSFP-400Si-DR41 SKU option

Select the exact SKU

Search and select a SKU to update the exact title, description, model and option attributes before sending an RFQ.

SKU 102511 - Model OSFP-400Si-DR4

400G OSFP DR4 Silicon Photonics Optical Transceiver ｜

400G OSFP DR4 DOM MPO-12/APC modules are low power consumption with under 9W, which is designed for utilization in 400 Gigabit Ethernet links over 500 meters of singe mode fiber.

BrandSUNFULL
Compatible brand / platformGeneric

Use this selection as the requested coding target. Final compatibility still requires the host model, port type and firmware version.

Product brand: SUNFULL. Third-party names identify requested compatibility or coding targets only and do not imply affiliation, endorsement or original-equipment status.

Get Datasheet & Quote Compatibility Review WhatsApp Technical Documents
Share: LinkedIn Facebook X Email
  • Maximum power consumption 9W.
  • 4x 100G-PAM4 Electrical and Optical Modulation.
  • Intel SiPh Technology for Cost-Efficient,Low Power,High Capacity.
  • Built-in Broadcom 7nm DSP,Providing stable transmission performance.
  • Compliant with OSFP MSA, IEEE 802.3bs and CMIS 5.2.

Engineering record

Specifications

Family-level values from the collected technical record. Confirm the selected SKU and required evidence in the quotation.

Form Factor
OSFP
Distance
500m
Wavelength
1310nm
Connector
MPO-12 /APC
Power Consumption
≤9W
Transmitter
SiPh Based
Receiver
SiPh Based
Media
SMF
Modulation(Electrical)
4x106.25Gb/s PAM4
Modulation(Optical)
4x106.25Gb/s PAM4
Case Temperature(℃)
0~70°C(32 to 158°F)
Protocol
400G Ethernet Compliant

Downloads

Technical documents

Use documents together with the exact SKU selection; document version and commercial validity should be reconfirmed during RFQ review.

Osfp 400Si Dr4 Datasheet
