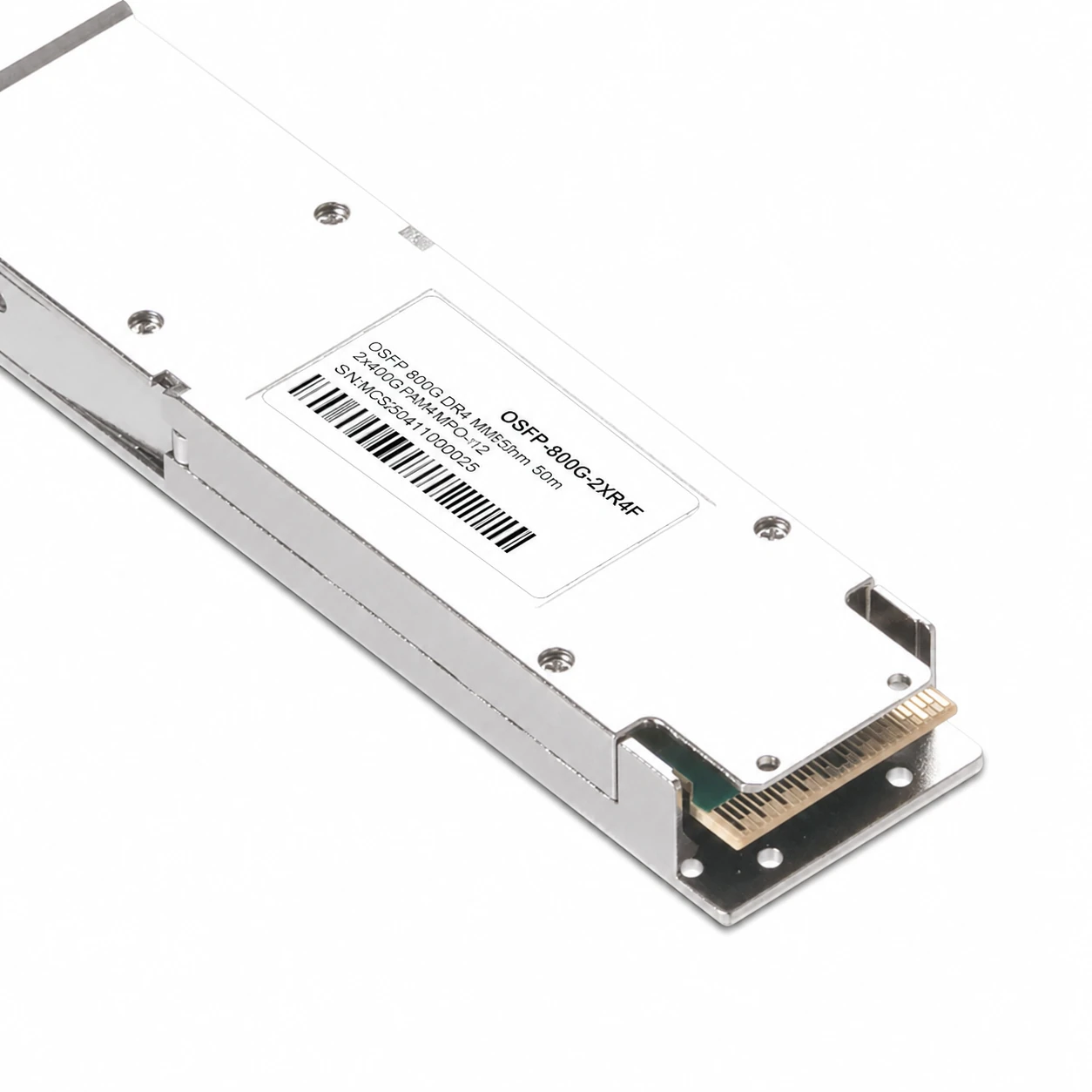

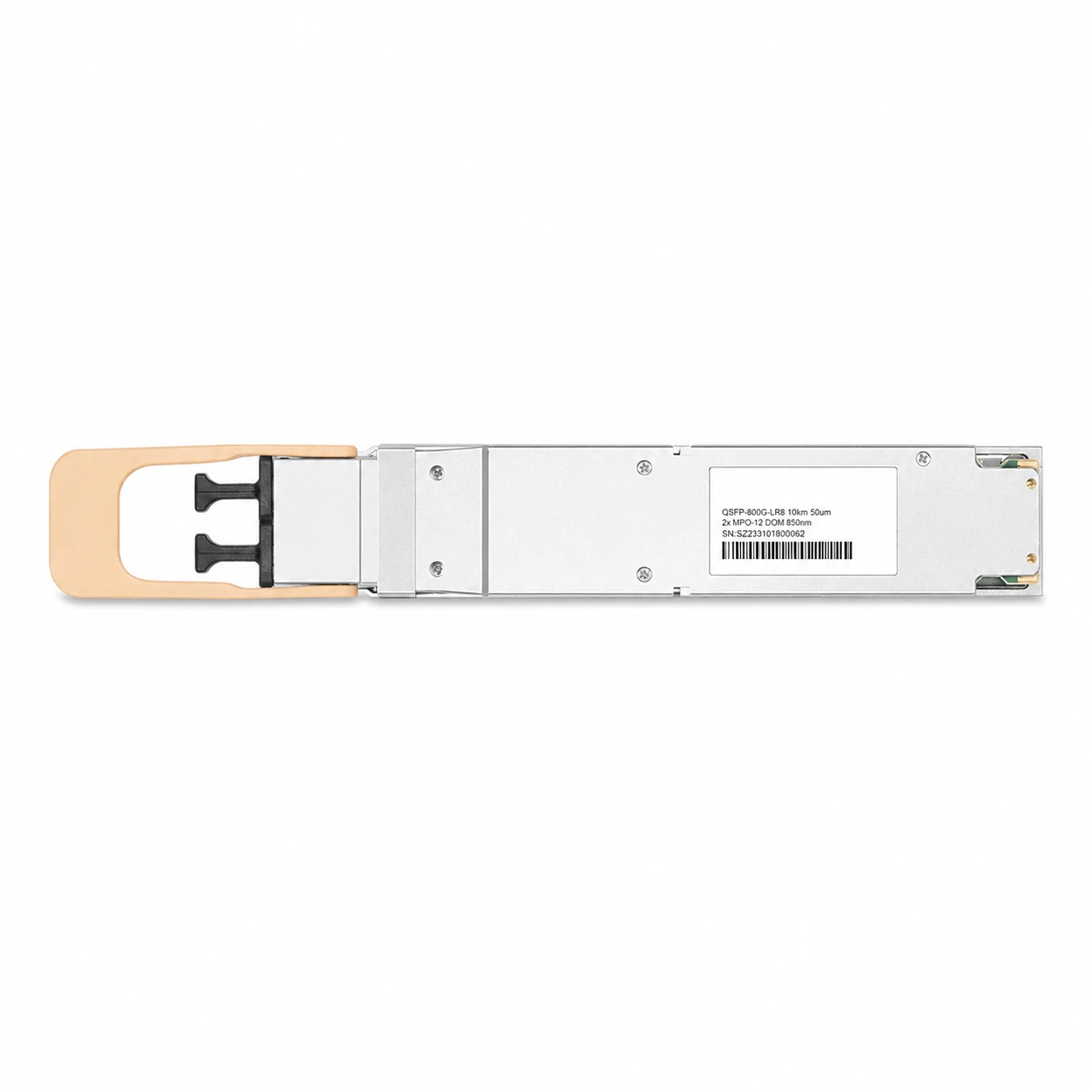

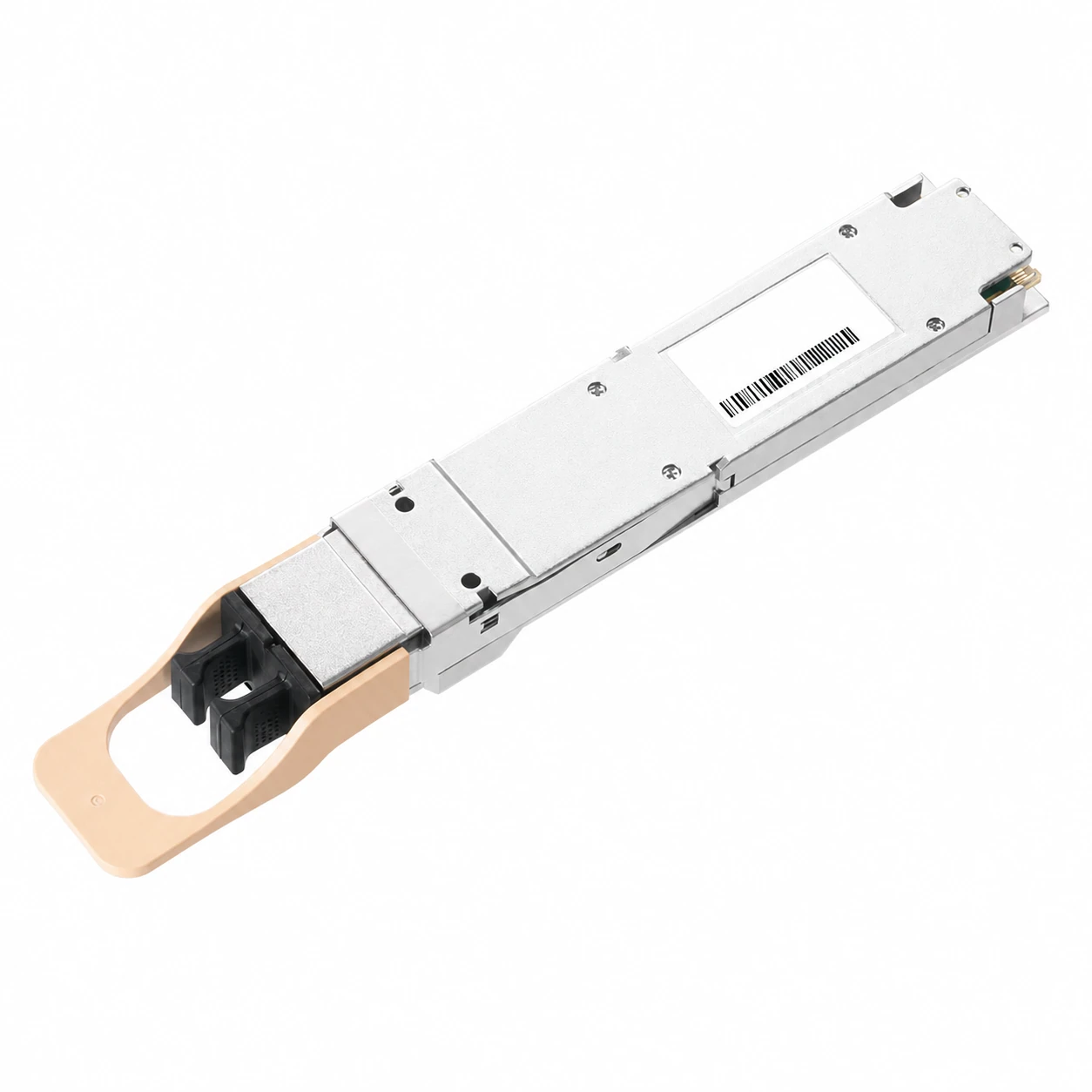

NVIDIA/Mellanox Coding Target Broadcom DSP & Broadcom VCSEL MMA4Z00-NS-FLT 800G OSFP 2xVR4/VR8 Transceiver (Flat Top)

RoCE Ethernet Interconnects

800G Twin-port OSFP 2xVR4 50m Transceiver | OSFP-800G-2VR4F / 980-9I51A-00NS00

Catalog reference: NVIDIA/Mellanox Coding Target MMA4Z00-NS-FLT (980-9I51A-00NS00) Compatible 800GBASE-2xVR4 OSFP RHS/Flat Top 8x100G PAM4 Broadcom DSP & Broadcom VCSEL 850nm 50m MMF DOM Dual MPO-12/APC Optical Transceiver Module for ConnectX-8 C8180 SuperNIC

The part numbers on this page identify the requested coding target. Confirm the exact host model, port and firmware for the selected SKU.

NVIDIA/Mellanox compatible OSFP 800G 2xVR4 flat top transceiver supports 800G Ethernet, ensuring seamless compatibility with DGX H100 systems. It can be used in NVIDIA ConnectX-8 SuperNIC.

Family osfp-800g-2vr4f-103238Model OSFP-800G-2VR4F1 SKU option

Requested part-number references

Requested coding target
NVIDIA/Mellanox
Primary reference identifier
980-9I51A-00NS00

Part-number identifiers and aliases available for matching:

  • 980-9I51A-00NS00
  • MMA4Z00-NS-FLT

Review boundary: These identifiers reproduce source catalog matching terms only; they do not establish interoperability, approval or endorsement. Confirm the exact host model, port type, firmware and test evidence before use.

Select the exact SKU

Search and select a SKU to update the exact title, description, model and option attributes before sending an RFQ.

SKU 103238 - Model OSFP-800G-2VR4F

NVIDIA/Mellanox Coding Target Broadcom DSP & Broadcom VCSEL MMA4Z00-NS-FLT 800G OSFP 2xVR4/VR8 Transceiver (Flat Top)

NVIDIA/Mellanox compatible OSFP 800G 2xVR4 flat top transceiver supports 800G Ethernet, ensuring seamless compatibility with DGX H100 systems. It can be used in NVIDIA ConnectX-8 SuperNIC.

BrandSUNFULL
Compatible brand / platformNVIDIA/Mellanox (Ethernet)
Chip SolutionsBroadcom DSP & Broadcom VCSEL

Use this selection as the requested coding target. Final compatibility still requires the host model, port type and firmware version.

Product brand: SUNFULL. Third-party names identify requested compatibility or coding targets only and do not imply affiliation, endorsement or original-equipment status.

Get Datasheet & Quote Compatibility Review WhatsApp Technical Documents
Share: LinkedIn Facebook X Email
  • Built-in Broadcom DSP & Broadcom VCSEL, Maximum Power Consumption ≤14W.
  • Compliant with Hot Pluggable OSFP MSA Standard.
  • Compliant with RoHS Environmental Standard (Lead-free).
  • DDM(Digital Diagnostic Monitoring) Supported.
  • Pairing with the C8180 Super NIC enables quad-Plane topology networking and effectively improves link stability.

Engineering record

Specifications

Family-level values from the collected technical record. Confirm the selected SKU and required evidence in the quotation.

Form Factor
Twin-port OSFP
Distance
50m
Wavelength
850nm
Connector
Two MTP/MPO-12 APC
Power Consumption
≤14W
Transmitter
VCSEL
Receiver
PIN
Media
MMF
Modulation (electrical)
8x106.25Gb/s PAM4
Modulation (Optical)
Two ports 4x106.25Gb/s PAM4
Case Temperature(℃)
0 to 70°C (32 to 158°F)
Protocol
800G Ethernet Compliant

Technical detail

Construction and application notes for OSFP-800G-2VR4F

Review connector, construction, routing and handling details that apply to the selected family and exact SKU.

Interface and construction

The OSFP-800G-2VR4F module is tightly integrated with the C8180 SuperNIC’s multi-plane architecture, delivering key advantages in large-scale computing clusters. By distributing traffic across multiple planes, it maximizes bandwidth, enables smoother load balancing, and ensures consistently low latency. Each plane is isolated and inherently redundant, so a single path failure does not impact service continuity, enhancing overall reliability. With higher resource utilization and fewer congestion points, the ConnectX-8 architecture enables faster scaling and a more efficient, stable, and resilient network experience.

NVIDIA/Mellanox Coding Target Broadcom DSP & Broadcom VCSEL MMA4Z00-NS-FLT 800G OSFP 2xVR4/VR8 Transceiver (Flat Top) detail

Application and routing

In ConnectX-8 NIC and Spectrum-4 switch AI cluster architectures, the C8180 paired with OSFP-800G-2VR4F reduces optical module count by 20% compared with the C8240 using Q112-400G-VR4 solution. This delivers the following three key advantages.

Downloads

Technical documents

Use documents together with the exact SKU selection; document version and commercial validity should be reconfirmed during RFQ review.

Osfp 800G 2Vr4F Datasheet
