NVIDIA/Mellanox Coding Target MMA4Z00-NS-FLT 800G OSFP 2xSR4/SR8 InfiniBand NDR Transceiver with Broadcom DSP & Broadcom...

InfiniBand Interconnects

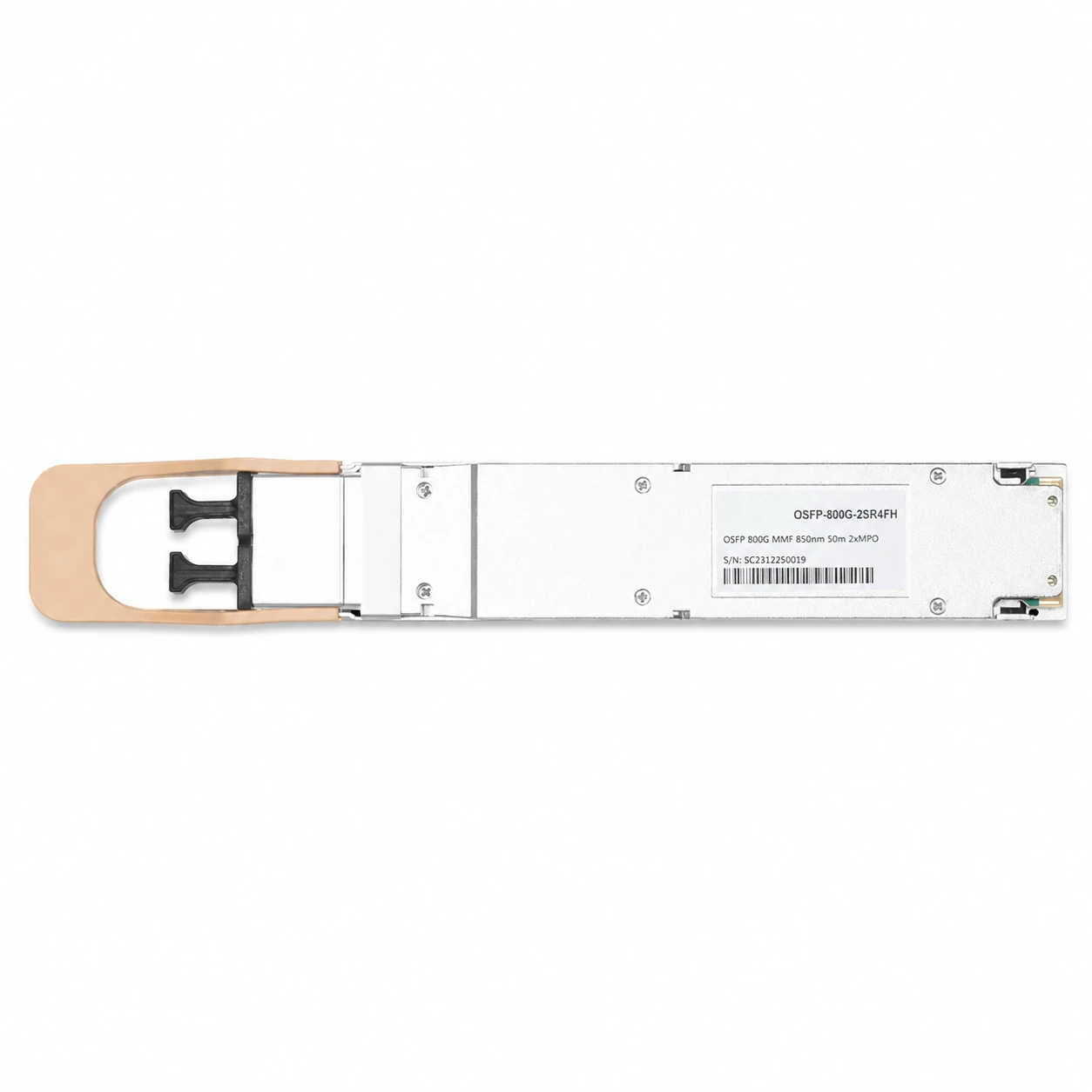

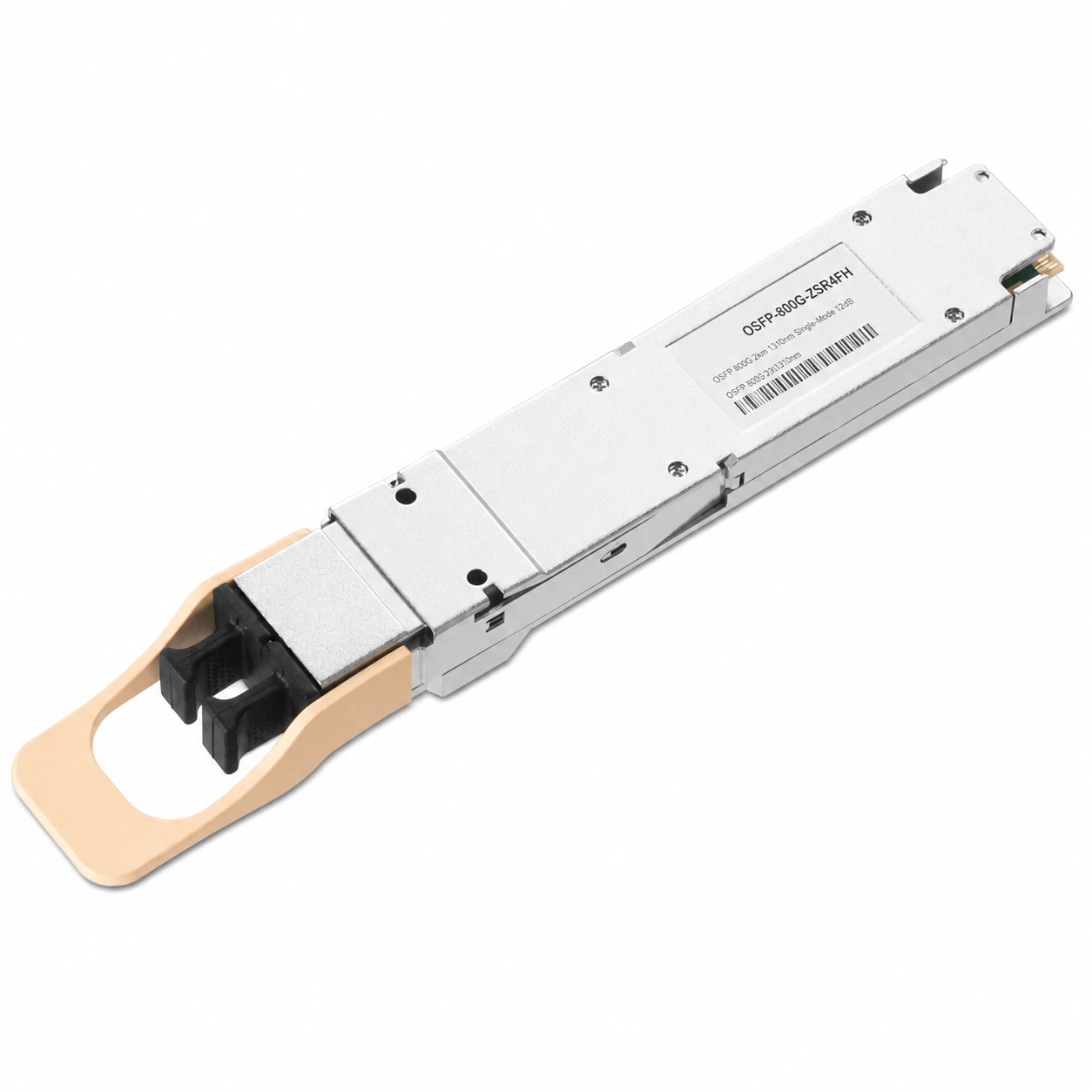

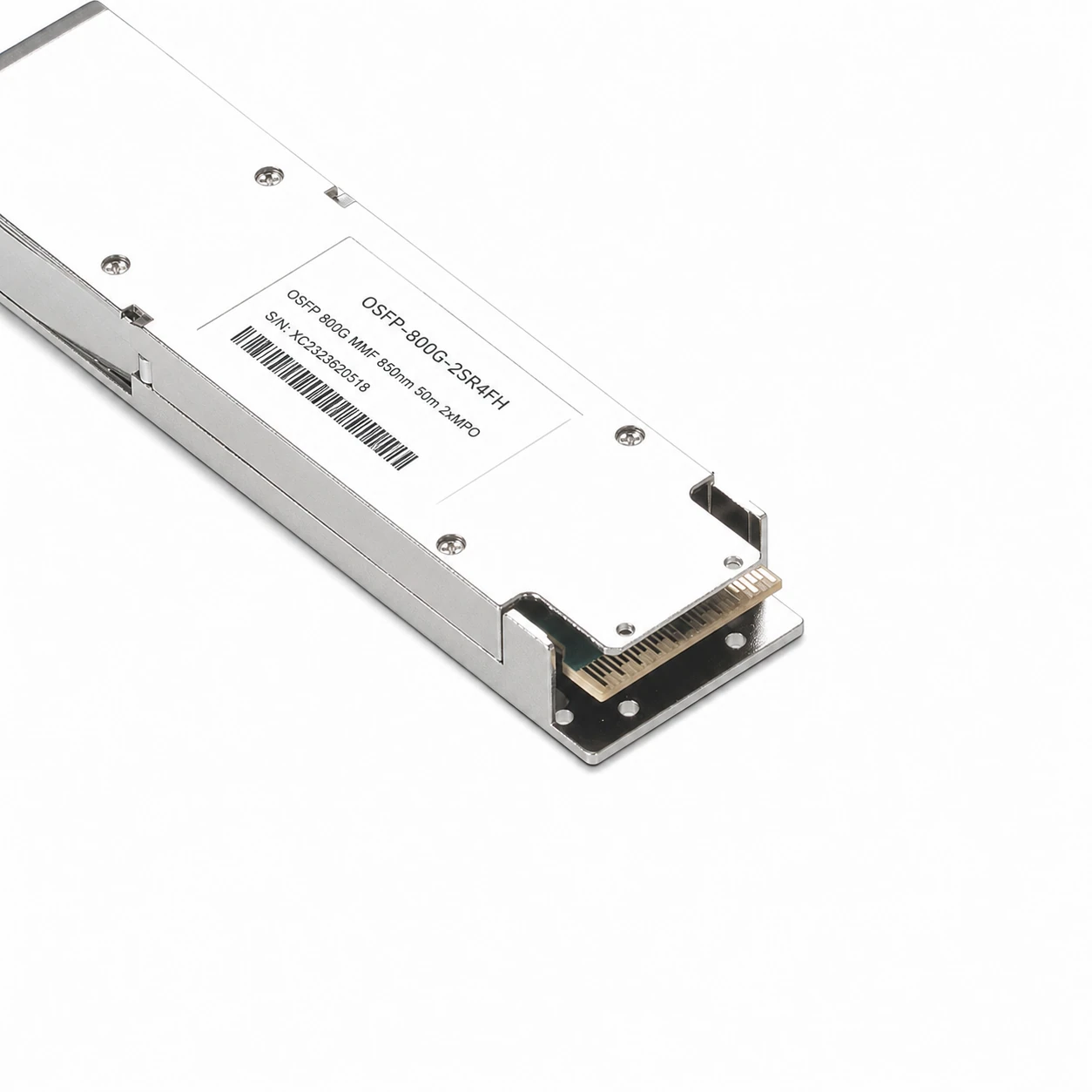

800G Twin-port OSFP 2xSR4 30m (OM3) /50m (OM4) Transceiver | OSFP-800G-2SR4FH / MMA4Z00-NS-FLT

Catalog reference: NVIDIA/Mellanox Coding Target MMA4Z00-NS-FLT (980-9I51A-00NS00) Compatible 800G 2xSR4 OSFP RHS/Flat Top 8x100G PAM4 Broadcom DSP & Broadcom VCSEL 850nm 50m MMF DOM Dual MPO-12/APC InfiniBand NDR Optical Transceiver Module

The part numbers on this page identify the requested coding target. Confirm the exact host model, port and firmware for the selected SKU.

NVIDIA Coding Target MMA4Z00-NS-FLT (980-9I51A-00NS00) compatible OSFP 800G 2xSR4 flat top module supports 800G InfiniBand NDR and Ethernet, ensuring seamless compatibility with DGX H100 systems.

Family osfp-800g-2sr4fh-101942Model OSFP-800G-2SR4FH1 SKU option

Requested part-number references

Requested coding target
NVIDIA/Mellanox
Primary reference identifier
MMA4Z00-NS-FLT

Part-number identifiers and aliases available for matching:

  • MMA4Z00-NS-FLT
  • 980-9I51A-00NS00

Review boundary: These identifiers reproduce source catalog matching terms only; they do not establish interoperability, approval or endorsement. Confirm the exact host model, port type, firmware and test evidence before use.

Select the exact SKU

Search and select a SKU to update the exact title, description, model and option attributes before sending an RFQ.

SKU 101942 - Model OSFP-800G-2SR4FH

NVIDIA/Mellanox Coding Target MMA4Z00-NS-FLT 800G OSFP 2xSR4/SR8 InfiniBand NDR Transceiver with Broadcom DSP & Broadcom VCSEL (Flat Top)

NVIDIA Coding Target MMA4Z00-NS-FLT (980-9I51A-00NS00) compatible OSFP 800G 2xSR4 flat top module supports 800G InfiniBand NDR and Ethernet, ensuring seamless compatibility with DGX H100 systems.

BrandSUNFULL
Compatible brand / platformInfiniBand platform (vendor not specified)
Chip SolutionsBroadcom DSP & Broadcom VCSEL

Use this selection as the requested coding target. Final compatibility still requires the host model, port type and firmware version.

Product brand: SUNFULL. Third-party names identify requested compatibility or coding targets only and do not imply affiliation, endorsement or original-equipment status.

Get Datasheet & Quote Compatibility Review WhatsApp Technical Documents
Share: LinkedIn Facebook X Email
  • Complies with OSFP MSA, CMIS 4.0, and RoHS protocols, providing a reliable and sustainable solution.

Engineering record

Specifications

Family-level values from the collected technical record. Confirm the selected SKU and required evidence in the quotation.

Form Factor
Twin-port OSFP
Distance
30m (OM3) /50m (OM4)
Wavelength
850nm

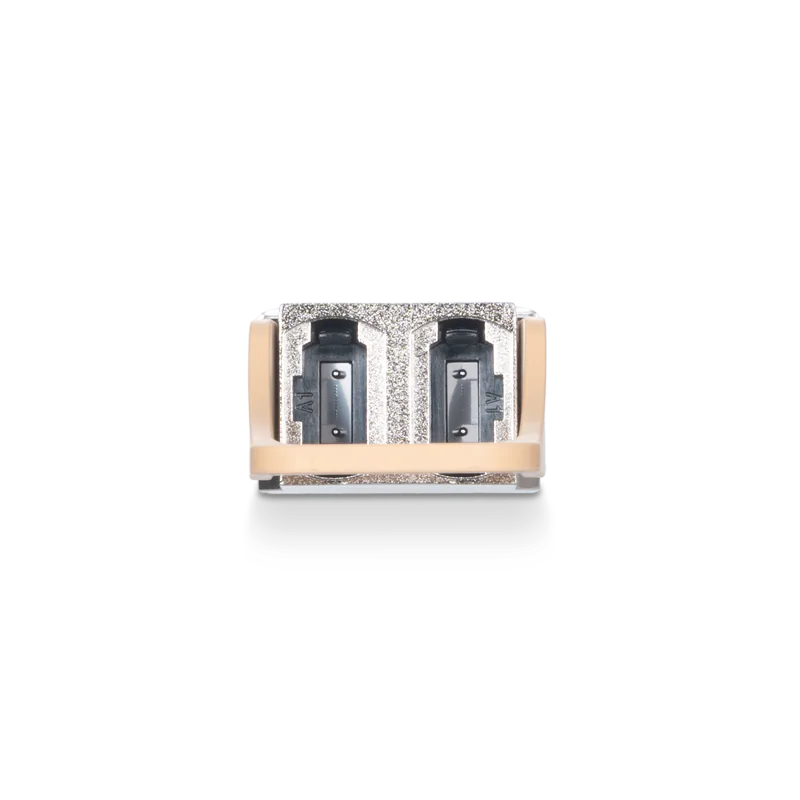

Connector
Two MPO-12/APC
Power Consumption
≤14W
Transmitter
VCSEL
Receiver
PIN
Media
MMF
Modulation (electrical )
8x106.25Gb/s PAM4
Modulation (Optical )
Two ports 4x106.25Gb/s PAM4
Case Temperature(℃)
0 to 70°C (32 to 158°F)
Protocol
IB NDR, 800G Ethernet Compliant

Downloads

Technical documents

Use documents together with the exact SKU selection; document version and commercial validity should be reconfirmed during RFQ review.

Osfp 800G 2Sr4Fh Datasheet
