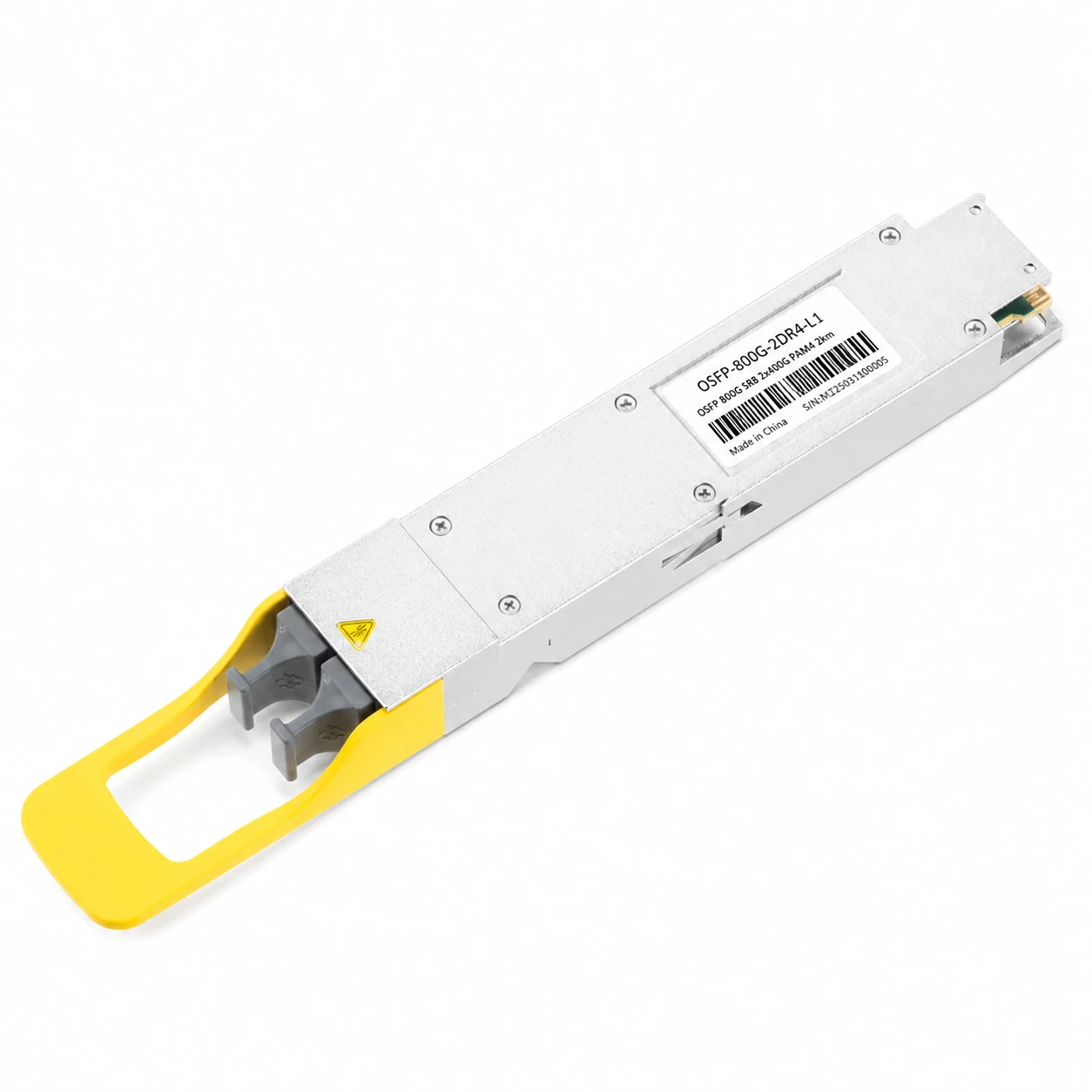

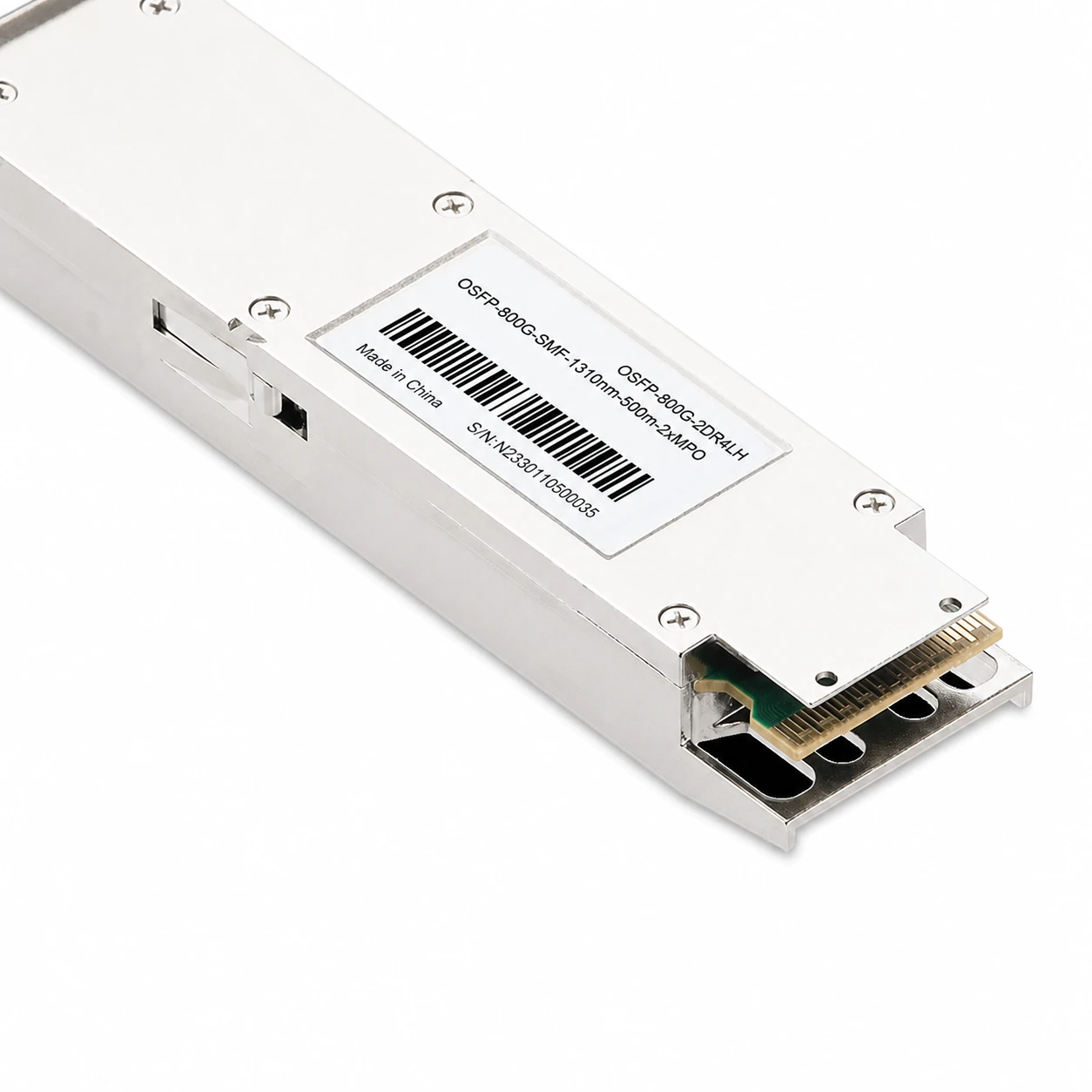

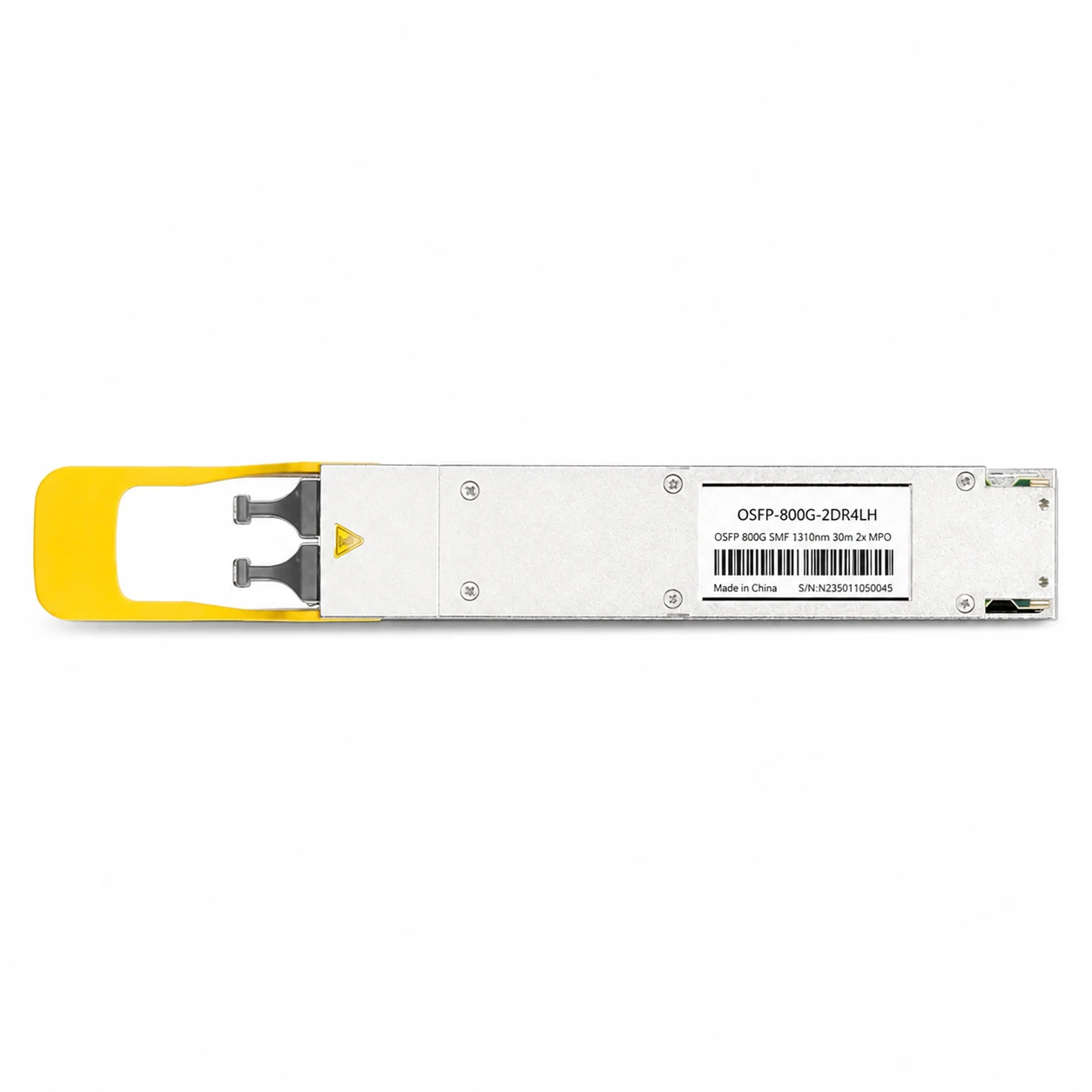

NVIDIA/Mellanox Coding Target MMS4X00-NM 800G OSFP 2xDR4/DR8 500m InfiniBand NDR Transceiver

InfiniBand Interconnects

800G Twin-port OSFP 2xDR4 500m Transceiver | OSFP-800G-2DR4LH / 980-9I30G-00NM00

Catalog reference: NVIDIA/Mellanox Coding Target MMS4X00-NM (980-9I30G-00NM00) Compatible 800G 2xDR4 OSFP IHS/Closed Finned Top 8x100G PAM4 1310nm 500m SMF DOM Dual MPO-12/APC InfiniBand NDR Optical Transceiver Module

The part numbers on this page identify the requested coding target. Confirm the exact host model, port and firmware for the selected SKU.

NVIDIA Coding Target MMS4X00-NM (980-9I30G-00NM00) compatible twin port OSFP 800G 2xDR4 SMF module delivers 800Gb/s 2x400Gb/s InfiniBand NDR and Ethernet connectivity, linking up to 500m.

Family osfp-800g-2dr4lh-101946Model OSFP-800G-2DR4LH1 SKU option

Requested part-number references

Requested coding target
NVIDIA/Mellanox
Primary reference identifier
980-9I30G-00NM00

Part-number identifiers and aliases available for matching:

  • 980-9I30G-00NM00
  • MMS4X00-NM

Review boundary: These identifiers reproduce source catalog matching terms only; they do not establish interoperability, approval or endorsement. Confirm the exact host model, port type, firmware and test evidence before use.

Select the exact SKU

Search and select a SKU to update the exact title, description, model and option attributes before sending an RFQ.

SKU 101946 - Model OSFP-800G-2DR4LH

NVIDIA/Mellanox Coding Target MMS4X00-NM 800G OSFP 2xDR4/DR8 500m InfiniBand NDR Transceiver

NVIDIA Coding Target MMS4X00-NM (980-9I30G-00NM00) compatible twin port OSFP 800G 2xDR4 SMF module delivers 800Gb/s 2x400Gb/s InfiniBand NDR and Ethernet connectivity, linking up to 500m.

BrandSUNFULL
Compatible brand / platformInfiniBand platform (vendor not specified)

Use this selection as the requested coding target. Final compatibility still requires the host model, port type and firmware version.

Product brand: SUNFULL. Third-party names identify requested compatibility or coding targets only and do not imply affiliation, endorsement or original-equipment status.

Get Datasheet & Quote Compatibility Review WhatsApp Technical Documents
Share: LinkedIn Facebook X Email
  • Complies with OSFP MSA, CMIS 4.0, and RoHS protocols, providing a reliable and sustainable solution.

Engineering record

Specifications

Family-level values from the collected technical record. Confirm the selected SKU and required evidence in the quotation.

Form Factor
Twin-port OSFP
Distance
500m
Wavelength
1310nm

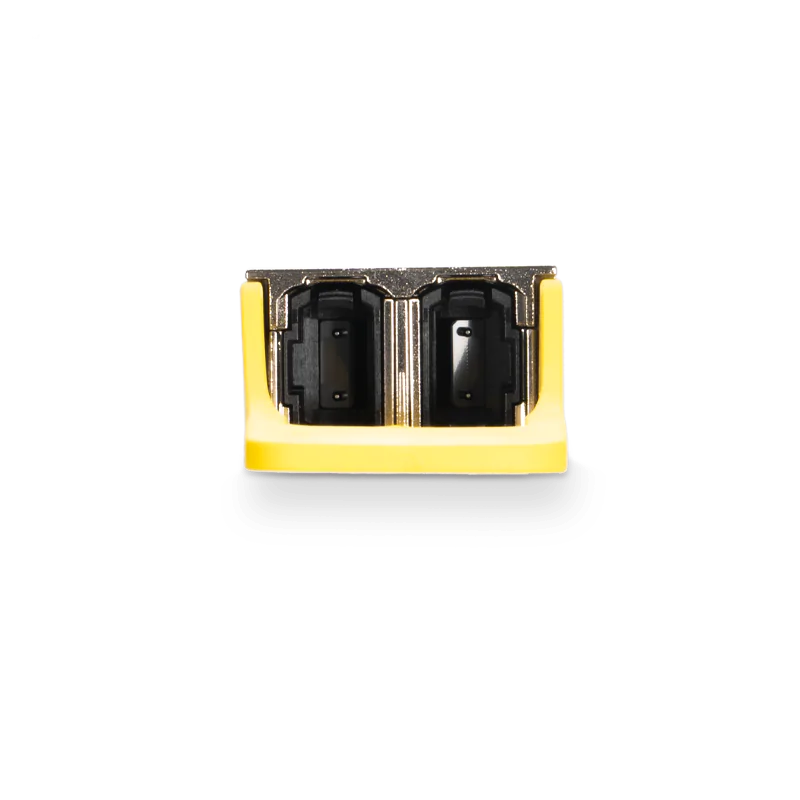

Connector
Two MPO-12/APC
Power Consumption
≤16W
Transmitter
EML
Receiver
PIN
Media
SMF
Modulation (electrical)
8x106.25Gb/s PAM4
Modulation (Optical)
Two ports 4x106.25Gb/s PAM4
Case Temperature(℃)
0~70°C(32 to 158°F)
Protocol
IB NDR,800G Ethernet Compliant

Technical detail

Construction and application notes for OSFP-800G-2DR4LH

Review connector, construction, routing and handling details that apply to the selected family and exact SKU.

Interface and construction

800G DR8 transceivers have a maximum fiber reach of 500 meters and deliver reliable data transmission.

Application and routing

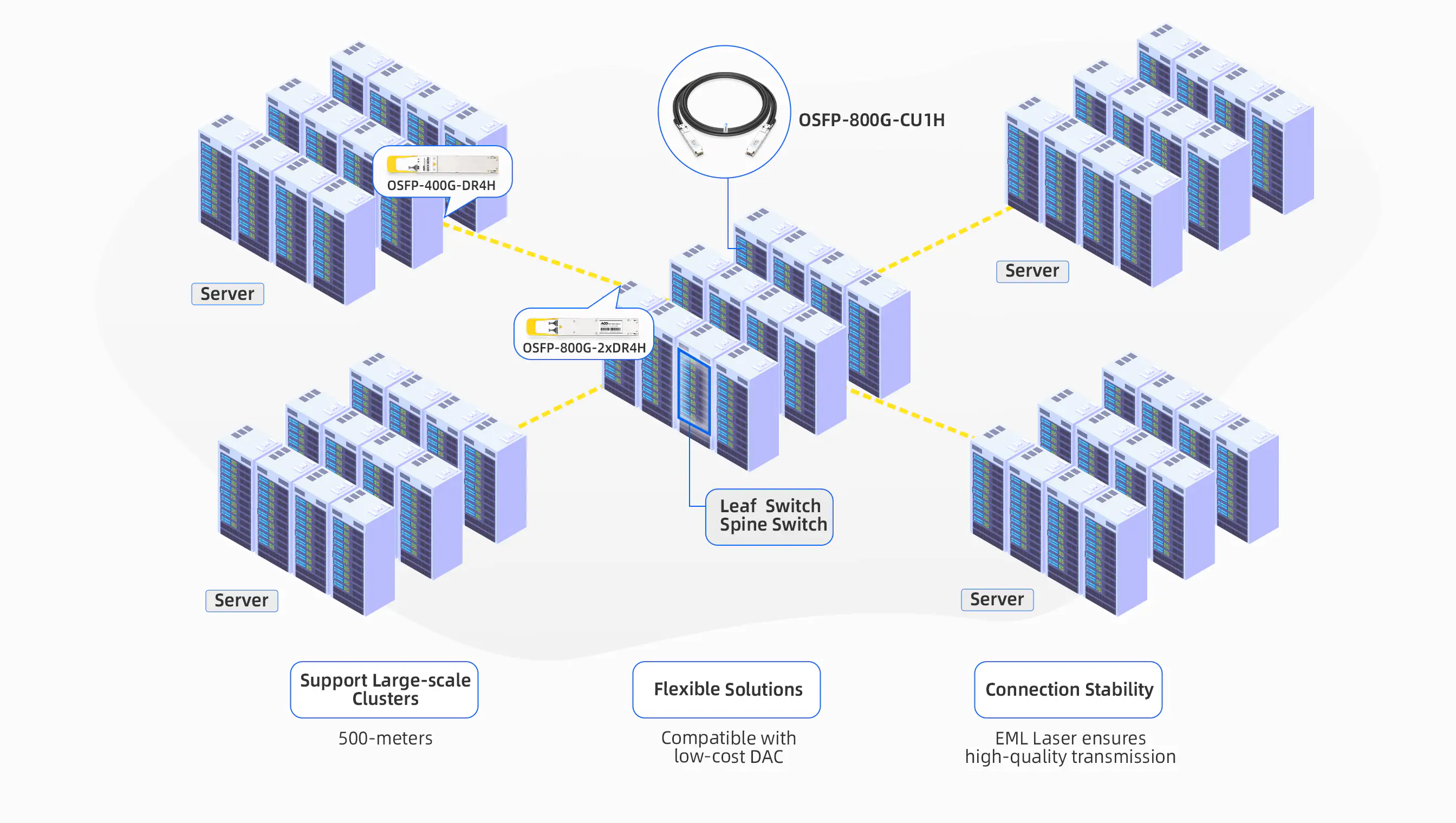

Driving Powerful Performance on HPC Workloads at Any Scale

NVIDIA/Mellanox Coding Target MMS4X00-NM 800G OSFP 2xDR4/DR8 500m InfiniBand NDR Transceiver detail
