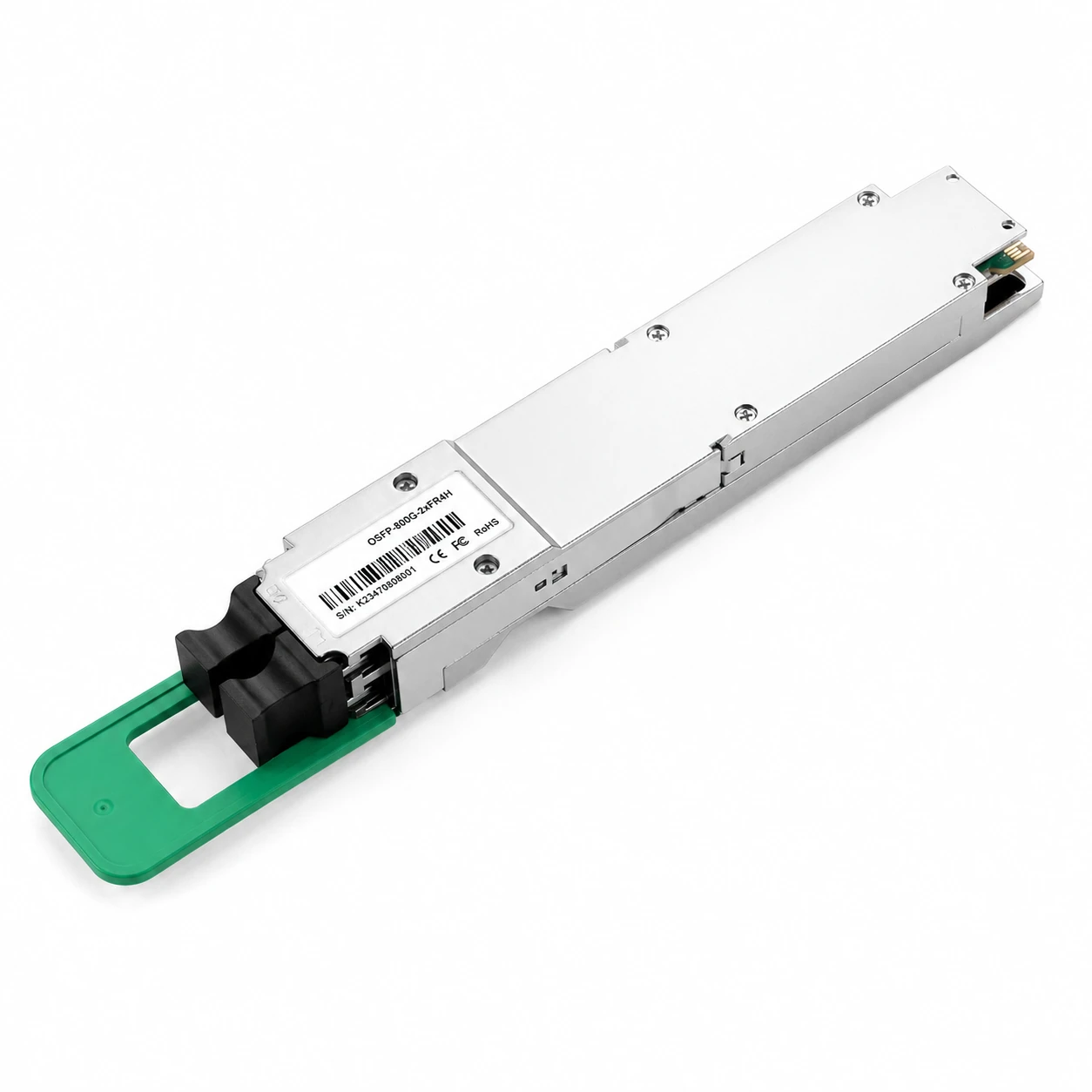

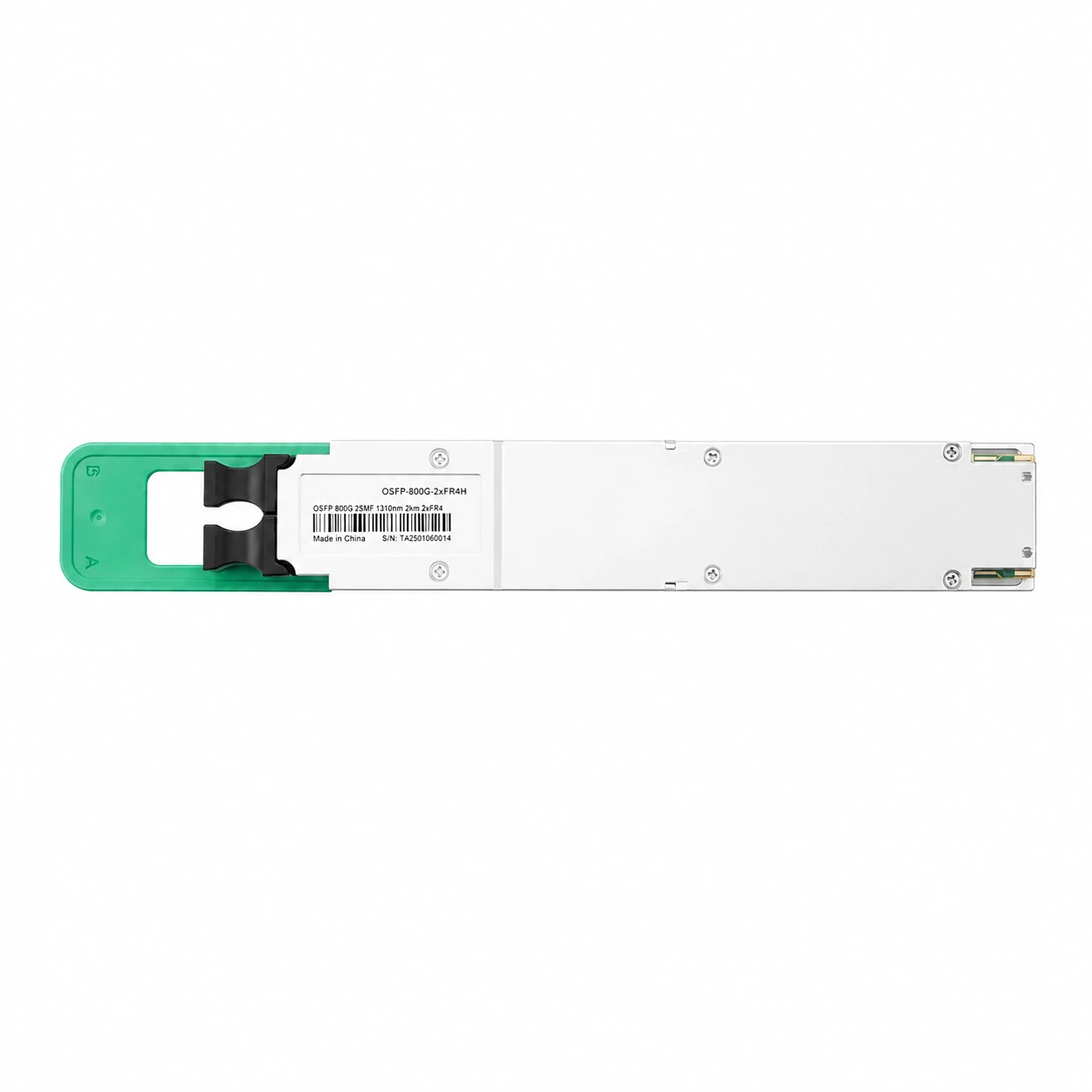

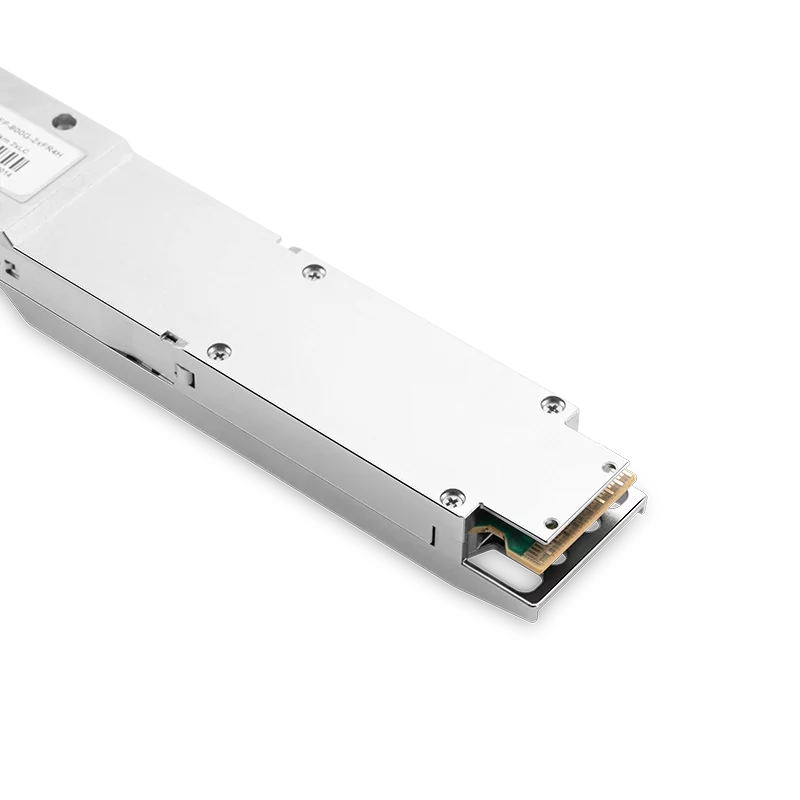

NVIDIA/Mellanox Coding Target MMS4X50-NM 800G OSFP 2xFR4 2km InfiniBand NDR Transceiver

InfiniBand Interconnects

800G Twin-port OSFP 2xFR4H 2km Transceiver | OSFP-800G-2xFR4H / 980-9I30L-00N000

Catalog reference: NVIDIA/Mellanox Coding Target MMS4X50-NM (980-9I30L-00N000) Compatible 800G 2xFR4 OSFP IHS/Finned Top 8x100G PAM4 Broadcom DSP 1310nm 2km SMF DOM Dual LC Duplex InfiniBand NDR Optical Transceiver Module

The part numbers on this page identify the requested coding target. Confirm the exact host model, port and firmware for the selected SKU.

NVIDIA Coding Target MMS4X50-NM (980-9I30L-00N000) compatible OSFP 800G 2xFR4 module is designed for 800GBASE throughput up to 2km over single-mode fiber with dual duplex LC connectors.

Family osfp-800g-2xfr4h-101638Model OSFP-800G-2xFR4H1 SKU option

Requested part-number references

Requested coding target
NVIDIA/Mellanox
Primary reference identifier
980-9I30L-00N000

Part-number identifiers and aliases available for matching:

  • 980-9I30L-00N000
  • MMS4X50-NM

Review boundary: These identifiers reproduce source catalog matching terms only; they do not establish interoperability, approval or endorsement. Confirm the exact host model, port type, firmware and test evidence before use.

Select the exact SKU

Search and select a SKU to update the exact title, description, model and option attributes before sending an RFQ.

SKU 101638 - Model OSFP-800G-2xFR4H

NVIDIA/Mellanox Coding Target MMS4X50-NM 800G OSFP 2xFR4 2km InfiniBand NDR Transceiver

NVIDIA Coding Target MMS4X50-NM (980-9I30L-00N000) compatible OSFP 800G 2xFR4 module is designed for 800GBASE throughput up to 2km over single-mode fiber with dual duplex LC connectors.

BrandSUNFULL
Compatible brand / platformInfiniBand platform (vendor not specified)
Chip SolutionsBroadcom DSP

Use this selection as the requested coding target. Final compatibility still requires the host model, port type and firmware version.

Product brand: SUNFULL. Third-party names identify requested compatibility or coding targets only and do not imply affiliation, endorsement or original-equipment status.

Get Datasheet & Quote Compatibility Review WhatsApp Technical Documents
Share: LinkedIn Facebook X Email
  • Complies with OSFP MSA, CMIS 4.0, and RoHS protocols, providing a reliable and sustainable solution.

Engineering record

Specifications

Family-level values from the collected technical record. Confirm the selected SKU and required evidence in the quotation.

Form Factor
Twin-port OSFP
Distance
2km
Wavelength
1310nm
Connector
Dual Duplex LC
Power Consumption
≤16W
Transmitter
EML
Receiver
PIN
Media
SMF
Modulation (electrical )
8x106.25Gb/s PAM4
Modulation (Optical )
Two ports 4x106.25Gb/s PAM4
Case Temperature(℃)
0~70°C(32 to 158°F)
Protocol
IB NDR,800G Ethernet Compliant

Technical detail

Construction and application notes for OSFP-800G-2xFR4H

Review connector, construction, routing and handling details that apply to the selected family and exact SKU.

Interface and construction

As the first FR single-mode transceiver released in the market, OSFP 800G 2xFR4 break through distance limitations in hyperscale data centers and adopt superior manufacturing process to deliver reliable performance of long-distance data transmission. The utilization of Broadcom DSP chip, advanced high-speed packaging technology, nanometer-level precision alignment of optical components, and optimized PCB design and assembly can reduce signal loss and crosstalk to ensure signal integrity and accurate data transmission and reception. The CWDM4 multi-wavelength optical multiplexing technology and optical coupling, together with efficient heat-dissipation thermal management, make the 800G 2xFR4 transceivers achieve multi-channel data transmission and maintain low power consumption & stable operation.

Application and routing

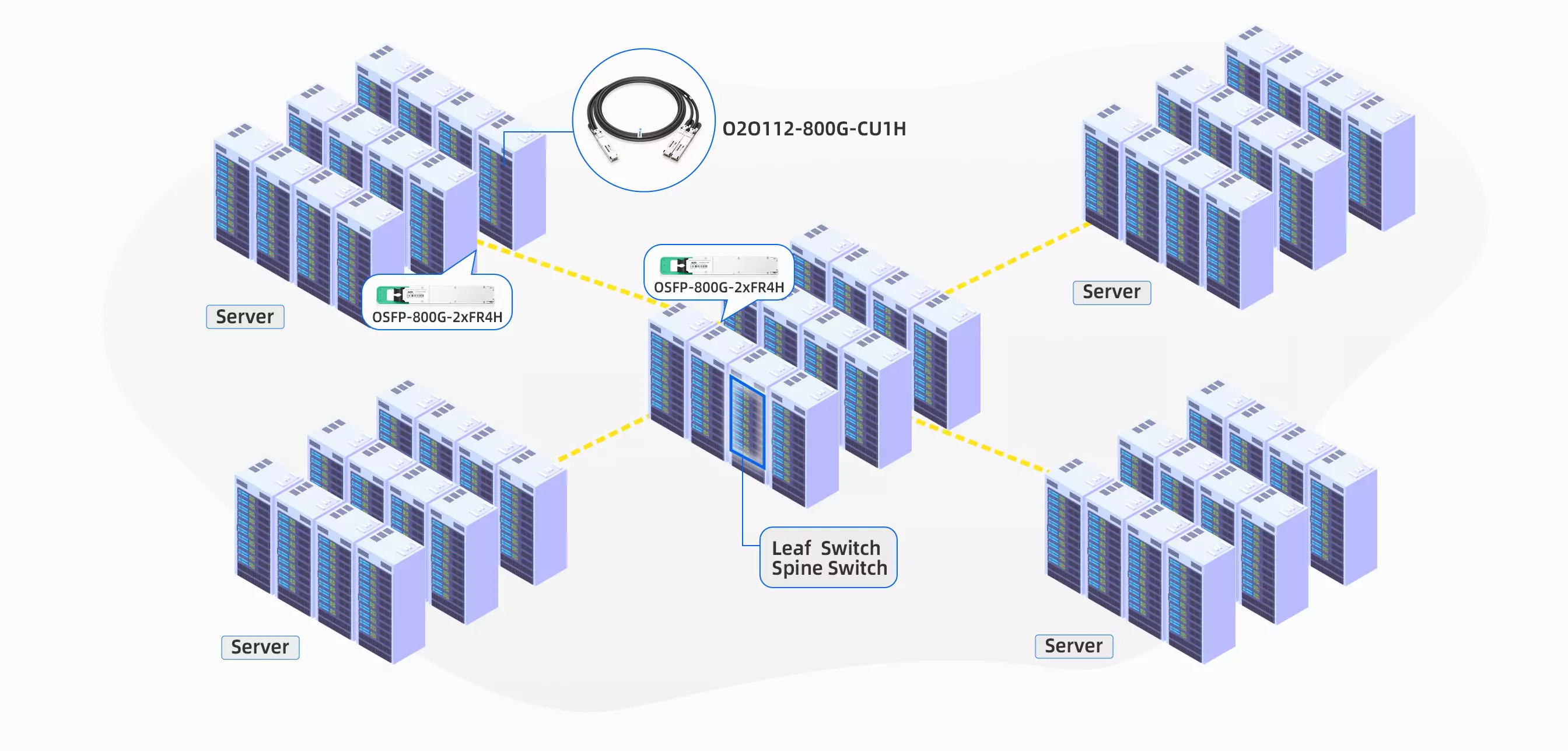

The 800G 2xFR4 transceiver supports stable transmission up to 2km and is designed for cross-data centre interconnections and high-performance computing (HPC) scenarios. Its excellent long-distance transmission capability, combined with low-latency and high-bandwidth characteristics, provides a reliable guarantee for distributed arithmetic networks.

NVIDIA/Mellanox Coding Target MMS4X50-NM 800G OSFP 2xFR4 2km InfiniBand NDR Transceiver detail

Installation and validation

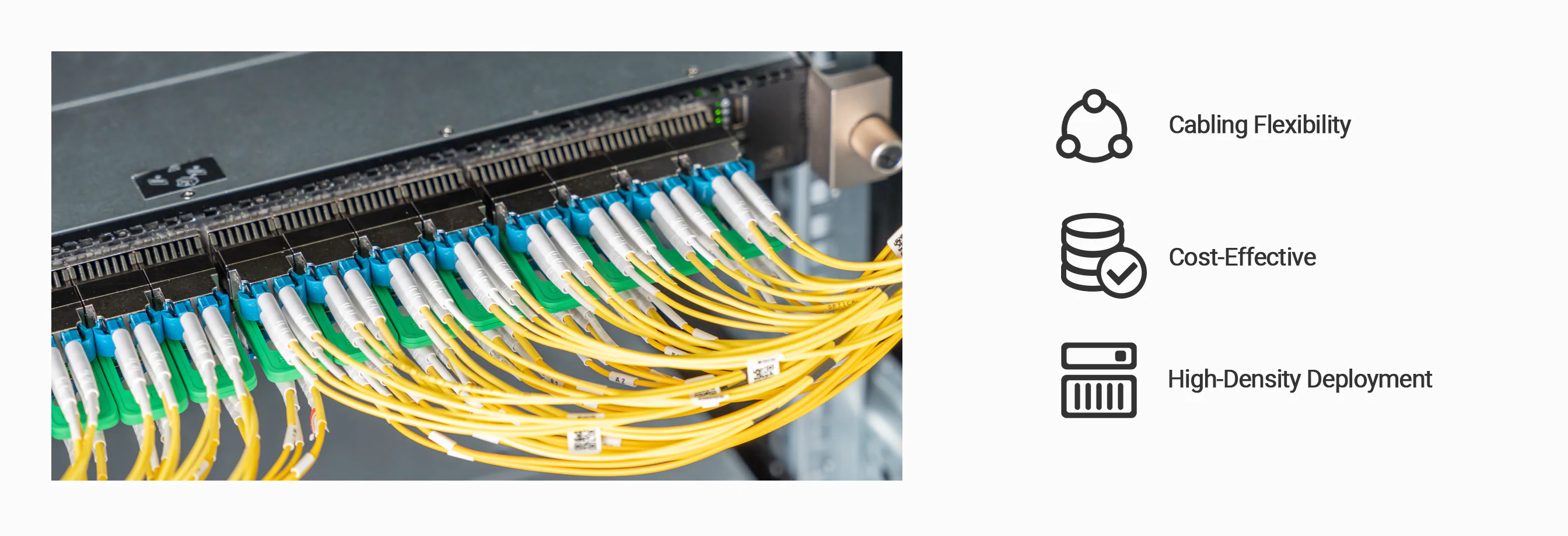

Compared with the traditional MPO interface, the 800G 2xFR4 transceiver adopts the LC interface design, which significantly improves cabling flexibility and cost-effectiveness.The LC interface not only simplifies the installation process, but also significantly reduces the space occupation and maintenance costs, which is especially suitable for high-density deployment in large-scale data centres.

NVIDIA/Mellanox Coding Target MMS4X50-NM 800G OSFP 2xFR4 2km InfiniBand NDR Transceiver detail

Downloads

Technical documents

Use documents together with the exact SKU selection; document version and commercial validity should be reconfirmed during RFQ review.

Osfp 800G 2Xfr4H Datasheet
