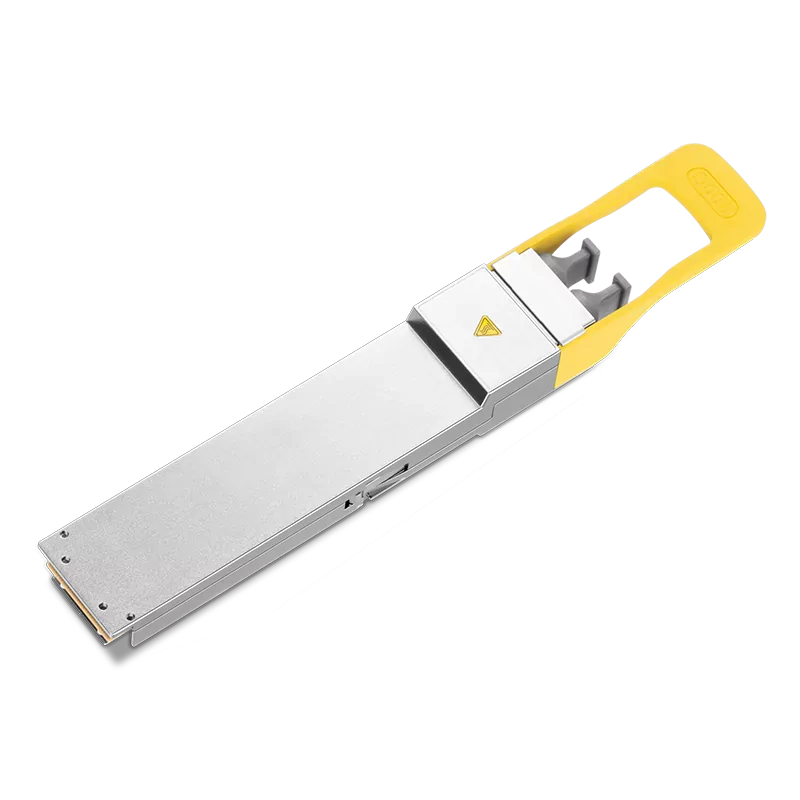

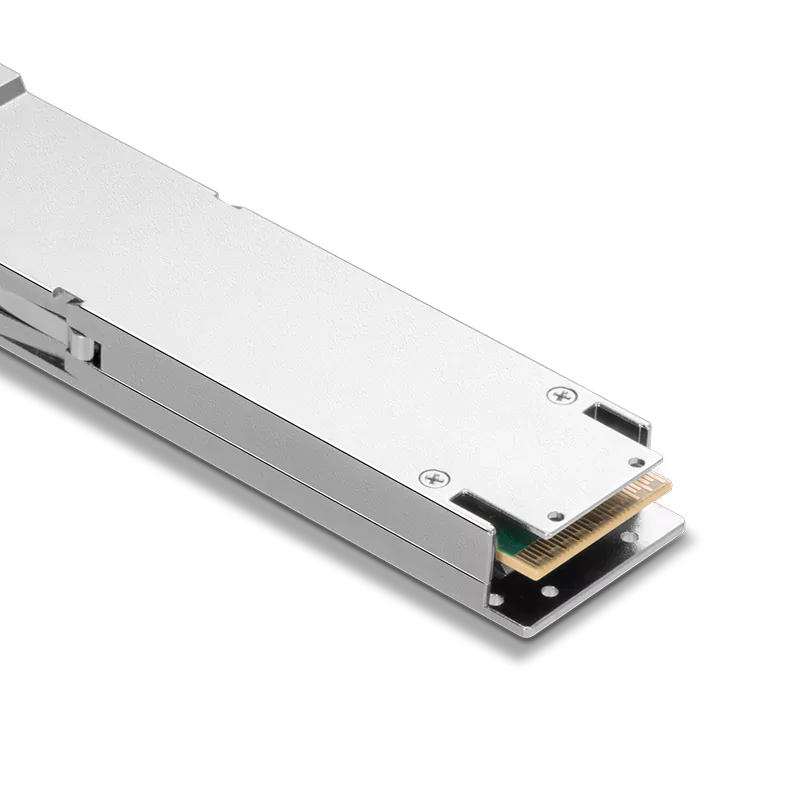

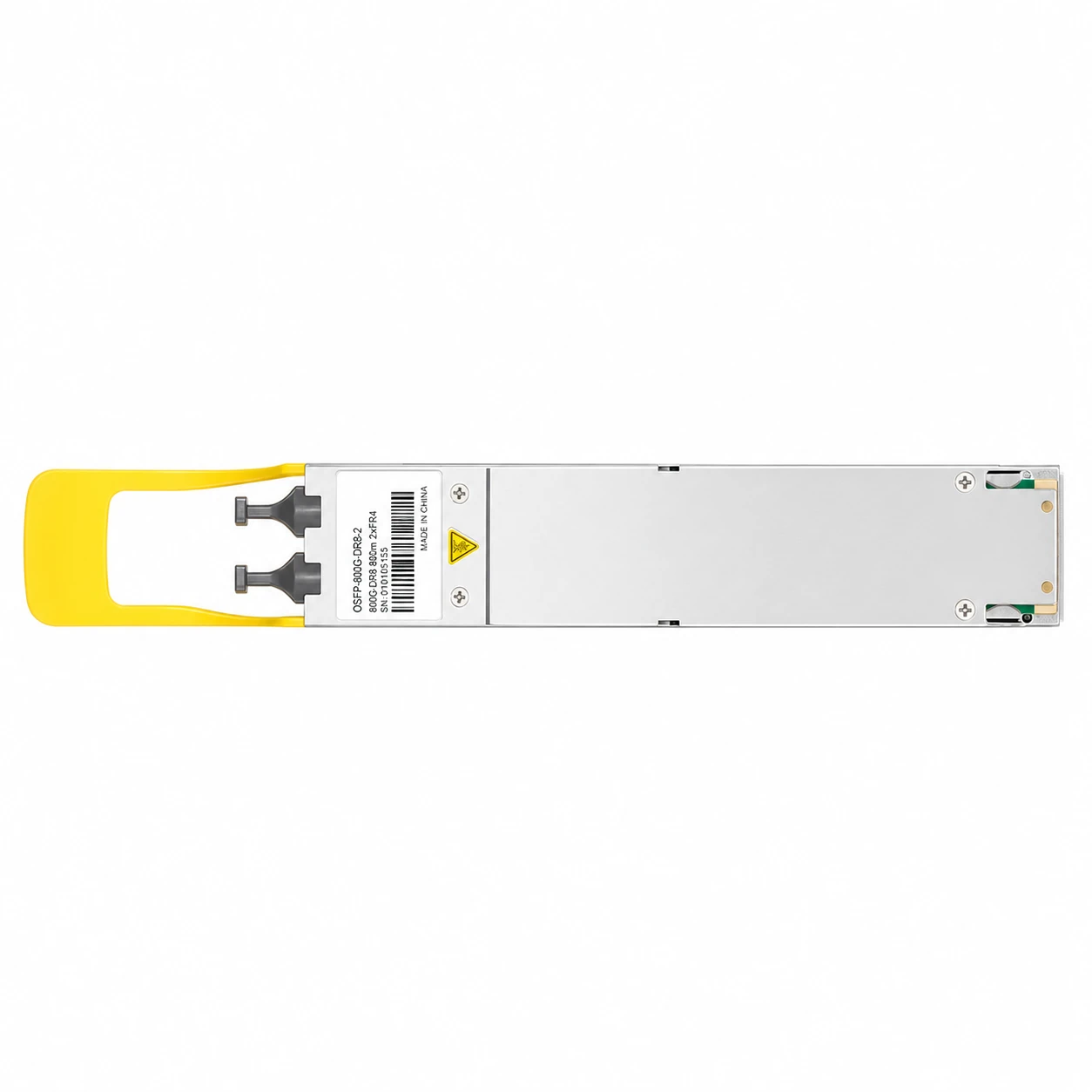

NVIDIA/Mellanox Compatible MMS4X00-NM-FLT (980-9I301-00NM00) 800G OSFP 2xDR4/DR8 Flat Top PAM4 1310nm 500m InfiniBand NDR...

InfiniBand Interconnects

800G Twin-port OSFP 2xDR4 500m Transceiver | OSFP-800G-2DR4XH / 980-9I301-00NM00

Catalog reference: NVIDIA/Mellanox Coding Target MMS4X00-NM-FLT (980-9I301-00NM00) Compatible 800G 2xDR4 OSFP RHS/Flat Top 8x100G PAM4 1310nm 500m SMF DOM Dual MPO-12/APC InfiniBand NDR Optical Transceiver Module

The part numbers on this page identify the requested coding target. Confirm the exact host model, port and firmware for the selected SKU.

NVIDIA/Mellanox Coding Target MMS4X00-NM-FLT compatible 800G OSFP 2xDR4 DR8 Flat Top PAM4 1310nm 500m SMF module supports 800G InfiniBand NDR and Ethernet, ideal for liquid-cooled and DGX-H100 systems.

Family osfp-800g-2dr4xh-103202Model OSFP-800G-2DR4XH1 SKU option

Requested part-number references

Requested coding target
NVIDIA/Mellanox
Primary reference identifier
980-9I301-00NM00

Part-number identifiers and aliases available for matching:

  • 980-9I301-00NM00
  • MMS4X00-NM-FLT

Review boundary: These identifiers reproduce source catalog matching terms only; they do not establish interoperability, approval or endorsement. Confirm the exact host model, port type, firmware and test evidence before use.

Select the exact SKU

Search and select a SKU to update the exact title, description, model and option attributes before sending an RFQ.

SKU 103202 - Model OSFP-800G-2DR4XH

NVIDIA/Mellanox Compatible MMS4X00-NM-FLT (980-9I301-00NM00) 800G OSFP 2xDR4/DR8 Flat Top PAM4 1310nm 500m InfiniBand NDR Transceiver for SMF

NVIDIA/Mellanox Coding Target MMS4X00-NM-FLT compatible 800G OSFP 2xDR4 DR8 Flat Top PAM4 1310nm 500m SMF module supports 800G InfiniBand NDR and Ethernet, ideal for liquid-cooled and DGX-H100 systems.

BrandSUNFULL
Compatible brand / platformInfiniBand platform (vendor not specified)

Use this selection as the requested coding target. Final compatibility still requires the host model, port type and firmware version.

Product brand: SUNFULL. Third-party names identify requested compatibility or coding targets only and do not imply affiliation, endorsement or original-equipment status.

Get Datasheet & Quote Compatibility Review WhatsApp Technical Documents
Share: LinkedIn Facebook X Email
  • Complies with OSFP MSA, CMIS 4.0, and RoHS protocols, providing a reliable and sustainable solution.

Engineering record

Specifications

Family-level values from the collected technical record. Confirm the selected SKU and required evidence in the quotation.

Form Factor
Twin-port OSFP
Distance
500m
Wavelength
1310nm

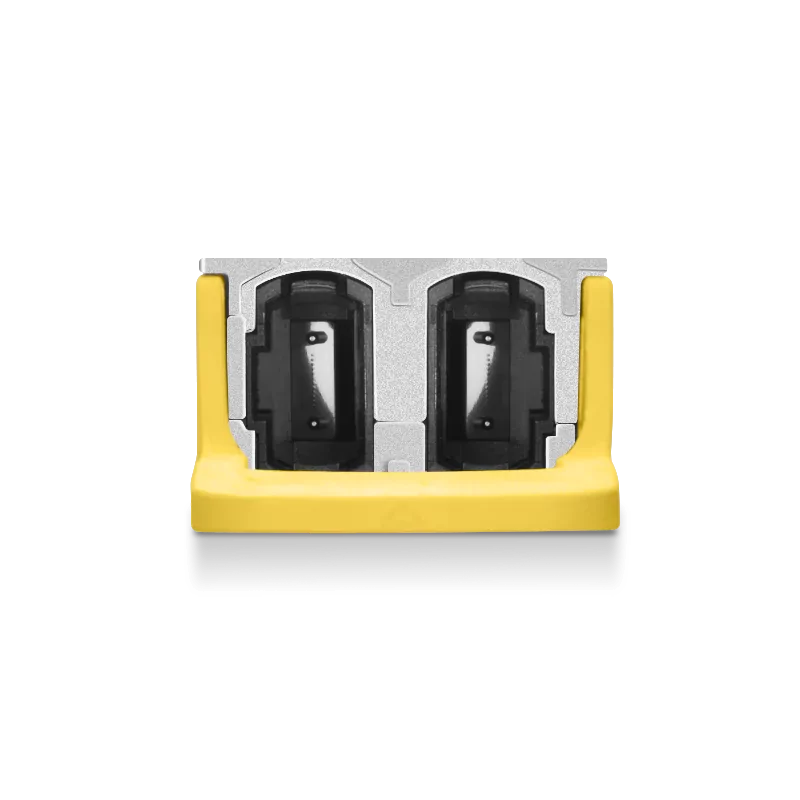

Connector
Dual MTP/MPO-12 APC
Power Consumption
≤16W
Transmitter
EML
Receiver
PIN
Media
SMF
Modulation (electrical)
8x106.25Gb/s PAM4
Modulation (Optical)
Two ports 4x106.25Gb/s PAM4
Case Temperature (℃)
0 to 70°C (32 to 158°F)
Protocol
IB NDR, 800G Ethernet Compliant

Downloads

Technical documents

Use documents together with the exact SKU selection; document version and commercial validity should be reconfirmed during RFQ review.

Osfp 800G 2Dr4Xh Datasheet
