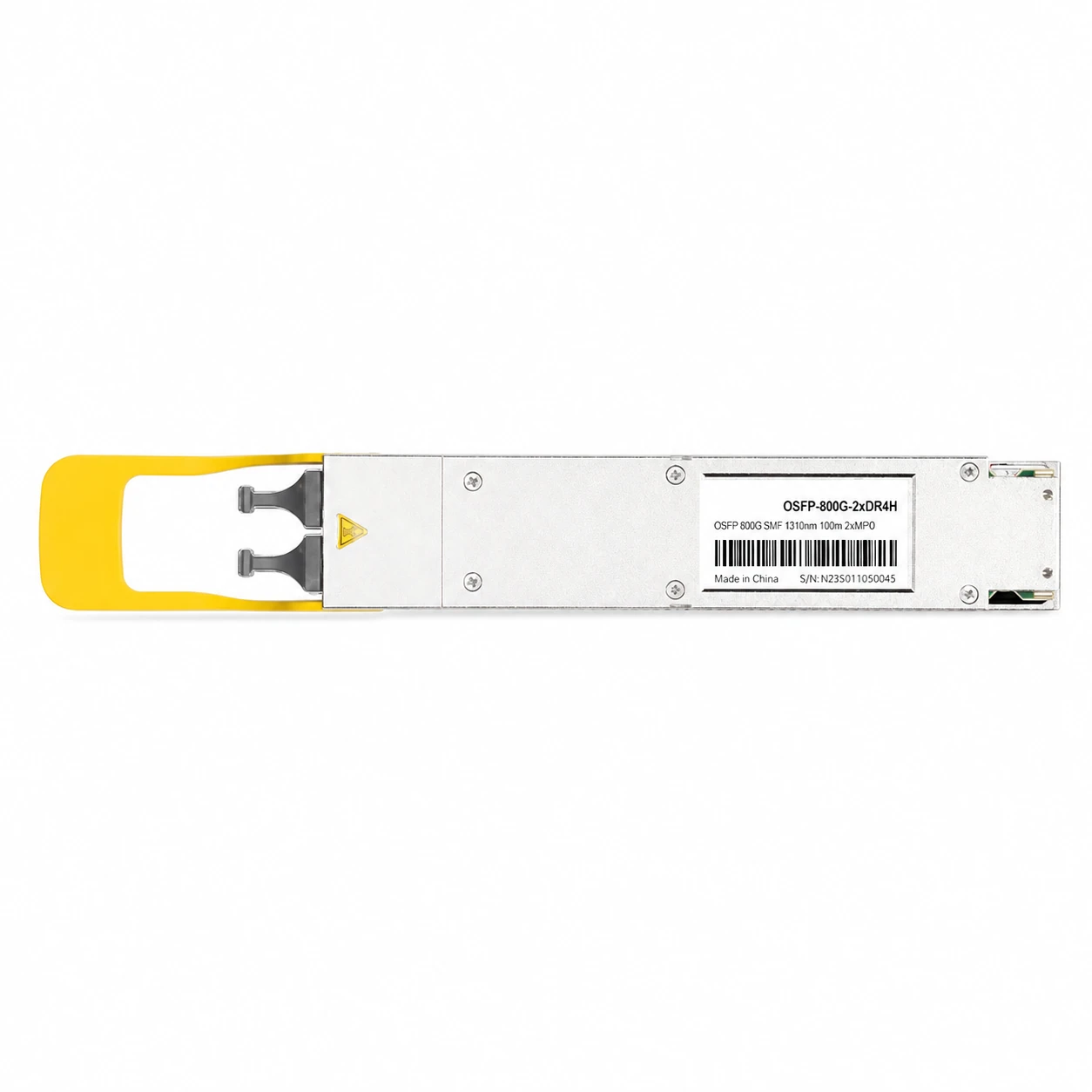

NVIDIA/Mellanox Coding Target MMS4X00-NS 800G OSFP 2xDR4/DR8 100m InfiniBand NDR Transceiver

InfiniBand Interconnects

800G Twin-port OSFP 2xDR4H 100m Transceiver | OSFP-800G-2xDR4H / 980-9I30H-00NM00

Catalog reference: NVIDIA/Mellanox Coding Target MMS4X00-NS (980-9I30H-00NM00) Compatible 800G 2xDR4 OSFP IHS/Closed Finned Top 8x100G PAM4 1310nm 100m SMF DOM Dual MPO-12/APC InfiniBand NDR Optical Transceiver Module

The part numbers on this page identify the requested coding target. Confirm the exact host model, port and firmware for the selected SKU.

MMS4X00-NS (980-9I30H-00NM00) compatible OSFP 800G 2xDR4 SMF module supports 800G InfiniBand NDR and Ethernet, ideal for Quantum-2 and Spectrum-4 switches with up to 100m reach.

Family osfp-800g-2xdr4h-101945Model OSFP-800G-2xDR4H1 SKU option

Requested part-number references

Requested coding target
NVIDIA/Mellanox
Primary reference identifier
980-9I30H-00NM00

Part-number identifiers and aliases available for matching:

  • 980-9I30H-00NM00
  • MMS4X00-NS

Review boundary: These identifiers reproduce source catalog matching terms only; they do not establish interoperability, approval or endorsement. Confirm the exact host model, port type, firmware and test evidence before use.

Select the exact SKU

Search and select a SKU to update the exact title, description, model and option attributes before sending an RFQ.

SKU 101945 - Model OSFP-800G-2xDR4H

NVIDIA/Mellanox Coding Target MMS4X00-NS 800G OSFP 2xDR4/DR8 100m InfiniBand NDR Transceiver

MMS4X00-NS (980-9I30H-00NM00) compatible OSFP 800G 2xDR4 SMF module supports 800G InfiniBand NDR and Ethernet, ideal for Quantum-2 and Spectrum-4 switches with up to 100m reach.

BrandSUNFULL
Compatible brand / platformInfiniBand platform (vendor not specified)

Use this selection as the requested coding target. Final compatibility still requires the host model, port type and firmware version.

Product brand: SUNFULL. Third-party names identify requested compatibility or coding targets only and do not imply affiliation, endorsement or original-equipment status.

Get Datasheet & Quote Compatibility Review WhatsApp Technical Documents
Share: LinkedIn Facebook X Email
  • Complies with OSFP MSA, CMIS 4.0, and RoHS protocols, providing a reliable and sustainable solution.

Engineering record

Specifications

Family-level values from the collected technical record. Confirm the selected SKU and required evidence in the quotation.

Form Factor
Twin-port OSFP
Distance
100m
Wavelength
1310nm
Connector
Two MPO-12/APC
Power Consumption
≤16W
Transmitter
DFB (SiPh)/EML
Receiver
PIN
Media
SMF
Modulation (electrical)
8x106.25Gb/s PAM4
Modulation (Optical)
Two ports 4x106.25Gb/s PAM4
Case Temperature(℃)
0~70°C(32 to 158°F)
Protocol
IB NDR,800G Ethernet Compliant

Technical detail

Construction and application notes for OSFP-800G-2xDR4H

Review connector, construction, routing and handling details that apply to the selected family and exact SKU.

Interface and construction

800G OSFP 2×DR4/DR8 offers superior process maturity, hardware reliability, and multi-ecosystem compatibility. Advanced DSP equalization compensates for optical link impairments, ensuring stable mid-range transmission and reducing operational complexity.

Application and routing

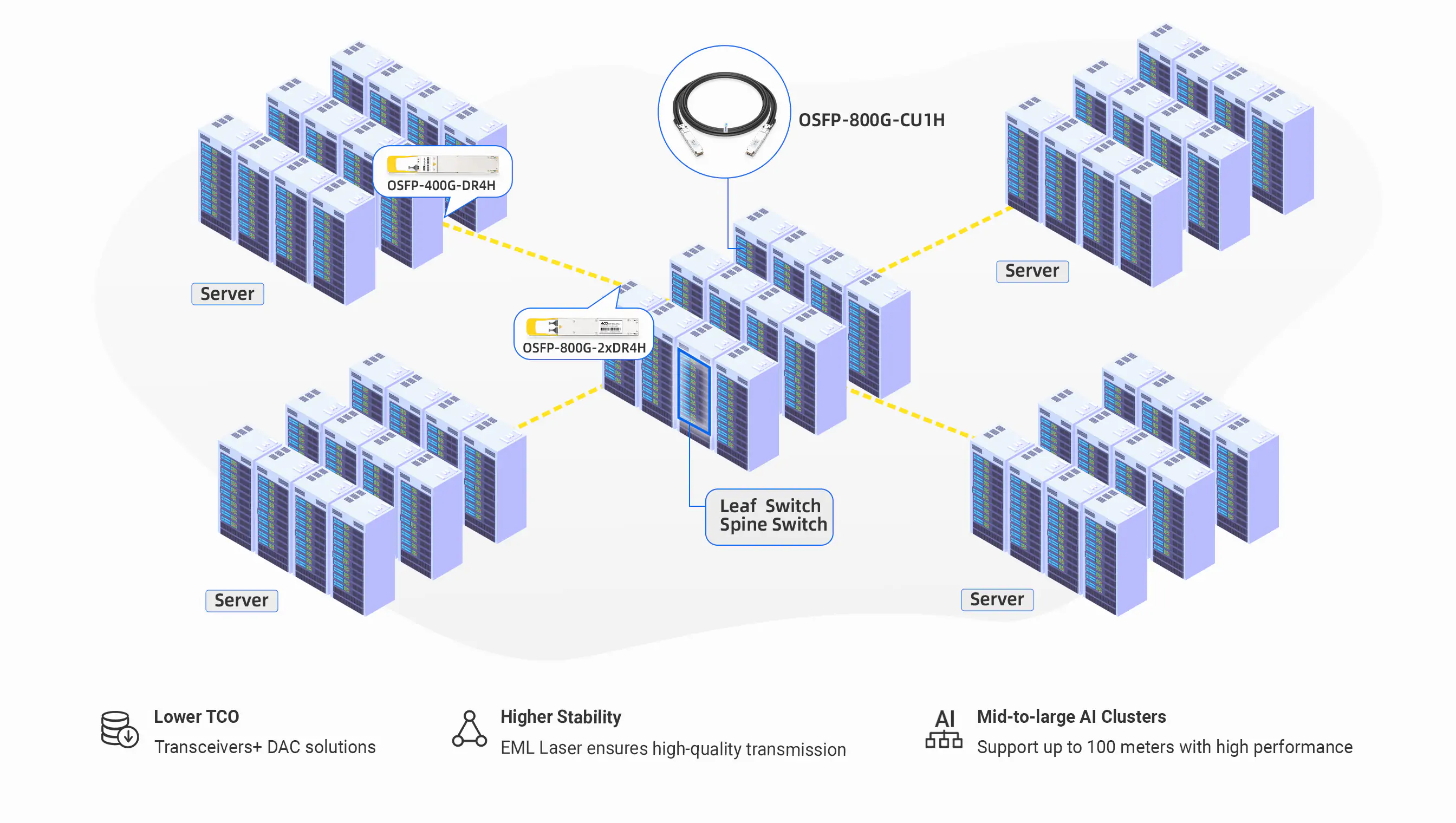

800G OSFP DR8 provides a cost-optimized, scenario-based connectivity solution for data centers. Utilizing DACs for efficient short-distance intra-rack connections reduces the need for intermediary devices and costs. For inter-rack transmissions, a module and patch cable approach ensures stable, high-speed data transmission. The flexible deployment solution balances performance and costs across varying transmission distances, effectively lowering the total cost of ownership (TCO) and deployment complexity. It offers a high-performance, cost-effective interconnect solution suitable for all scales of architecture, accelerating the efficient deployment and optimization of AI clusters.

NVIDIA/Mellanox Coding Target MMS4X00-NS 800G OSFP 2xDR4/DR8 100m InfiniBand NDR Transceiver detail

Downloads

Technical documents

Use documents together with the exact SKU selection; document version and commercial validity should be reconfirmed during RFQ review.

Osfp 800G 2Xdr4H Datasheet
