InfiniBand Interconnects
800G Twin-port OSFP 2xDR4 100m Transceiver | OSFP-800G-2DR4FH / 980-9I30I-00NM00
Catalog reference: NVIDIA/Mellanox Coding Target MMS4X00-NS-FLT (980-9I30I-00NM00) Compatible 800G 2xDR4 OSFP RHS/Flat Top 8x100G PAM4 1310nm 100m SMF DOM Dual MPO-12/APC InfiniBand NDR Optical Transceiver Module for DGX H100
The part numbers on this page identify the requested coding target. Confirm the exact host model, port and firmware for the selected SKU.
MMS4X00-NS-FLT compatible OSFP 800G 2xDR4 SMF module supports 800G InfiniBand NDR and Ethernet, ideal for Quantum-2 and Spectrum-4 switches with up to 100m reach.
Family osfp-800g-2dr4fh-102602Model OSFP-800G-2DR4FH1 SKU option
Requested part-number references
- Requested coding target
- NVIDIA/Mellanox
- Primary reference identifier
- 980-9I30I-00NM00
Part-number identifiers and aliases available for matching:
- 980-9I30I-00NM00
- MMS4X00-NS-FLT
Review boundary: These identifiers reproduce source catalog matching terms only; they do not establish interoperability, approval or endorsement. Confirm the exact host model, port type, firmware and test evidence before use.
Select the exact SKU
Search and select a SKU to update the exact title, description, model and option attributes before sending an RFQ.
SKU 102602 - Model OSFP-800G-2DR4FH

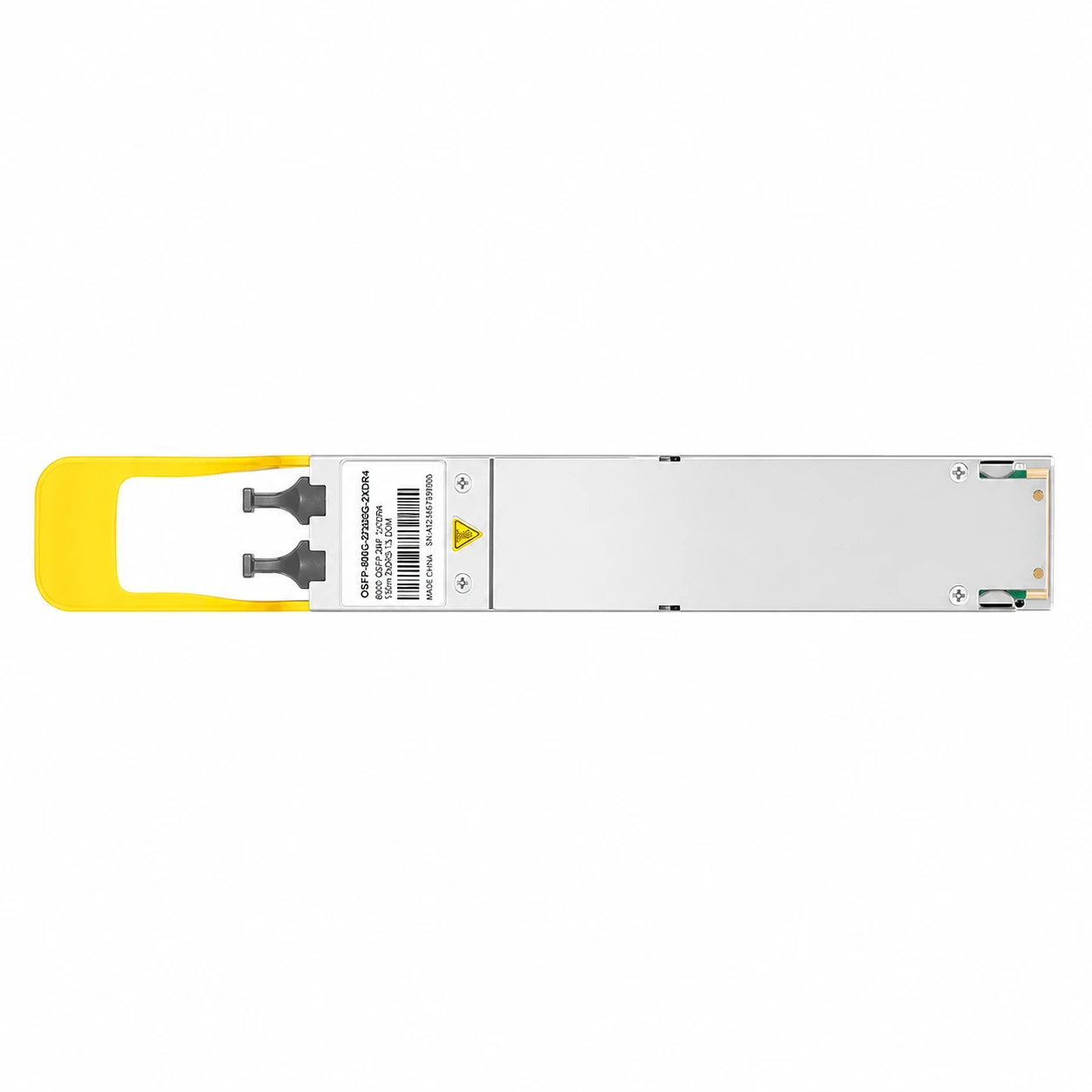

NVIDIA/Mellanox Coding Target MMS4X00-NS-FLT 800G OSFP 2xDR4/DR8 100m InfiniBand NDR Transceiver
MMS4X00-NS-FLT compatible OSFP 800G 2xDR4 SMF module supports 800G InfiniBand NDR and Ethernet, ideal for Quantum-2 and Spectrum-4 switches with up to 100m reach.
BrandSUNFULL
Compatible brand / platformInfiniBand platform (vendor not specified)
Use this selection as the requested coding target. Final compatibility still requires the host model, port type and firmware version.
Product brand: SUNFULL. Third-party names identify requested compatibility or coding targets only and do not imply affiliation, endorsement or original-equipment status.
- Complies with OSFP MSA, CMIS 4.0, and RoHS protocols, providing a reliable and sustainable solution.
Engineering record
Specifications
Family-level values from the collected technical record. Confirm the selected SKU and required evidence in the quotation.
- Form Factor
- Twin-port OSFP
- Distance
- 100m
- Wavelength
- 1310nm
- Connector
- Two MPO-12/APC
- Power Consumption
- ≤16W
- Transmitter
- EML
- Receiver
- PIN
- Media
- SMF
- Modulation (electrical)
- 8x106.25Gb/s PAM4
- Modulation (Optical)
- Two ports 4x106.25Gb/s PAM4
- Case Temperature(℃)
- 0 to 70°C (32 to 158°F)
- Protocol
- IB NDR,800G Ethernet Compliant
Downloads
Technical documents
Use documents together with the exact SKU selection; document version and commercial validity should be reconfirmed during RFQ review.
