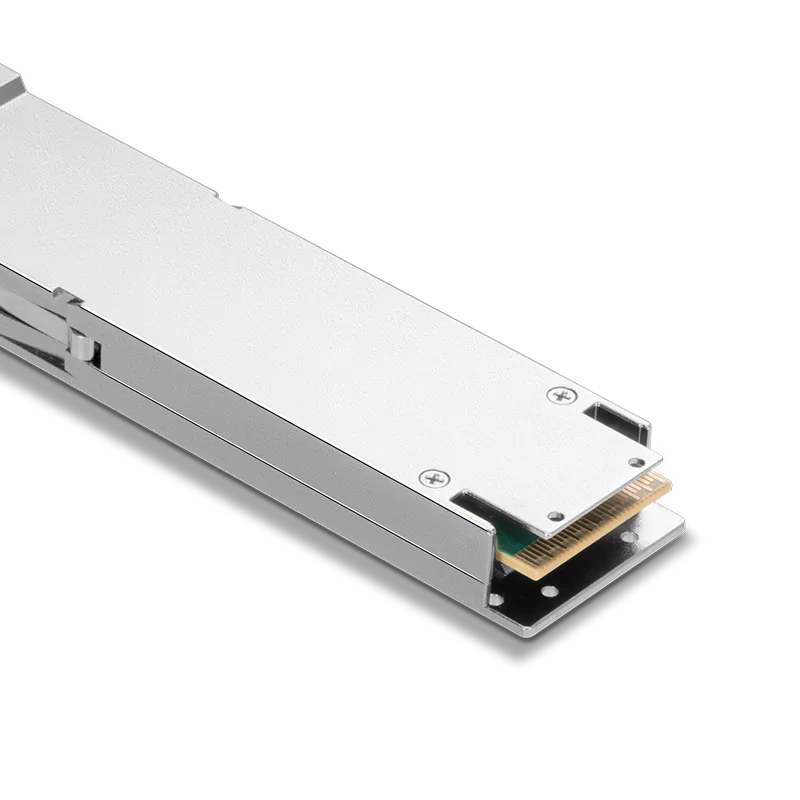

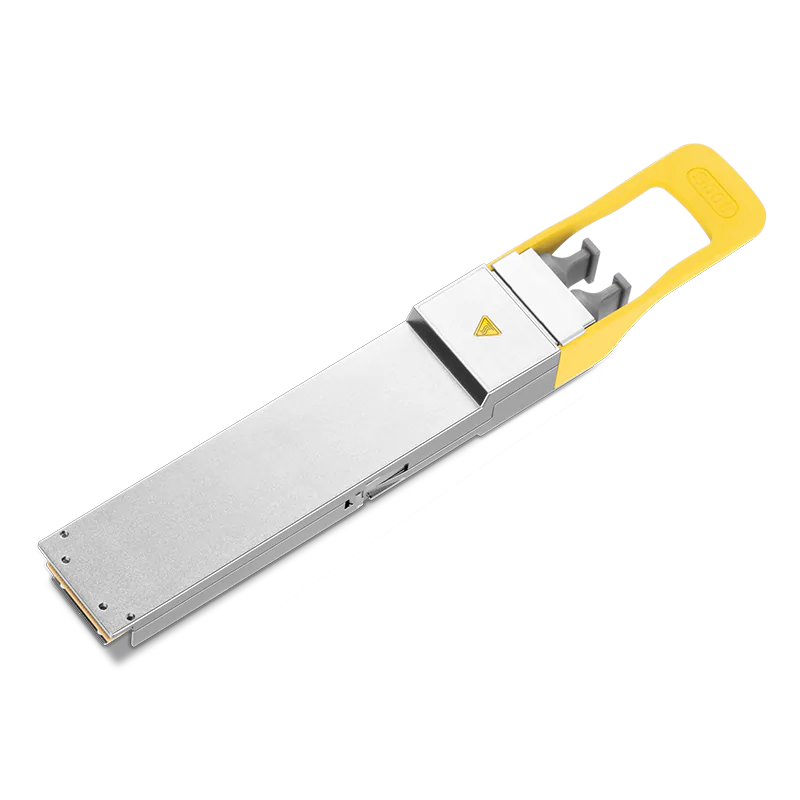

NVIDIA/Mellanox Coding Target MMS4X00-NM-HGX 800G OSFP 2xDR4/DR8 500m Transceiver

RoCE Ethernet Interconnects

800G Twin-port OSFP 2xDR4 500m Transceiver | OSFP-800G-2DR4F / 980-9I302-00NM00

Catalog reference: NVIDIA/Mellanox Coding Target MMS4X00-NM-HGX (980-9I302-00NM00) Compatible 800GBASE-2xDR4 OSFP RHS/Flat Top 8x100G PAM4 1310nm 500m SMF DOM Dual MPO-12/APC Optical Transceiver Module for ConnectX-8/ConnectX-9 SuperNIC & NVIDIA Rubin NVL8 Server

The part numbers on this page identify the requested coding target. Confirm the exact host model, port and firmware for the selected SKU.

NVIDIA/Mellanox Coding Target MMS4X00-NM-HGX compatible 800G 2xDR4/DR8 1310nm SMF flat top module supports 800G Ethernet, ideal for Spectrum-4 switches and NVIDIA Rubin NVL8 servers with up to 500m reach. It can be used in NVIDIA ConnectX-8 / ConnectX-9 SuperNIC. This module offers an ideal solution for deploying 400G RoCE networking, and also supports Broadcom Tomahawk 5 switches.

Family osfp-800g-2dr4f-102870Model OSFP-800G-2DR4F1 SKU option

Requested part-number references

Requested coding target
NVIDIA/Mellanox
Primary reference identifier
980-9I302-00NM00

Part-number identifiers and aliases available for matching:

  • 980-9I302-00NM00
  • MMS4X00-NM-HGX

Review boundary: These identifiers reproduce source catalog matching terms only; they do not establish interoperability, approval or endorsement. Confirm the exact host model, port type, firmware and test evidence before use.

Select the exact SKU

Search and select a SKU to update the exact title, description, model and option attributes before sending an RFQ.

SKU 102870 - Model OSFP-800G-2DR4F

NVIDIA/Mellanox Coding Target MMS4X00-NM-HGX 800G OSFP 2xDR4/DR8 500m Transceiver

NVIDIA/Mellanox Coding Target MMS4X00-NM-HGX compatible 800G 2xDR4/DR8 1310nm SMF flat top module supports 800G Ethernet, ideal for Spectrum-4 switches and NVIDIA Rubin NVL8 servers with up to 500m reach. It can be used in NVIDIA ConnectX-8 / ConnectX-9 SuperNIC. This module offers an ideal solution for deploying 400G RoCE networking, and also supports Broadcom Tomahawk 5 switches.

BrandSUNFULL
Compatible brand / platformNVIDIA/Mellanox (Ethernet)

Use this selection as the requested coding target. Final compatibility still requires the host model, port type and firmware version.

Product brand: SUNFULL. Third-party names identify requested compatibility or coding targets only and do not imply affiliation, endorsement or original-equipment status.

Get Datasheet & Quote Compatibility Review WhatsApp Technical Documents
Share: LinkedIn Facebook X Email
  • Maximum Power Consumption ≤16.5W.
  • Compliant with Hot Pluggable OSFP MSA Standard.
  • Compliant with RoHS Environmental Standard (Lead-free).
  • DDM(Digital Diagnostic Monitoring) Supported.
  • Pairing with the C8180 Super NIC enables quad-Plane topology networking and effectively improves link stability.

Engineering record

Specifications

Family-level values from the collected technical record. Confirm the selected SKU and required evidence in the quotation.

Form Factor
Twin-port OSFP
Distance
500m
Wavelength
1310nm
Connector

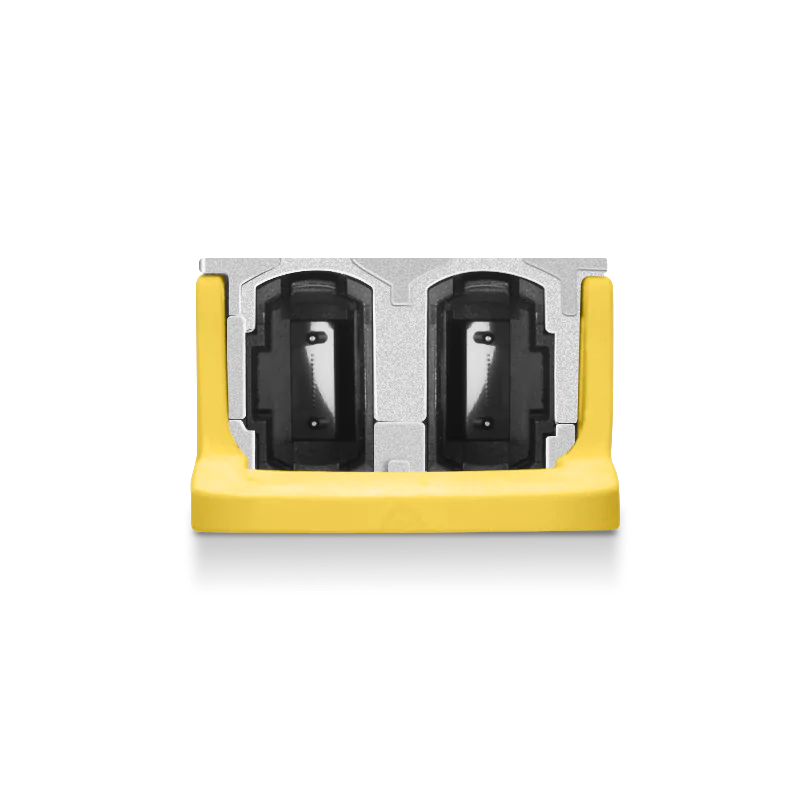

Two MPO-12/APC
Power Consumption
≤16.5W
Transmitter
EML
Receiver
PIN
Media
SMF
Modulation (electrical)
8x106.25Gb/s PAM4
Modulation (Optical)
Two ports 4x106.25Gb/s PAM4
Case Temperature(℃)
0 to 70°C (32 to 158°F)
Protocol
800G Ethernet Compliant

Technical detail

Construction and application notes for OSFP-800G-2DR4F

Review connector, construction, routing and handling details that apply to the selected family and exact SKU.

Interface and construction

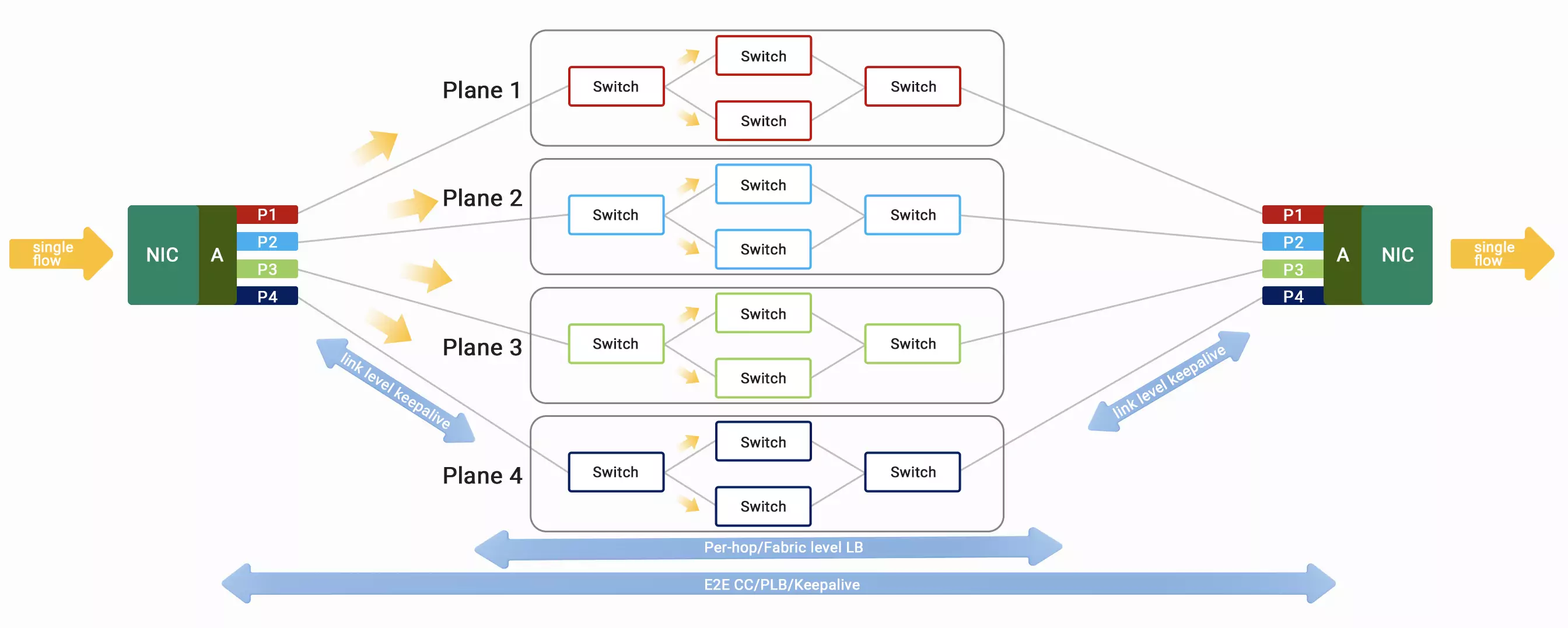

The OSFP-800G-2DR4F module is tightly integrated with the multi-plane architecture of the ConnectX-8 / ConnectX-9 SuperNIC, delivering key advantages in large-scale computing clusters. By distributing traffic across multiple planes, it maximizes bandwidth, enables smoother load balancing, and ensures consistently low latency. Each plane is isolated and inherently redundant, so a single path failure does not impact service continuity, enhancing overall reliability. With higher resource utilization and fewer congestion points, the ConnectX-8 / ConnectX-9 architecture enables faster scaling and a more efficient, stable, and resilient network experience.

NVIDIA/Mellanox Coding Target MMS4X00-NM-HGX 800G OSFP 2xDR4/DR8 500m Transceiver detail

Application and routing

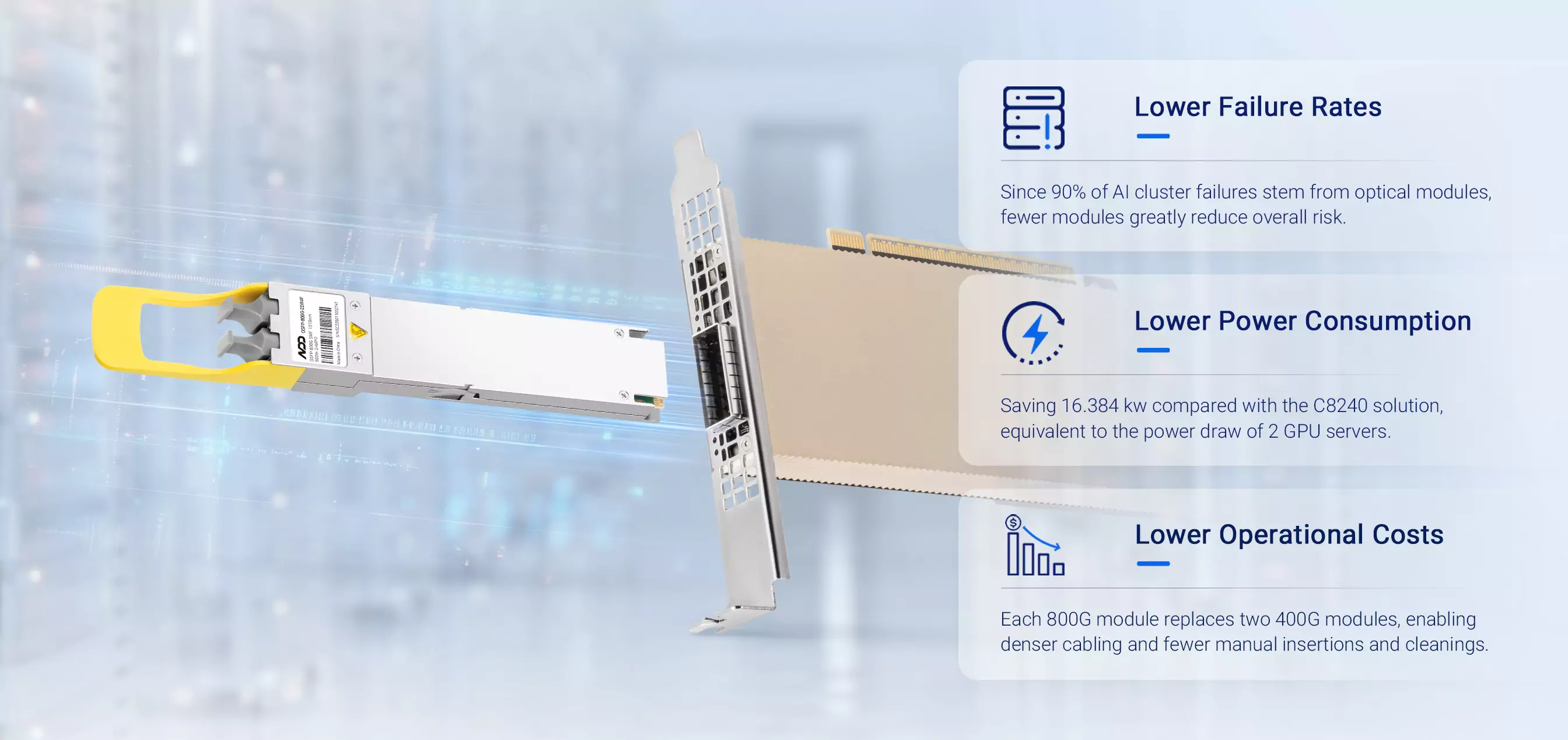

In ConnectX-8 NIC and Spectrum-4 switch AI cluster architectures, the C8180 paired with OSFP-800G-2DR4F reduces optical module count by 20% compared with the C8240 using Q112-400G-DR4 solution. This delivers the following three key advantages.

NVIDIA/Mellanox Coding Target MMS4X00-NM-HGX 800G OSFP 2xDR4/DR8 500m Transceiver detail

Downloads

Technical documents

Use documents together with the exact SKU selection; document version and commercial validity should be reconfirmed during RFQ review.

Osfp 800G 2Xdr4F Datasheet
