NVIDIA/Mellanox Coding Target MMS4X00-NM-T Compatible 800G 2xDR4/DR8 PAM4 1310nm 500m Optical Transceiver

RoCE Ethernet Interconnects

800G Twin-port OSFP 2xDR4 500m Transceiver | OSFP-800Si-2DR4 / MMS4X00-NM-T

Catalog reference: NVIDIA/Mellanox Coding Target MMS4X00-NM-T (980-9I30G-F4NM00) Compatible 800GBASE-2xDR4 OSFP IHS/Closed Finned Top 8x100G PAM4 1310nm 500m SMF DOM Dual MPO-12/APC Optical Transceiver Module for SN5610 Series Switch

The part numbers on this page identify the requested coding target. Confirm the exact host model, port and firmware for the selected SKU.

NVIDIA/Mellanox Coding Target MMS4X00-NM-T Compatible 800G 2xDR4/DR8 OSFP optical transceiver modules are designed for data center 800G Ethernet up to 500m.

Family osfp-800si-2dr4-102512Model OSFP-800Si-2DR41 SKU option

Requested part-number references

Requested coding target
NVIDIA/Mellanox
Primary reference identifier
MMS4X00-NM-T

Part-number identifiers and aliases available for matching:

  • MMS4X00-NM-T
  • 980-9I30G-F4NM00

Review boundary: These identifiers reproduce source catalog matching terms only; they do not establish interoperability, approval or endorsement. Confirm the exact host model, port type, firmware and test evidence before use.

Select the exact SKU

Search and select a SKU to update the exact title, description, model and option attributes before sending an RFQ.

SKU 102512 - Model OSFP-800Si-2DR4

NVIDIA/Mellanox Coding Target MMS4X00-NM-T Compatible 800G 2xDR4/DR8 PAM4 1310nm 500m Optical Transceiver

NVIDIA/Mellanox Coding Target MMS4X00-NM-T Compatible 800G 2xDR4/DR8 OSFP optical transceiver modules are designed for data center 800G Ethernet up to 500m.

BrandSUNFULL
Compatible brand / platformGeneric

Use this selection as the requested coding target. Final compatibility still requires the host model, port type and firmware version.

Product brand: SUNFULL. Third-party names identify requested compatibility or coding targets only and do not imply affiliation, endorsement or original-equipment status.

Get Datasheet & Quote Compatibility Review WhatsApp Technical Documents
Share: LinkedIn Facebook X Email
  • Max Power Consumption ≤16W.
  • Compliant with Hot Pluggable OSFP MSA, IEEE802.3ck Standard.
  • Class1/1M Standard Product, Compliant with RoHS Environmental Protection Standards (Lead-Free).
  • DDM (Digital Diagnostic Monitoring) Supported.

Engineering record

Specifications

Family-level values from the collected technical record. Confirm the selected SKU and required evidence in the quotation.

Form Factor
Twin-port OSFP
Distance
500m
Wavelength
1310nm
Connector
Dual MTP/MPO-12 APC
Power Consumption
≤16W
Transmitter
1310nm Laser
Receiver
PIN
Media
SMF
Modulation (electrical )
8x106.25Gb/s PAM4
Modulation (Optical )
8x106.25Gb/s PAM4
Case Temperature(℃)
0 to 70°C (32 to 158°F)
Protocol
800G Ethernet Compliant

Technical detail

Construction and application notes for OSFP-800Si-2DR4

Review connector, construction, routing and handling details that apply to the selected family and exact SKU.

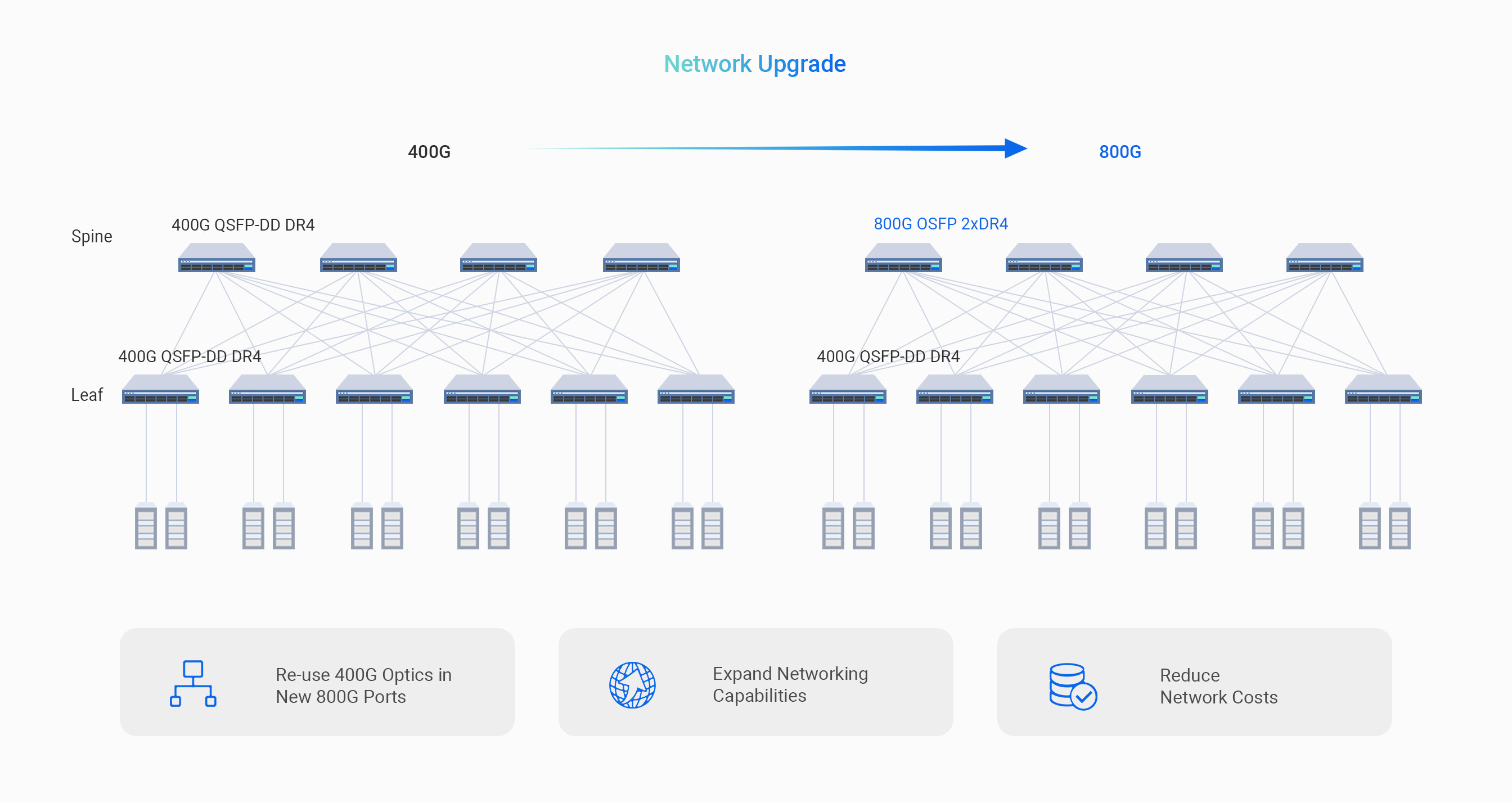

Interface and construction

OSFP 800G 2xDR4 delivers exceptional equalization performance and low power consumption. The module supports robust medium-reach interconnects between 800G OSFP switches and 200G/400G NICs, providing high-performance, scalable connectivity for next-generation AI data centers.

NVIDIA/Mellanox Coding Target MMS4X00-NM-T Compatible 800G 2xDR4/DR8 PAM4 1310nm 500m Optical Transceiver detail

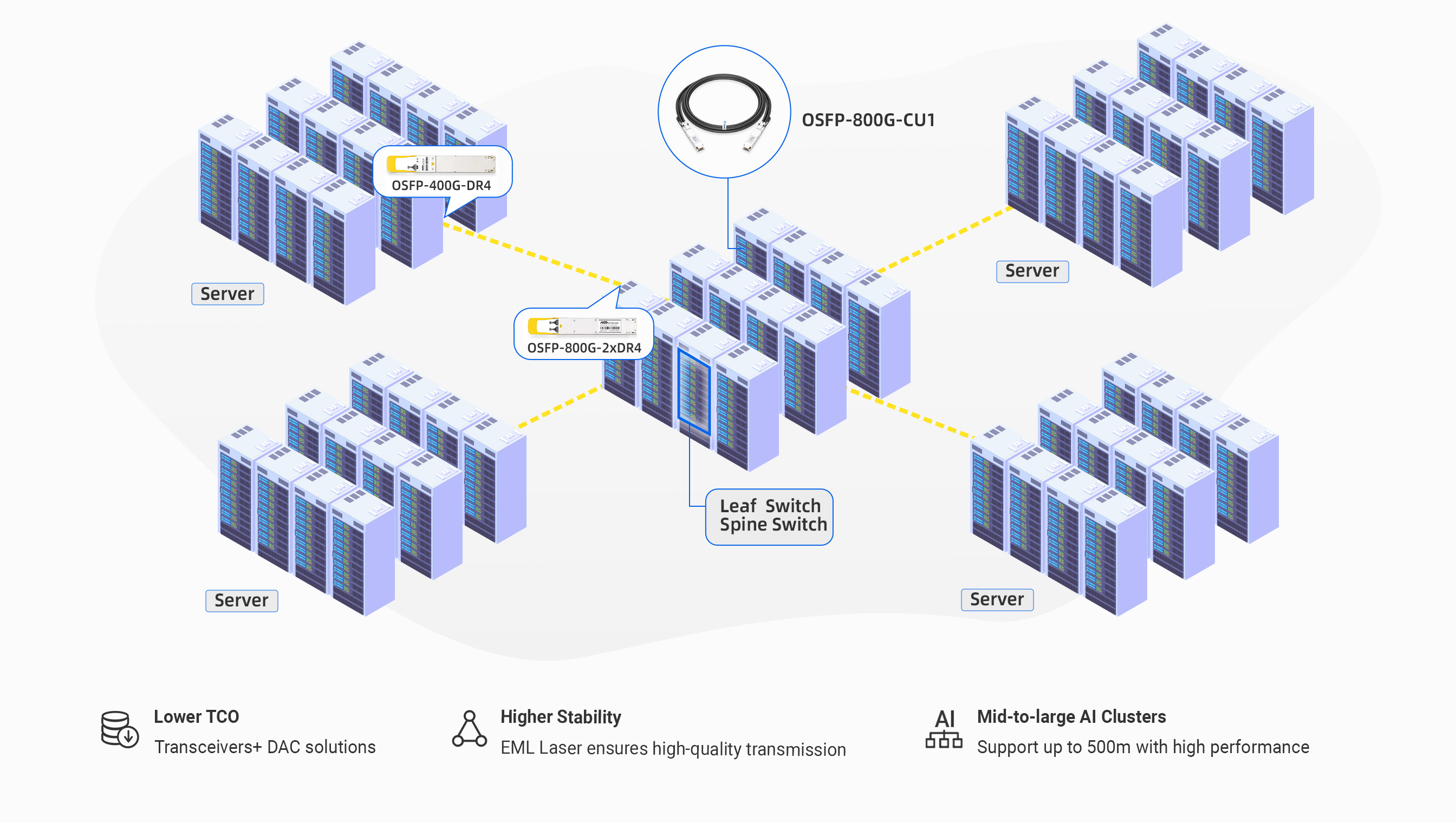

Application and routing

OSFP 800G 2xDR4 provides a cost-optimized, scenario-based connectivity solution for data centers. Utilizing DACs for efficient short-distance intra-rack connections reduces the need for intermediary devices and costs. For inter-rack transmissions, a module and patch cable approach ensures stable, high-speed data transmission. The flexible deployment solution balances performance and costs across varying transmission distances, effectively lowering the total cost of ownership (TCO) and deployment complexity. It offers a high-performance, cost-effective interconnect solution suitable for all scales of architecture, accelerating the efficient deployment and optimization of AI clusters.

NVIDIA/Mellanox Coding Target MMS4X00-NM-T Compatible 800G 2xDR4/DR8 PAM4 1310nm 500m Optical Transceiver detail

Downloads

Technical documents

Use documents together with the exact SKU selection; document version and commercial validity should be reconfirmed during RFQ review.

Osfp 800G 2Xdr4 Datasheet
