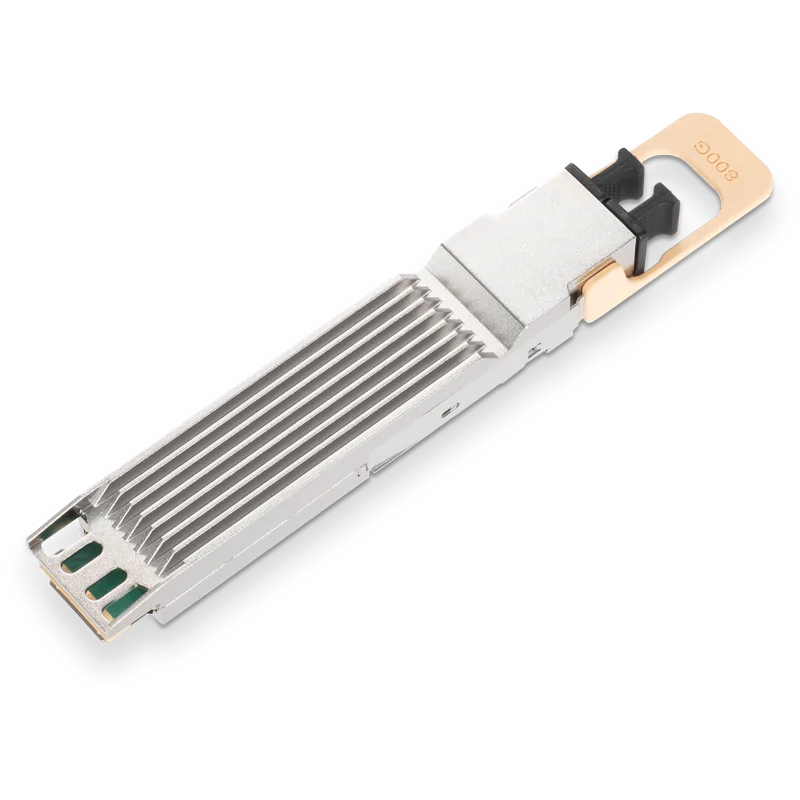

NVIDIA/Mellanox Coding Target MMA4Z00-NS-T Compatible Coherent VCSEL & Broadcom DSP 800G OSFP 2xSR4/SR8 100m Optical...

RoCE Ethernet Interconnects

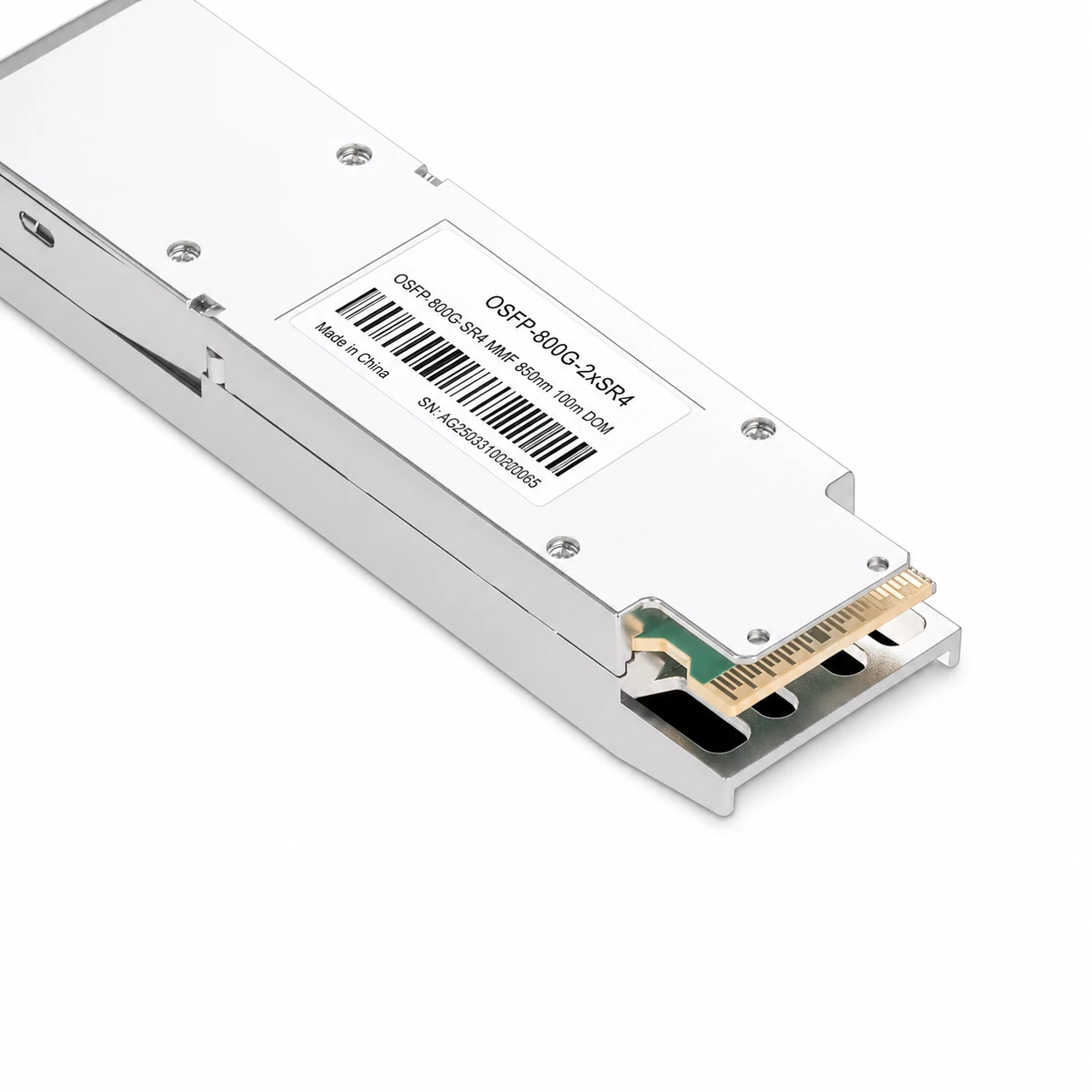

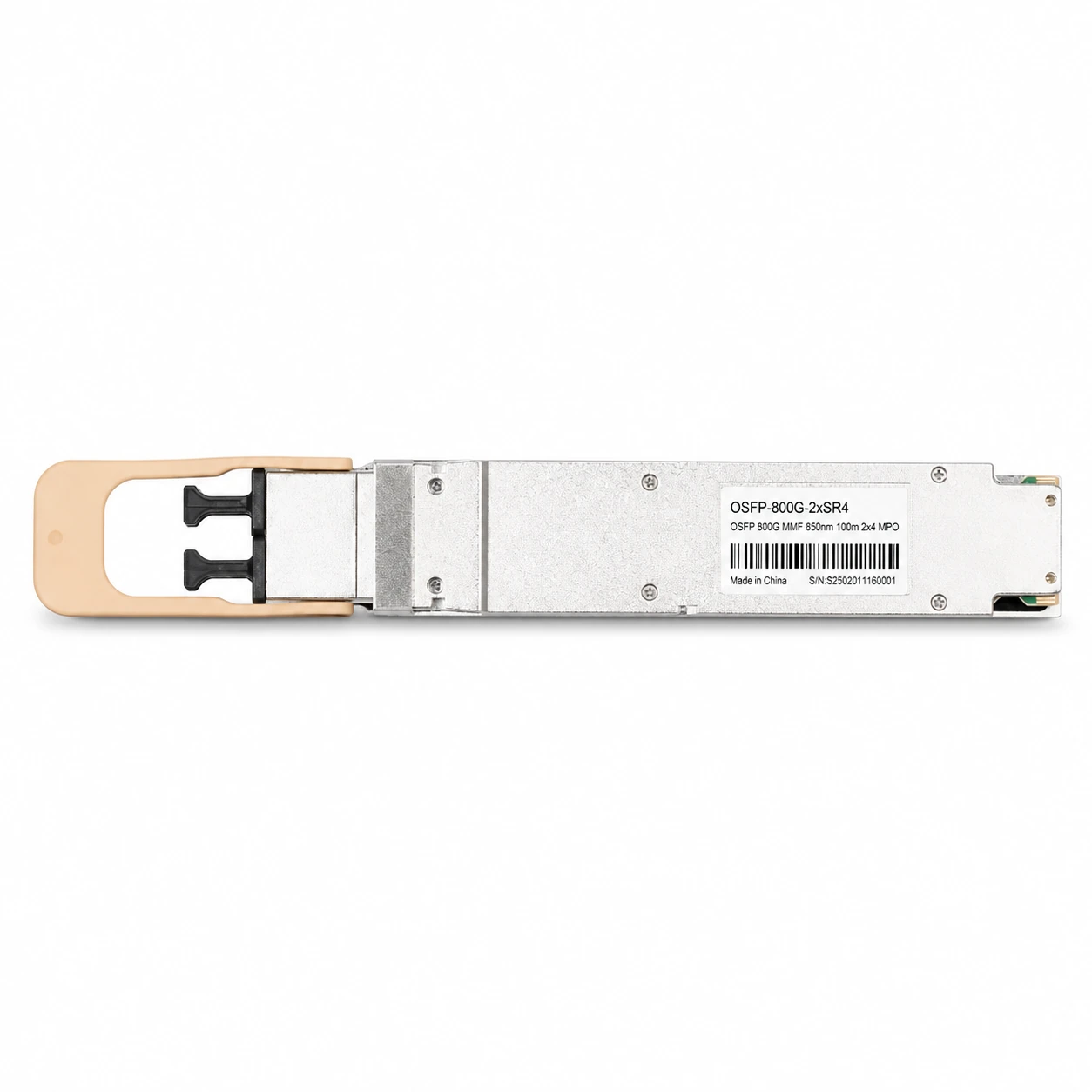

800G Twin-port OSFP 2xSR4 100m Transceiver | OSFP-800G-2xSR4 / MMA4Z00-NS-T

Catalog reference: NVIDIA/Mellanox Coding Target MMA4Z00-NS-T (980-9I510-F4NS00) Compatible 800GBASE-2xSR4 OSFP IHS/Finned Top 8x100G PAM4 Coherent VCSEL & Broadcom DSP 850nm 100m MMF DOM Dual MPO-12/APC Optical Transceiver Module for SN5610 Series Switch

The part numbers on this page identify the requested coding target. Confirm the exact host model, port and firmware for the selected SKU.

NVIDIA/Mellanox Coding Target MMA4Z00-NS-T Compatible 800G OSFP 2xSR4/SR8 850nm 100m PAM4 DOM MPO/MTP MMF Transceiver Module, natively compatible with Tomahawk 5 & Spectrum-4 switches for seamless integration.

Family osfp-800g-2xsr4-101674Model OSFP-800G-2xSR46 SKU options

Requested part-number references

Requested coding target
NVIDIA/Mellanox
Primary reference identifier
MMA4Z00-NS-T

Part-number identifiers and aliases available for matching:

  • MMA4Z00-NS-T
  • 980-9I510-F4NS00

Review boundary: These identifiers reproduce source catalog matching terms only; they do not establish interoperability, approval or endorsement. Confirm the exact host model, port type, firmware and test evidence before use.

Select the exact SKU

Search and select a SKU to update the exact title, description, model and option attributes before sending an RFQ.

SKU 101675 - Model OSFP-800G-2xSR4

NVIDIA/Mellanox Coding Target MMA4Z00-NS-T Compatible Coherent VCSEL & Broadcom DSP 800G OSFP 2xSR4/SR8 100m Optical Transceiver

NVIDIA/Mellanox Coding Target MMA4Z00-NS-T Compatible 800G OSFP 2xSR4/SR8 850nm 100m PAM4 DOM MPO/MTP MMF Transceiver Module, natively compatible with Tomahawk 5 & Spectrum-4 switches for seamless integration.

BrandSUNFULL
Compatible brand / platformNVIDIA/Mellanox (Ethernet)
Chip SolutionsCoherent VCSEL & Broadcom DSP

Use this selection as the requested coding target. Final compatibility still requires the host model, port type and firmware version.

Product brand: SUNFULL. Third-party names identify requested compatibility or coding targets only and do not imply affiliation, endorsement or original-equipment status.

Get Datasheet & Quote Compatibility Review WhatsApp Technical Documents
Share: LinkedIn Facebook X Email
  • Built-in Broadcom DSP & Coherent VCSEL, Maximum Power Consumption ≤14W.
  • Compliant with Hot Pluggable OSFP MSA Standard.
  • Compliant with RoHS Environmental Standard (Lead-free).
  • DDM (Digital Diagnostic Monitoring) Supported.

Engineering record

Specifications

Family-level values from the collected technical record. Confirm the selected SKU and required evidence in the quotation.

Form Factor
Twin-port OSFP
Distance
100m
Wavelength
850nm
Connector

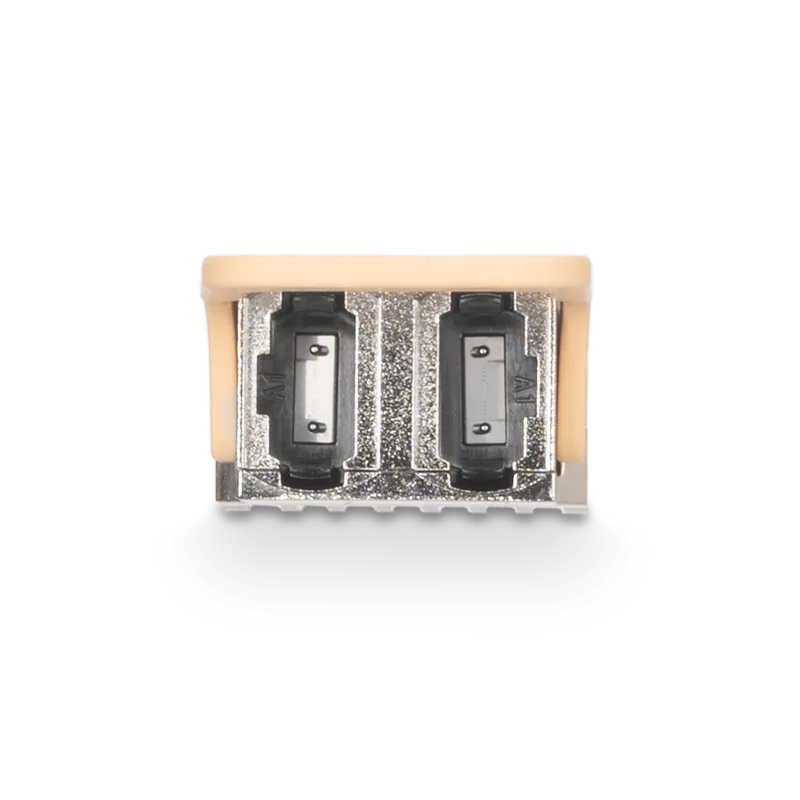

Two MPO-12/APC
Power Consumption
≤14W
Transmitter
VCSEL
Receiver
PIN
Media
MMF
Modulation (electrical )
8x106.25Gb/s PAM4
Modulation (Optical )
Two ports 4x106.25Gb/s PAM4
Case Temperature(℃)
0 to 70°C (32 to 158°F)
Protocol
800G Ethernet Compliant

Technical detail

Construction and application notes for OSFP-800G-2xSR4

Review connector, construction, routing and handling details that apply to the selected family and exact SKU.

Interface and construction

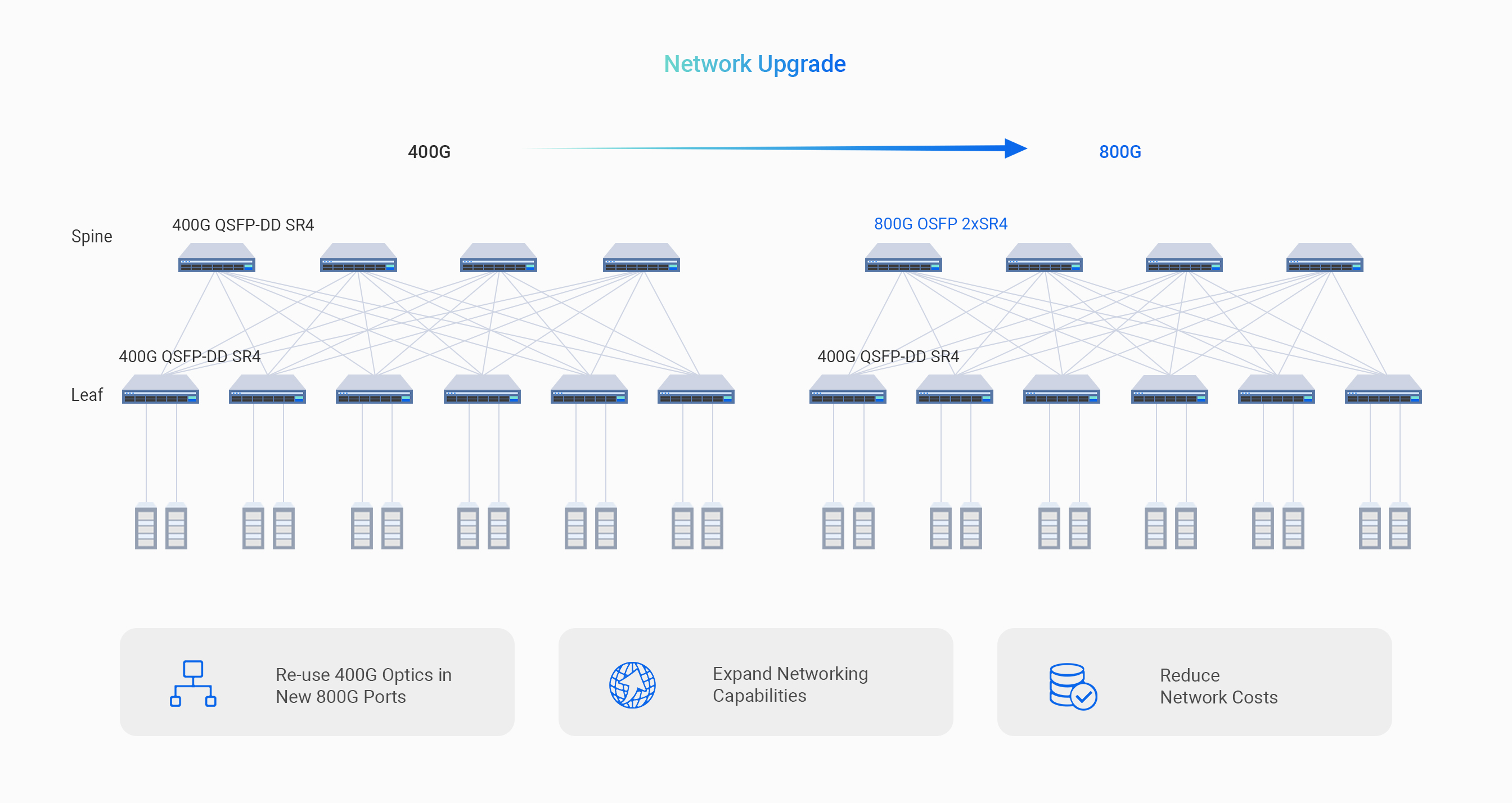

OSFP 800G 2xSR4 optical module adopts the Broadcom DSP and features a dual-MPO interface design, ensuring compatibility with existing 400G SR4 fiber infrastructures for a seamless upgrade from 400G to 800G. It enables short-reach interconnection between 800G OSFP switches and 200G/400G NICs, delivering a high-performance and scalable connectivity solution for next-generation AI data centers.

NVIDIA/Mellanox Coding Target MMA4Z00-NS-T Compatible Coherent VCSEL & Broadcom DSP 800G OSFP 2xSR4/SR8 100m Optical... detail

Application and routing

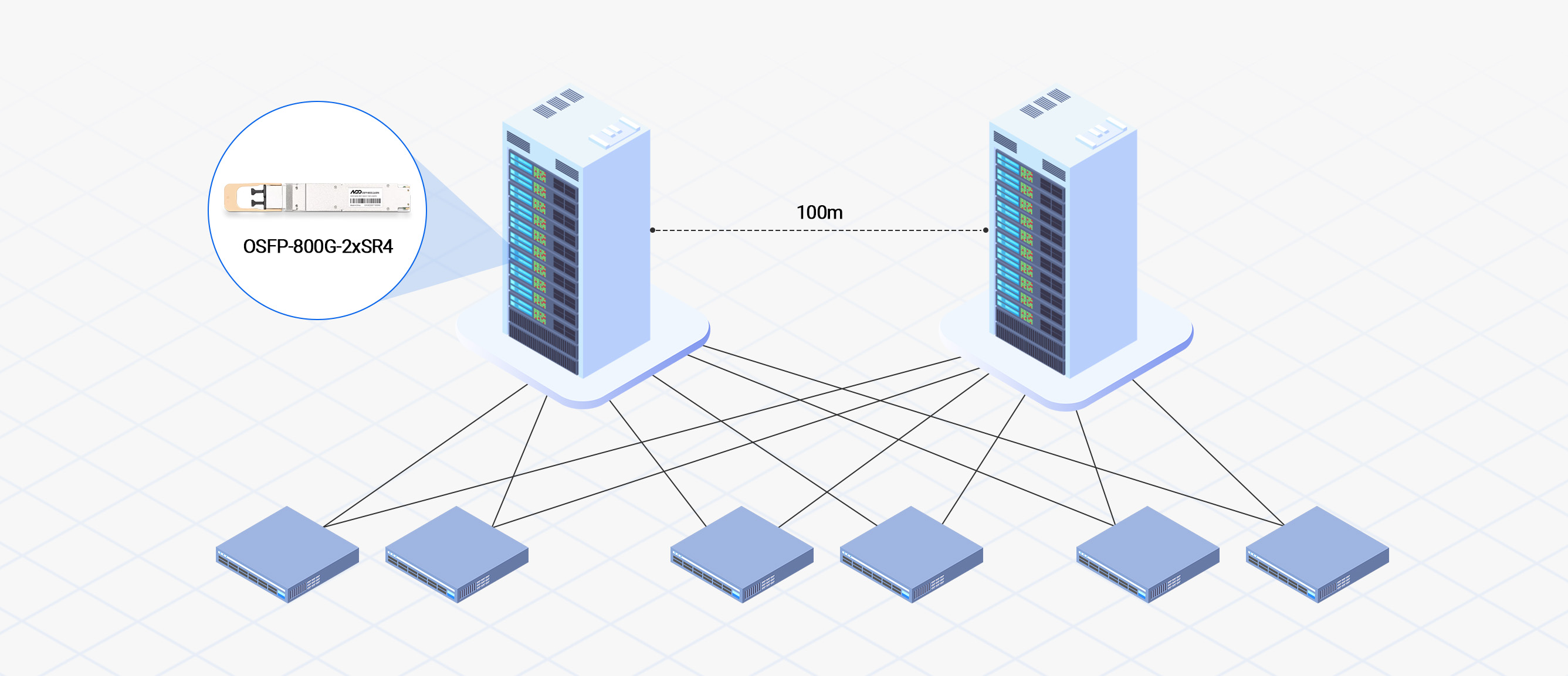

OSFP 800G 2xSR4 supports transmission distances of up to 100 meters, enabling high-speed interconnects between adjacent racks. It is ideal for high-bandwidth applications such as HPC and AI cluster training.

NVIDIA/Mellanox Coding Target MMA4Z00-NS-T Compatible Coherent VCSEL & Broadcom DSP 800G OSFP 2xSR4/SR8 100m Optical... detail

Downloads

Technical documents

Use documents together with the exact SKU selection; document version and commercial validity should be reconfirmed during RFQ review.

Osfp 800G 2Xsr4 Datasheet
