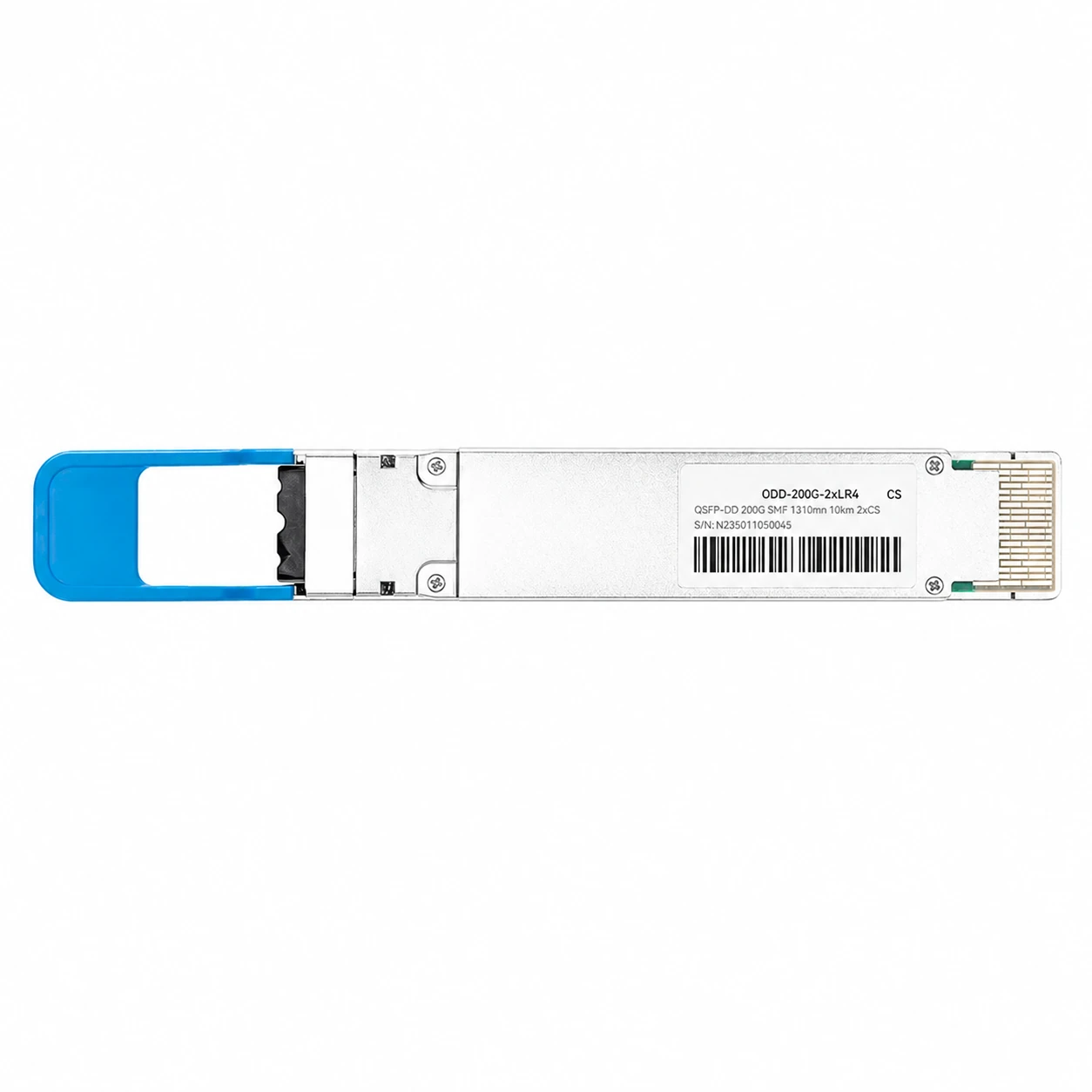

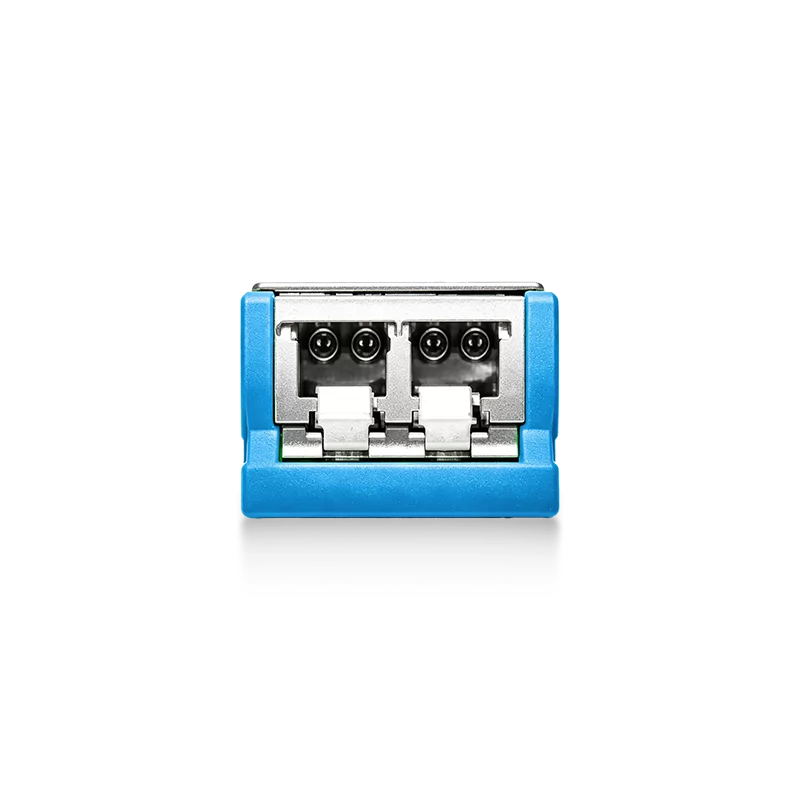

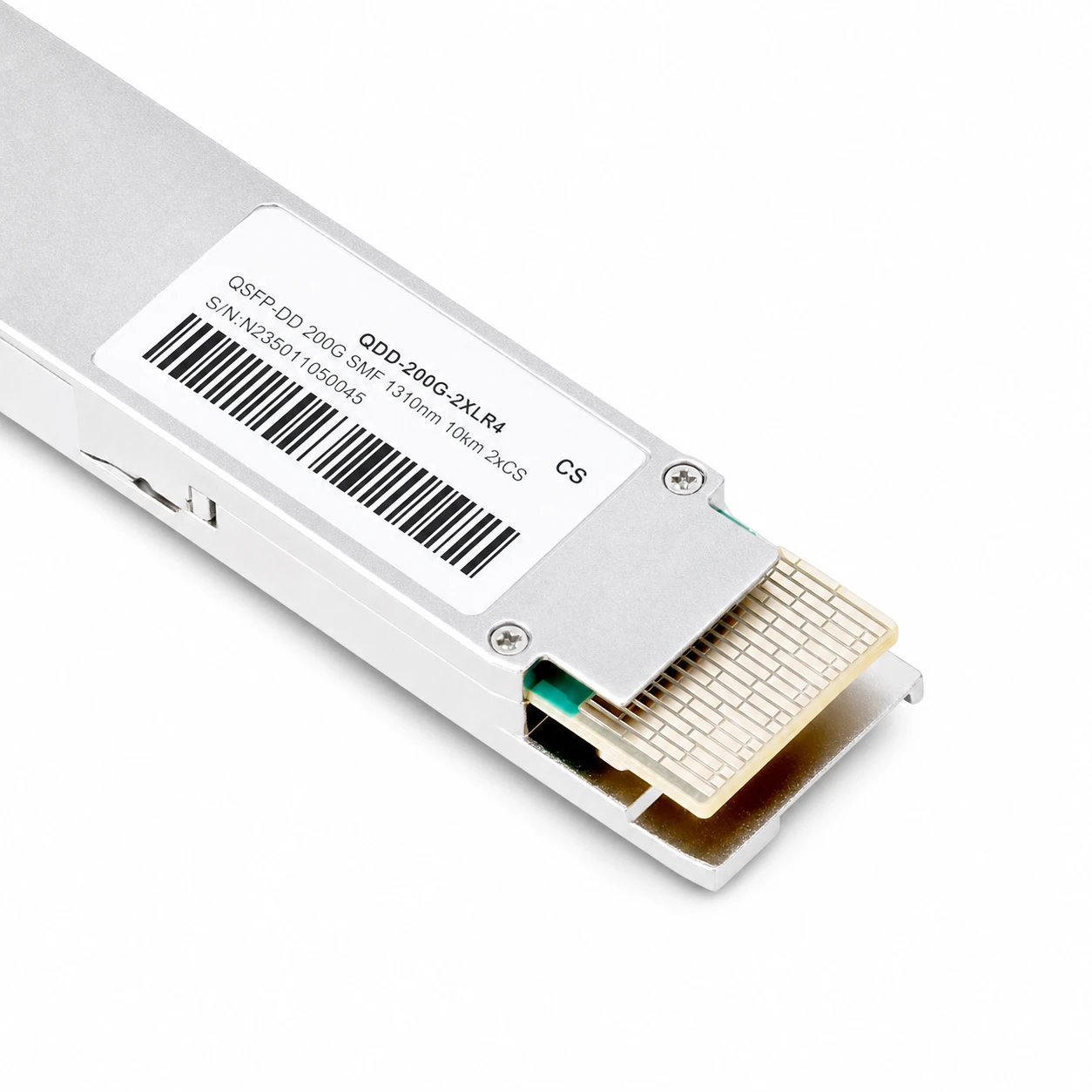

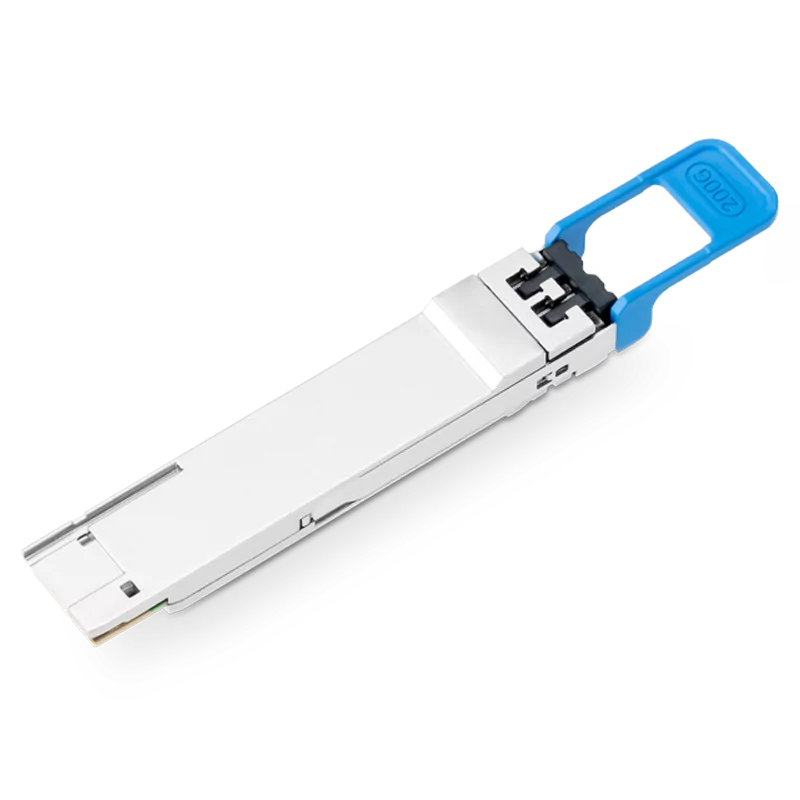

Juniper Compatible 200G QSFP-DD 2xLR4 1310nm 10km SMF Optical Transceiver Module

RoCE Ethernet Interconnects

200G QSFP28-DD 2xLR4 10km Transceiver | QDD-200G-2xLR4 / QDD-2X100G-LR4

Catalog reference: Juniper Coding Target QDD-2X100G-LR4 Compatible 200GBASE-2xLR4 QSFP-DD 8x25G NRZ 1310nm 10km SMF DOM Dual CS Duplex Optical Transceiver Module

The part numbers on this page identify the requested coding target. Confirm the exact host model, port and firmware for the selected SKU.

Juniper Coding Target QDD-2X100G-LR4 compatible 200G QSFP-DD 2xLR4 transceiver breaks through the limitations of traditional copper and short-reach fiber, enabling transmission distances up to 10km over single-mode fiber. This 200G transceiver features 8x25G NRZ electrical interface with Dual CS connectors and LAN-WDM technology, supporting 2x100G breakout for higher port density with max power consumption of 8W and DDM support.

Family qdd-200g-2xlr4-104603Model QDD-200G-2xLR46 SKU options

Requested part-number references

Requested coding target
Juniper
Primary reference identifier
QDD-2X100G-LR4

Part-number identifiers and aliases available for matching:

  • QDD-2X100G-LR4

Review boundary: These identifiers reproduce source catalog matching terms only; they do not establish interoperability, approval or endorsement. Confirm the exact host model, port type, firmware and test evidence before use.

Select the exact SKU

Search and select a SKU to update the exact title, description, model and option attributes before sending an RFQ.

SKU 104603 - Model QDD-200G-2xLR4

Juniper Compatible 200G QSFP-DD 2xLR4 1310nm 10km SMF Optical Transceiver Module

Juniper Coding Target QDD-2X100G-LR4 compatible 200G QSFP-DD 2xLR4 transceiver breaks through the limitations of traditional copper and short-reach fiber, enabling transmission distances up to 10km over single-mode fiber. This 200G transceiver features 8x25G NRZ electrical interface with Dual CS connectors and LAN-WDM technology, supporting 2x100G breakout for higher port density with max power consumption of 8W and DDM support.

BrandSUNFULL
Compatible brand / platformJuniper

Use this selection as the requested coding target. Final compatibility still requires the host model, port type and firmware version.

Product brand: SUNFULL. Third-party names identify requested compatibility or coding targets only and do not imply affiliation, endorsement or original-equipment status.

Get Datasheet & Quote Compatibility Review WhatsApp Technical Documents
Share: LinkedIn Facebook X Email
  • Max Power Consumption 8W.
  • Compliant with Hot Pluggable QSFPDD MSA CMIS V4.0, IEEE 802.3bs Standard.
  • Class1 Standard Product, Compliant with RoHS Environmental Protection Standards (Lead-Free).
  • DDM(Digital Diagnostic Monitoring) Supported.
  • 8x25G NRZ Retimed 200GAUI-8 Electrical Interface.
  • Support 2x100G Breakout for Higher Port Density and Easy Migration to 200G Platforms.

Engineering record

Specifications

Family-level values from the collected technical record. Confirm the selected SKU and required evidence in the quotation.

Form Factor
QSFP28-DD
Distance
10km
Wavelength
1310nm
Connector
Dual CS Duplex
Power Consumption
≤8W
Transmitter
DFB
Receiver
PIN
Media
SMF
Modulation(electrical)
8x53.125Gb/s NRZ
Modulation(Optical)
Two ports 4x53.125Gb/s NRZ
Case Temperature(℃)
0 to 70°C (32 to 158°F)
Protocol
200G Ethernet Compliant

Downloads

Technical documents

Use documents together with the exact SKU selection; document version and commercial validity should be reconfirmed during RFQ review.

Qdd 200G 2Xlr4 Datasheet
