800G Twin-port QSFP-DD 2xDR4 500m Transceiver | QDD-800G-2xDR4 / NVIDIA/Mellanox
Catalog reference: NVIDIA/Mellanox Compatible 800GBASE-2xDR4 QSFP-DD 8x100G PAM4 1310nm 500m SMF DOM Dual MPO-12/APC Optical Transceiver Module
The part numbers on this page identify the requested coding target. Confirm the exact host model, port and firmware for the selected SKU.
NVIDIA/Mellanox Compatible QDD-800G-2xDR4 Transceiver supports a total transmission rate of 800Gbps, and integrates 2 independent 400G DR4 channels.
Family qdd-800g-2xdr4-102635Model QDD-800G-2xDR45 SKU options
Requested part-number references
- Requested coding target
- NVIDIA/Mellanox
- Primary reference identifier
- Not provided in the source record
No OEM part-number alias was captured in the source record.
Review boundary: These identifiers reproduce source catalog matching terms only; they do not establish interoperability, approval or endorsement. Confirm the exact host model, port type, firmware and test evidence before use.
Select the exact SKU
Search and select a SKU to update the exact title, description, model and option attributes before sending an RFQ.
SKU 102726 - Model QDD-800G-2xDR4

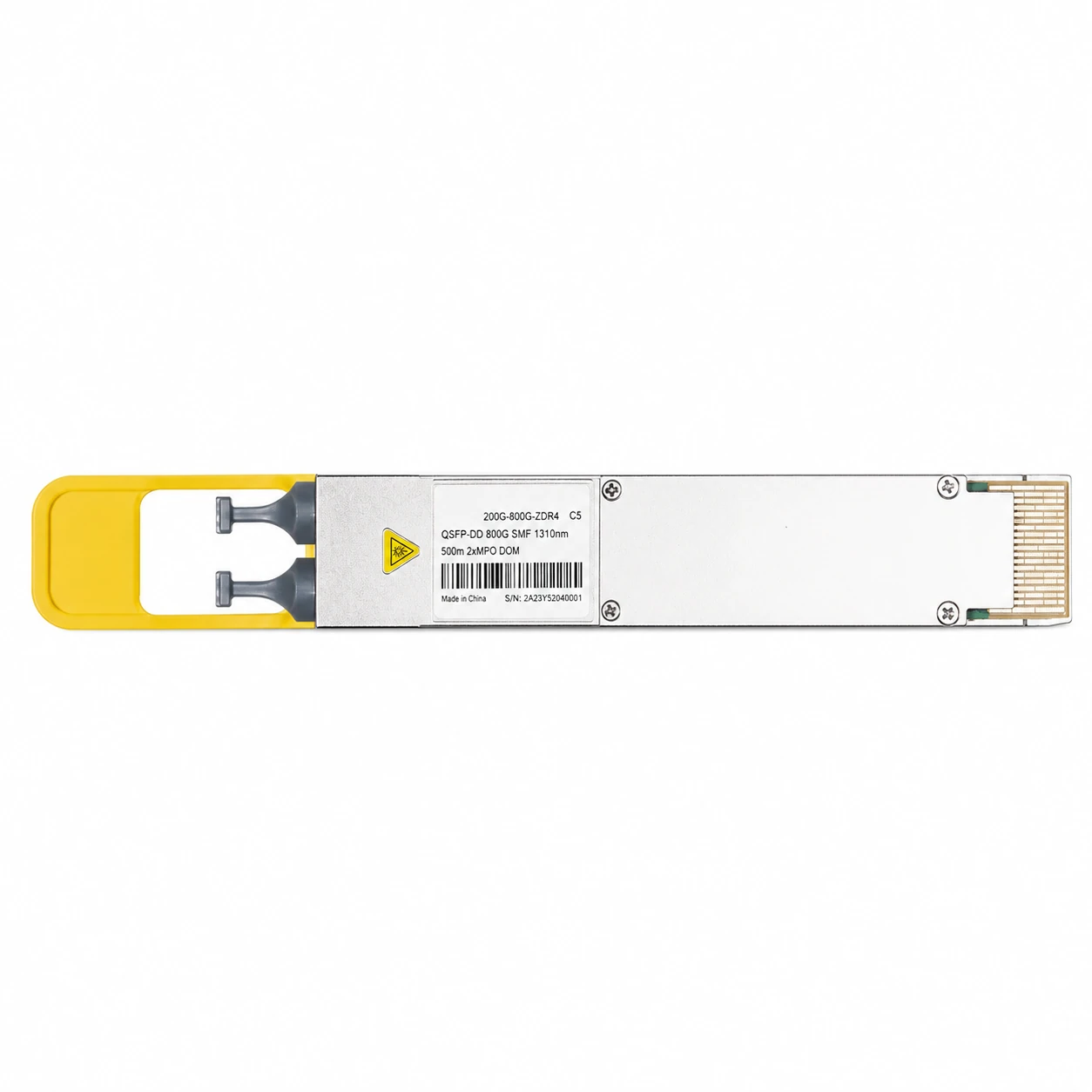

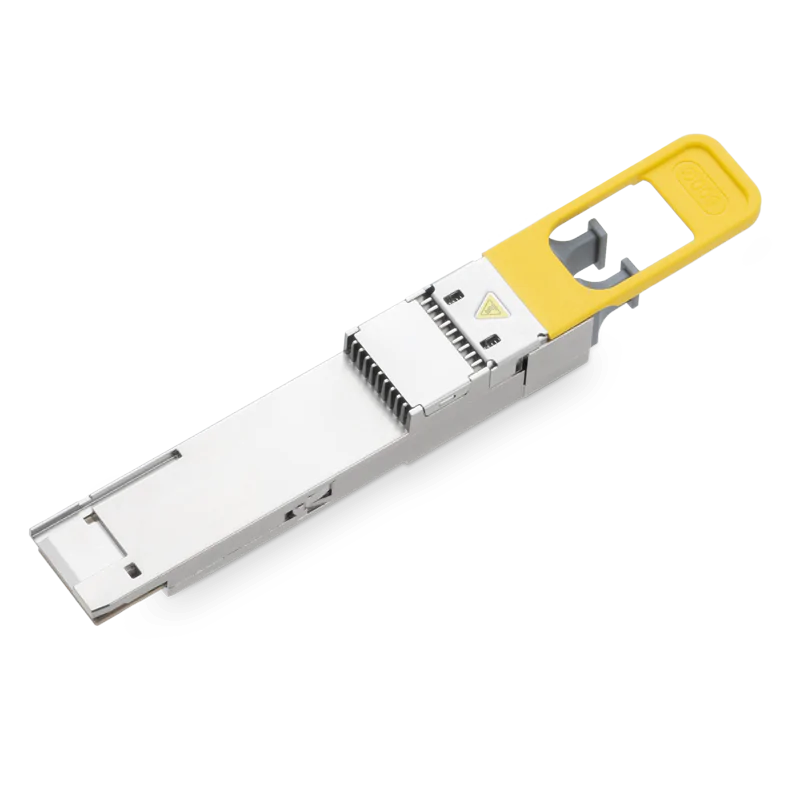

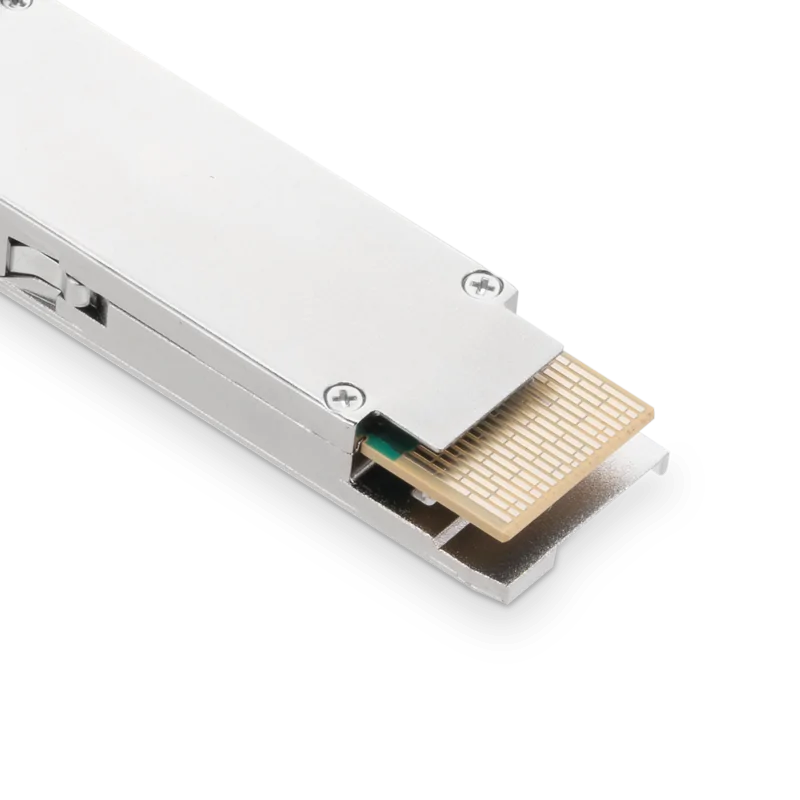

NVIDIA/Mellanox Compatible QDD-800G-2xDR4 1310nm 500m Optical Transceiver
NVIDIA/Mellanox Compatible QDD-800G-2xDR4 Transceiver supports a total transmission rate of 800Gbps, and integrates 2 independent 400G DR4 channels.
BrandSUNFULL
Compatible brand / platformNVIDIA/Mellanox (Ethernet)
Use this selection as the requested coding target. Final compatibility still requires the host model, port type and firmware version.
Product brand: SUNFULL. Third-party names identify requested compatibility or coding targets only and do not imply affiliation, endorsement or original-equipment status.
- Max Power Consumption ≤18W.
- Compliant with Hot Pluggable QSFP-DD MSA, IEEE 802.3cu, CMIS 5.0 Standard.
- Class1/1M Standard Product, Compliant with RoHS Environmental Protection Standards (Lead-Free).
- DDM(Digital Diagnostic Monitoring) Supported.
- Significantly Improve the Flexibility, Economy and Reliability of Networking.
Engineering record
Specifications
Family-level values from the collected technical record. Confirm the selected SKU and required evidence in the quotation.
- Form Factor
- Twin-port QSFP-DD
- Distance
- 500m
- Wavelength
- 1310nm

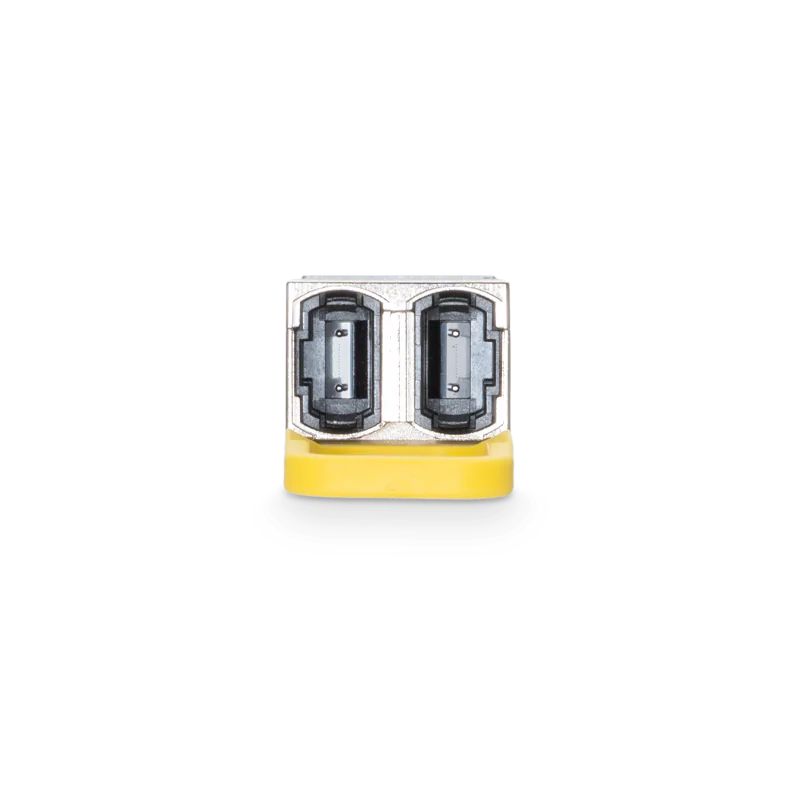

- Connector
- Dual MTP/MPO-12 APC
- Power Consumption
- ≤18W
- Transmitter
- EML
- Receiver
- PIN
- Media
- SMF
- Modulation (electrical)
- 8x106.25Gb/s PAM4
- Modulation (Optical)
- Two ports 4x106.25Gb/s PAM4
- Case Temperature(℃)
- 0~70°C(32 to 158°F)
- Protocol
- 800G Ethernet Compliant
