800G Twin-port OSFP 2xLR4 10km Transceiver | OSFP-800G-2xLR4 / 980-9IB70-00YL00
Catalog reference: NVIDIA/Mellanox Coding Target MMS4X90-NR (980-9IB70-00YL00) Compatible 800GBASE-2xLR4 OSFP IHS/Finned Top 8x100G PAM4 1310nm 10km SMF DOM Dual LC Duplex Optical Transceiver Module for NVIDIA Spectrum-XGS Ethernet Switches (SN5610 Series Switches)
The part numbers on this page identify the requested coding target. Confirm the exact host model, port and firmware for the selected SKU.
NVIDIA/Mellanox Coding Target OSFP-800G-2xLR4 Compatible 800G OSFP 2xLR4/LR8 optical transceiver for Nvidia Spectrum-XGS are designed for data center 800G Ethernet 1310nm links reach up to 10km over 8 pairs of parallel SMF with FEC. It is also compatible with NVIDIA SN5600 and SN5610 switches, designed for RoCE networks, and fully supports Broadcom Tomahawk 5 and NVIDIA Spectrum-4 based switches.
Family osfp-800g-2xlr4-102841Model OSFP-800G-2xLR41 SKU option
Requested part-number references
- Requested coding target
- NVIDIA/Mellanox
- Primary reference identifier
- 980-9IB70-00YL00
Part-number identifiers and aliases available for matching:
- 980-9IB70-00YL00
- MMS4X90-NR
Review boundary: These identifiers reproduce source catalog matching terms only; they do not establish interoperability, approval or endorsement. Confirm the exact host model, port type, firmware and test evidence before use.
Select the exact SKU
Search and select a SKU to update the exact title, description, model and option attributes before sending an RFQ.
SKU 102841 - Model OSFP-800G-2xLR4
NVIDIA/Mellanox Coding Target MMS4X90-NR Compatible 800G OSFP 2xLR4/LR8 10km Ethernet Optical Transceiver for Nvidia Spectrum-XGS(920-9N42F-00RI-3C1 Switch)
NVIDIA/Mellanox Coding Target OSFP-800G-2xLR4 Compatible 800G OSFP 2xLR4/LR8 optical transceiver for Nvidia Spectrum-XGS are designed for data center 800G Ethernet 1310nm links reach up to 10km over 8 pairs of parallel SMF with FEC. It is also compatible with NVIDIA SN5600 and SN5610 switches, designed for RoCE networks, and fully supports Broadcom Tomahawk 5 and NVIDIA Spectrum-4 based switches.
BrandSUNFULL
Compatible brand / platformNVIDIA/Mellanox (Ethernet)
Use this selection as the requested coding target. Final compatibility still requires the host model, port type and firmware version.
Product brand: SUNFULL. Third-party names identify requested compatibility or coding targets only and do not imply affiliation, endorsement or original-equipment status.
- Max Power Consumption ≤16W.
- Compliant with Hot Pluggable OSFP MSA, IEEE802.3ck Standard.
- Class1/1M Standard Product, Compliant with RoHS Environmental Protection Standards (Lead-Free).
- DDM(Digital Diagnostic Monitoring) Supported.
Engineering record
Specifications
Family-level values from the collected technical record. Confirm the selected SKU and required evidence in the quotation.
- Form Factor
- Twin-port OSFP
- Distance
- 10km
- Wavelength
- 1310nm
- Connector
- Dual Duplex LC
- Power Consumption
- ≤16W
- Transmitter
- EML
- Receiver
- PIN
- Media
- SMF
- Modulation (electrical )
- 8x106.25Gb/s PAM4
- Modulation (Optical )
- 8x106.25Gb/s PAM4
- Case Temperature(℃)
- 0 to 70°C (32 to 158°F)
- Protocol
- 800G Ethernet Compliant
Technical detail
Construction and application notes for OSFP-800G-2xLR4
Review connector, construction, routing and handling details that apply to the selected family and exact SKU.
Interface and construction

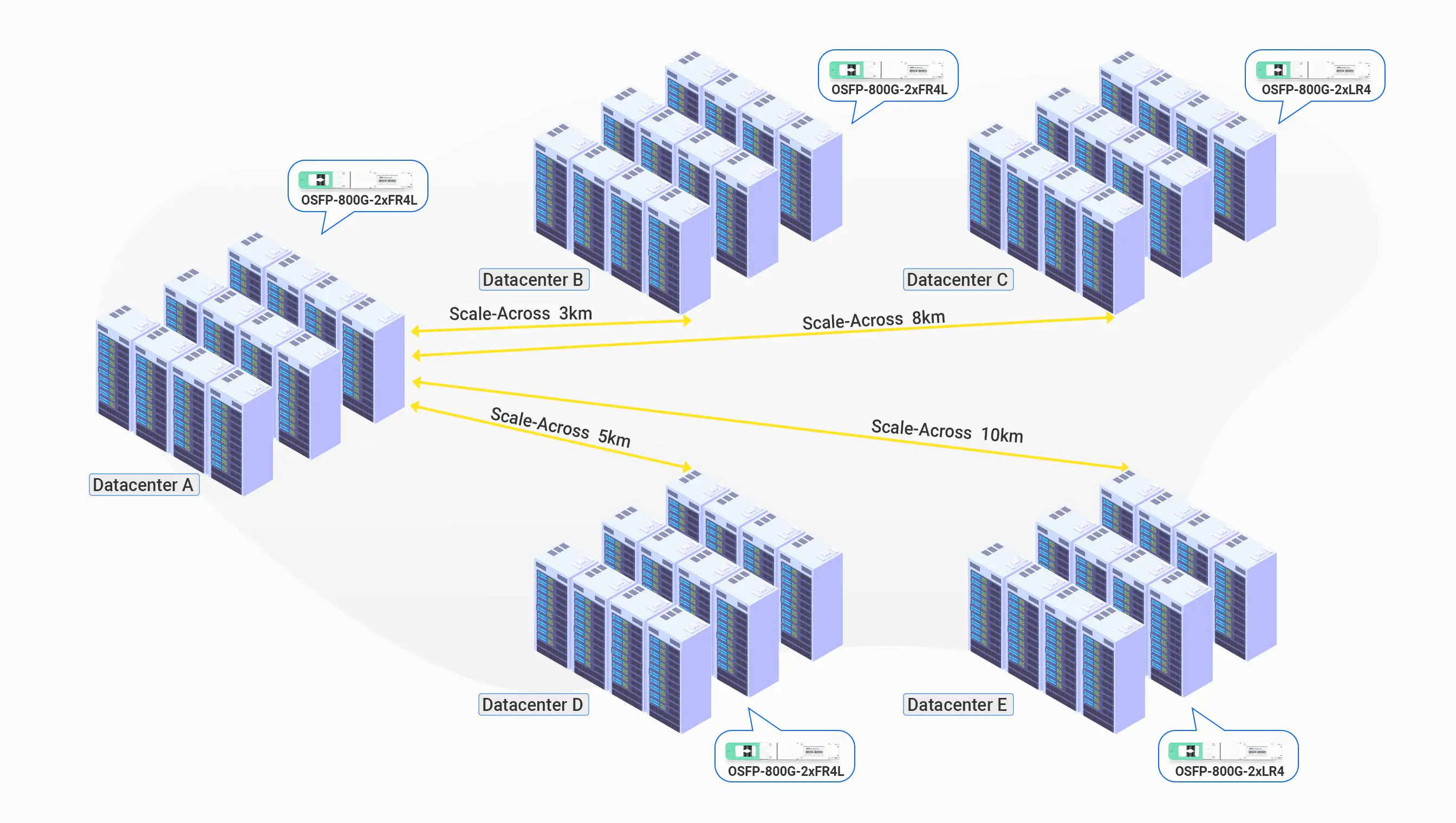

OSFP-800G-2xLR4 transceiver is engineered for long-reach 10km transmission, purpose-built for NVIDIA Spectrum-XGS Ethernet technology. It achieves low-latency, high-bandwidth, high-speed interconnection, unifying distributed data centers into AI super-factories.
Application and routing

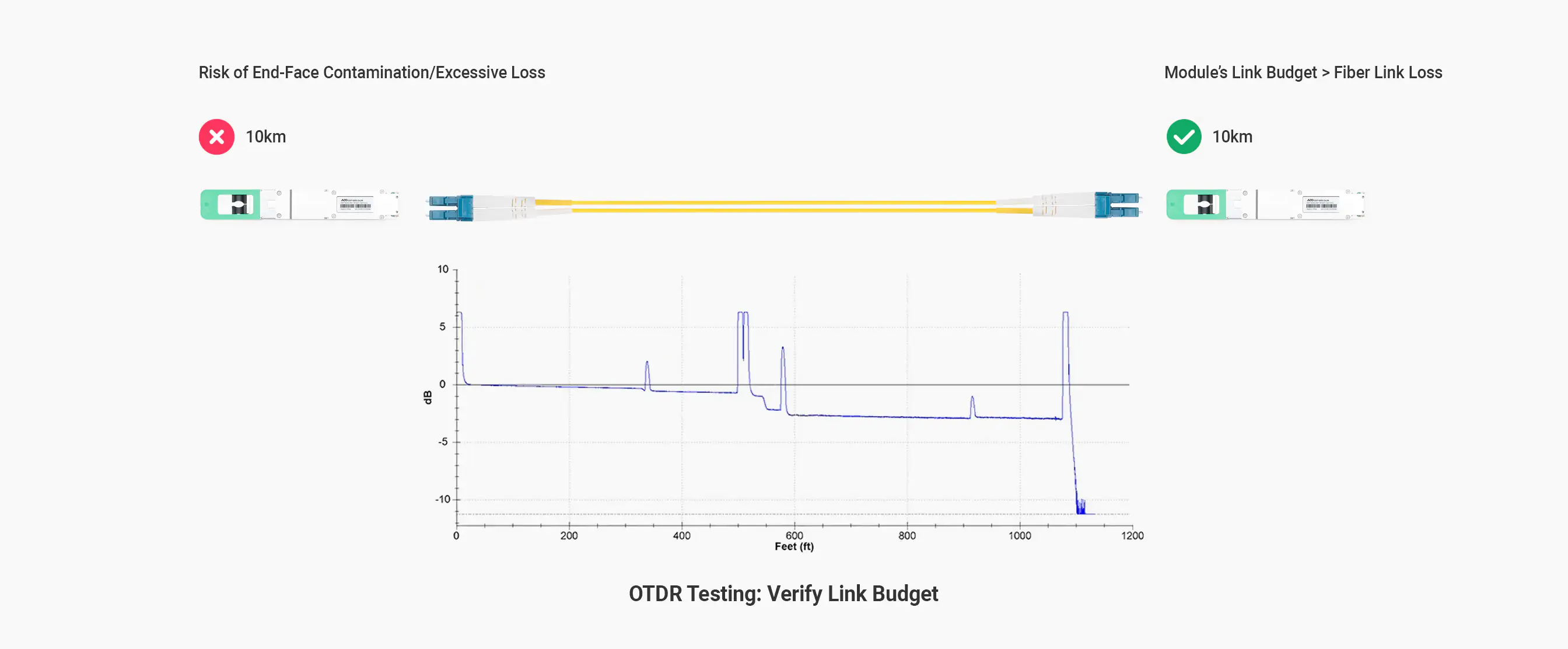

Fiber link loss must remain within the module’s link budget. Excessive loss or fiber end-face contamination can cause failures even at 10km. To ensure reliable performance, conduct OTDR testing for link budget validation, and use G.652D or better fiber at 800G to control dispersion and maintain signal integrity with low BER.
