RoCE Ethernet Interconnects
800G Twin-port OSFP 2xXDR4 2km Transceiver | OSFP-800G-2xXDR4 / NVIDIA/Mellanox
Catalog reference: NVIDIA/Mellanox Compatible 800GBASE-2xXDR4 OSFP IHS/Closed Finned Top 8x100G PAM4 1310nm 2km SMF DOM Dual MPO-12/APC Optical Transceiver Module for SN5610 Series Switch
The part numbers on this page identify the requested coding target. Confirm the exact host model, port and firmware for the selected SKU.
NVIDIA/Mellanox Compatible 800G OSFP 2xXDR4 transceiver is designed for 800G Ethernet data center throughput up to 2km over dual SMF MPO/MTP-12 connectors.
Family osfp-800g-2xxdr4-32798Model OSFP-800G-2xXDR45 SKU options
Requested part-number references
- Requested coding target
- NVIDIA/Mellanox
- Primary reference identifier
- Not provided in the source record
No OEM part-number alias was captured in the source record.
Review boundary: These identifiers reproduce source catalog matching terms only; they do not establish interoperability, approval or endorsement. Confirm the exact host model, port type, firmware and test evidence before use.
Select the exact SKU
Search and select a SKU to update the exact title, description, model and option attributes before sending an RFQ.
SKU 102725 - Model OSFP-800G-2xXDR4

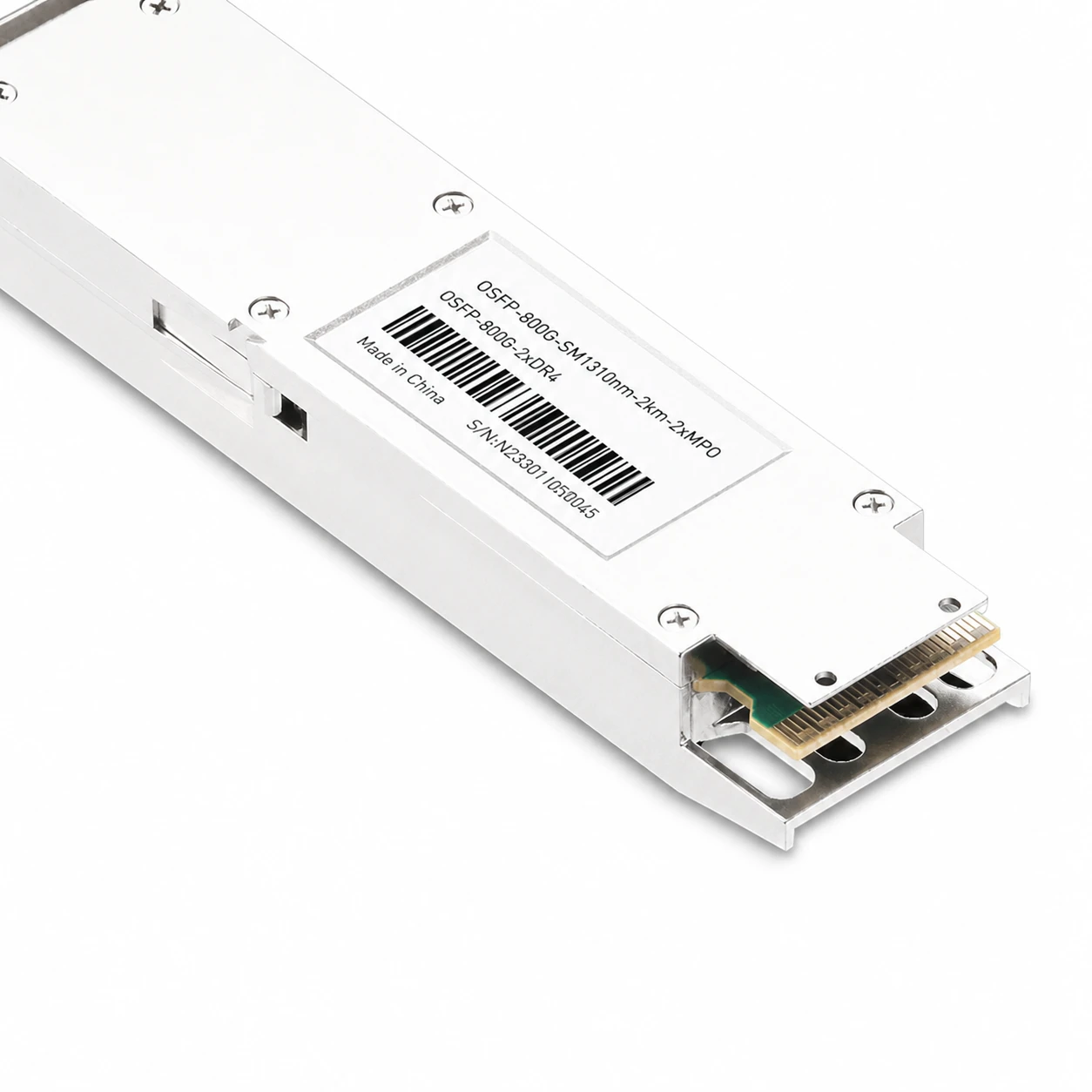

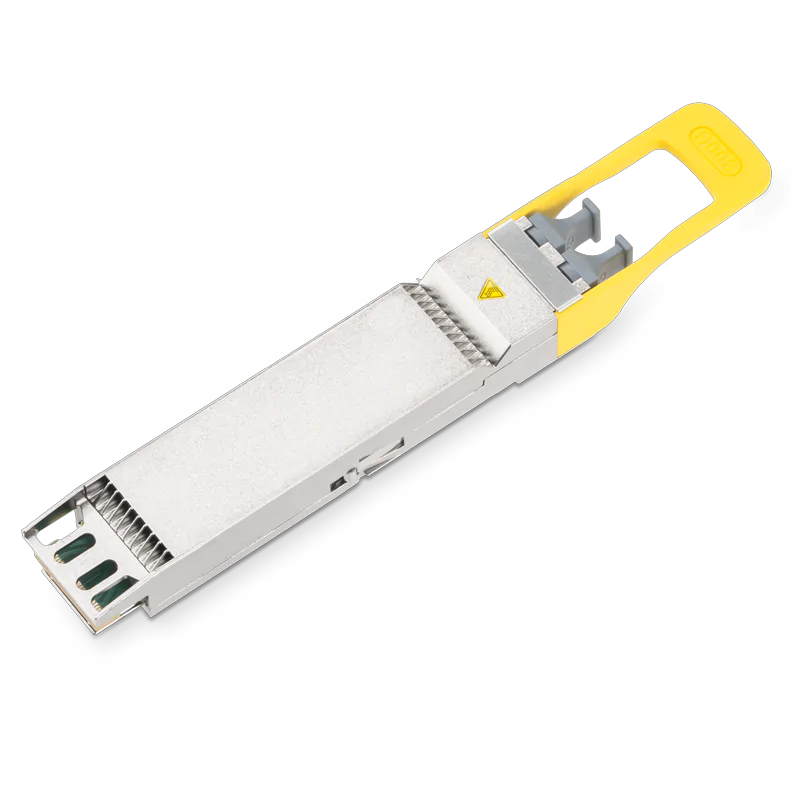

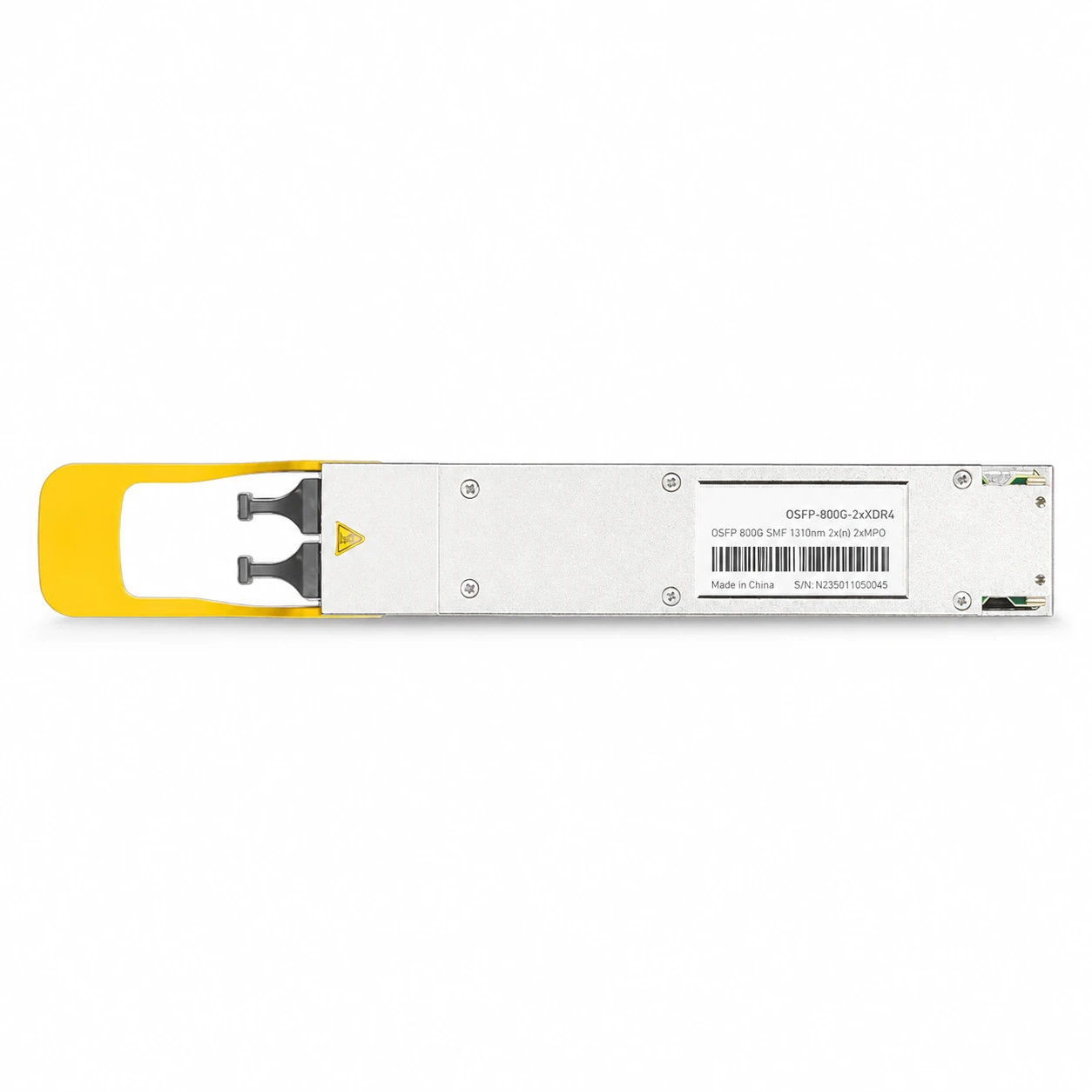

NVIDIA/Mellanox Compatible 800G OSFP 2xXDR4 1310nm 2km PAM4 Optical Transceiver
NVIDIA/Mellanox Compatible 800G OSFP 2xXDR4 transceiver is designed for 800G Ethernet data center throughput up to 2km over dual SMF MPO/MTP-12 connectors.
BrandSUNFULL
Compatible brand / platformNVIDIA/Mellanox (Ethernet)
Use this selection as the requested coding target. Final compatibility still requires the host model, port type and firmware version.
Product brand: SUNFULL. Third-party names identify requested compatibility or coding targets only and do not imply affiliation, endorsement or original-equipment status.
- Max Power Consumption ≤16W.
- Compliant with Hot Pluggable OSFP MSA, IEEE802.3ck Standard.
- Class1/1M Standard Product, Compliant with RoHS Environmental Protection Standards (Lead-Free).
- DDM(Digital Diagnostic Monitoring) Supported.
Engineering record
Specifications
Family-level values from the collected technical record. Confirm the selected SKU and required evidence in the quotation.
- Form Factor
- Twin-port OSFP
- Distance
- 2km
- Wavelength
- 1310nm
- Connector
- Dual MTP/MPO-12 APC
- Power Consumption
- ≤16W
- Transmitter
- EML
- Receiver
- PIN
- Media
- SMF
- Modulation (electrical )
- 8x106.25Gb/s PAM4
- Modulation (Optical )
- 8x106.25Gb/s PAM4
- Case Temperature(℃)
- 0 to 70°C (32 to 158°F)
- Protocol
- 800G Ethernet Compliant
Downloads
Technical documents
Use documents together with the exact SKU selection; document version and commercial validity should be reconfirmed during RFQ review.
