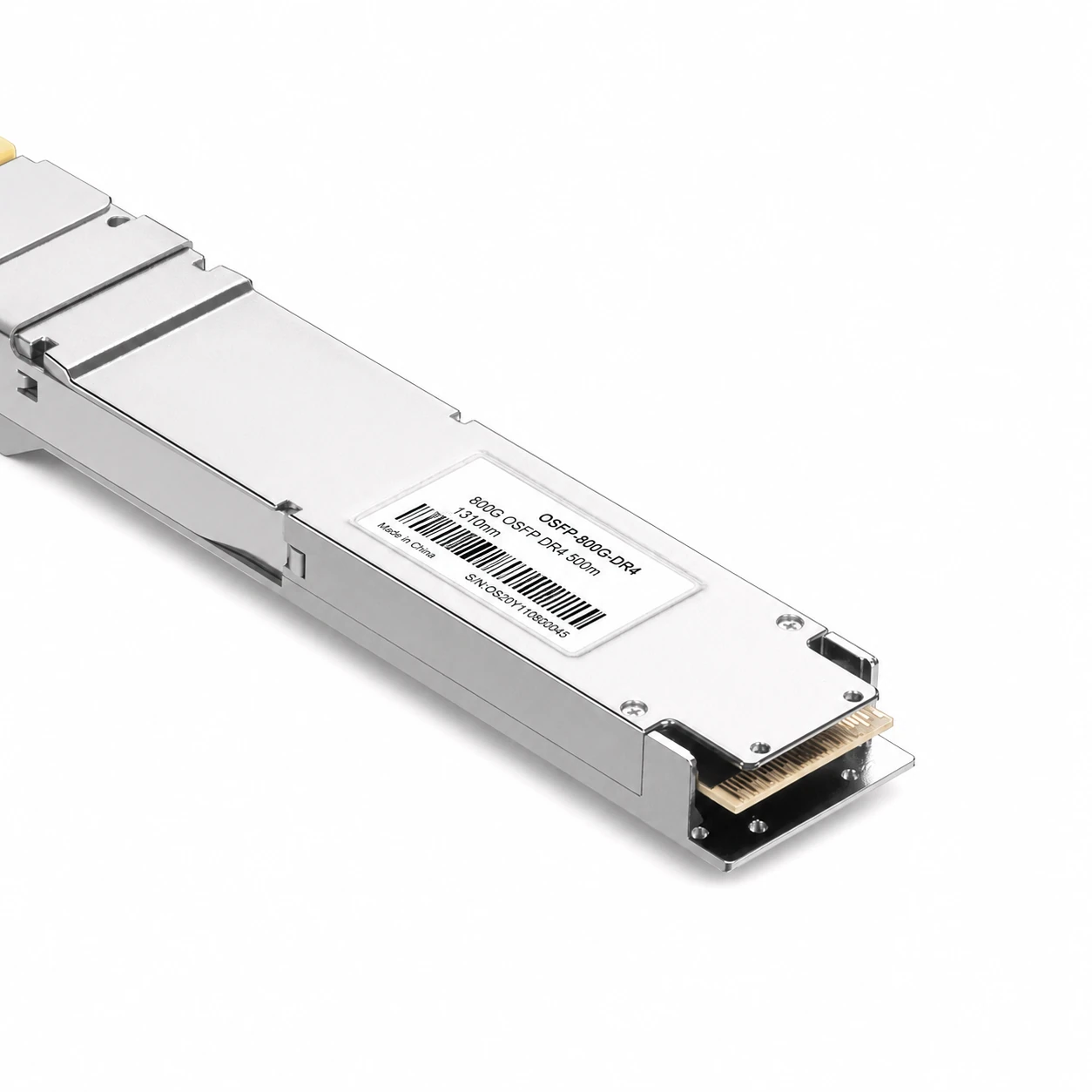

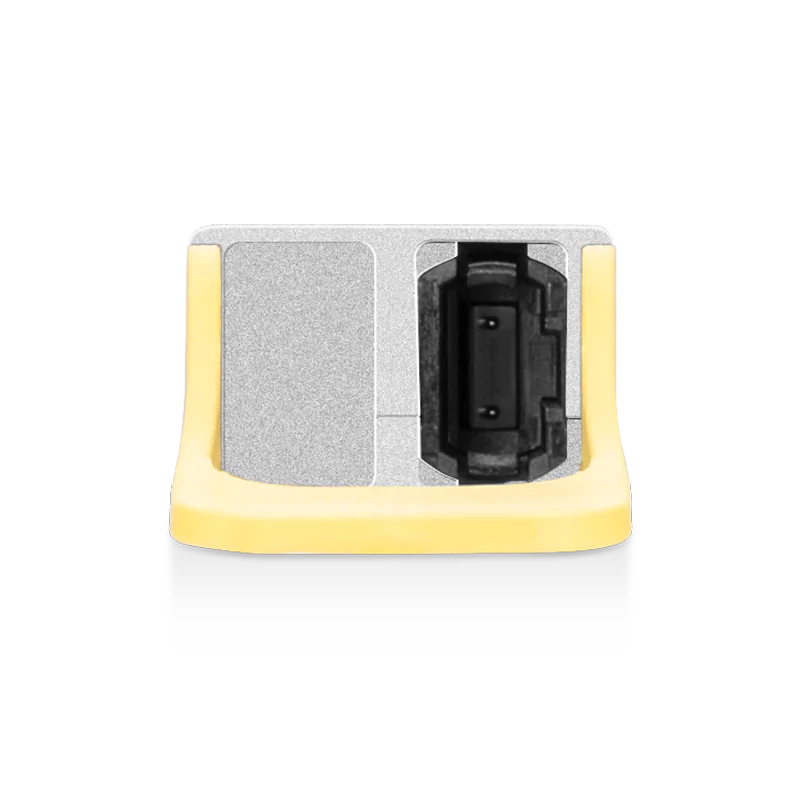

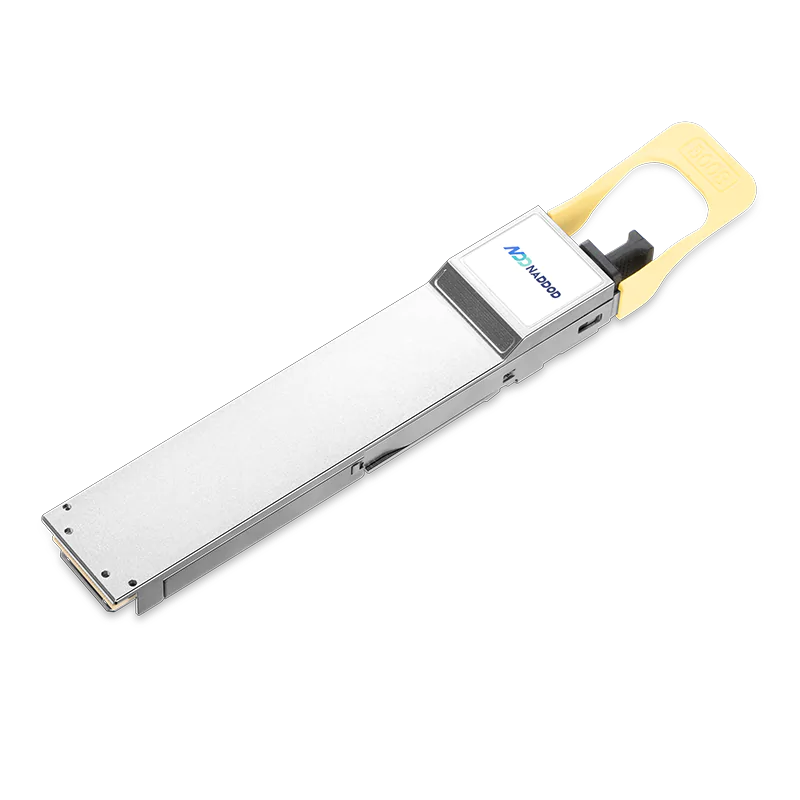

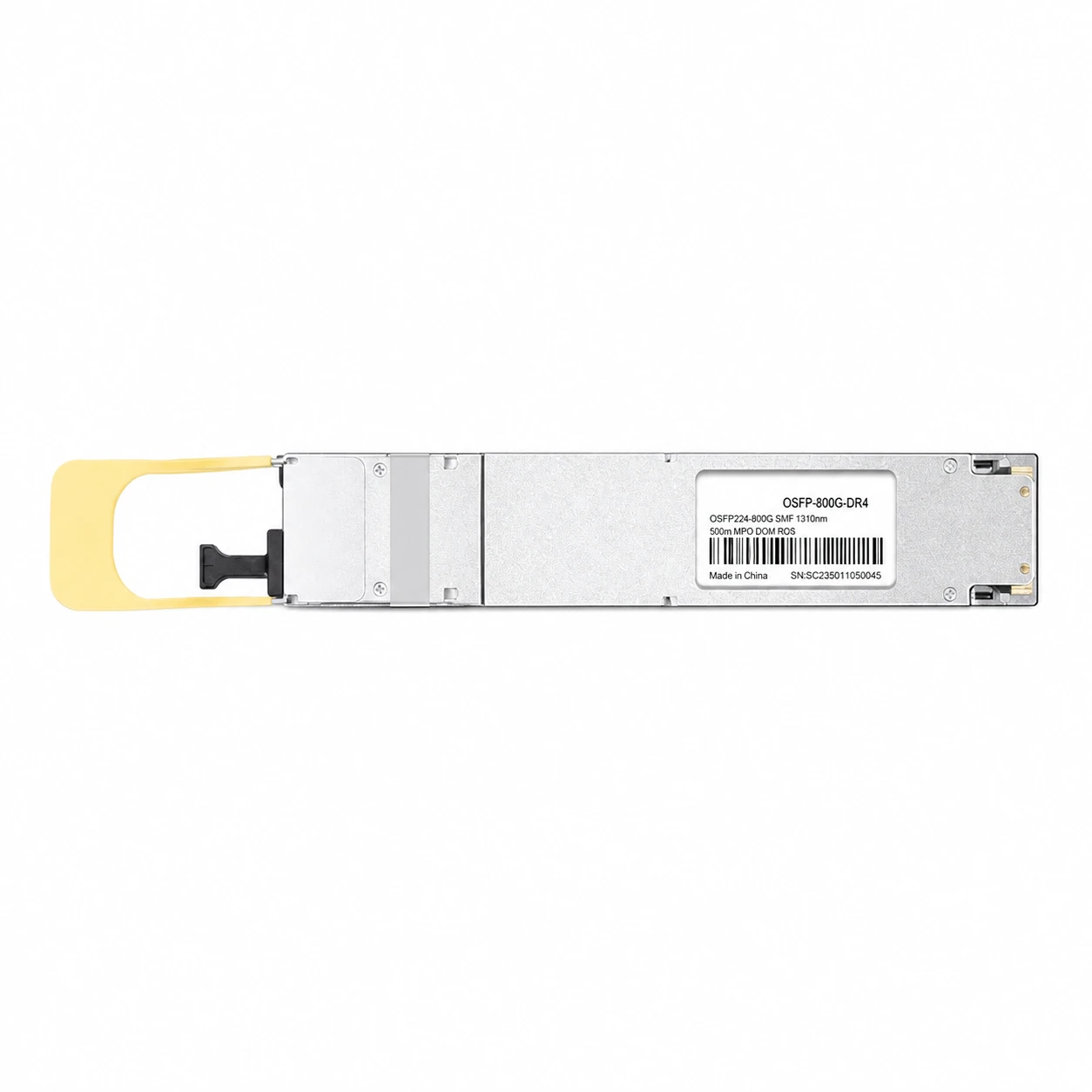

800G OSFP DR4 500m Transceiver | OSFP-800G-DR4 / 980-9IAY1-00XM00

Catalog reference: NVIDIA/Mellanox Coding Target MMS4C11-XM800 (980-9IAY1-00XM00) Compatible 800GBASE-DR4 OSFP224 RHS/Flat Top 4x200G PAM4 Broadcom 3nm DSP (Sian3| BCM83628) 1310nm 500m SMF DOM MPO-12/APC Optical Transceiver Module

The part numbers on this page identify the requested coding target. Confirm the exact host model, port and firmware for the selected SKU.

NVIDIA/Mellanox Coding Target MMS4C11-XM800 (980-9IAY1-00XM00) compatible OSFP-800G-DR4 optical transceiver is an 800 Gb/s single-mode Ethernet transceiver with a riding heat sink or flat top, supporting the 800 Gb/s protocol. It supports 500m transmission. Powered by Broadcom 3 nm DSP (Sian3: BCM83628) and self-developed silicon photonics chips, it delivers high-speed, low-latency connectivity. Designed for server-side use, it is compatible with NVIDIA ConnectX-9 (C9180) network adapters, enabling high-performance interconnects between TH6 series switches and ConnectX-9 (CX9) OSFP 800G network interface cards.

Requested part-number references

Requested coding target

NVIDIA/Mellanox

Primary reference identifier

980-9IAY1-00XM00

Part-number identifiers and aliases available for matching:

• 980-9IAY1-00XM00
• MMS4C11-XM800

Review boundary: These identifiers reproduce source catalog matching terms only; they do not establish interoperability, approval or endorsement. Confirm the exact host model, port type, firmware and test evidence before use.

Select the exact SKU

Search and select a SKU to update the exact title, description, model and option attributes before sending an RFQ.

103955 - NVIDIA/Mellanox Coding Target MMS4C11-XM800 (980-9IAY1-00XM00) Compatible 800G DR4 OSFP224 4x200G-PAM4 1310nm...103956 - Generic Compatible 800G DR4 OSFP224 4x200G-PAM4 1310nm 500m Ethernet Module Featuring Broadcom 3nm DSP (Sian3|...

SKU 103955 - Model OSFP-800G-DR4

NVIDIA/Mellanox Coding Target MMS4C11-XM800 (980-9IAY1-00XM00) Compatible 800G DR4 OSFP224 4x200G-PAM4 1310nm 500m Ethernet Module Featuring Broadcom 3nm DSP (Sian3| BCM83628) for SMF (Riding Heat Sink/Flat Top)

NVIDIA/Mellanox Coding Target MMS4C11-XM800 (980-9IAY1-00XM00) compatible OSFP-800G-DR4 optical transceiver is an 800 Gb/s single-mode Ethernet transceiver with a riding heat sink or flat top, supporting the 800 Gb/s protocol. It supports 500m transmission. Powered by Broadcom 3 nm DSP (Sian3: BCM83628) and self-developed silicon photonics chips, it delivers high-speed, low-latency connectivity. Designed for server-side use, it is compatible with NVIDIA ConnectX-9 (C9180) network adapters, enabling high-performance interconnects between TH6 series switches and ConnectX-9 (CX9) OSFP 800G network interface cards.

BrandSUNFULL

Compatible brand / platformNVIDIA/Mellanox (Ethernet)

Chip SolutionsBroadcom Sian3| BCM83628

Select compatibility target Select host brand / coding targetNVIDIA / MellanoxCiscoAristaJuniperHPEDellHuaweiH3CLenovoBroadcomIntelGeneric OEM / custom codingOther / specify in Message

Use this selection as the requested coding target. Final compatibility still requires the host model, port type and firmware version.

Product brand: SUNFULL. Third-party names identify requested compatibility or coding targets only and do not imply affiliation, endorsement or original-equipment status.
